Engine Compartment Components - Right Side

Engine Compartment Components - Right Side

Component Name Callout
Windshield Washer Fluid Level Switch 1
Headlamp Washer Fluid Pump (CE4) 2
Windshield Washer Fluid Pump 3
Fuse Block - Underhood 4
Air Quality Sensor (K14) 5
Engine Control Module (ECM) (LSA) 6

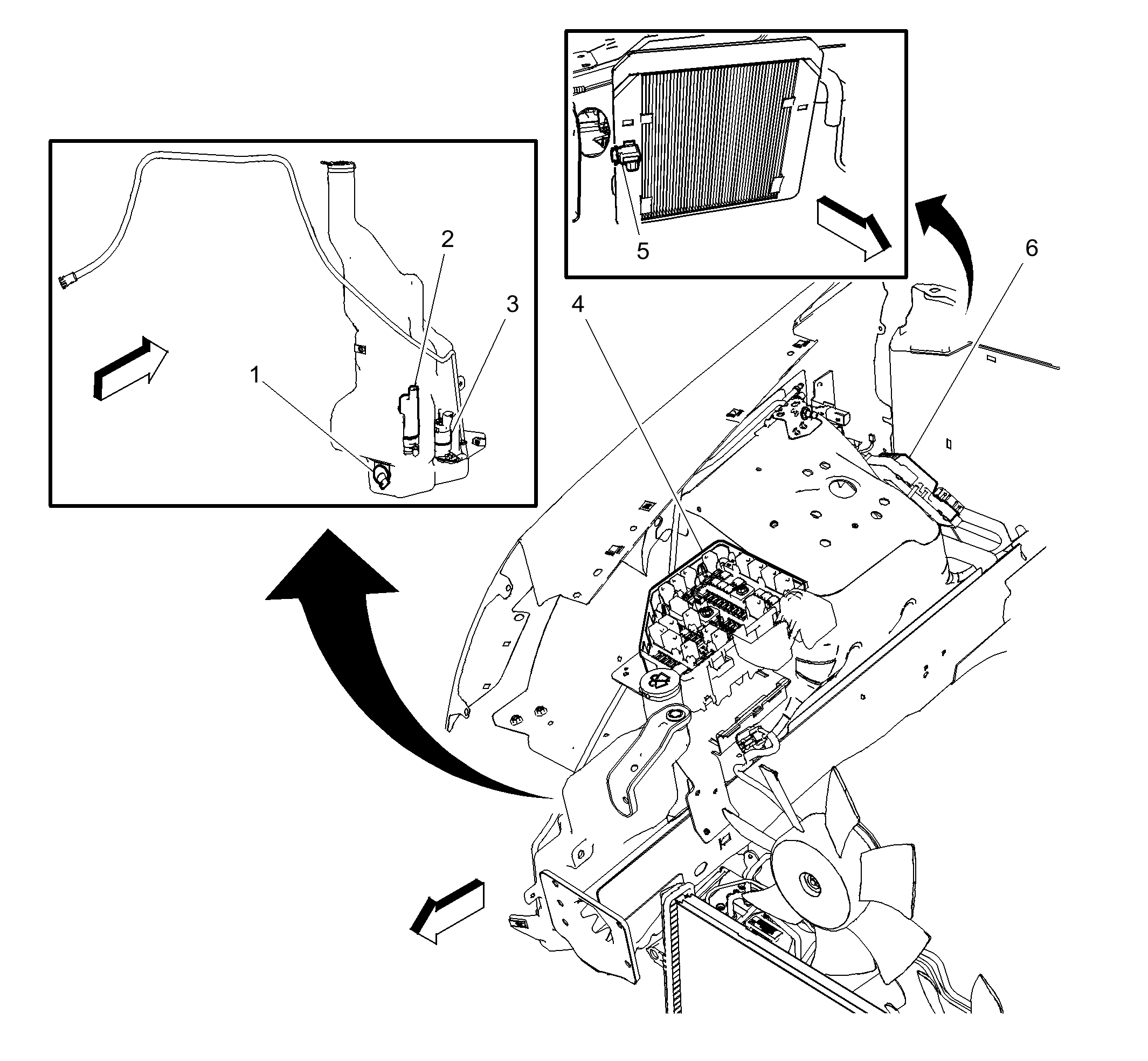

Fig 1: Engine Compartment Components - Right Side
GM2233153Courtesy of GENERAL MOTORS COMPANY
