Fuel Feed Intermediate Pipe Replacement

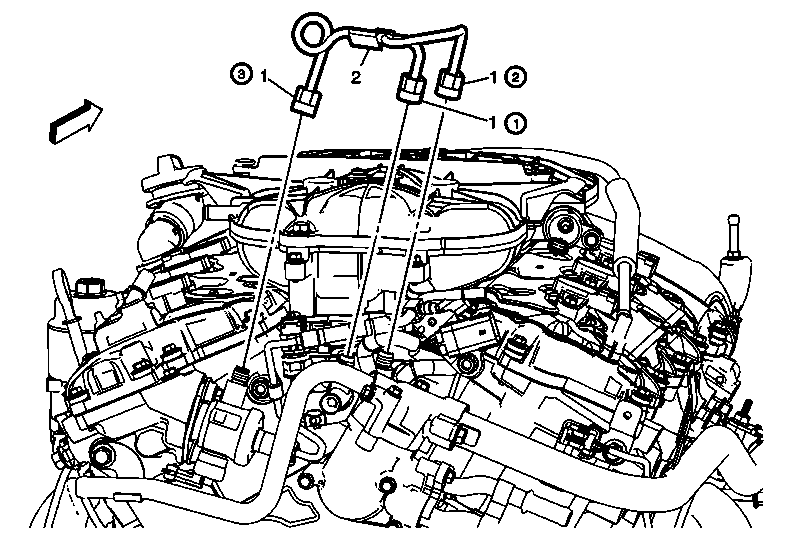

Courtesy of GENERAL MOTORS COMPANY Fuel Feed Intermediate Pipe Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
- Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
.
- Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement .
|
| 1 |
Fuel Feed Intermediate Pipe Fitting (Qty: 3)
Tighten
- Tighten the fittings in sequence as numbered: 1, 2, 3
- First Pass 16 N.m (12 lb ft)
- Second Pass 32 N.m (24 lb ft)
|
| 2 |
Fuel Feed Intermediate Pipe Procedure
- Discard the pipe when removed and install a NEW pipe.
- Lubricate the pipes with silicon free engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers
.
- Pressure up the fuel system and check for leaks.
|
