Crankshaft Position Sensor Replacement

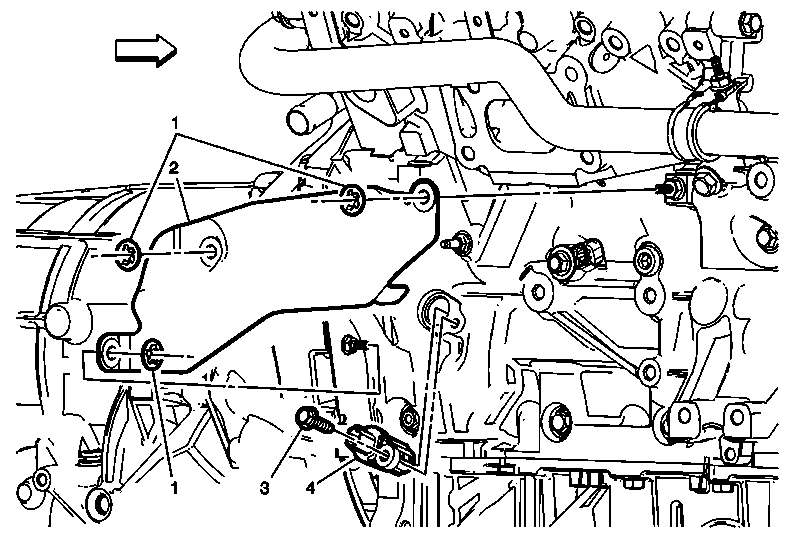

Fig 1: Crankshaft Position Sensor, Heat Shield & Retainers

Courtesy of GENERAL MOTORS COMPANY

Crankshaft Position Sensor Replacement

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Heat Shield Retainer (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Heat Shield
3	Crankshaft Position Sensor Bolt Tighten  10 N.m (89 lb in)
4	Crankshaft Position Sensor Procedure  Disconnect the crankshaft position sensor electrical connector.
