Installation Procedure

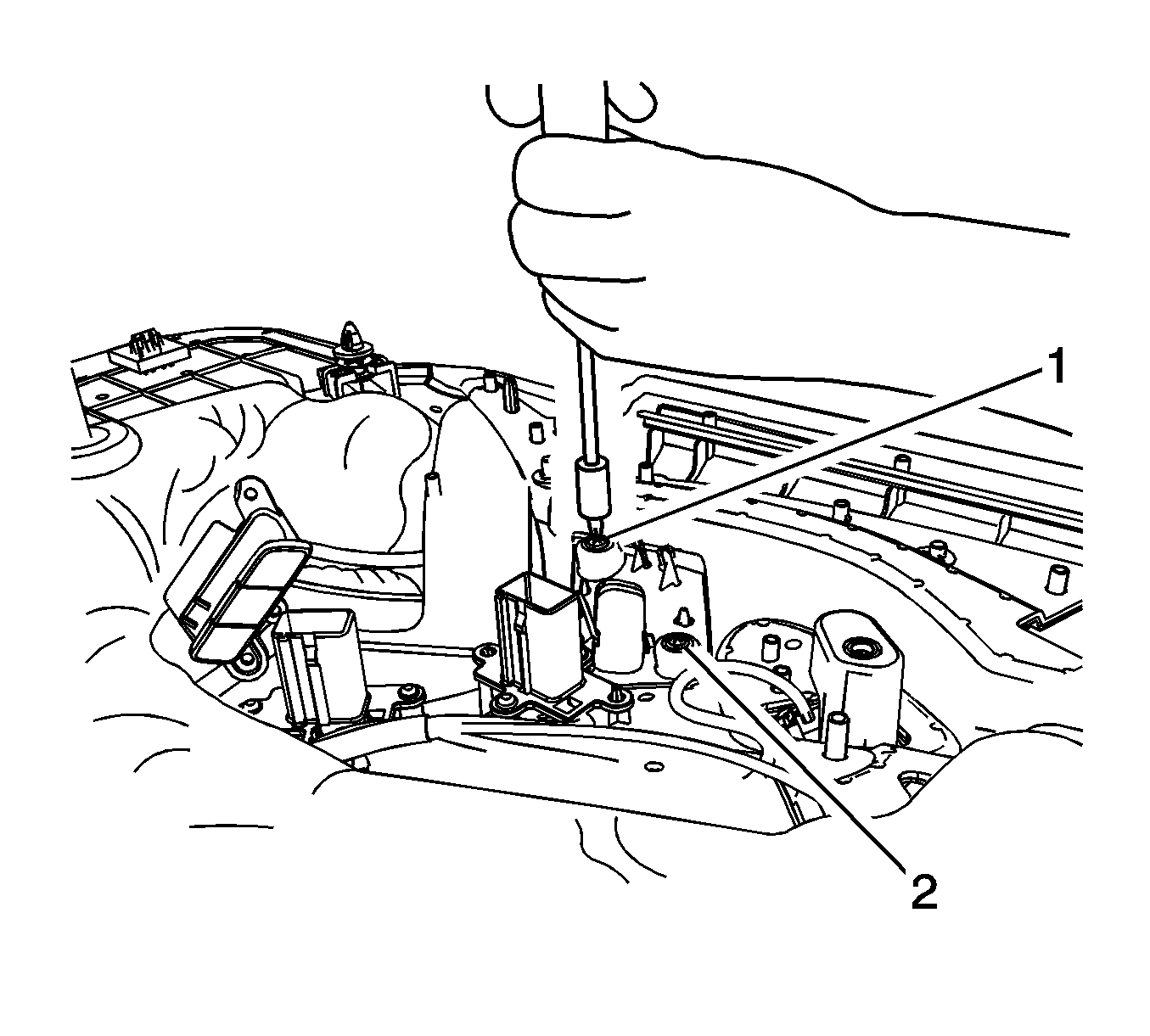

    Fig 1: Driver Seat Adjuster Memory Switch Escutcheon Screws
    GM2859045Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Position the new escutcheon to the trim panel and install the screws (1,2). Tighten the screws to 2 (18 lb in).

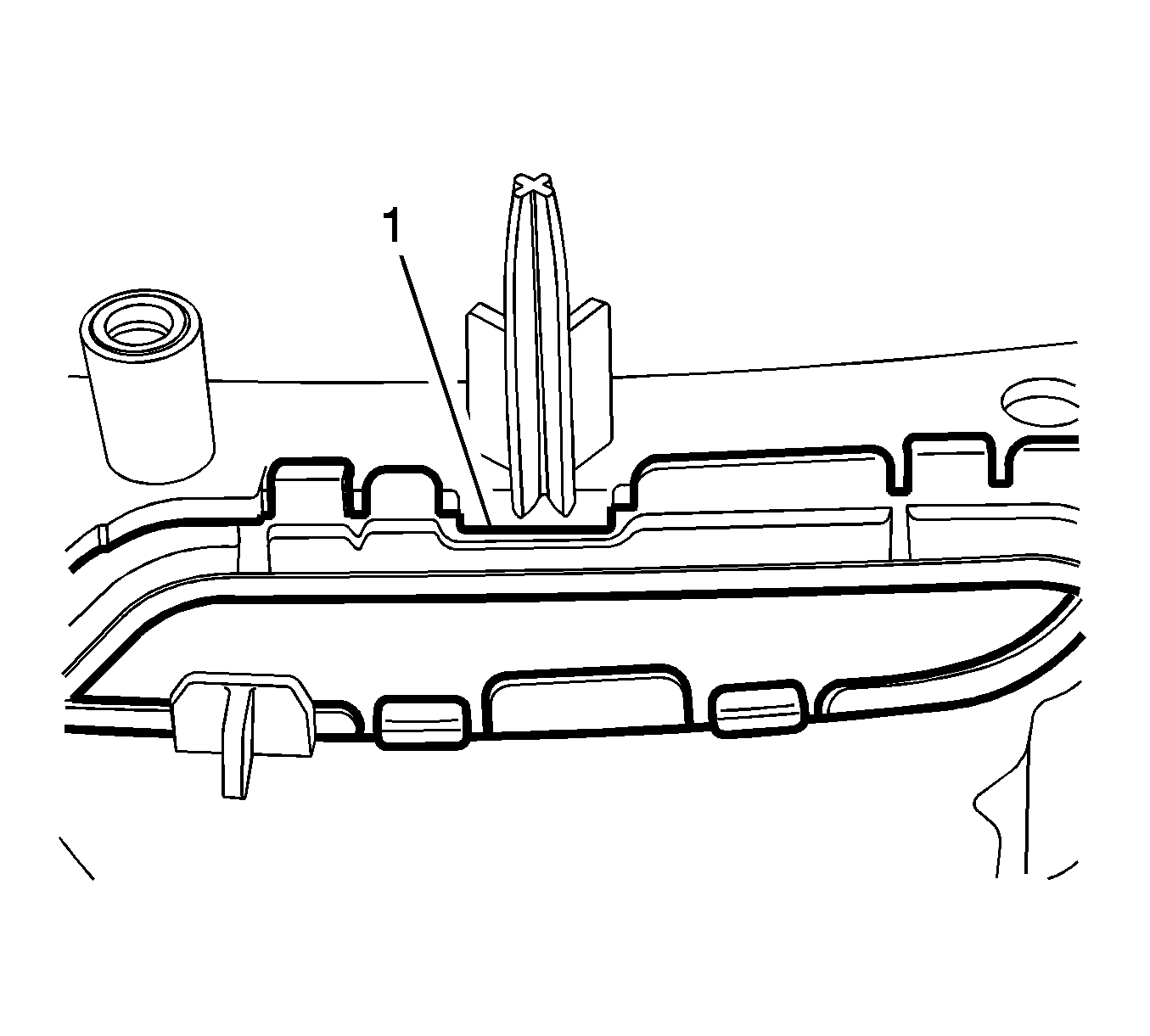

    2. Fig 2: One-Way Locating Feature
    GM2859049Courtesy of GENERAL MOTORS COMPANY
  2. Ensure the switch bezel is installed with the one-way locating feature (1) positioned as shown.

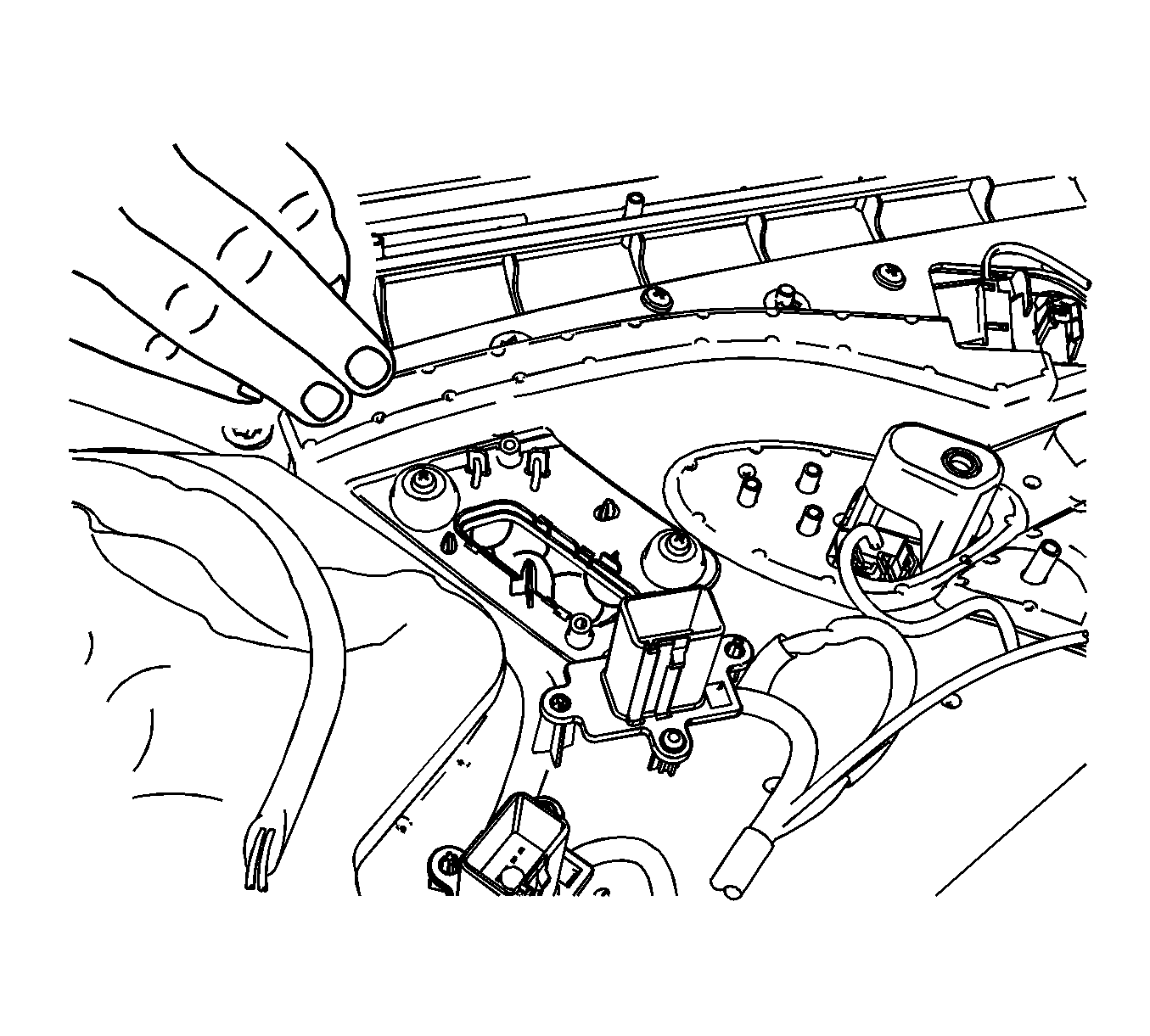

    3. Fig 3: Bezel Installation
    GM2859051Courtesy of GENERAL MOTORS COMPANY
  3. Install bezel by pushing it onto the escutcheon from the front side of the trim panel.

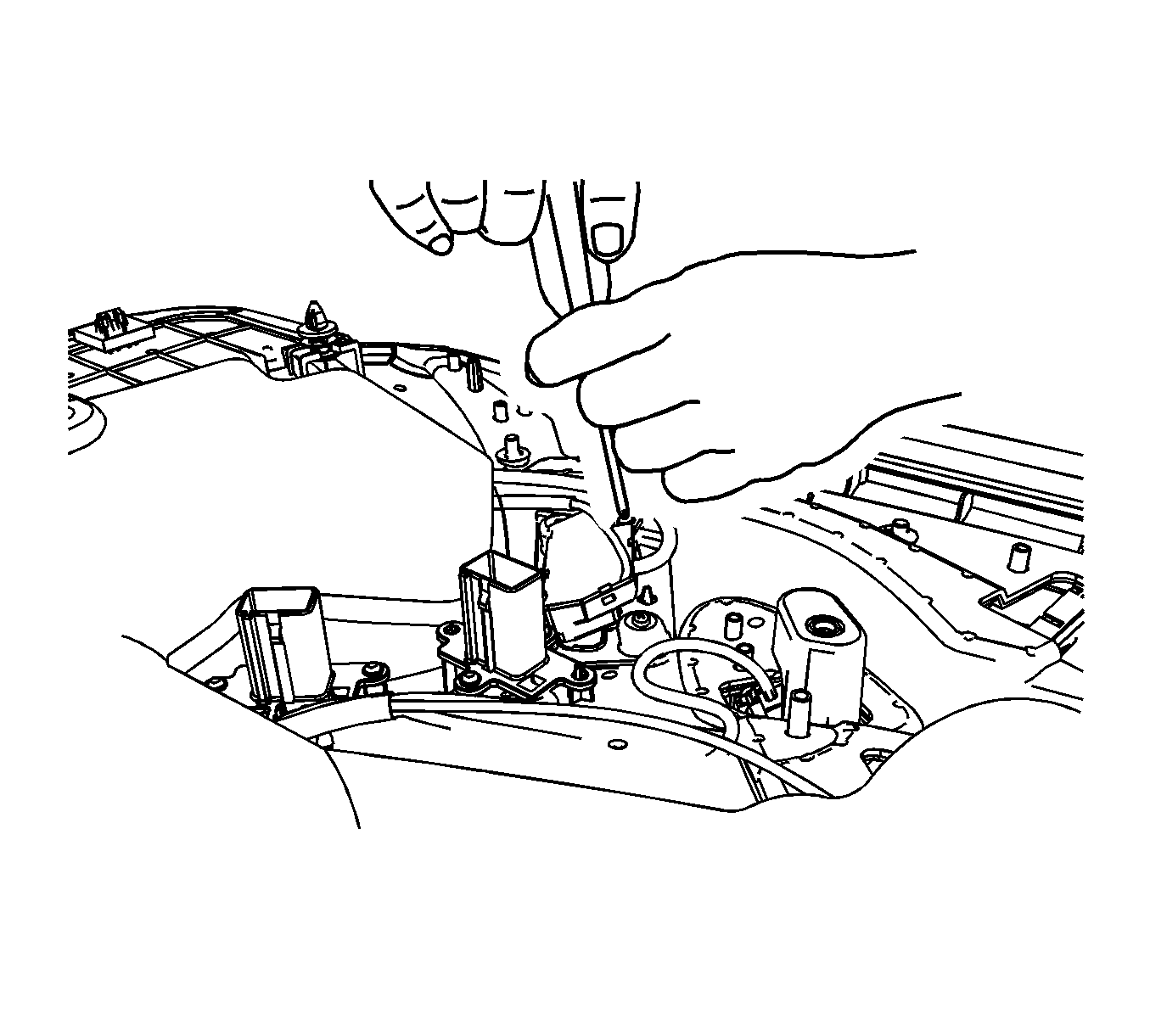

    4. Fig 4: Testing Push/Return Action
    GM2859053Courtesy of GENERAL MOTORS COMPANY
  4. Ensure that the switch is centered in the opening of the bezel, and test the push/return action of the buttons prior to installing the trim panel.
    5. Fig 5: Driver Seat Adjuster Memory Switch & Screws
    GM1971228Courtesy of GENERAL MOTORS COMPANY
  5. Install the memory switch and 2 screws (1) that secure the memory switch to the escutcheon. Tighten the screws to 2 (18 lb in).
  6. Install the driver door panel trim. Refer to Front Side Door Trim Panel Replacement (Coupe) , Front Side Door Trim Panel Replacement (Sedan, Wagon) .
