Cadillac
>>
2012
>>
CTS Base, 2D Coupe, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Door Lock System And Release Systems
>>
Wiring Schematics
>>
Door Control Module Wiring Schematics
>>
Driver Door Module (1 of 2)
Driver Door Module (1 of 2)

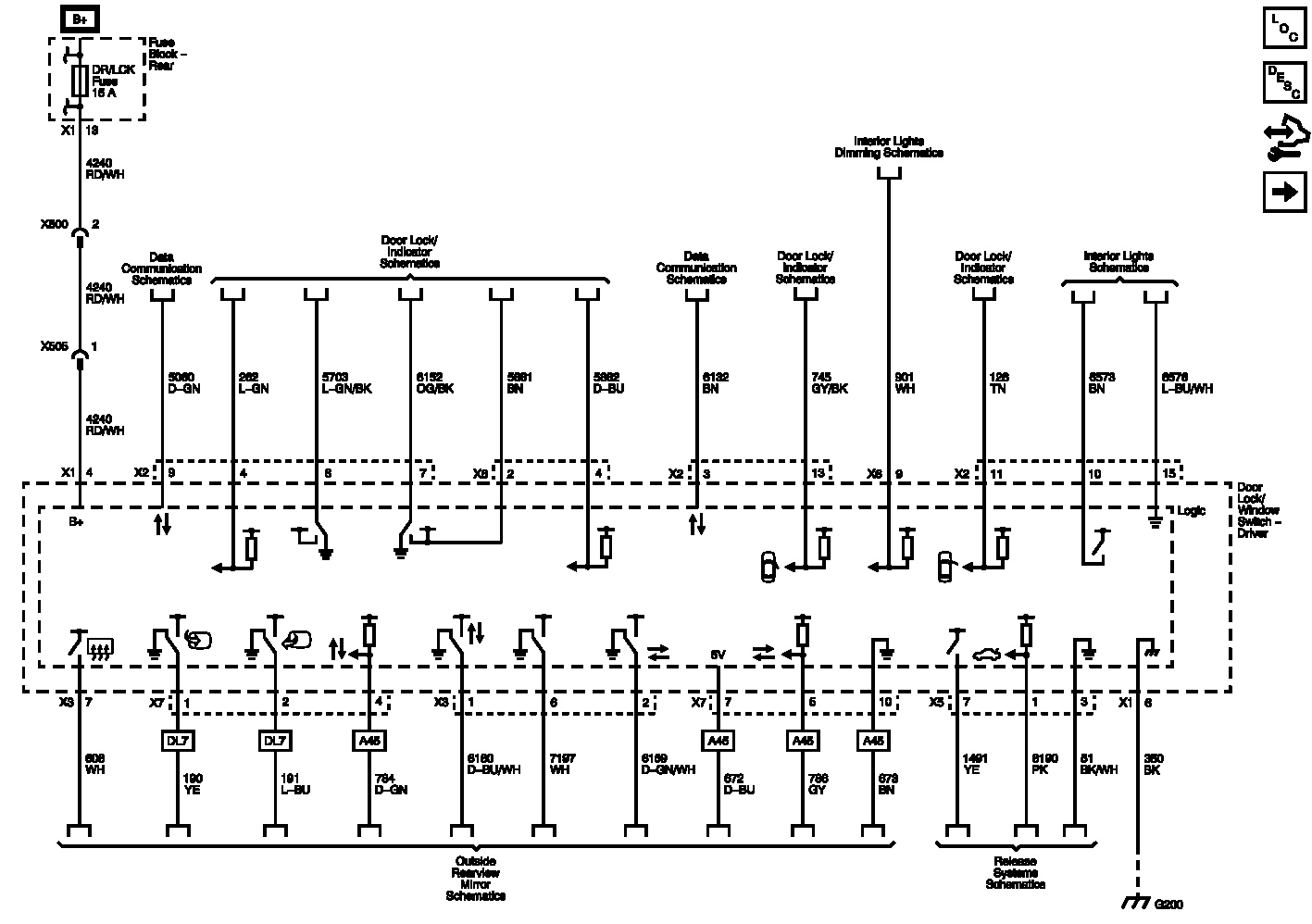

Fig 1: Driver Door Module Wiring Schematic (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
