Battery Replacement (Top Post)

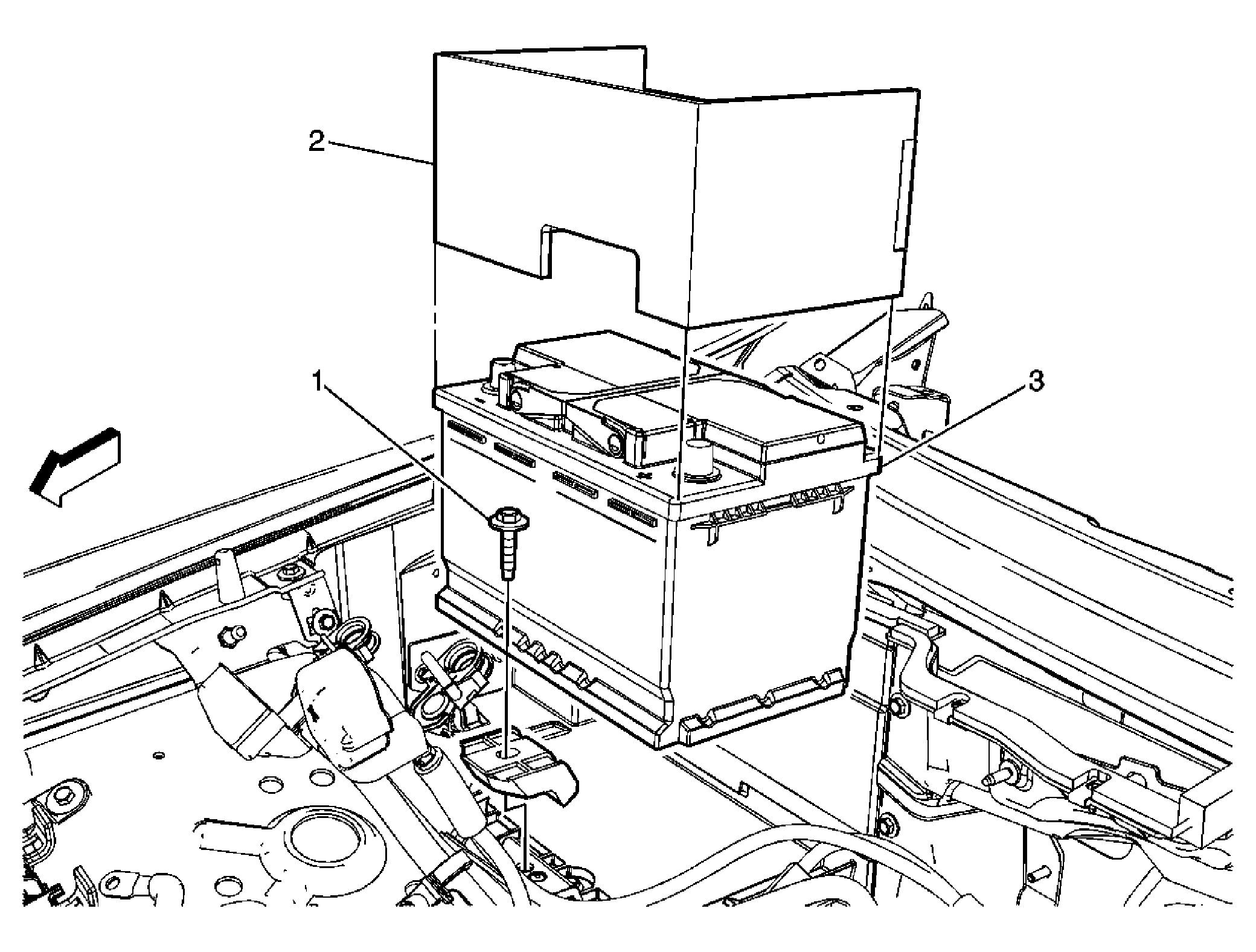

Fig 1: Battery Replacement (LHD Top Post)
GM2001393Courtesy of GENERAL MOTORS COMPANY
Battery Replacement (Top Post)

Callout Component Name

Premliminary Procedure

  1. Disconnect the negitive battery cable. Refer to Battery Negative Cable Disconnection and Connection (With Side Post) , Battery Negative Cable Disconnection and Connection (With Top Post) .
  2. Disconnect the positive battery cable. Refer to Battery Positive Cable Replacement (LLT With Top Post) , Battery Positive Cable Replacement (LLT With Side Post) .
1 Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
17 N.m (13 lb ft)
2 Insulator
3 Battery
