Engine Lower Front Splash Shield Replacement
Engine Lower Front Splash Shield Replacement

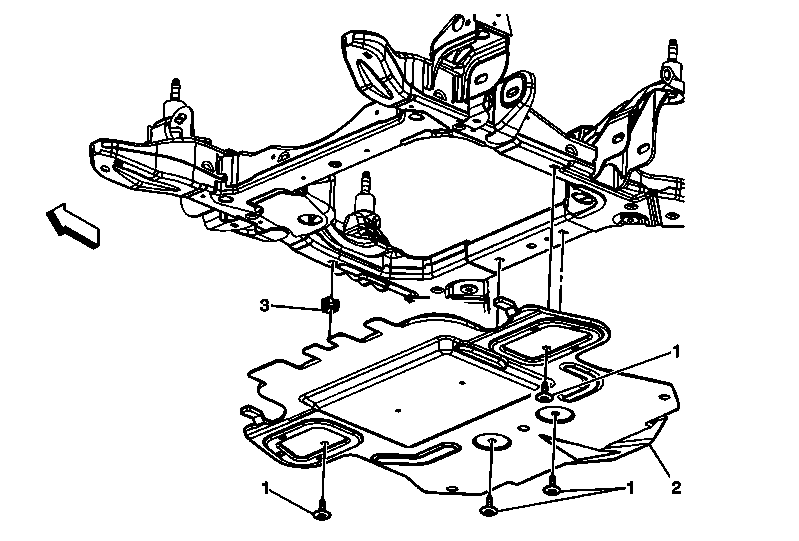

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Compartment Lower Noise Shield Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Front Compartment Lower Noise Shield |
| 3 | Front Compartment Lower Noise Shield Nut (Qty: 4) |
