Rear Park Assist

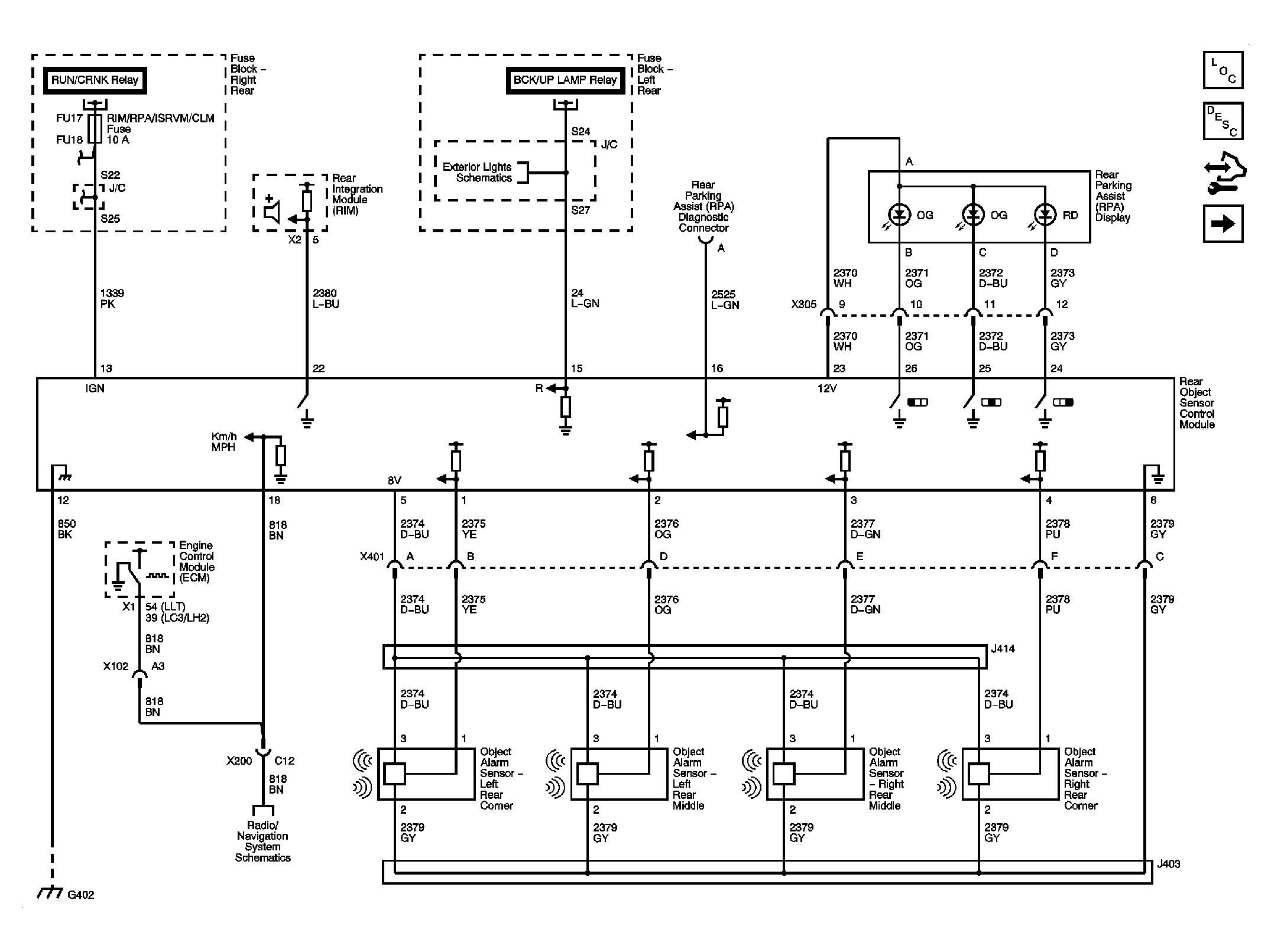

Fig 1: Rear Park Assist Wiring Schematic

GM2411238

Courtesy of GENERAL MOTORS COMPANY
