Turbocharger Pressure Sensor Replacement

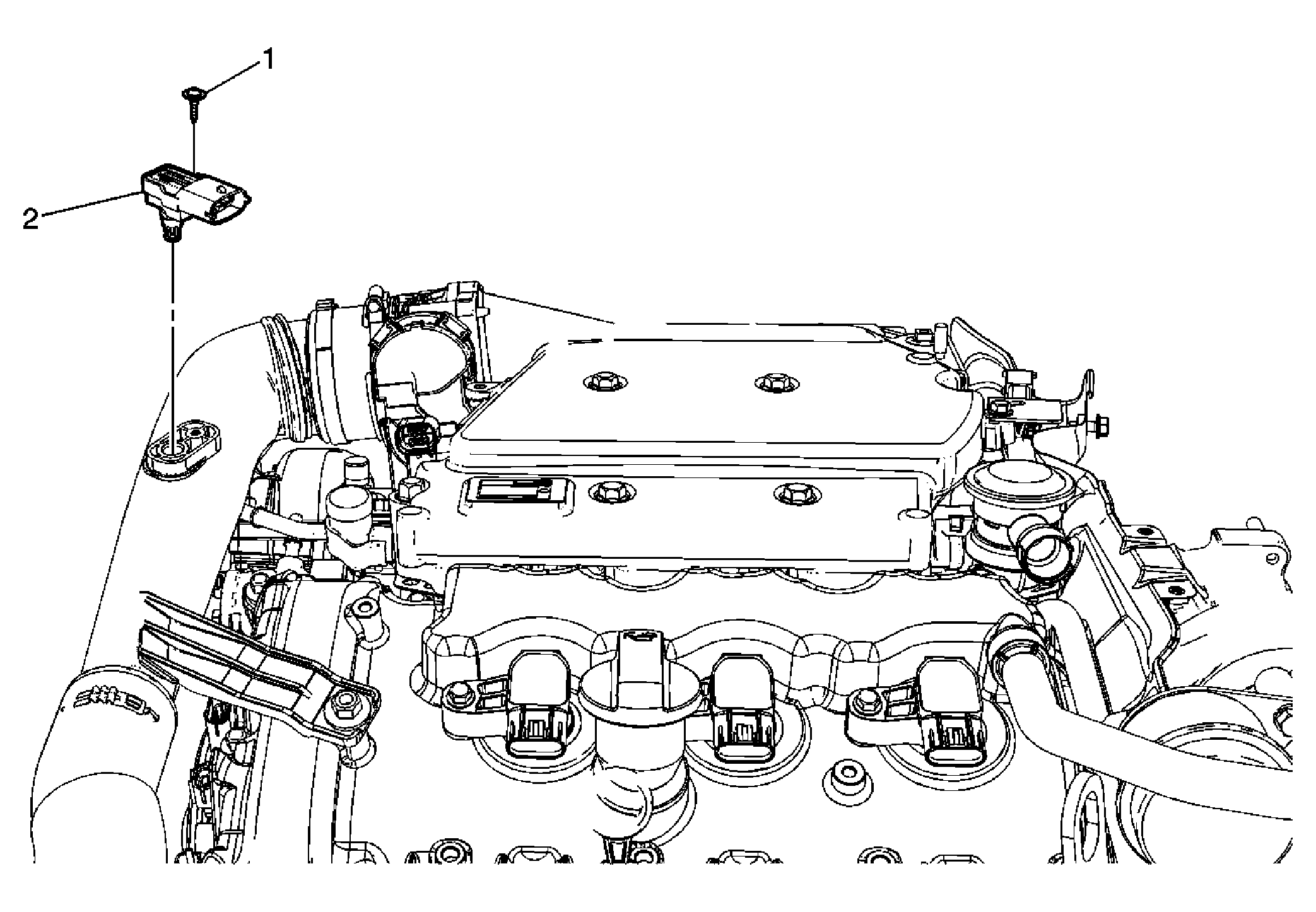

Fig 1: Identifying Turbocharger Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Turbo Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten:  4 N.m (35 lb in)
2	Turbo Pressure Sensor Procedure:  Disconnect the electrical connector.
