Module Power, Ground, Serial Data, and Memory Switch

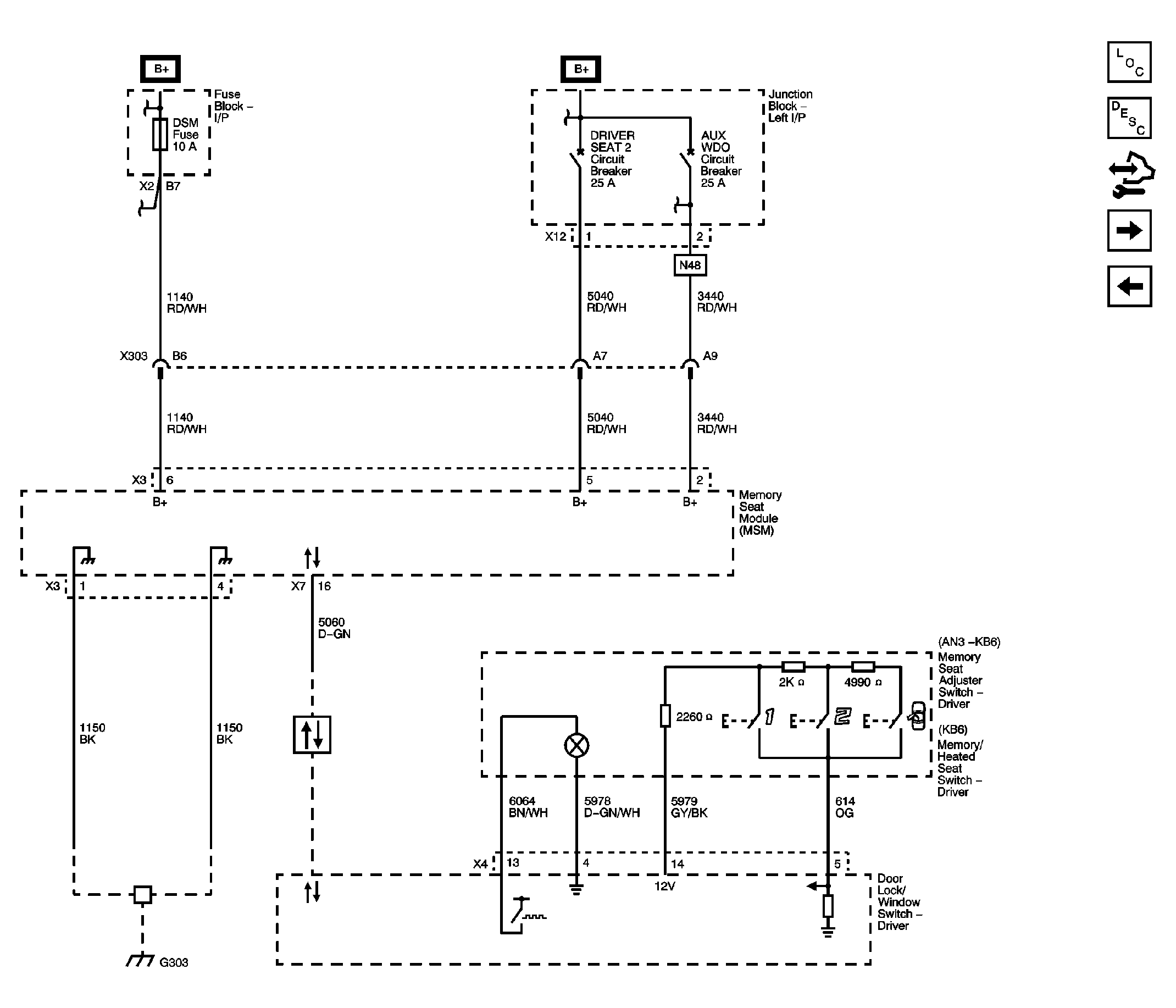

Fig 1: Module Power, Ground, Serial Data And Memory Switch Wiring Schematic

GM2399218

Courtesy of GENERAL MOTORS CORP.
