Defogger Wiring Schematics: Defogger

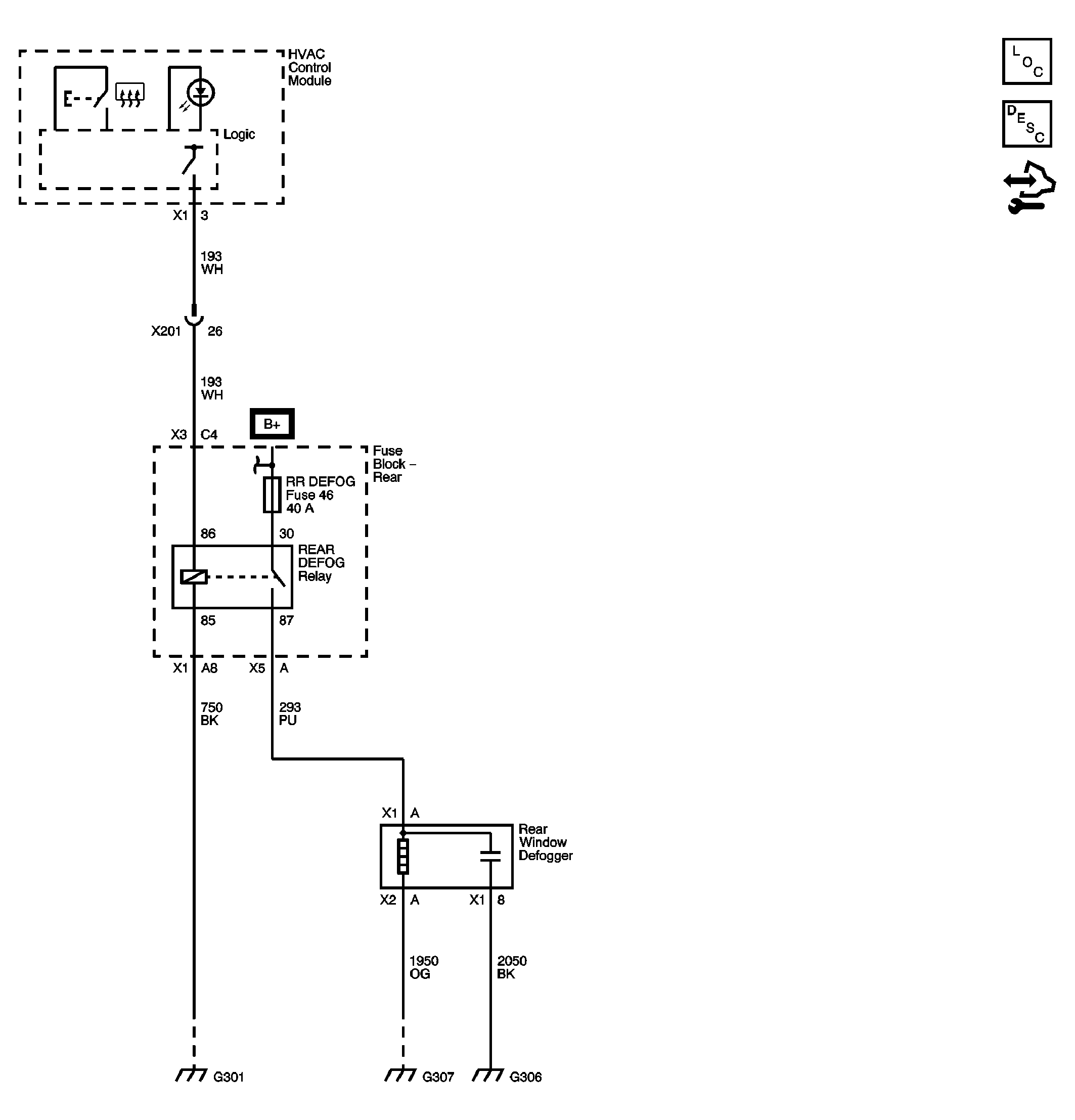

Fig 1: Defogger Wiring Schematic

GM2397690

Courtesy of GENERAL MOTORS COMPANY
