DTS 4.6 6
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communication Wiring Schematics
>>
Power, Ground and Low Speed GMLAN
Power, Ground and Low Speed GMLAN

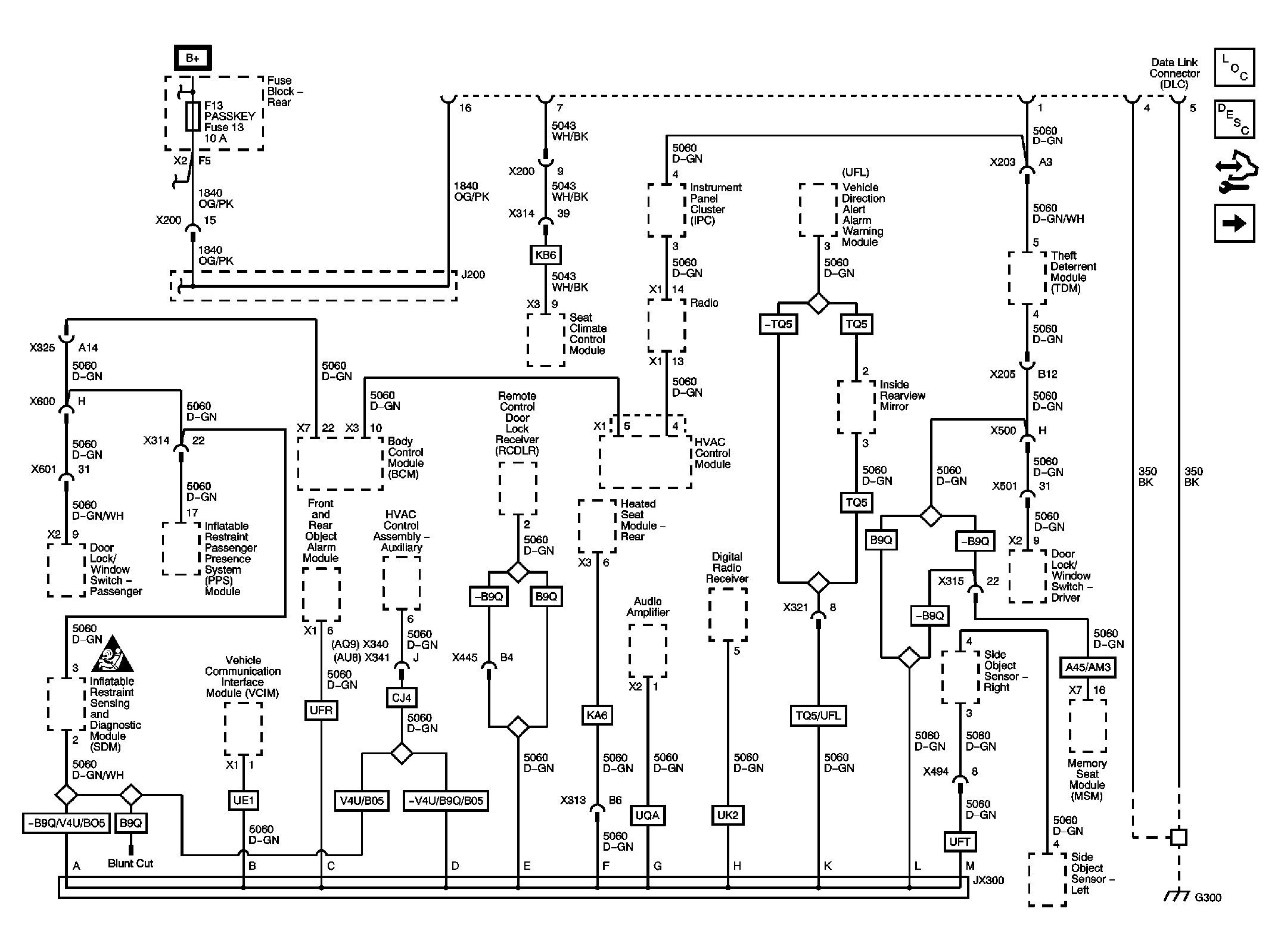

Fig 1: Power, Ground and Low Speed GMLAN Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
