A/C Compressor Clutch Connector End View

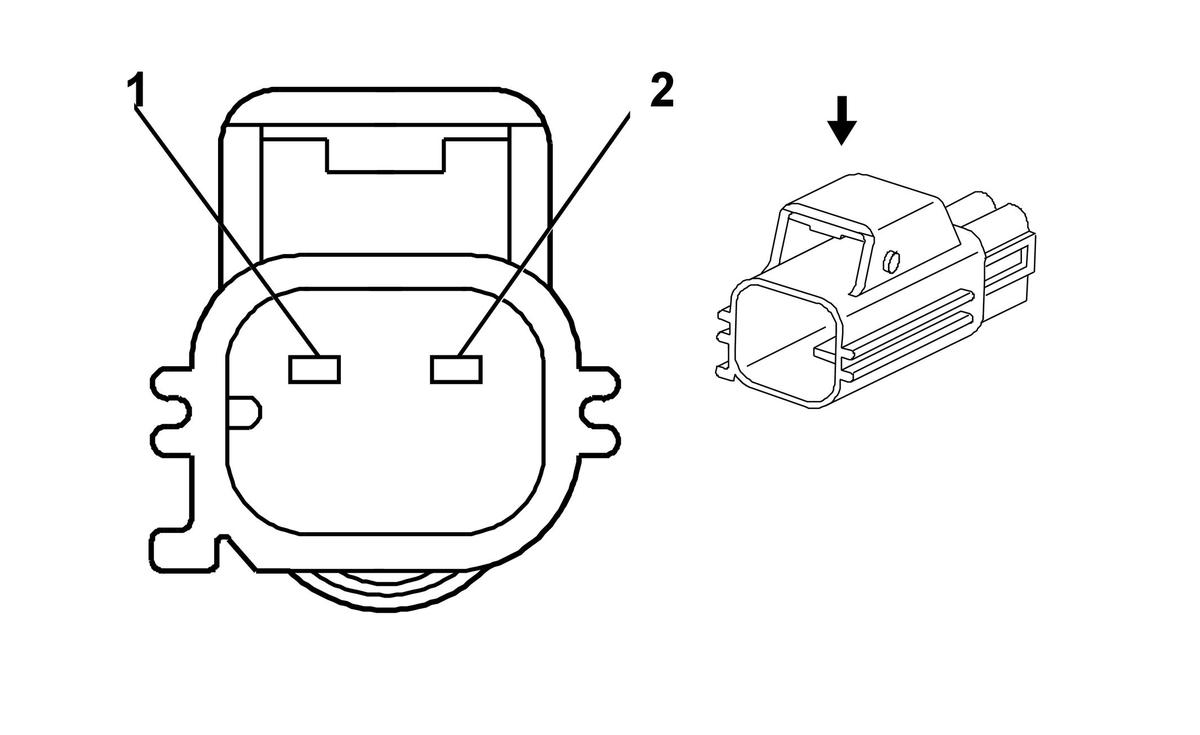

Fig 1: A/C Compressor Clutch Connector End View

GM897985

Courtesy of GENERAL MOTORS CORP.

A/C Compressor Clutch

Pin	Wire	Circuit	Function
1	0.5 D-GN	59	A/C Compressor Clutch Supply Voltage
2	0.5 BK	1550	Ground

Connector Part Information

Harness Type: Engine
OEM Connector: 7282-5548-30
Service Connector: Pending
Description: 2-Way M YESC Weather Pack Series (BK)

Terminal Part Information

Terminated Lead: Pending
Release Tool: No Tool Reqd
Diagnostic Test Probe: No Tool Reqd
Terminal/Tray: 7158-3031-90/13
Core/Insulation Crimp: Not Available
