Throttle Inlet Absolute Pressure Sensor Replacement

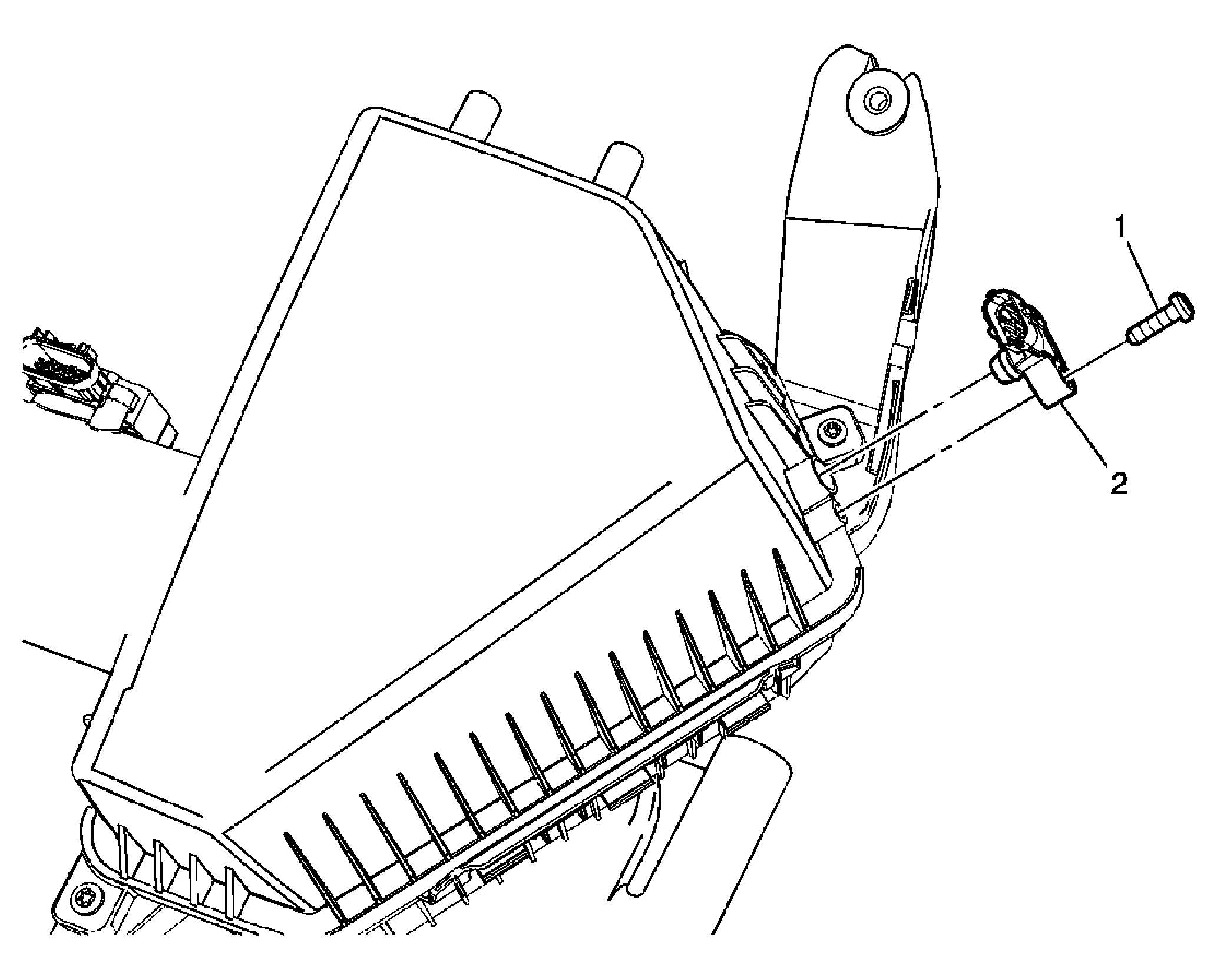

Fig 1: Throttle Inlet Absolute Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Inlet Absolute Pressure Sensor Fastener CAUTION: Refer to. Tighten:  3 N.m (27 lb in)
2	Throttle Inlet Absolute Pressure Sensor Procedure:  Disconnect the electrical connector.
