Door Control Module Wiring Schematics

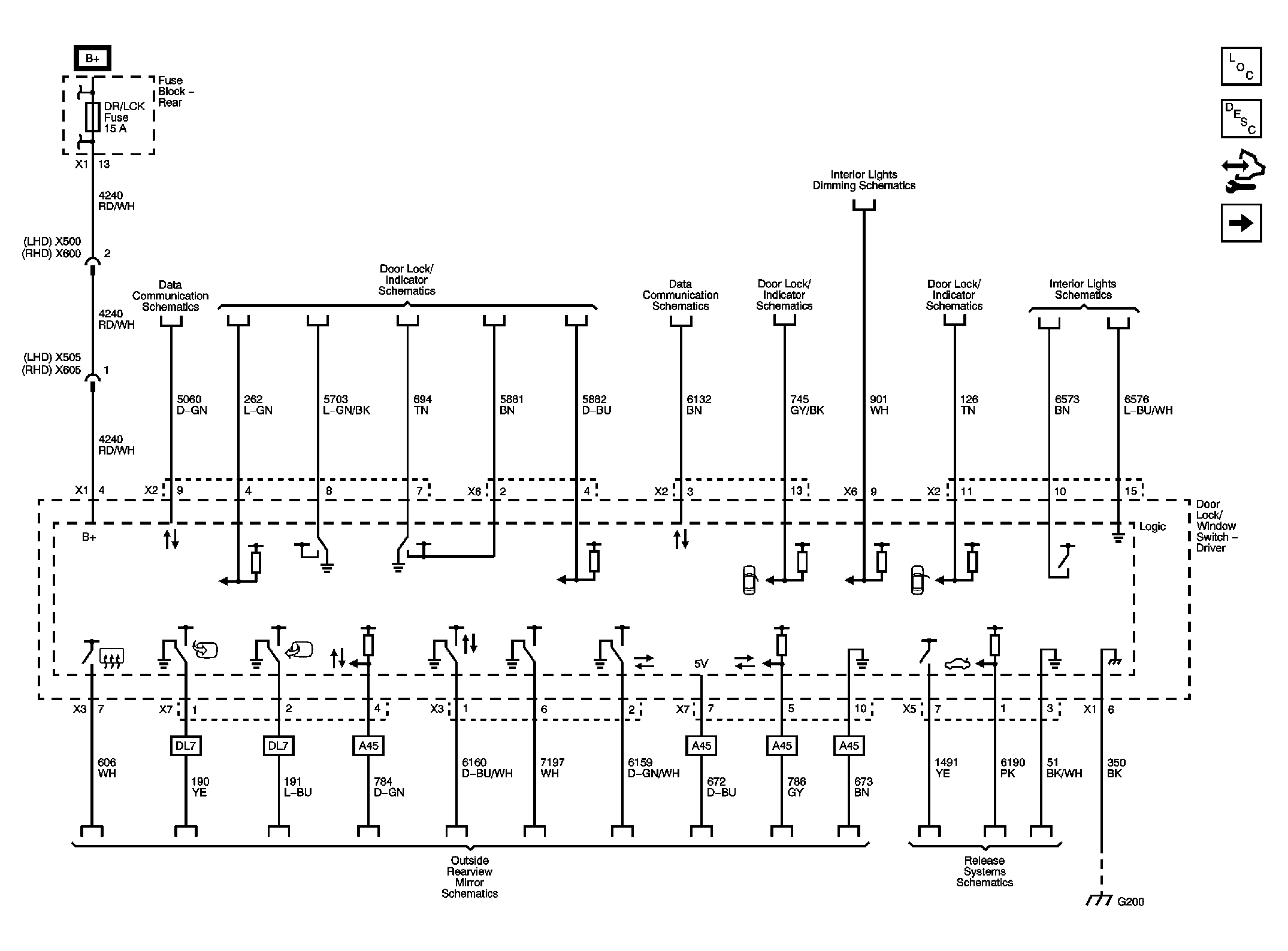

Fig 1: Driver Door Module Wiring Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

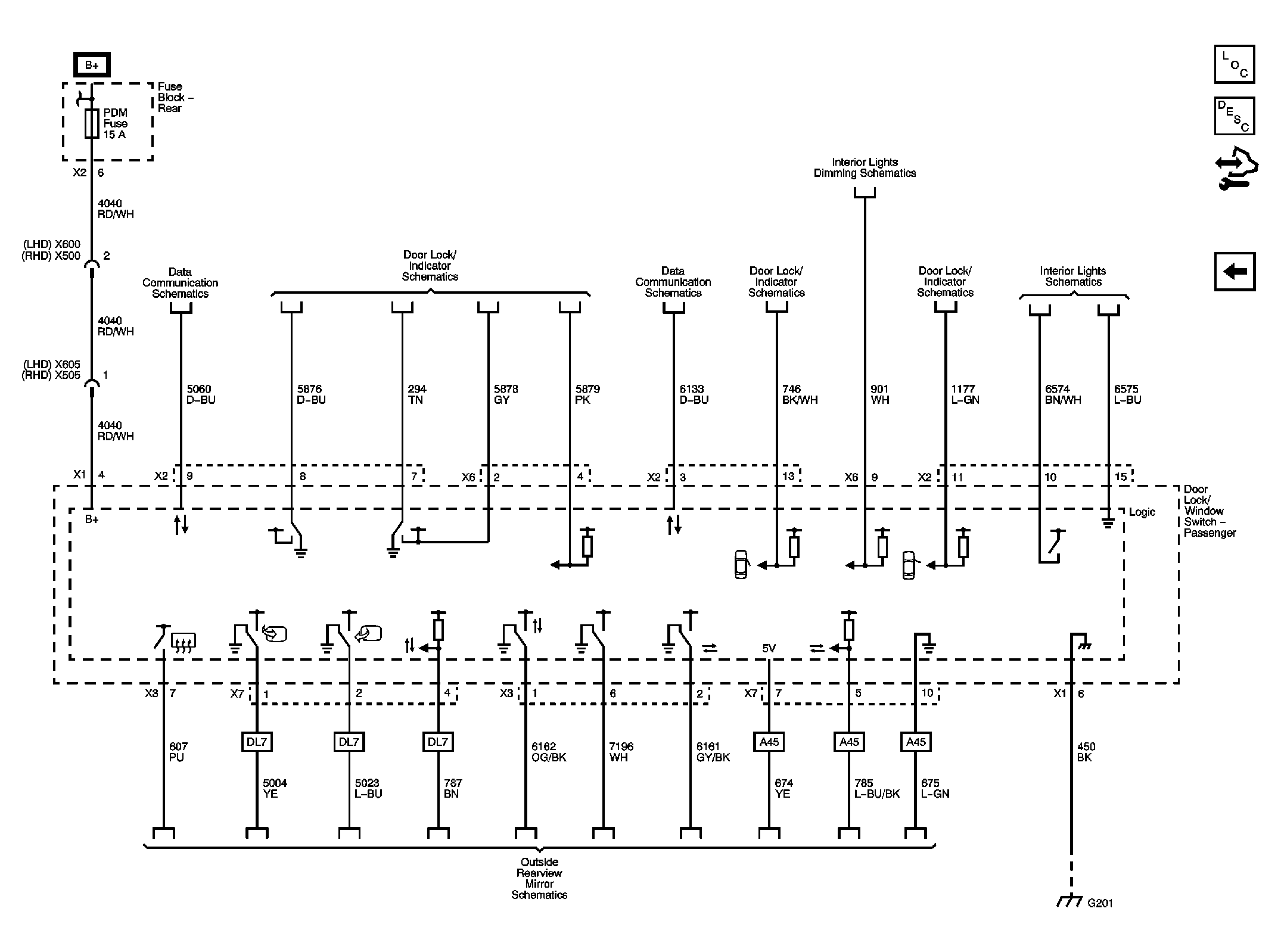

Fig 2: Driver Door Module Wiring Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Front Passenger Door Module Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
