Object Detection Wiring Schematics

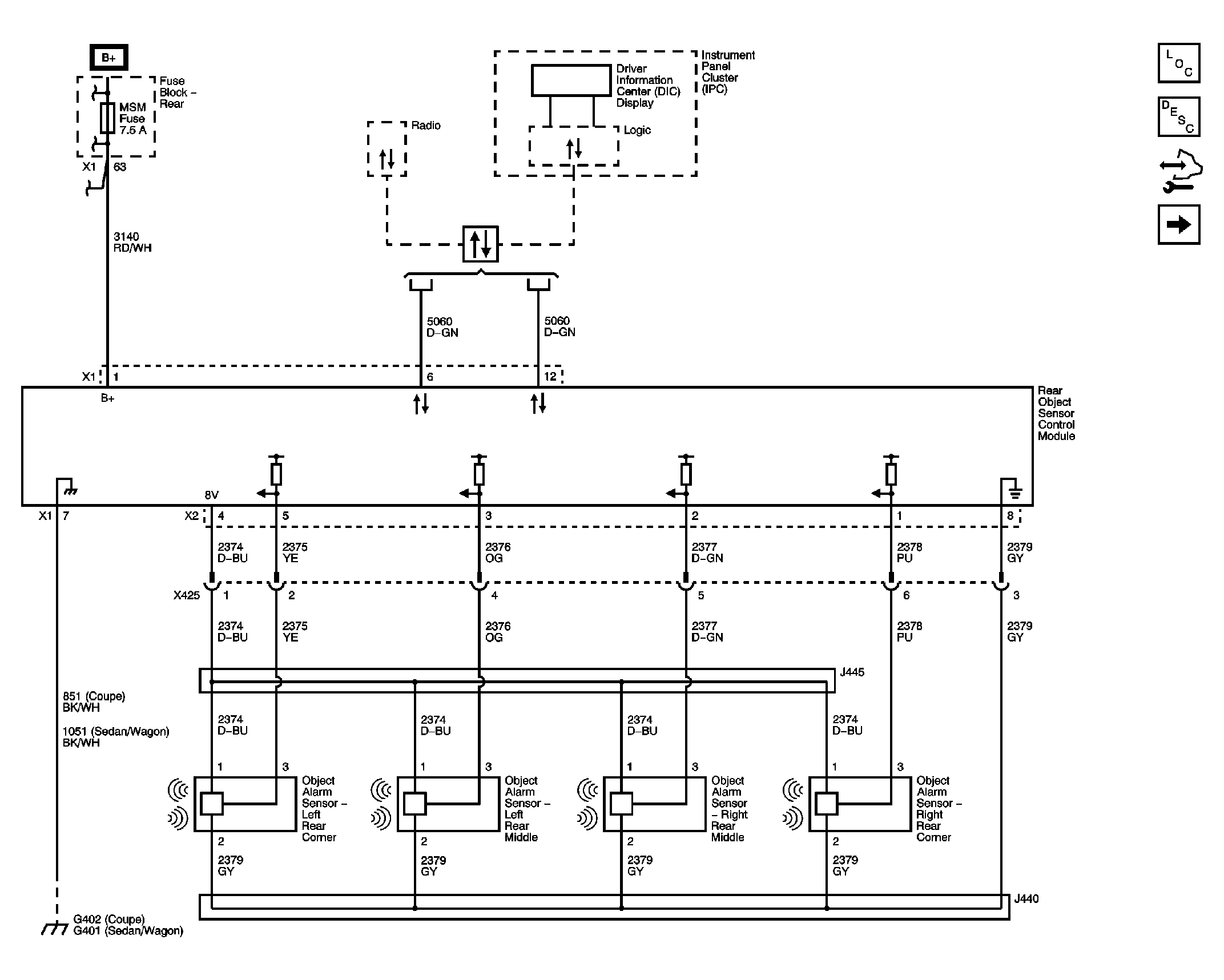

Fig 1: Rear Park Assist Wiring Schematic (UD7)
GM2387289Courtesy of GENERAL MOTORS CORP.

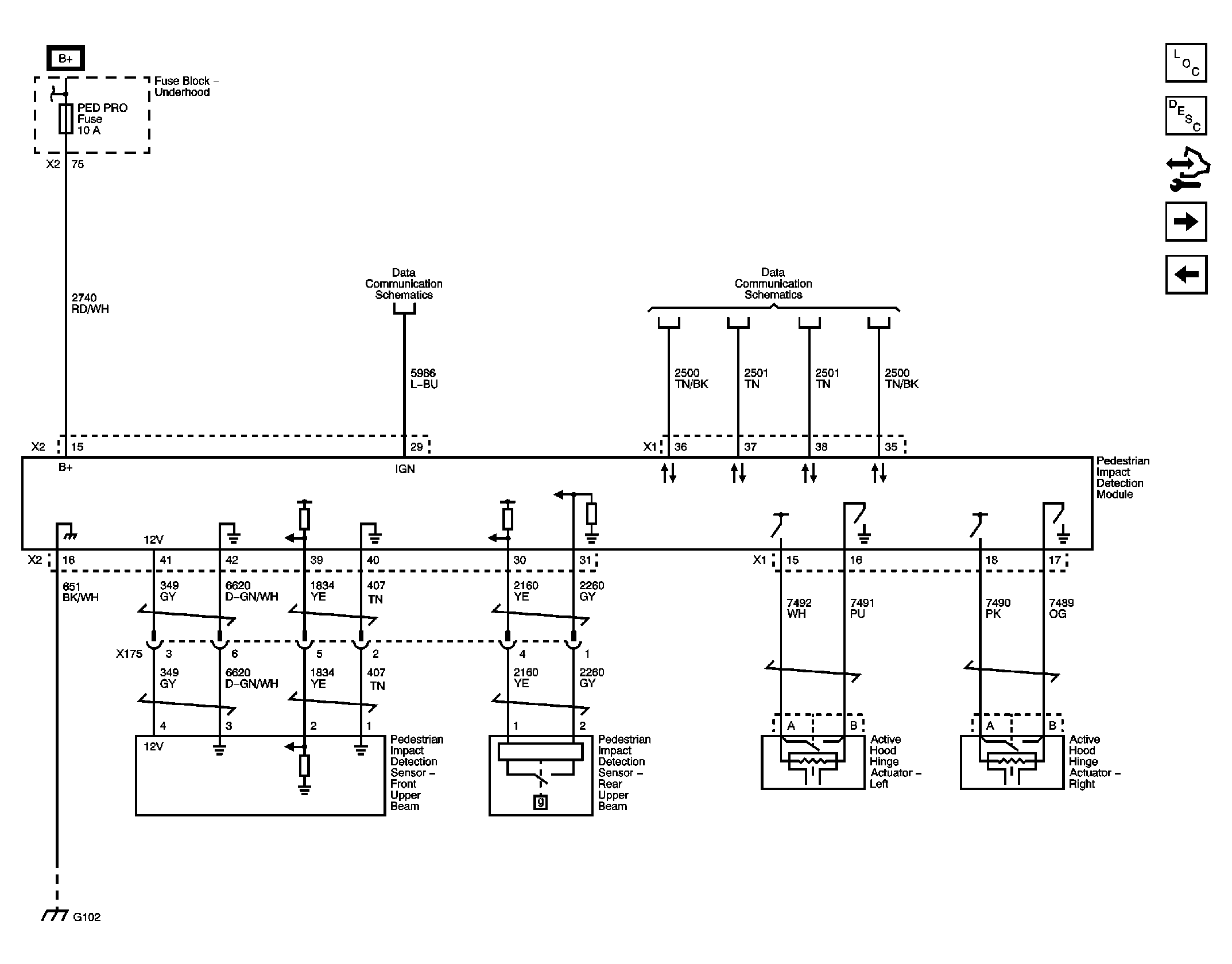

Fig 2: Pedestrian Impact Detection System Wiring Schematic (B3T)
GM2387290Courtesy of GENERAL MOTORS CORP.

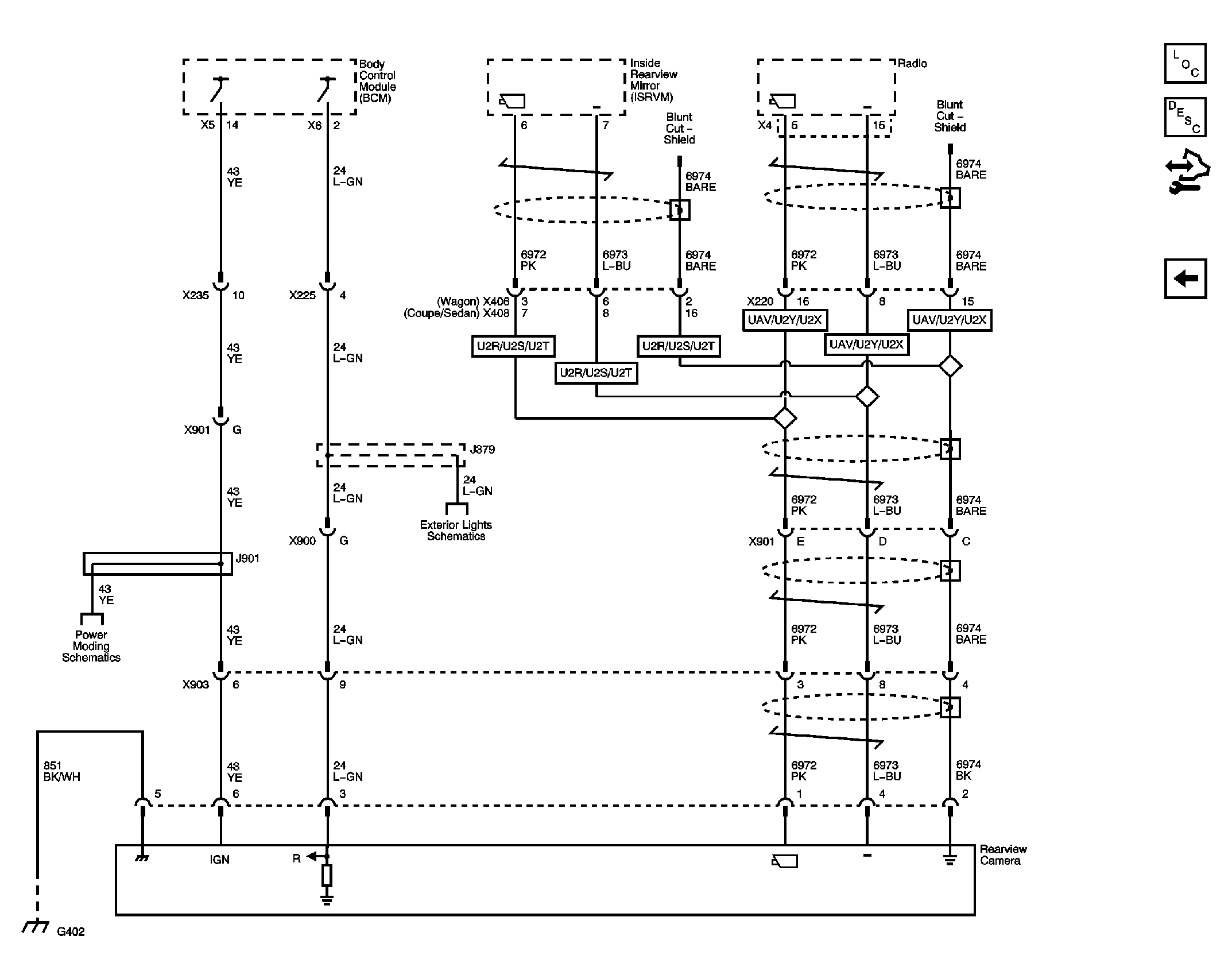

Fig 3: Rearview Camera Wiring Schematic (UVC)
GM2387291Courtesy of GENERAL MOTORS CORP.
