Removal Procedure

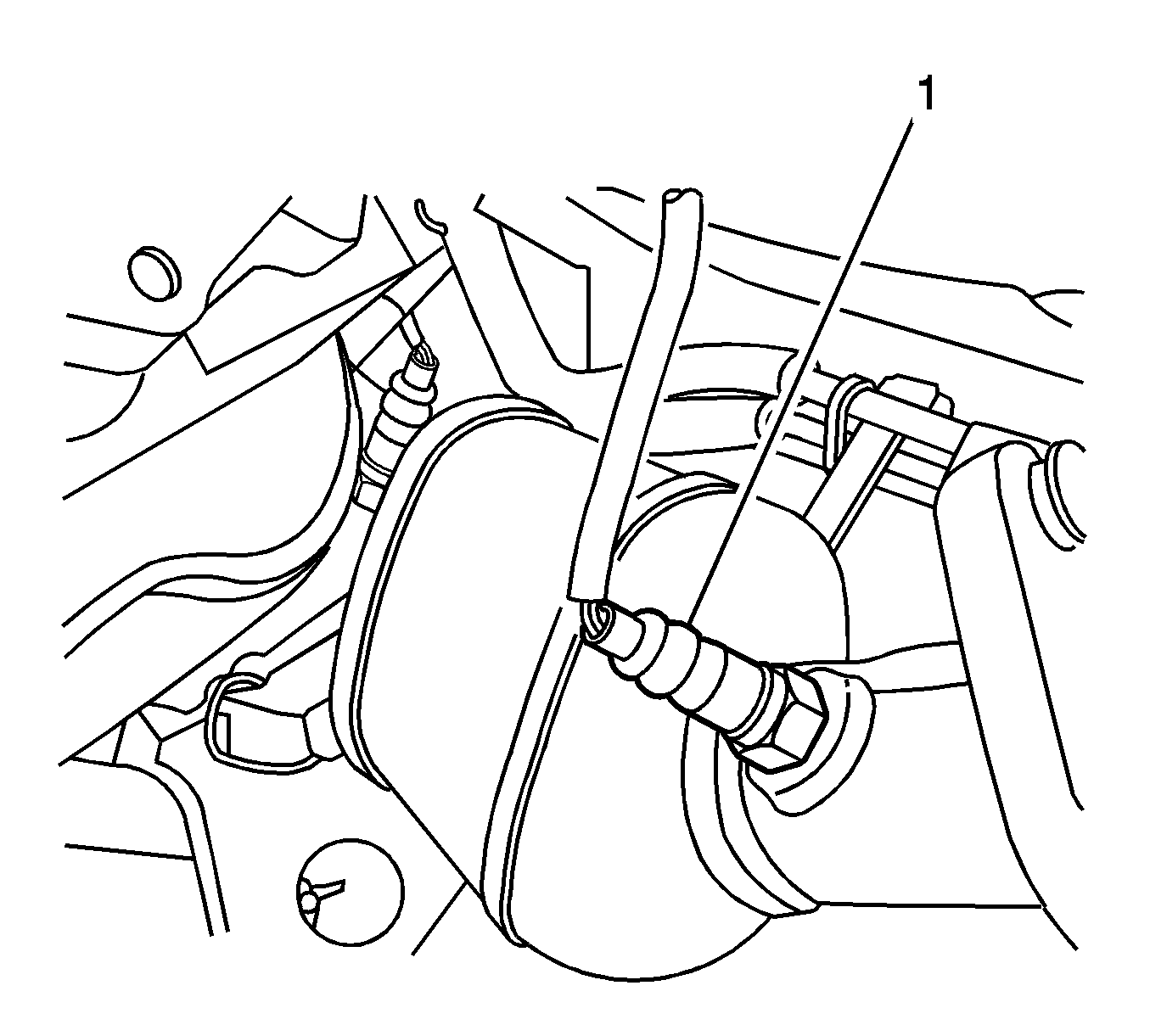

    Fig 1: Identifying HO2S (Bank 2 Sensor 2)
    GM1413528Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution .
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the heated oxygen sensor (HO2S) electrical connector. Note the harness routing and retainers for reassembly.
  3. Remove the HO2S (1).
