Removal Procedure

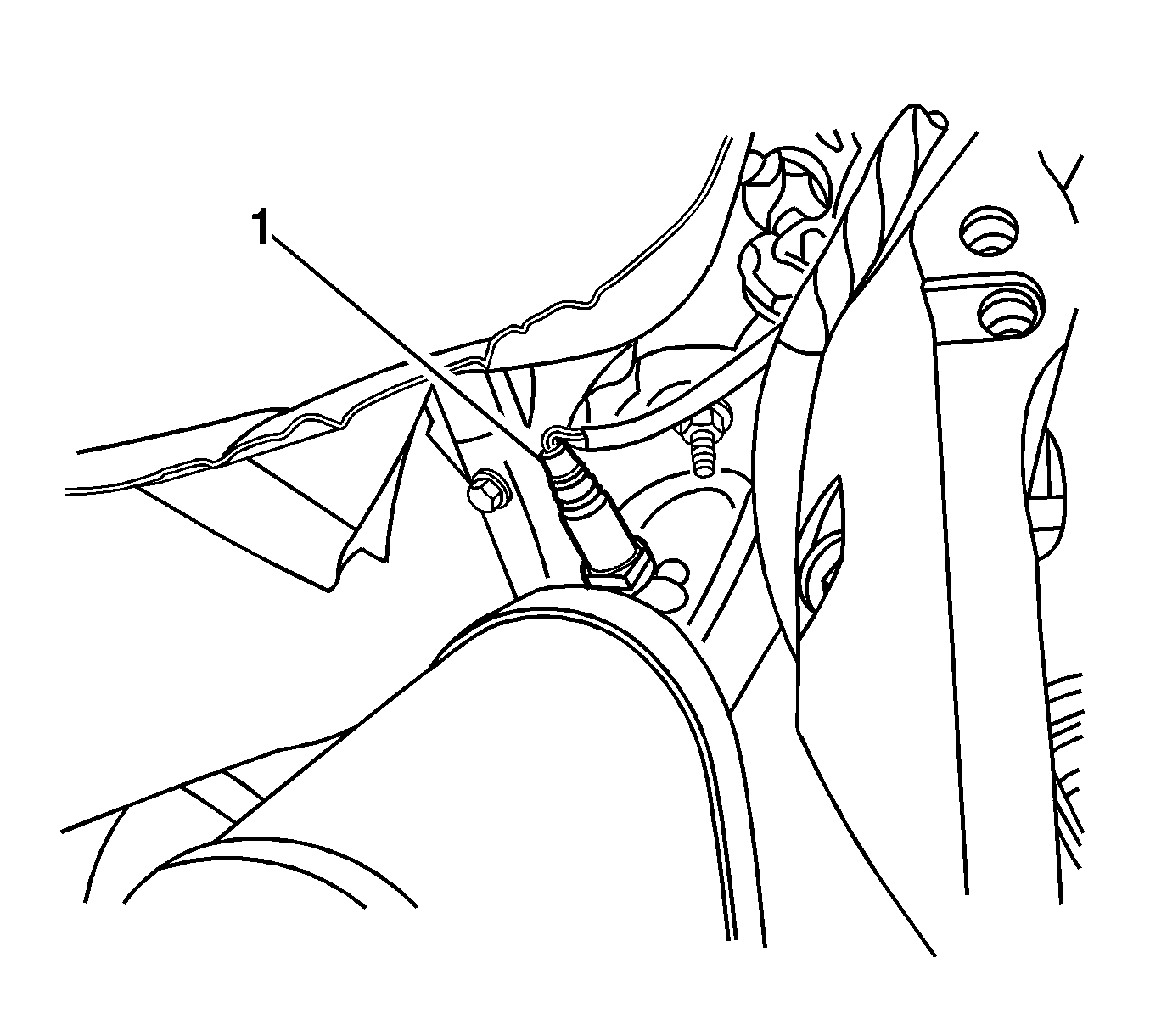

    Fig 1: View Of HO2S - Bank 1 Sensor 1
    GM1413524Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution .
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the heated oxygen sensor (HO2S) electrical connector.
  3. Remove any wire harness retainers and note the wire harness routing for reassembly.
  4. Carefully remove the HO2S (1).
