Antilock Brake System Schematics
Antilock Brake System Schematics

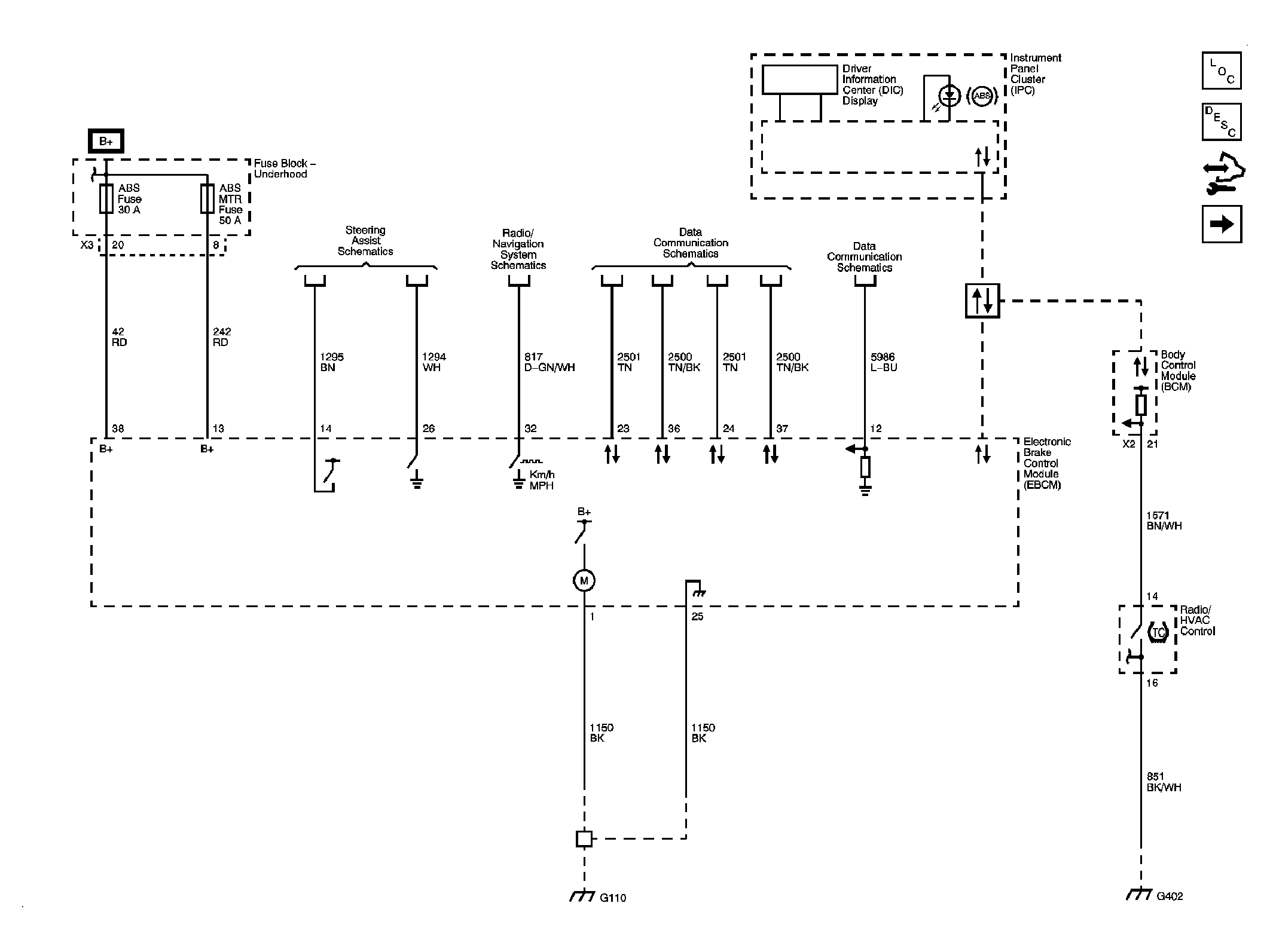

Fig 1: Module Power, Ground, Subsystem References
Courtesy of GENERAL MOTORS CORP.

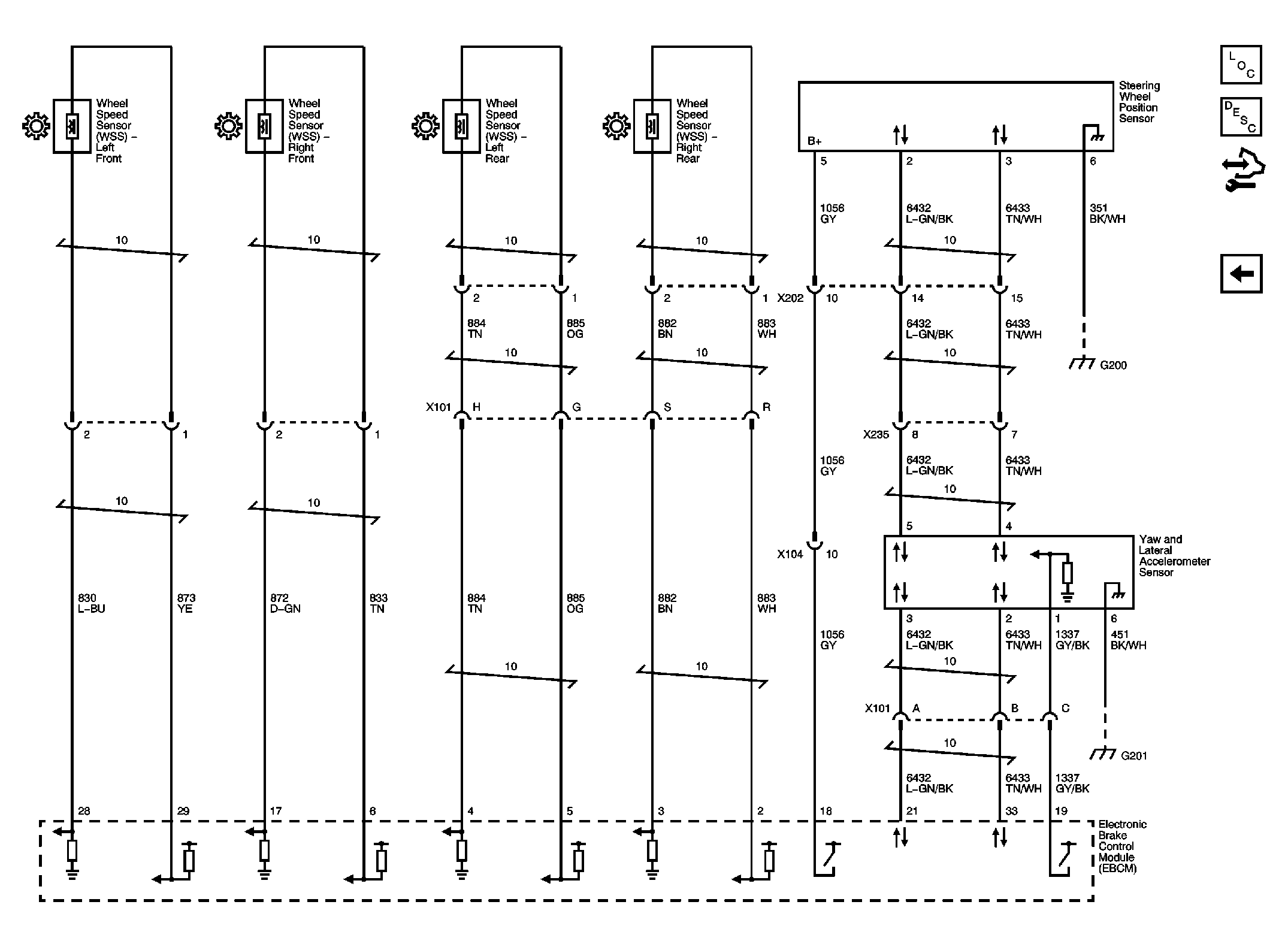

Fig 2: Sensors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
