Driver Seat Adjuster Memory Switch Replacement

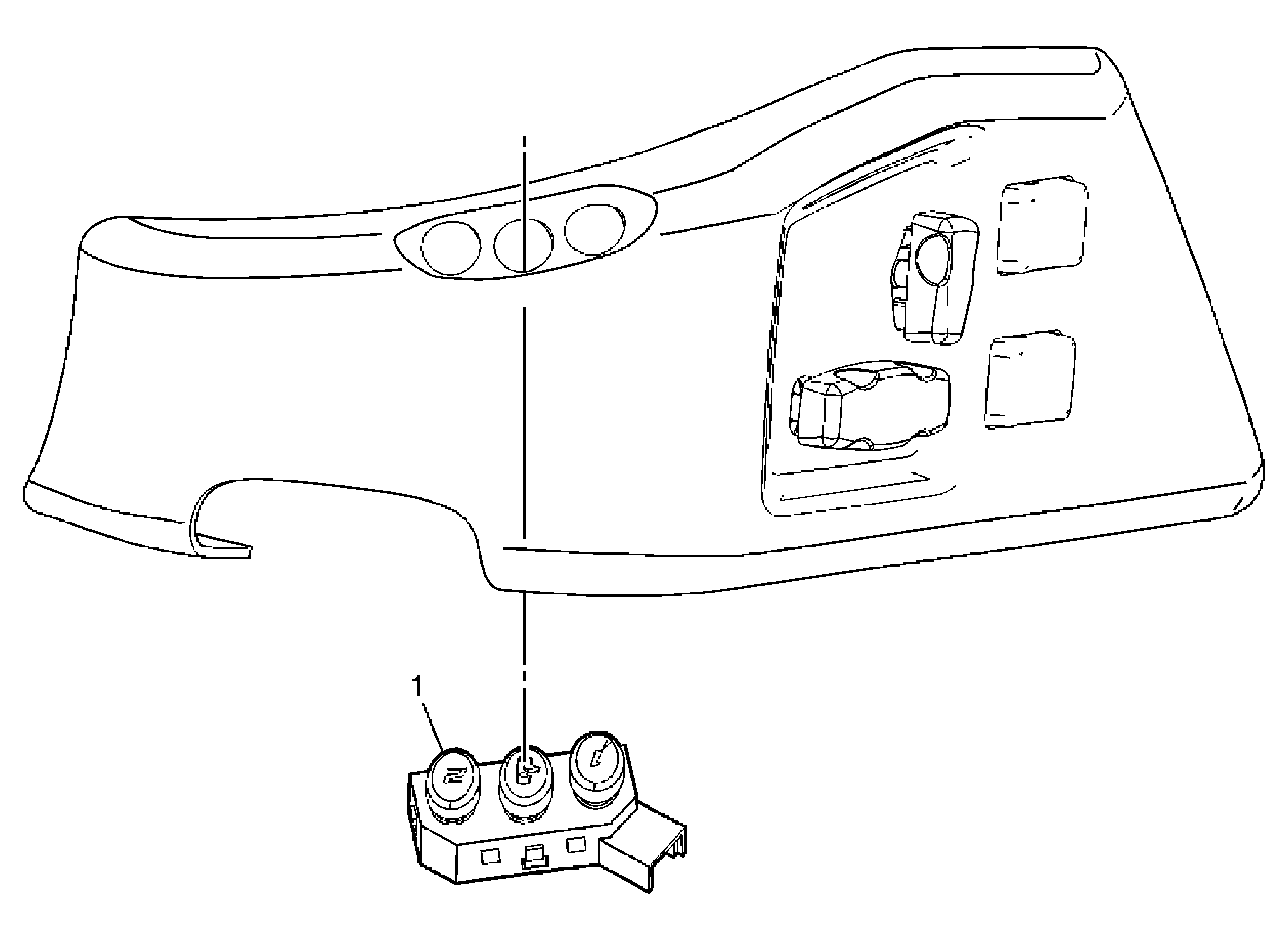

Fig 1: Identifying Driver Seat Adjuster Memory Switch
GM1986660Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the driver seat outer finish panel. Refer to Driver Seat Outer Finish Panel Replacement .
1 Driver Seat Adjuster Memory Switch
Procedure:
Use a flat bladed tool to aid in the removal of the switch from the finish panel.
