Door Control Module Schematics

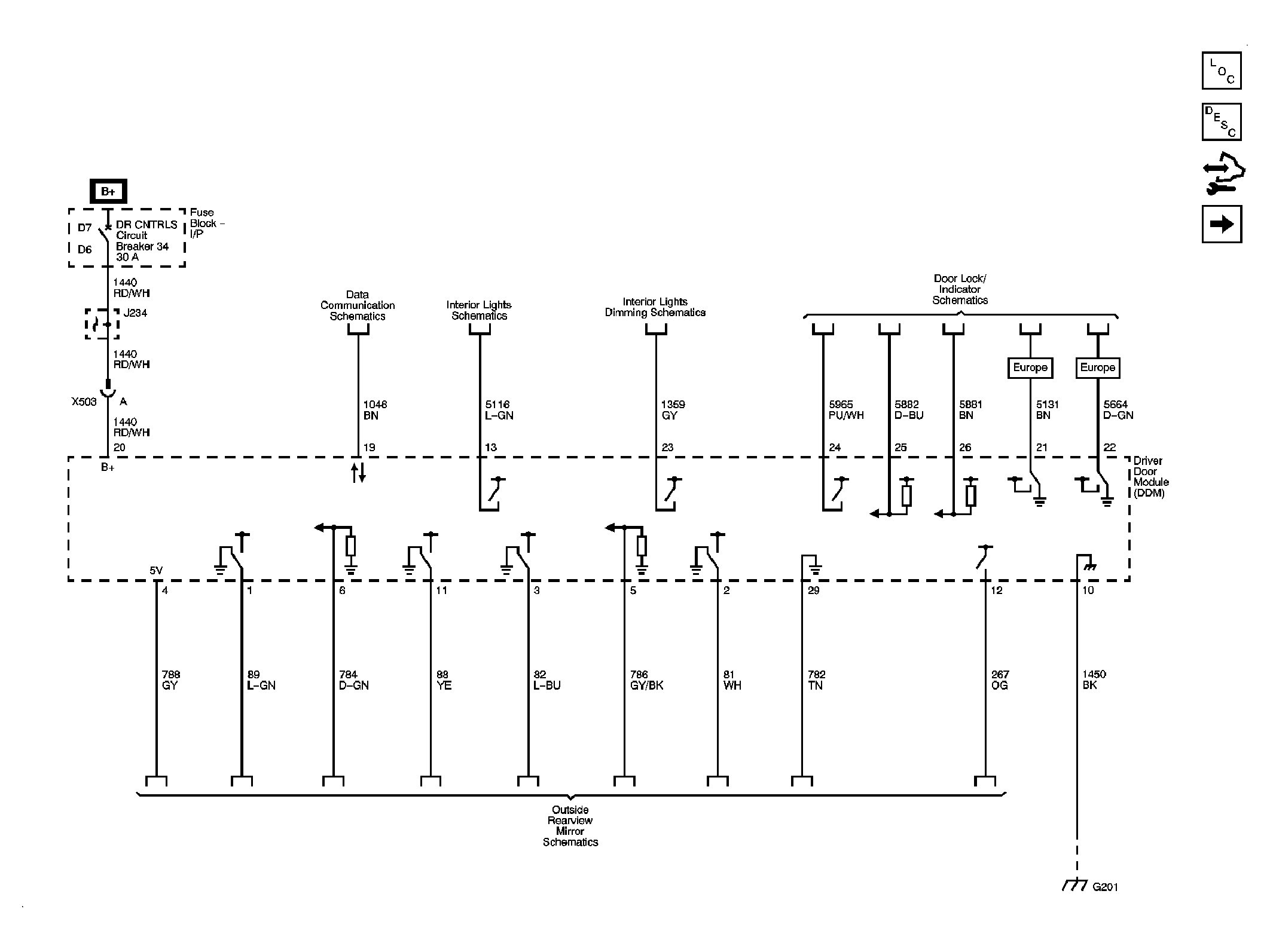

Fig 1: Driver Door Control Module

GM2075840

Courtesy of GENERAL MOTORS CORP.

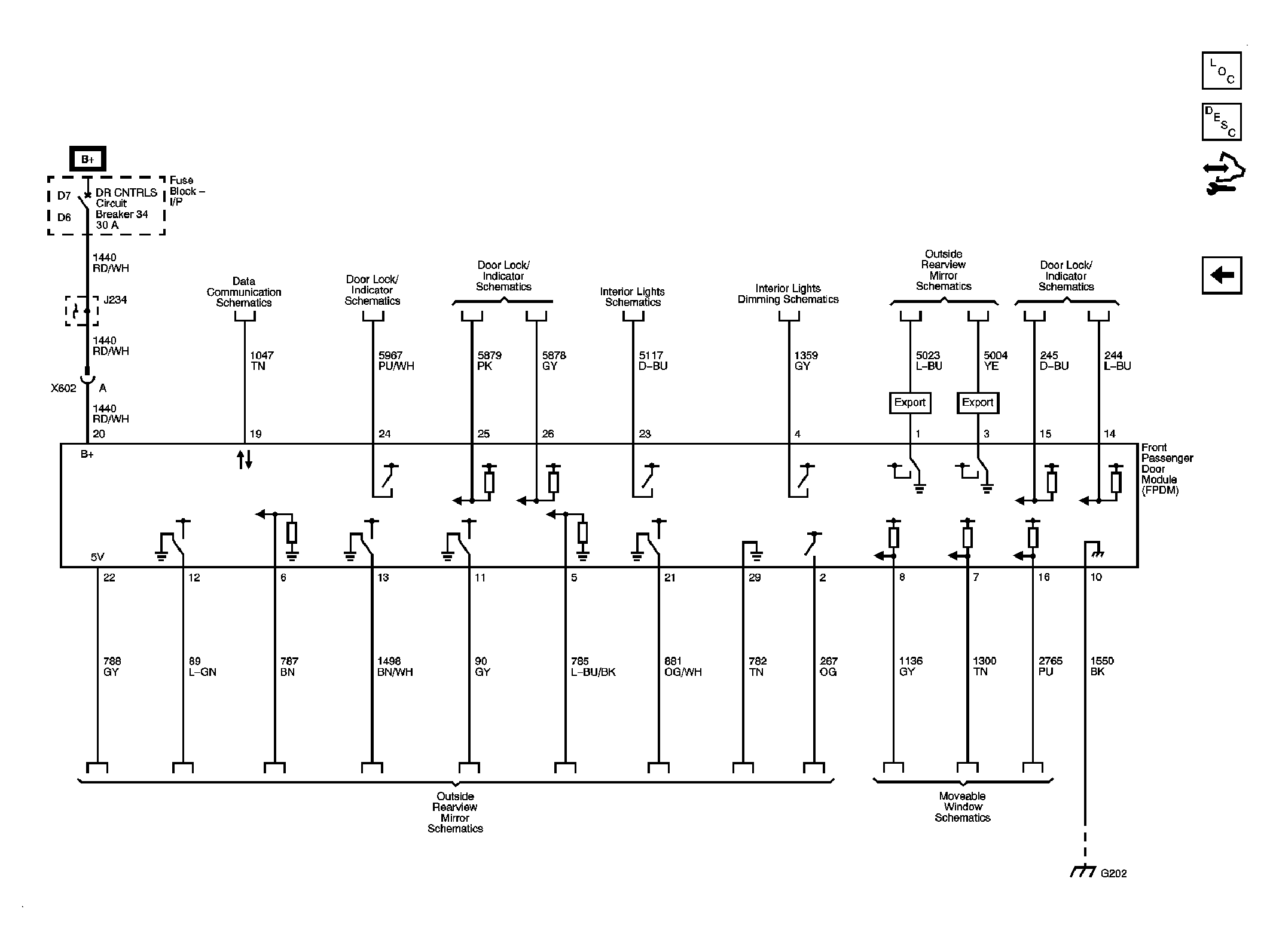

Fig 2: Passenger Door Control Module

GM2075842

Courtesy of GENERAL MOTORS CORP.
