Steering Wheel Secondary/Configurable Control Schematics

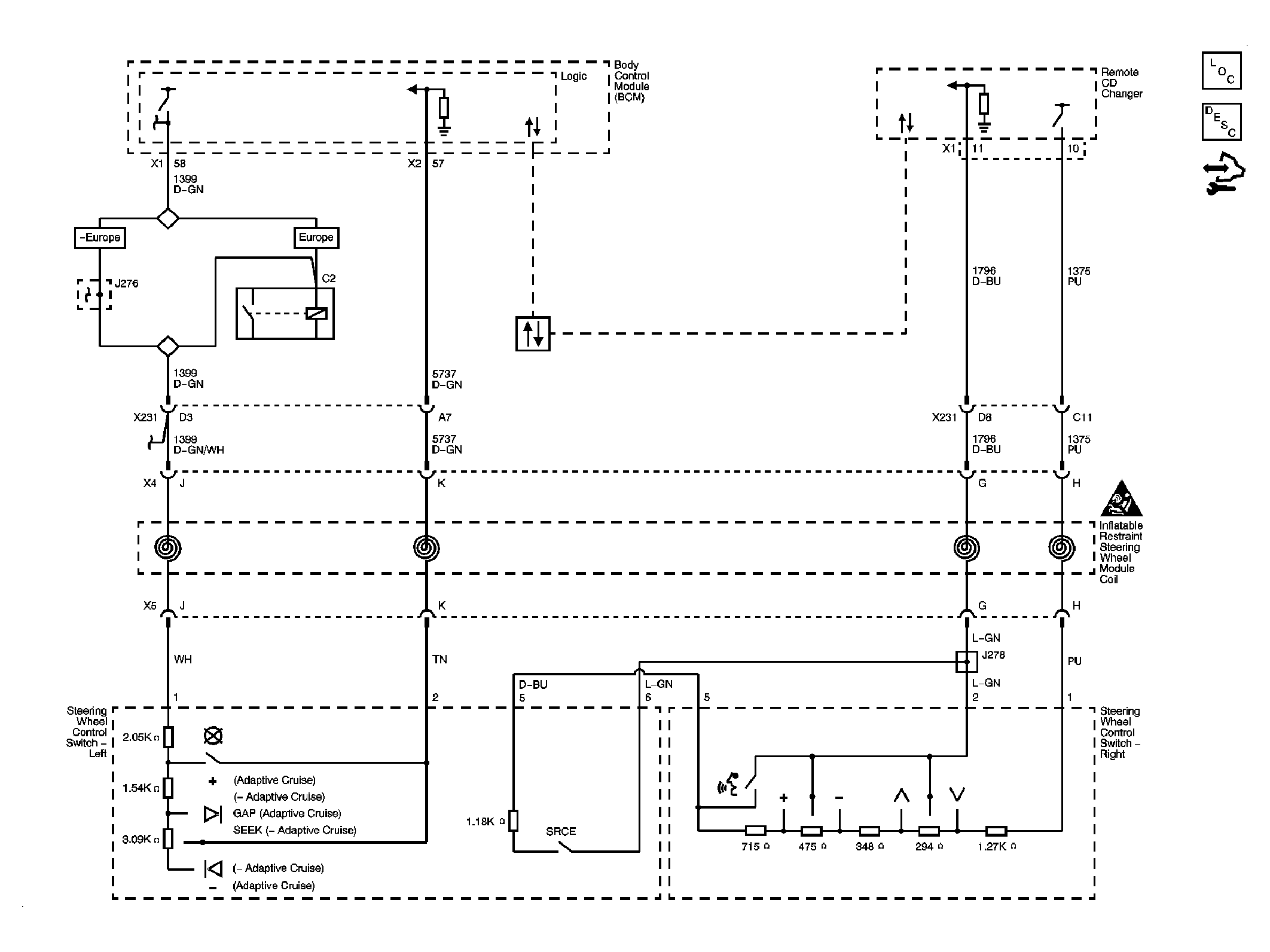

Fig 1: Steering Wheel Secondary/Configurable Control

GM2075871

Courtesy of GENERAL MOTORS CORP.
