Power Steering Schematics

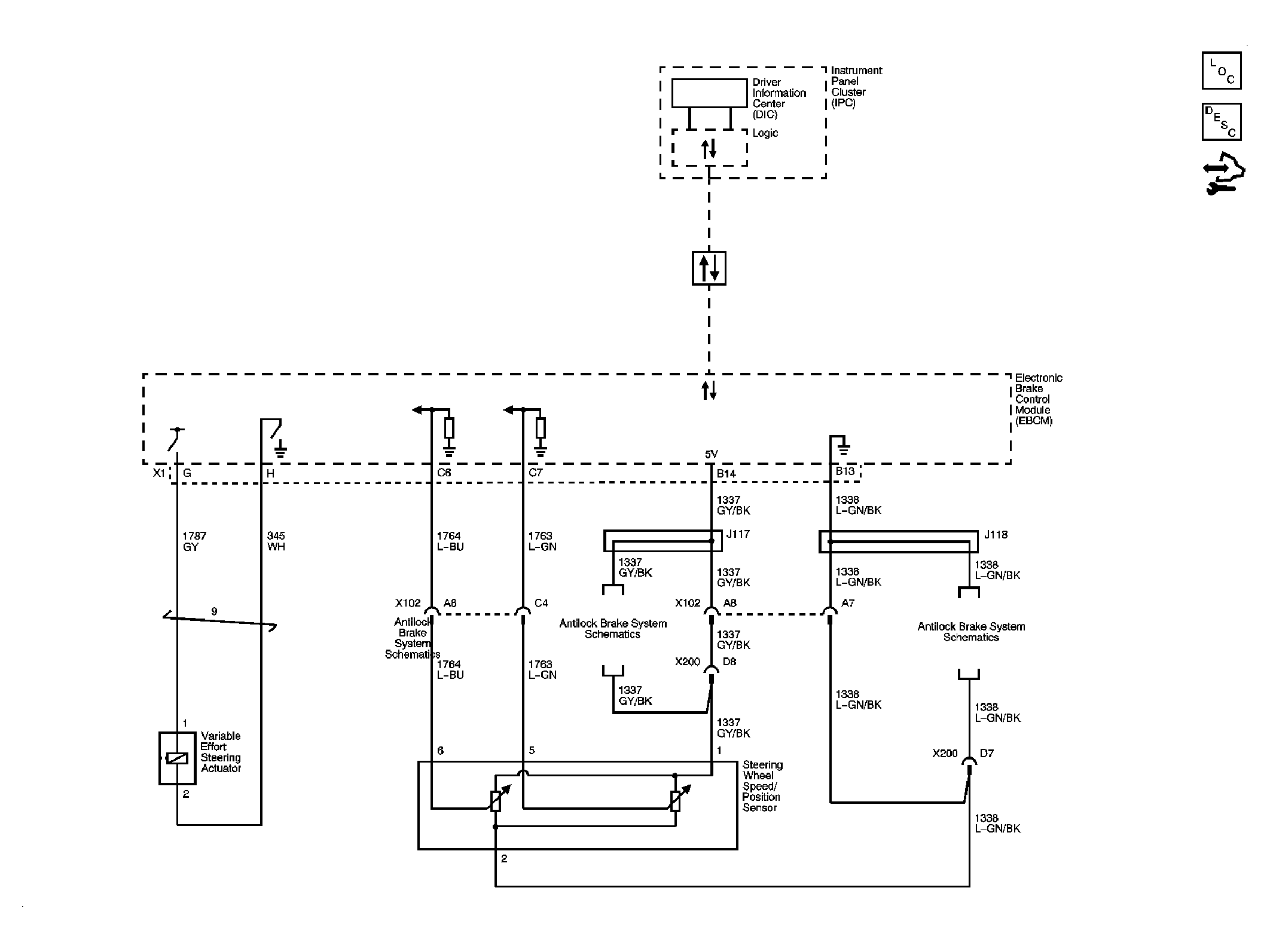

Fig 1: Variable Effort

GM2063929

Courtesy of GENERAL MOTORS CORP.

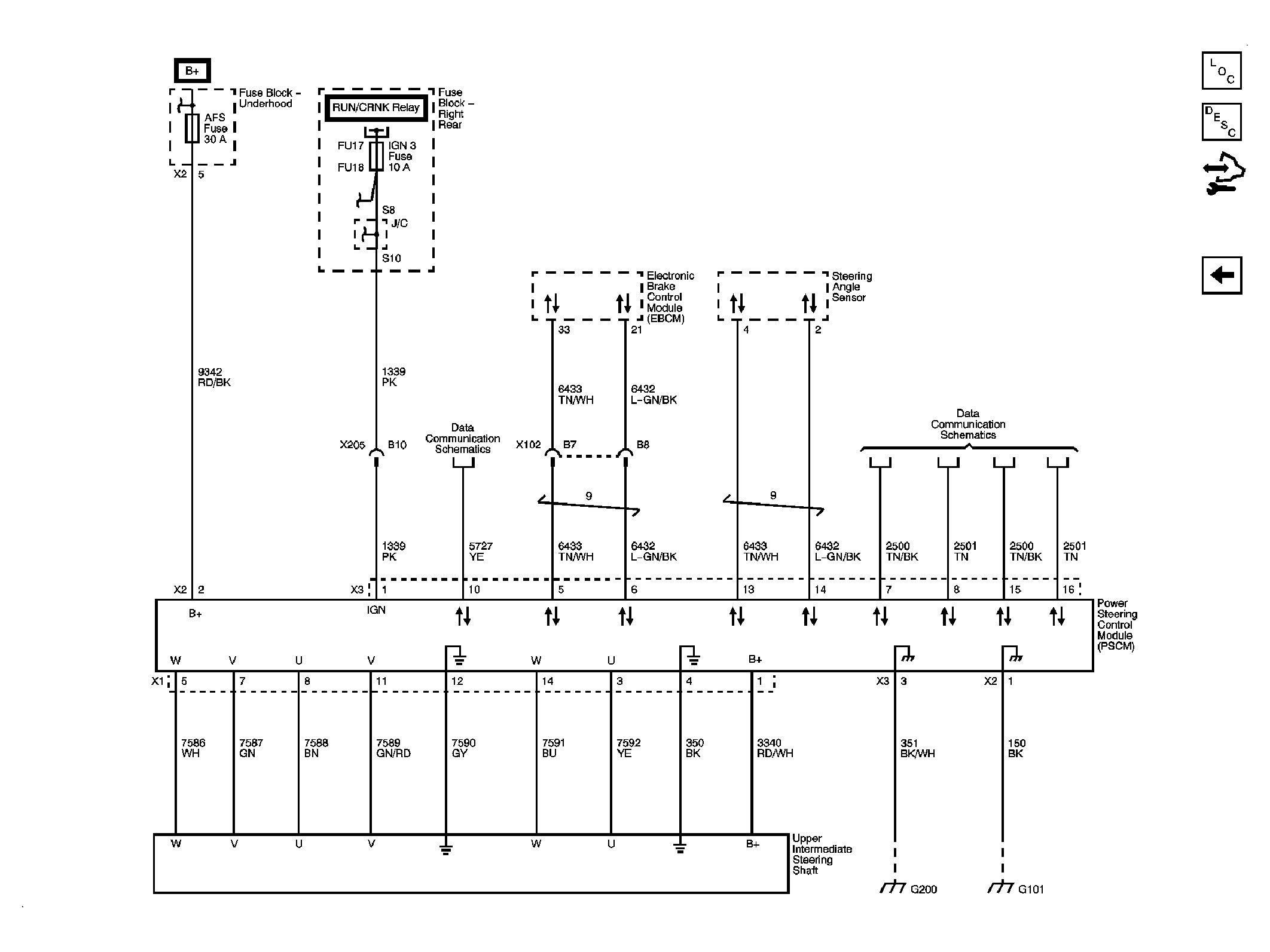

Fig 2: Active Front Steering Module and Actuator - JL7

GM2063933

Courtesy of GENERAL MOTORS CORP.
