Power Moding Schematics

Fig 1: RUN/CRNK Relay
GM2064050Courtesy of GENERAL MOTORS CORP.
Fig 2: PWR/TRN Relay
GM2064052Courtesy of GENERAL MOTORS CORP.
Fig 3: RUN/CRNK Relay
GM2064053Courtesy of GENERAL MOTORS CORP.

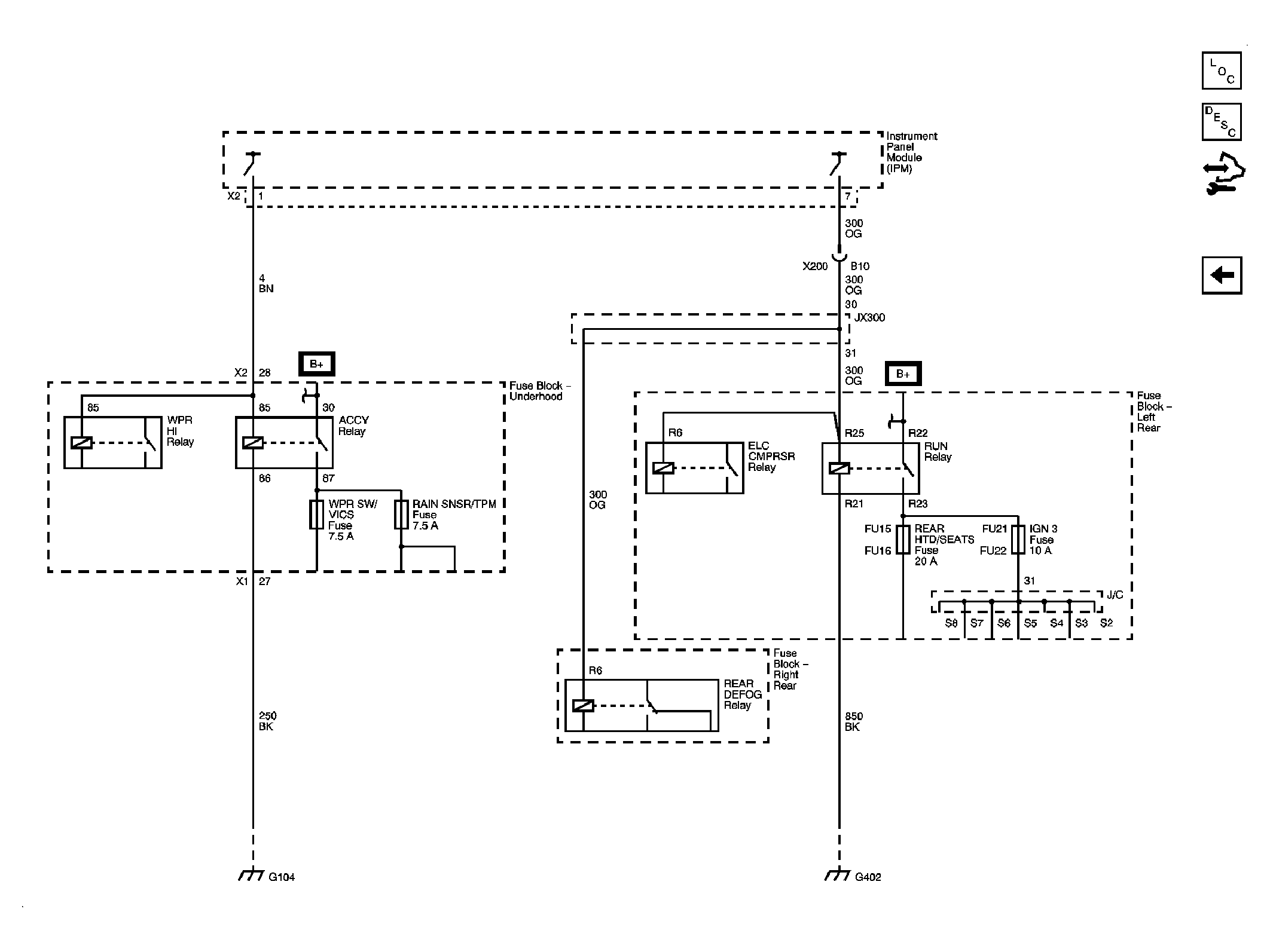

Fig 4: ACCY and RUN Relay
GM2064054Courtesy of GENERAL MOTORS CORP.
