Power Distribution Schematics

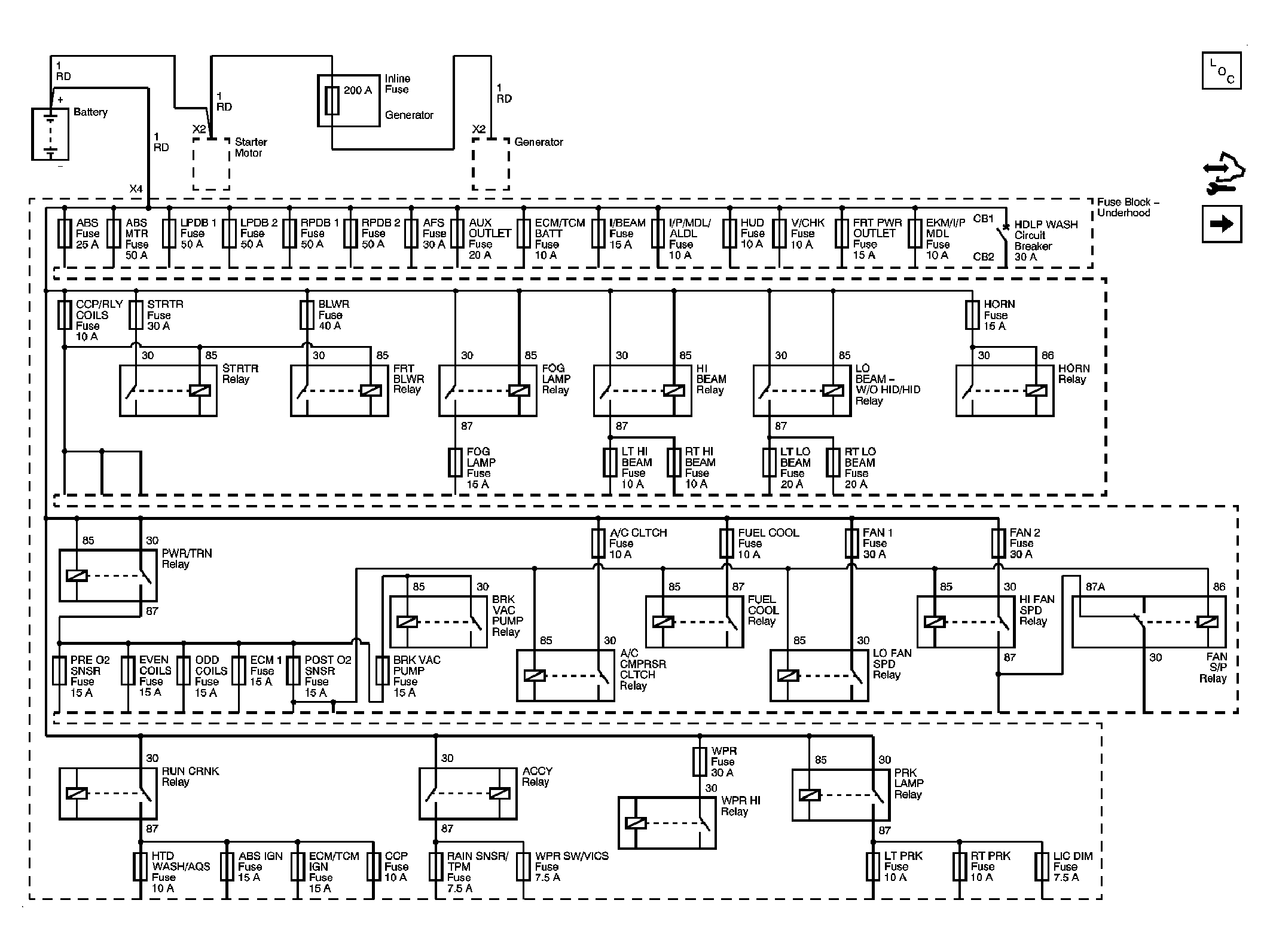

Fig 1: Fuse Block - Underhood Bussing

GM2062719

Courtesy of GENERAL MOTORS CORP.

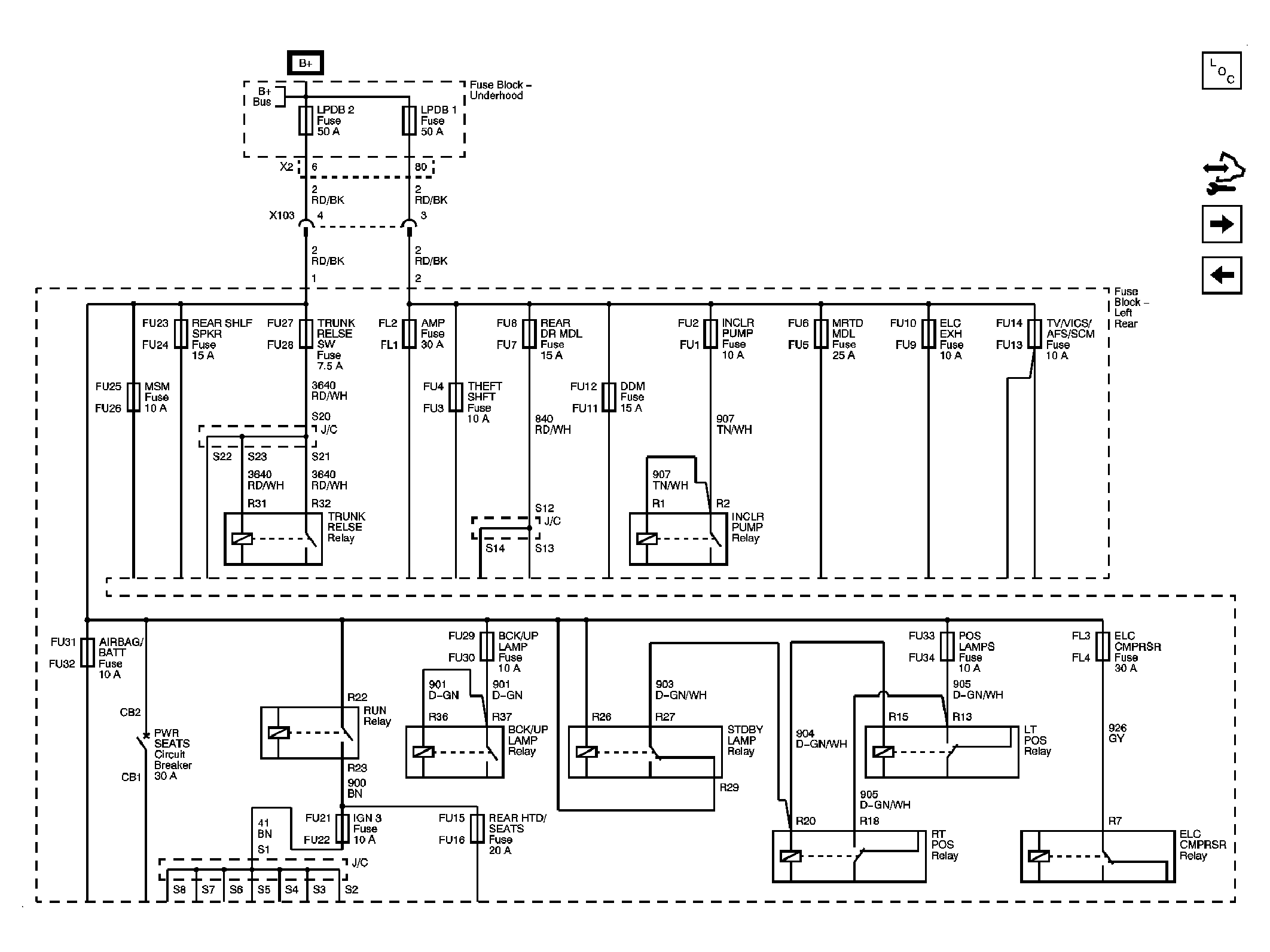

Fig 2: Fuse Block - Left Rear Bussing

GM2062724

Courtesy of GENERAL MOTORS CORP.

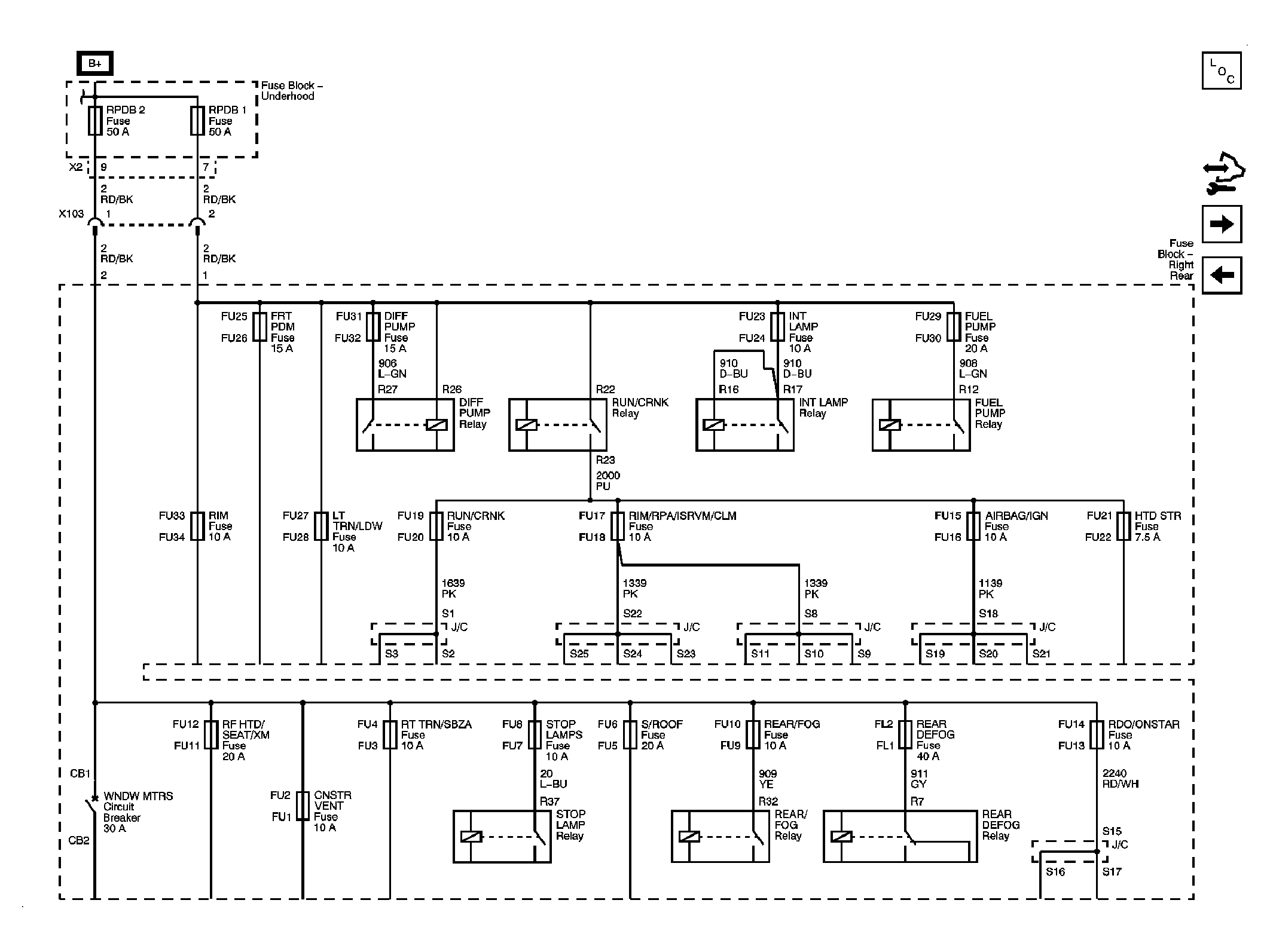

Fig 3: Fuse Block - Right Rear Bussing

GM2062730

Courtesy of GENERAL MOTORS CORP.

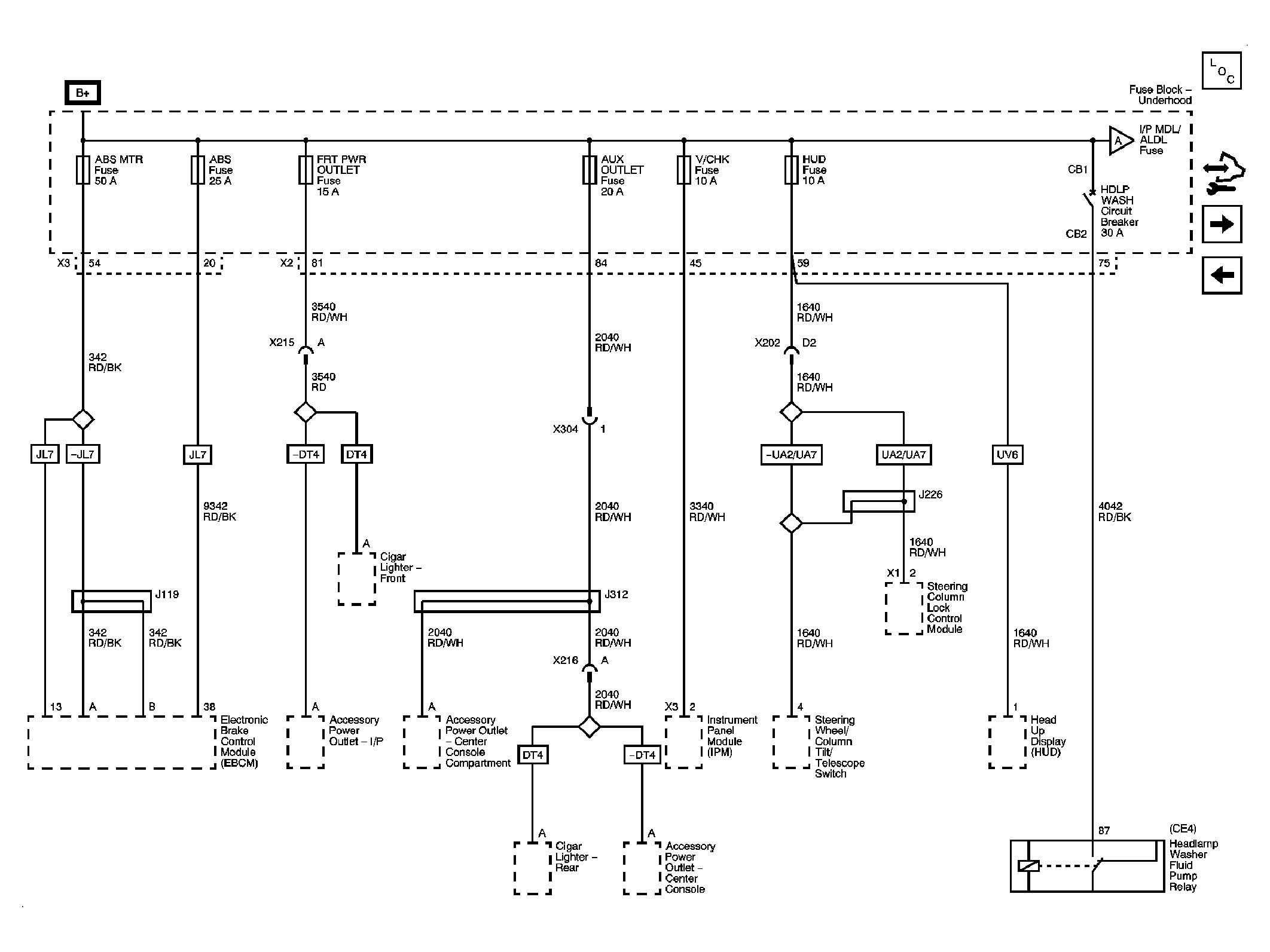

Fig 4: ABS, ABS MTR, AUX OUTLET, FRT PWR OUTLET, HUD, and V/CHK Fuses, HDLP WASH Circuit Breaker

GM2062737

Courtesy of GENERAL MOTORS CORP.

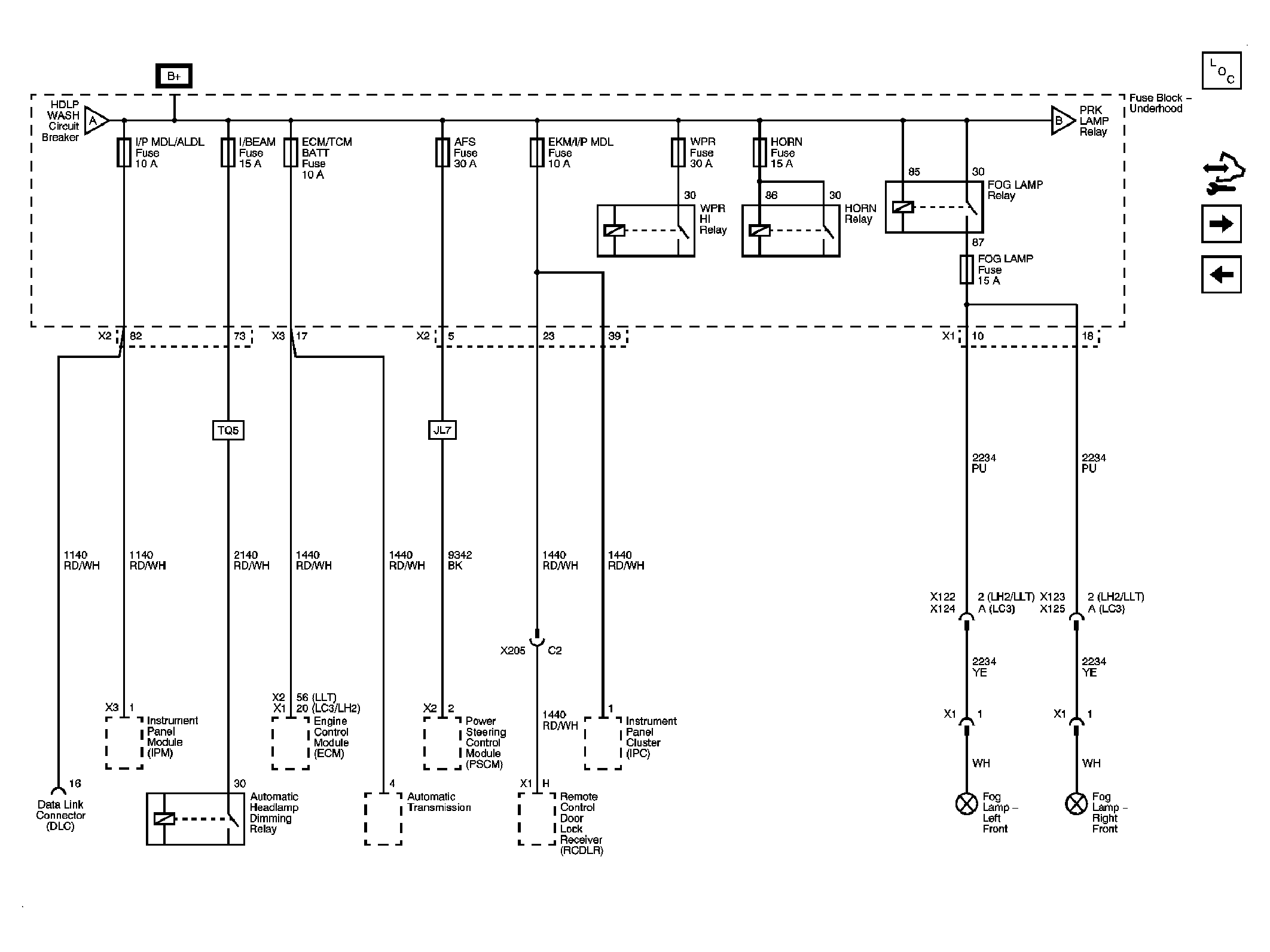

Fig 5: AFS, ECM/TCM BATT, EKM/I/P, FOG LAMP, HORN, I/BEAM, I/P MDL/ALDL, and WPR Fuses

GM2062746

Courtesy of GENERAL MOTORS CORP.

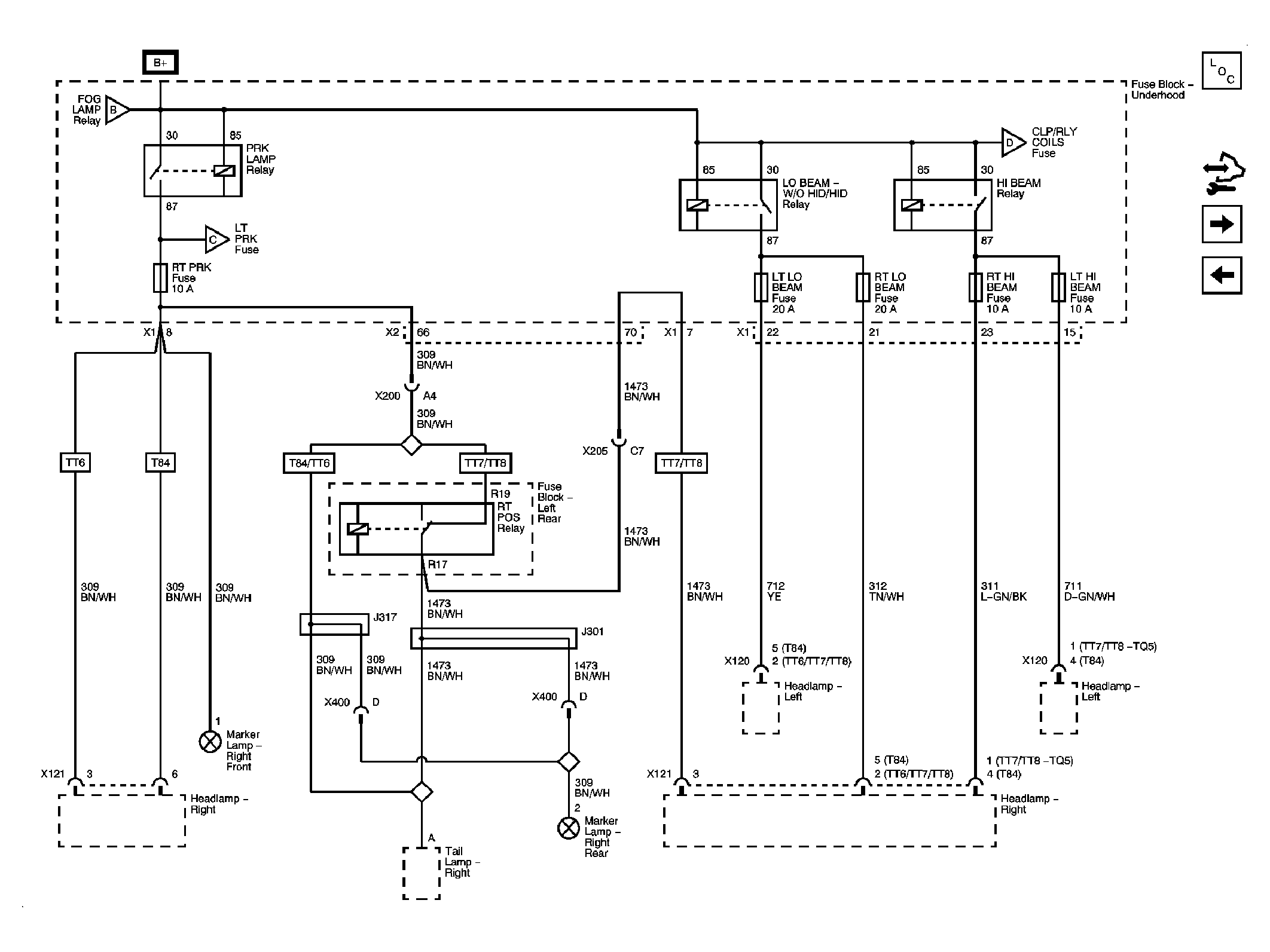

Fig 6: LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM, and RT PRK Fuses

GM2062754

Courtesy of GENERAL MOTORS CORP.

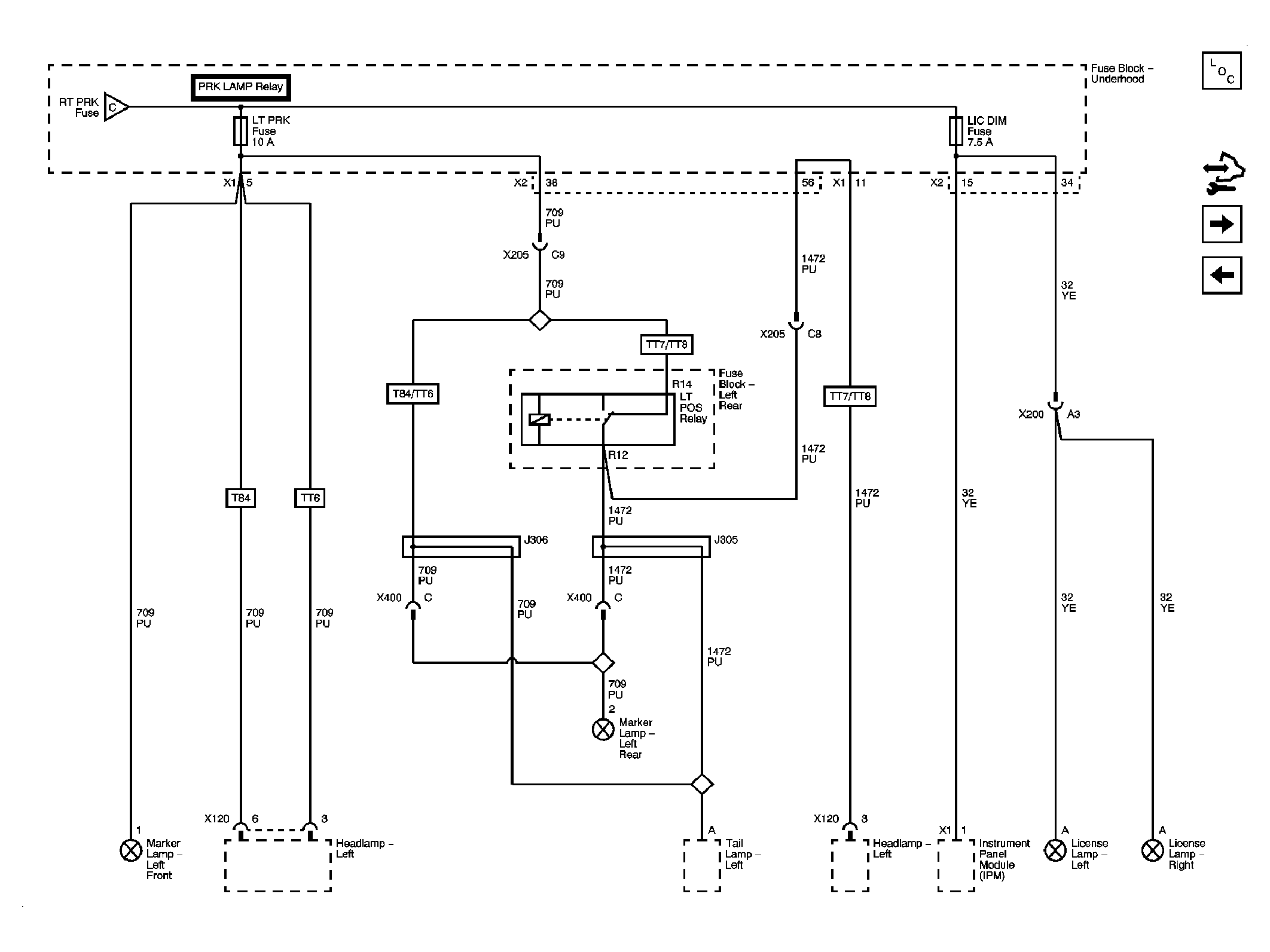

Fig 7: LIC DIM and LT PRK Fuses

GM2062757

Courtesy of GENERAL MOTORS CORP.

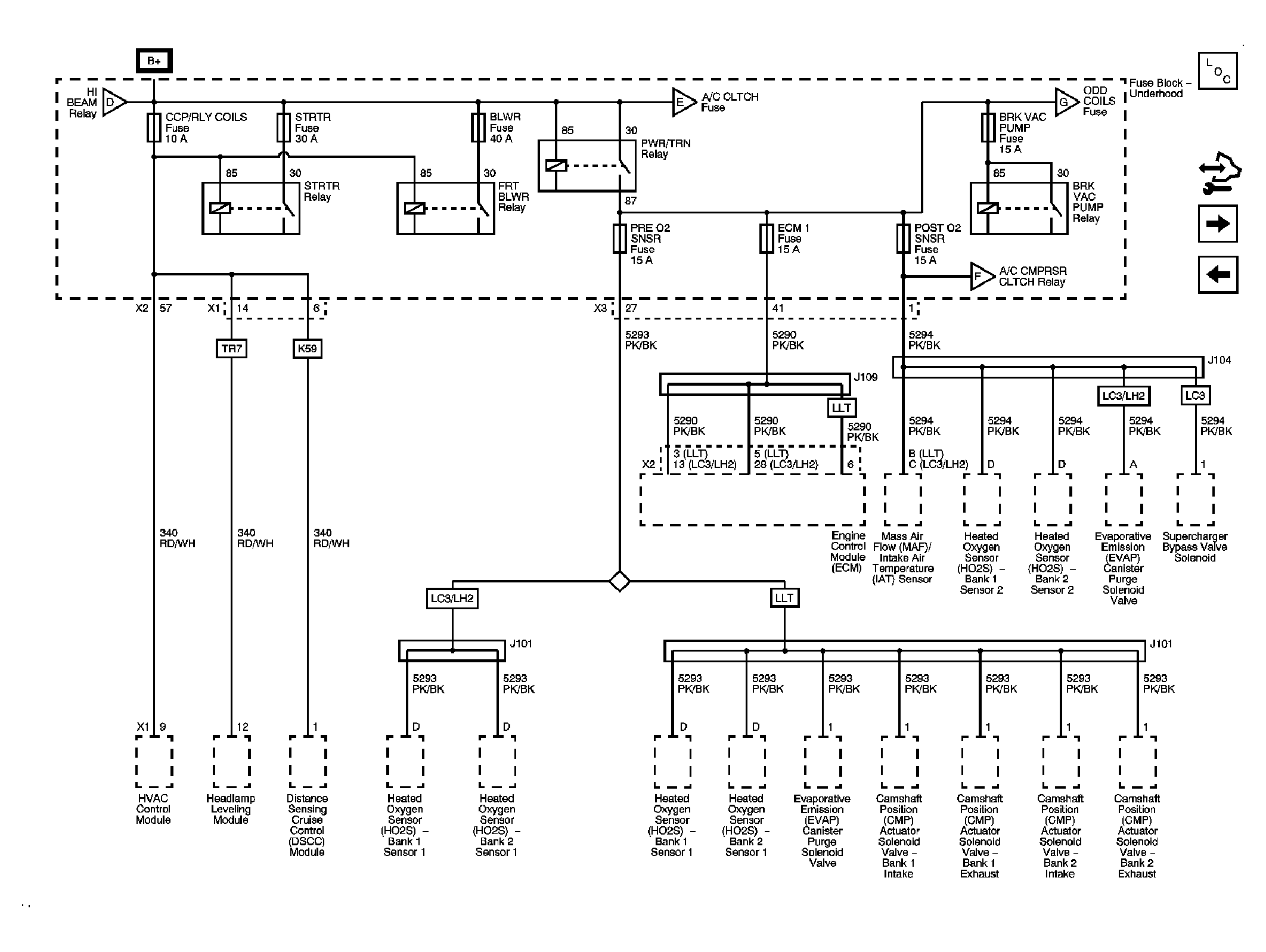

Fig 8: BLWR, BRK VAC PUMP, CCP/RLY/COILS, ECM 1, POST O2, PRE O2, and STRTR Fuses

GM2062764

Courtesy of GENERAL MOTORS CORP.

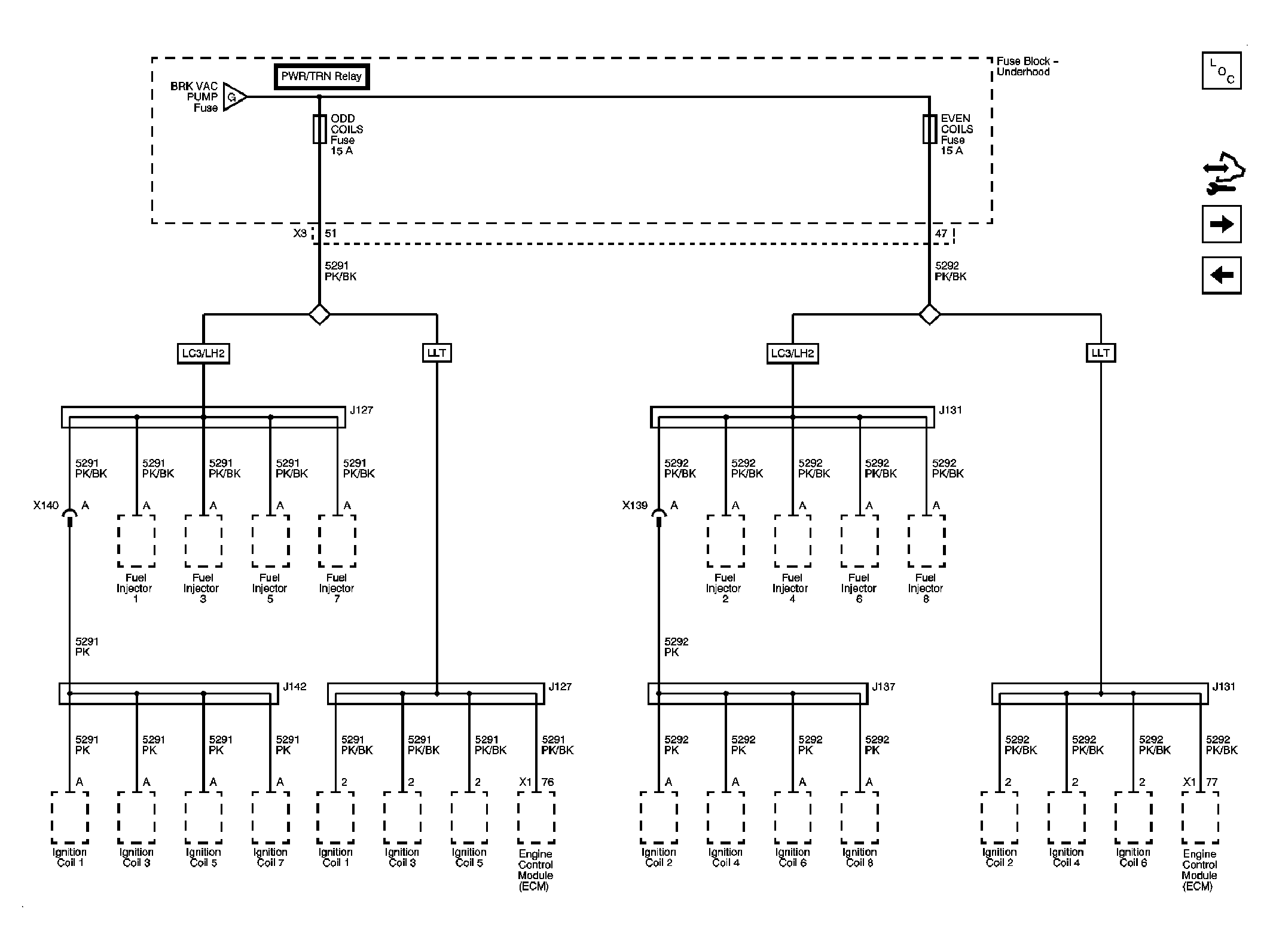

Fig 9: EVEN COILS and ODD COILS Fuses

GM2062769

Courtesy of GENERAL MOTORS CORP.

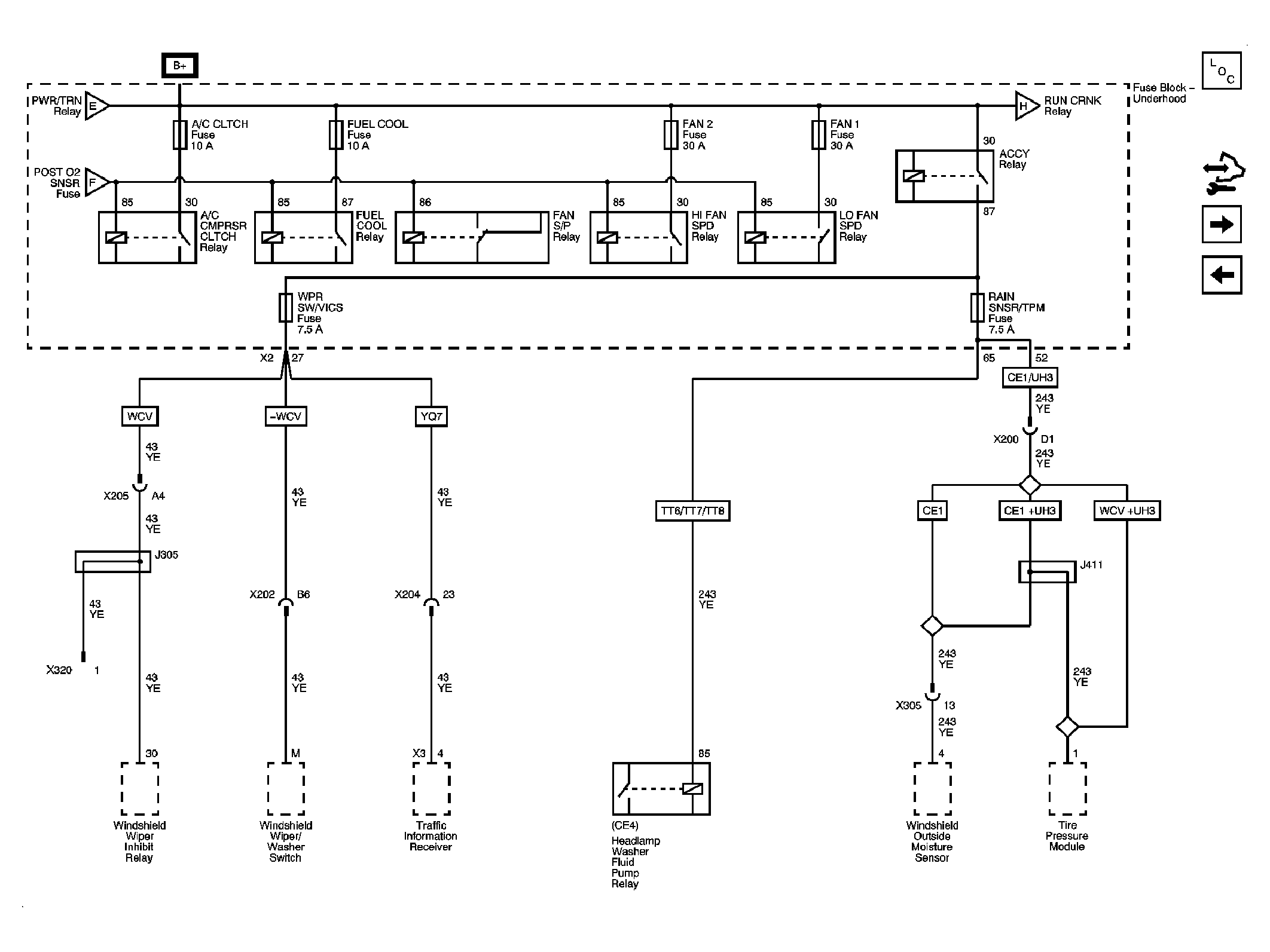

Fig 10: A/C CLTCH, FAN 1, FAN 2, FUEL COOL, RAIN SNSR/TPM, and WPR SW/VICS Fuses

GM2062772

Courtesy of GENERAL MOTORS CORP.

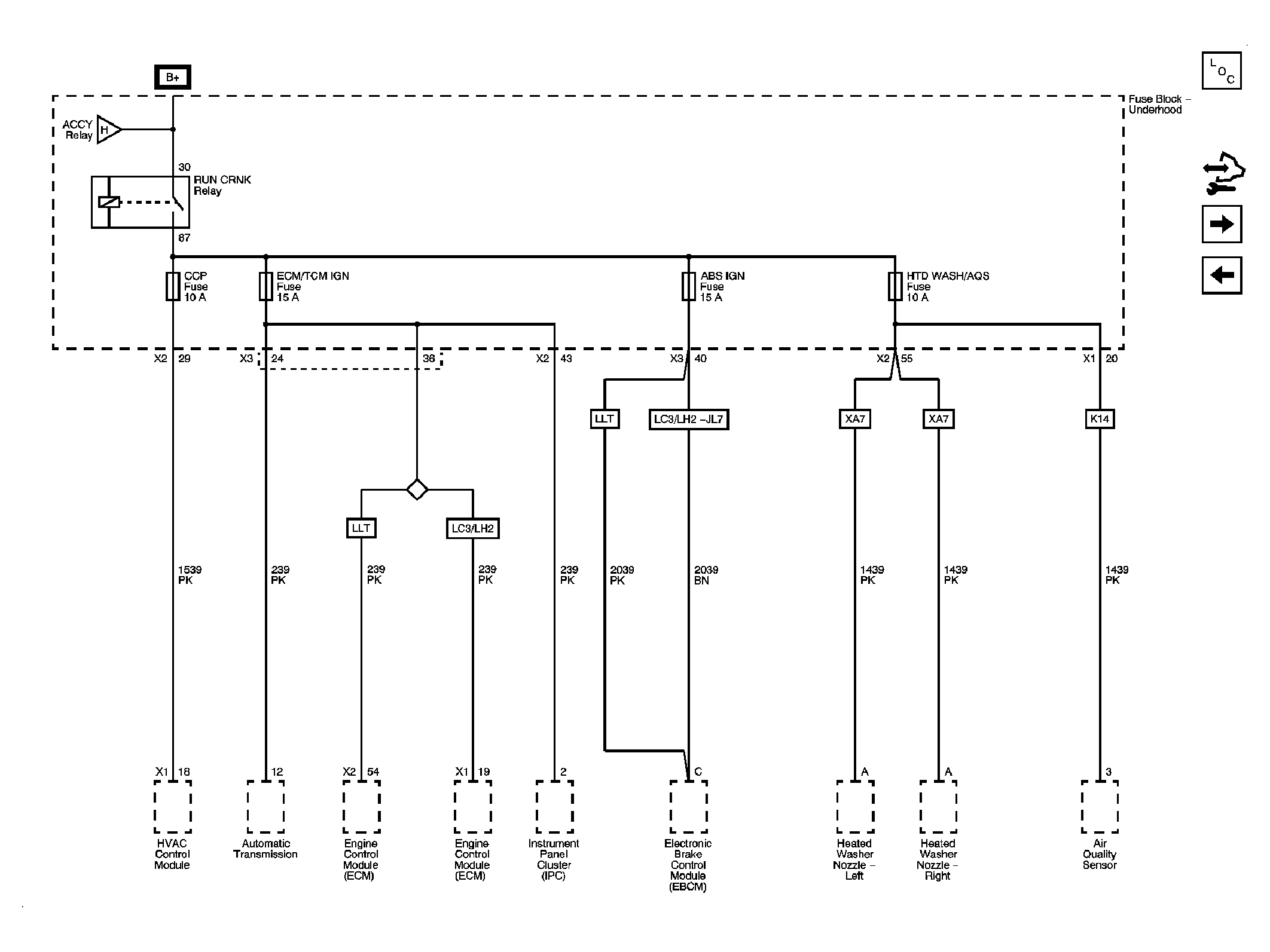

Fig 11: ABS IGN, CCP, ECM/TCM, and HTD WASH/AQS Fuses

GM2062778

Courtesy of GENERAL MOTORS CORP.

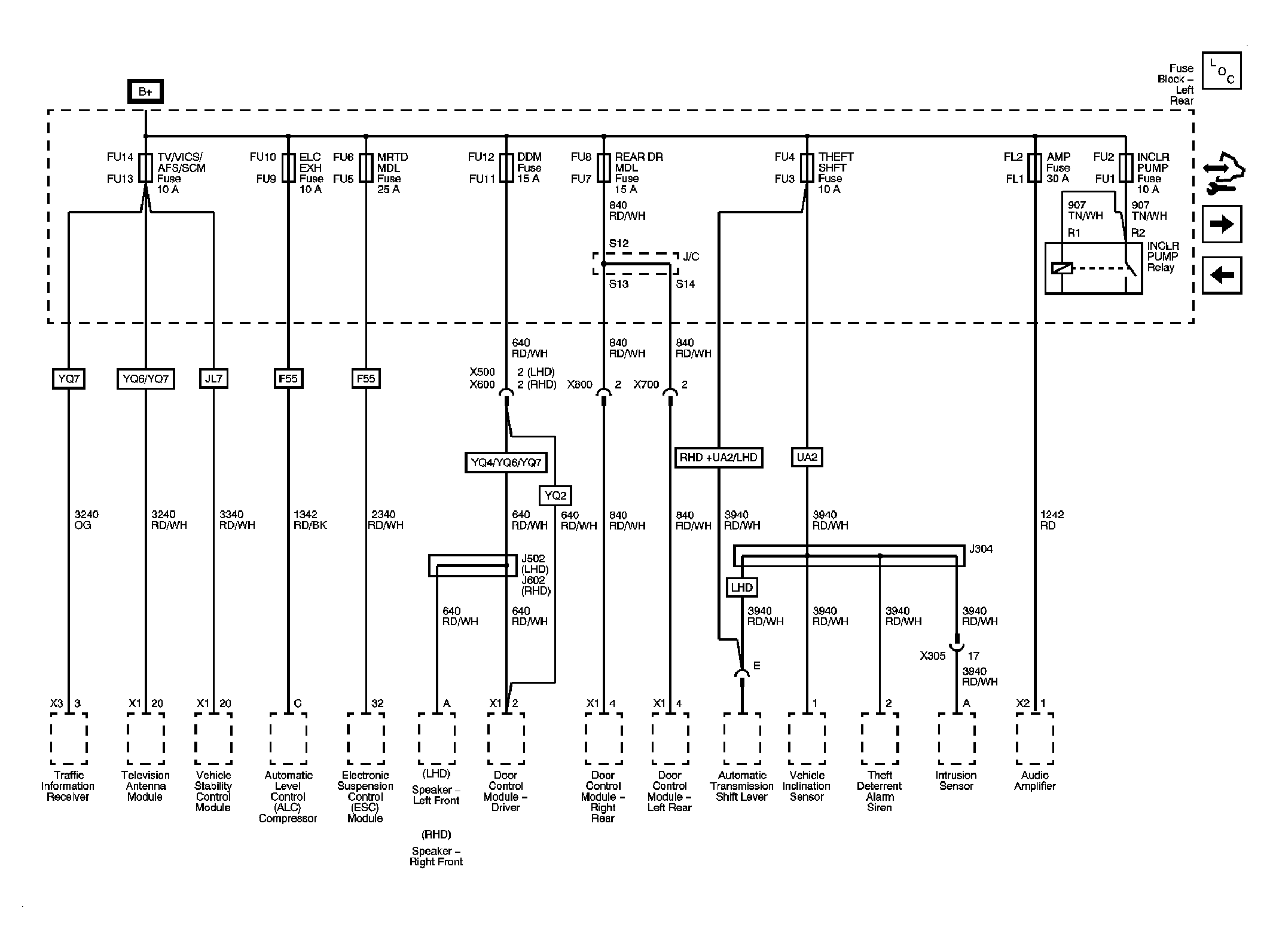

Fig 12: AMP, DDM, ELC EXH, INCLR PUMP, MRTD MDL, REAR DR MDL, THEFT SHFT, and TV/VICS/AFS/SCM Fuses

GM2062787

Courtesy of GENERAL MOTORS CORP.

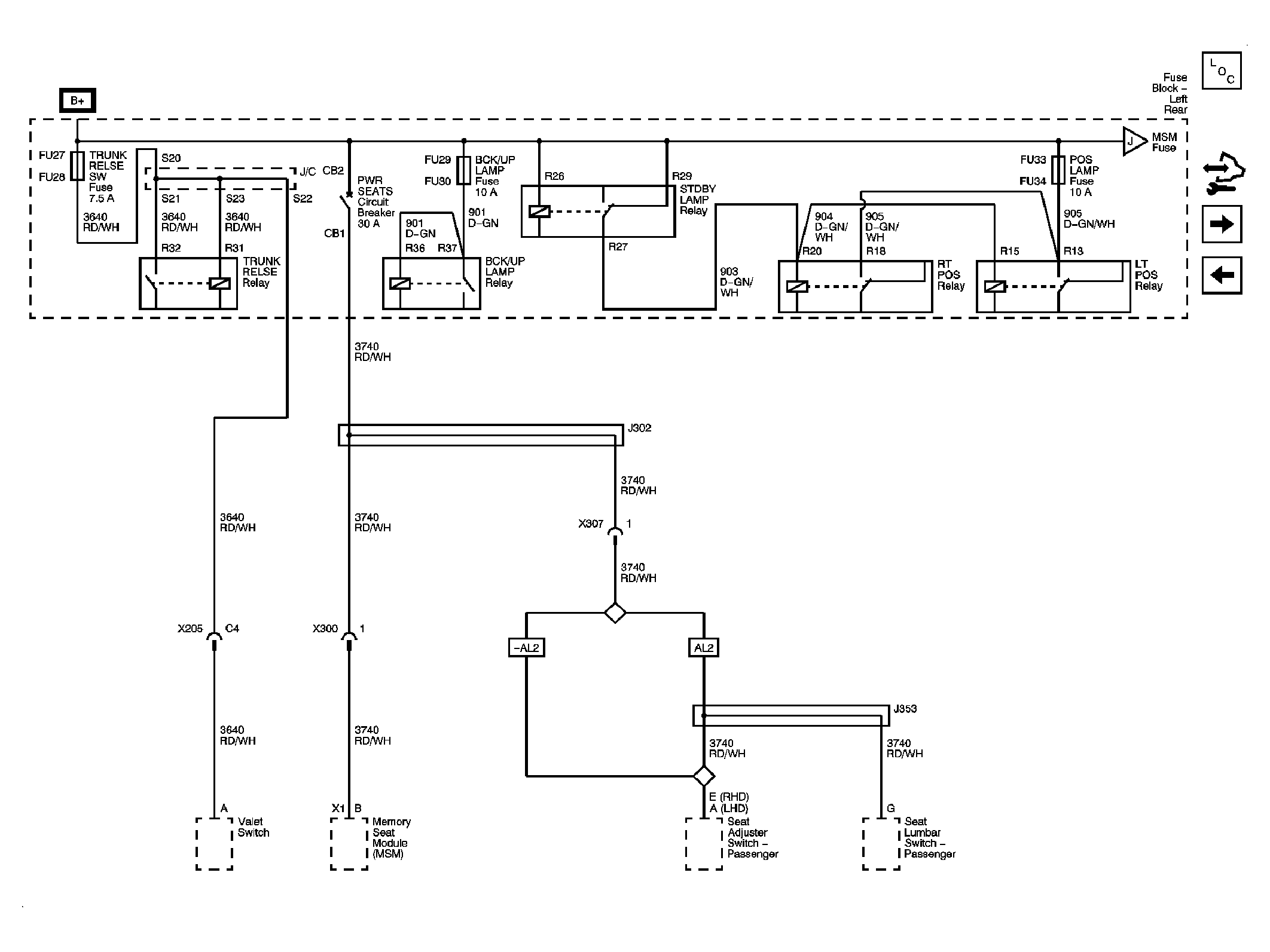

Fig 13: BCK/UP LAMP, POS LAMPS, and TRUNK RELSE Fuses, PWR SEATS Circuit Breaker

GM2062790

Courtesy of GENERAL MOTORS CORP.

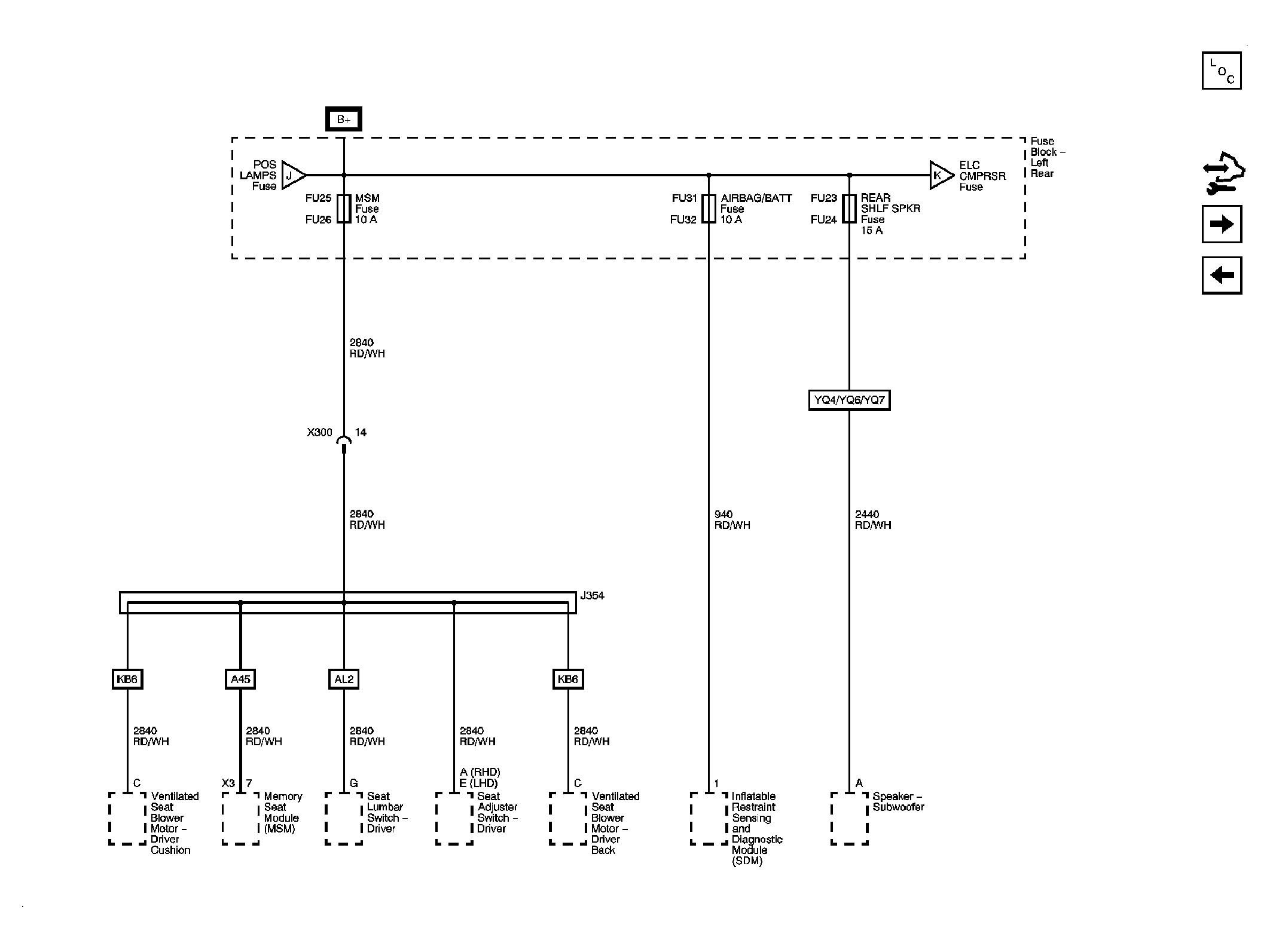

Fig 14: AIRBAG/BATT, MSM, and REAR SHLF SPKR Fuses

GM2062791

Courtesy of GENERAL MOTORS CORP.

Fig 15: ELC CMPRSR, IGN 3, and REAR HTD/SEATS Fuses

GM2063514

Courtesy of GENERAL MOTORS CORP.

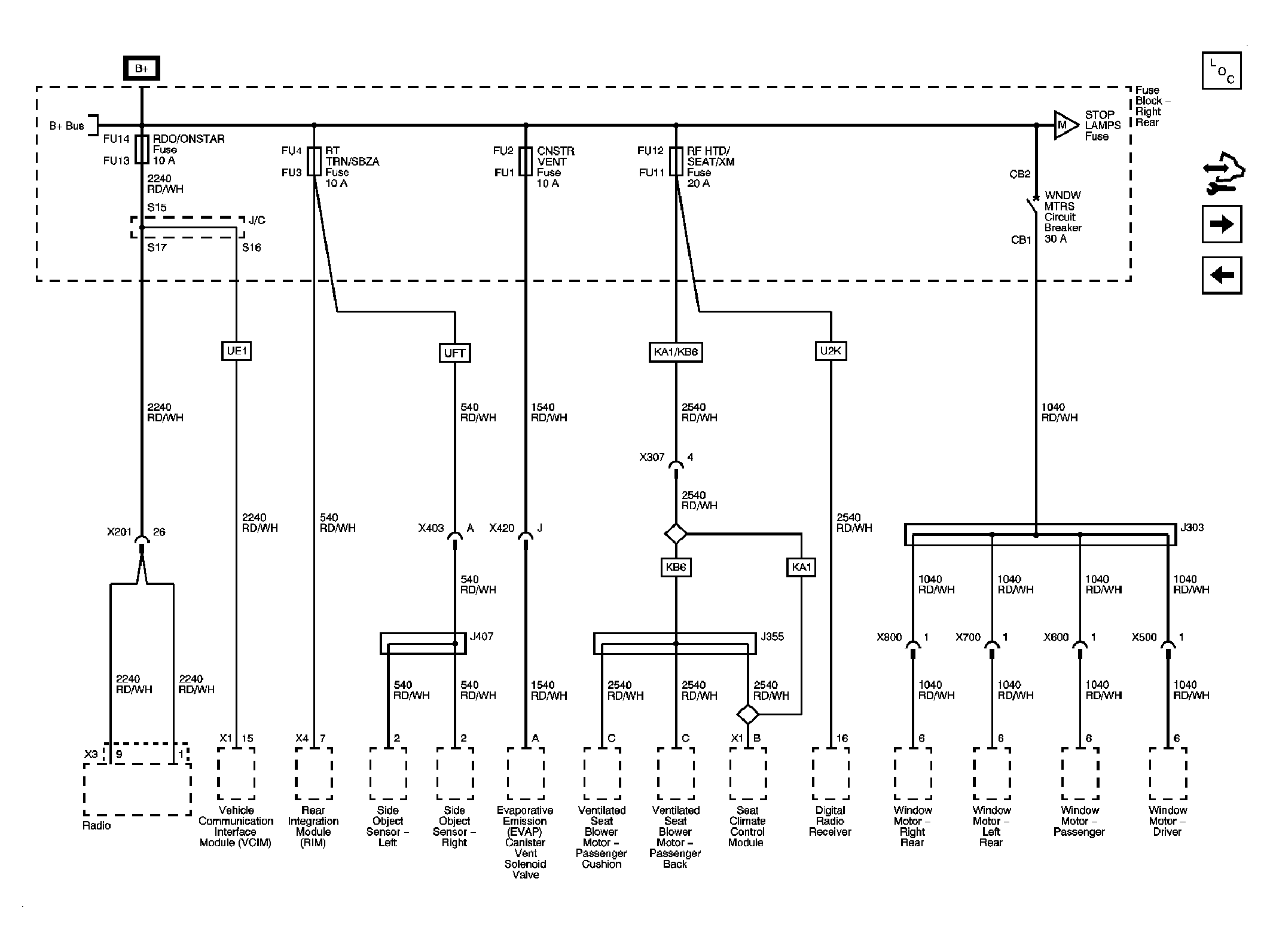

Fig 16: CNSTR VENT, RDO/ONSTAR, RF HTD/SEAT/XM, and RT TRN/SBZA Fuses, WNDW MTRS Circuit Breaker

GM2063921

Courtesy of GENERAL MOTORS CORP.

Fig 17: REAR DEFOG, REAR/FOG, S/ROOF. And STOP LAMPS Fuses

GM2063539

Courtesy of GENERAL MOTORS CORP.

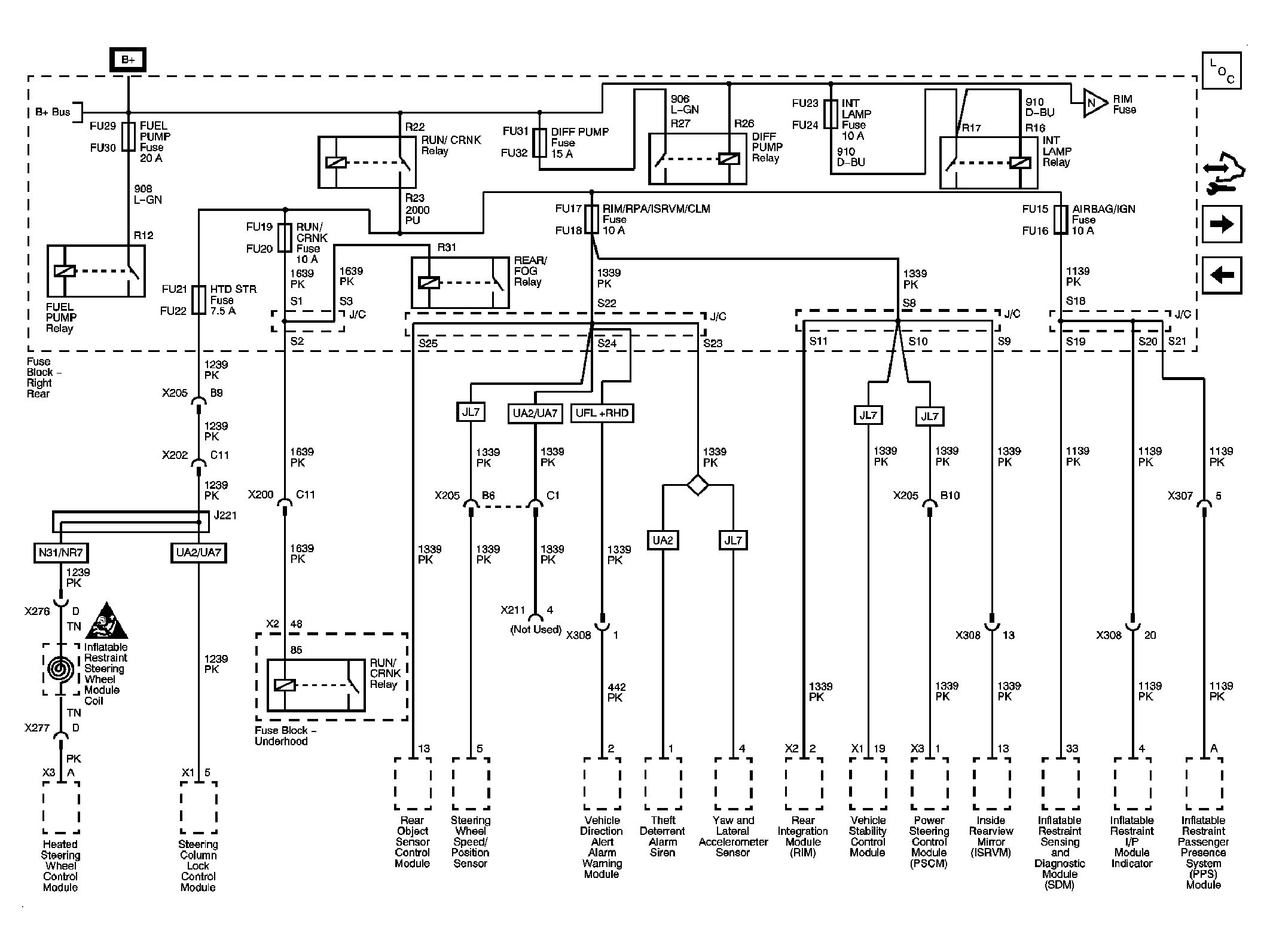

Fig 18: AIRBAG/IGN, DIFF PUMP, FUEL PUMP, HTD STR, INT LAMP, RIM/RPA/ISRVM/CLM, and RUN/CRNK Fuses

GM2062793

Courtesy of GENERAL MOTORS CORP.

Fig 19: FRT PDM, LT TRN/LDW, and RIM Fuses

GM2063543

Courtesy of GENERAL MOTORS CORP.

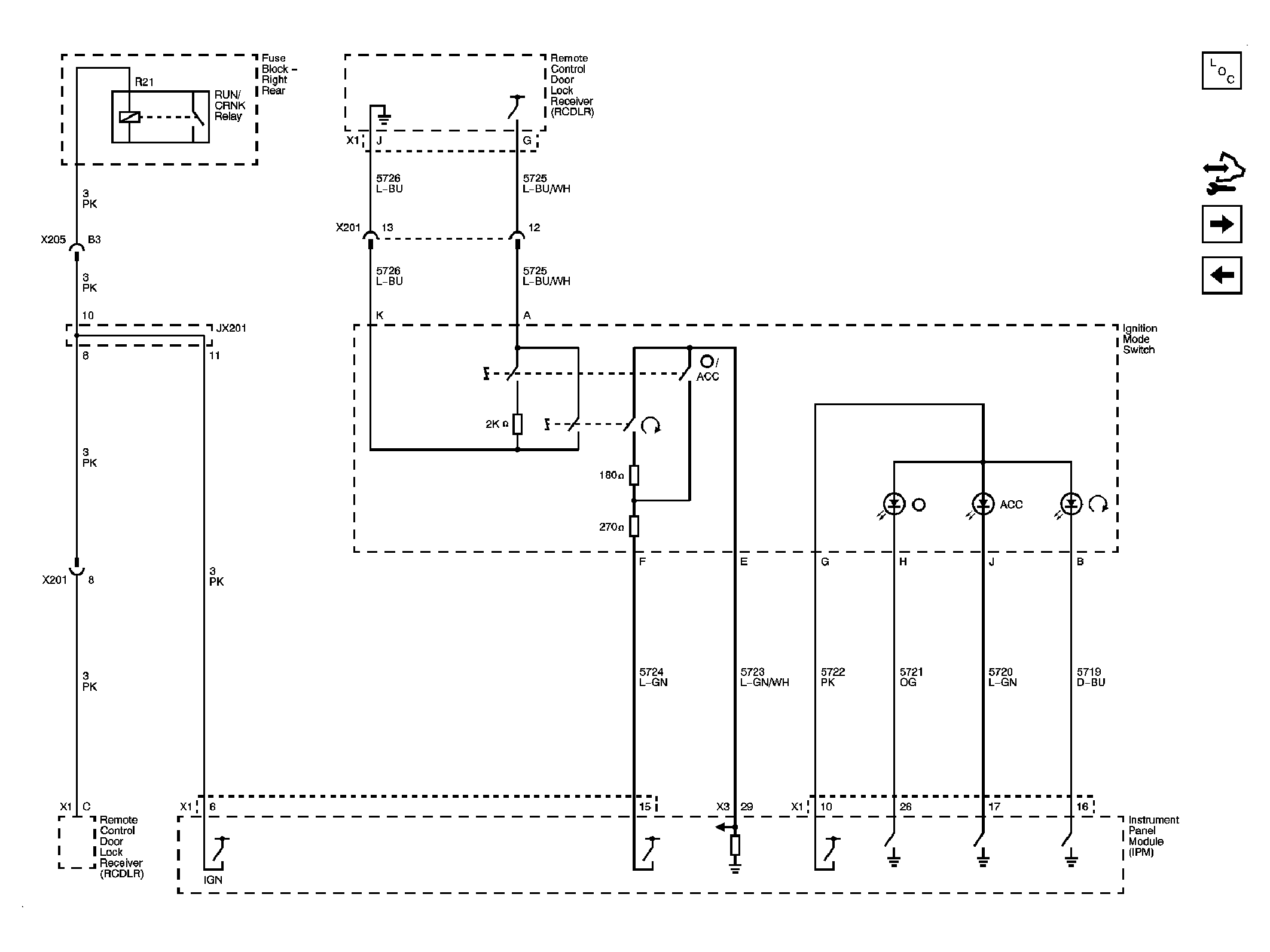

Fig 20: Ignition Mode Switch

GM2063526

Courtesy of GENERAL MOTORS CORP.
