Steering Wheel Secondary/Configurable Control Schematics

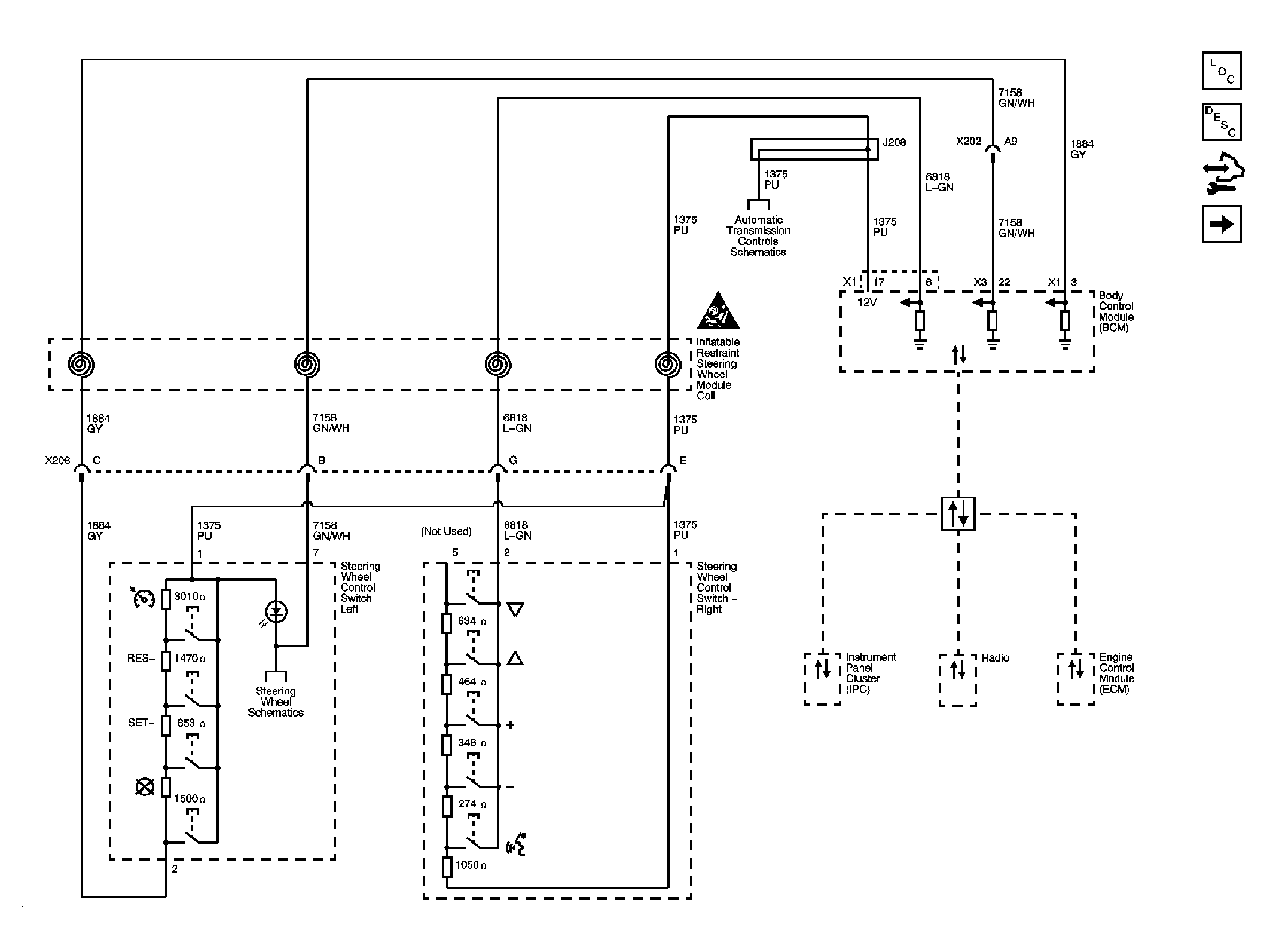

Fig 1: Steering Wheel Controls (N31) Schematic
GM2063385Courtesy of GENERAL MOTORS CORP.

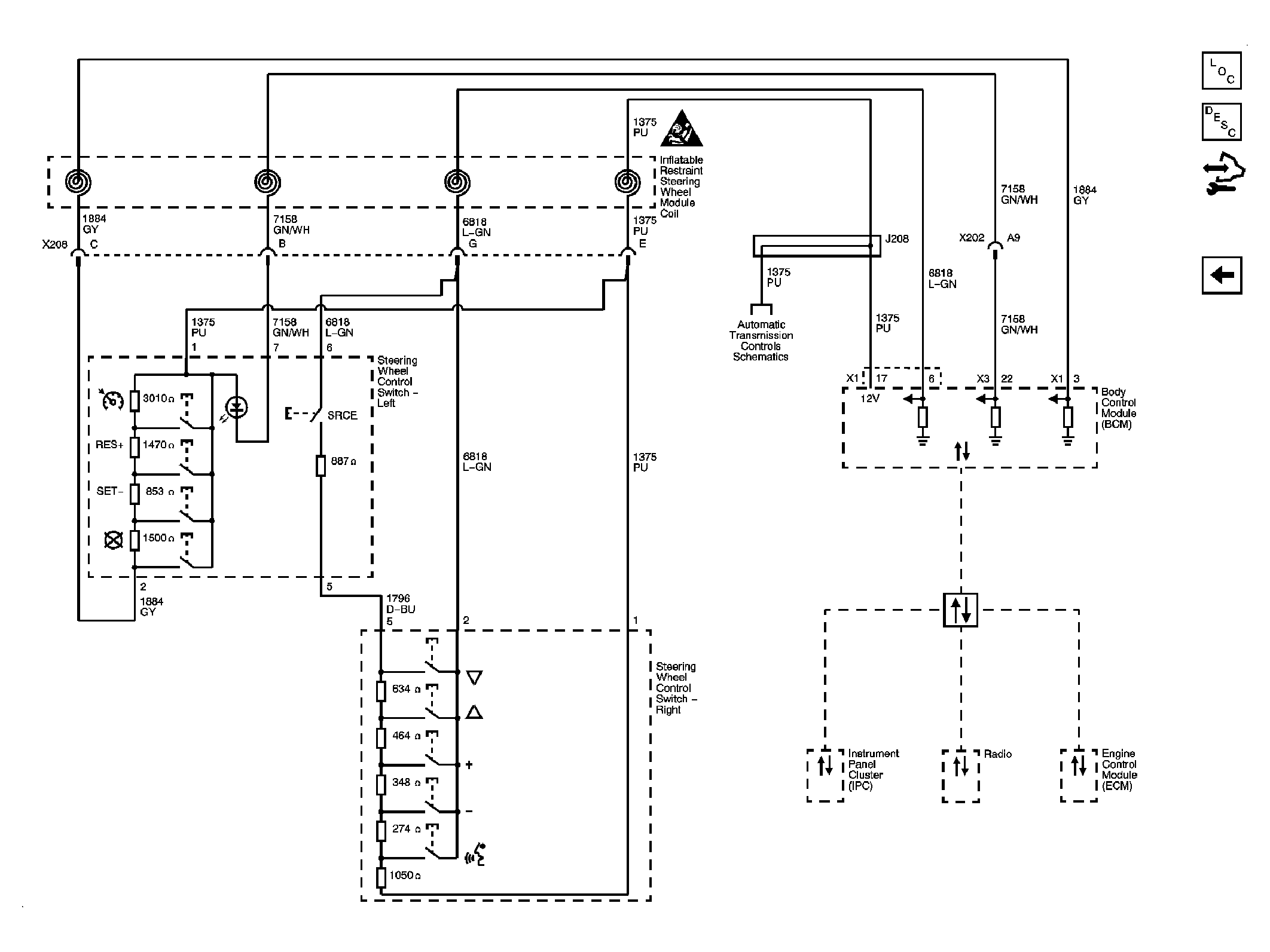

Fig 2: Steering Wheel Controls (Without N31) Schematic
GM2063388Courtesy of GENERAL MOTORS CORP.
