Armrest Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

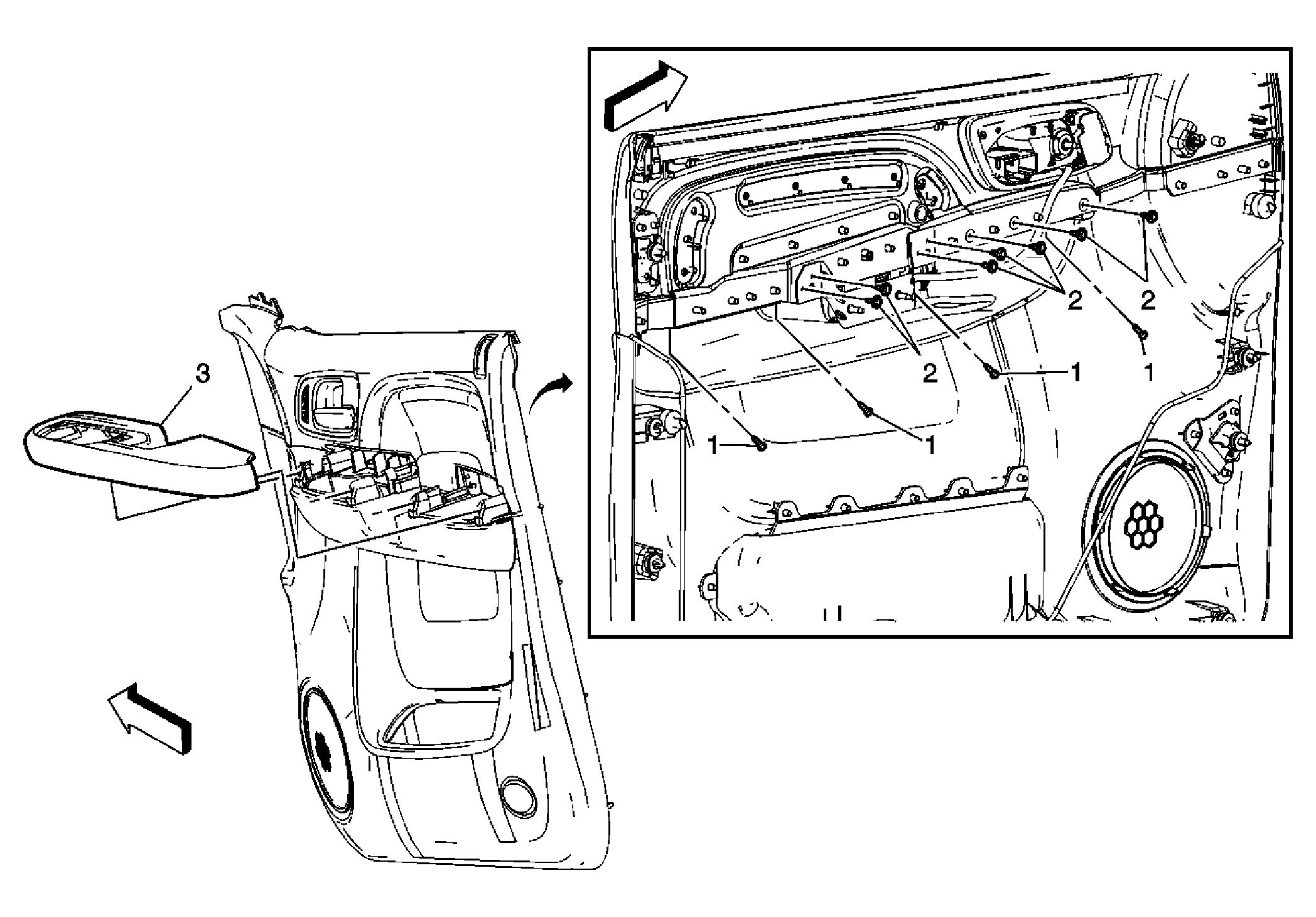

Fig 1: View Of Frontside Door Armrest Assembly & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove door upper trim panel. Refer to Upper Extension Trim Panel Replacement (Escalade) or Upper Extension Trim Panel Replacement (Except Escalade) . Remove door window control switch. Refer to Door Lock and Side Window Switch Replacement - Driver Side or Door Lock and Side Window Switch Replacement - Passenger Side . Remove door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Armrest Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Side Door Trim Panel Bolt (Qty: 7) Tighten: 2 N.m (18 lb in)
3	Front Side Door Armrest Assembly
