Harness Routing Views

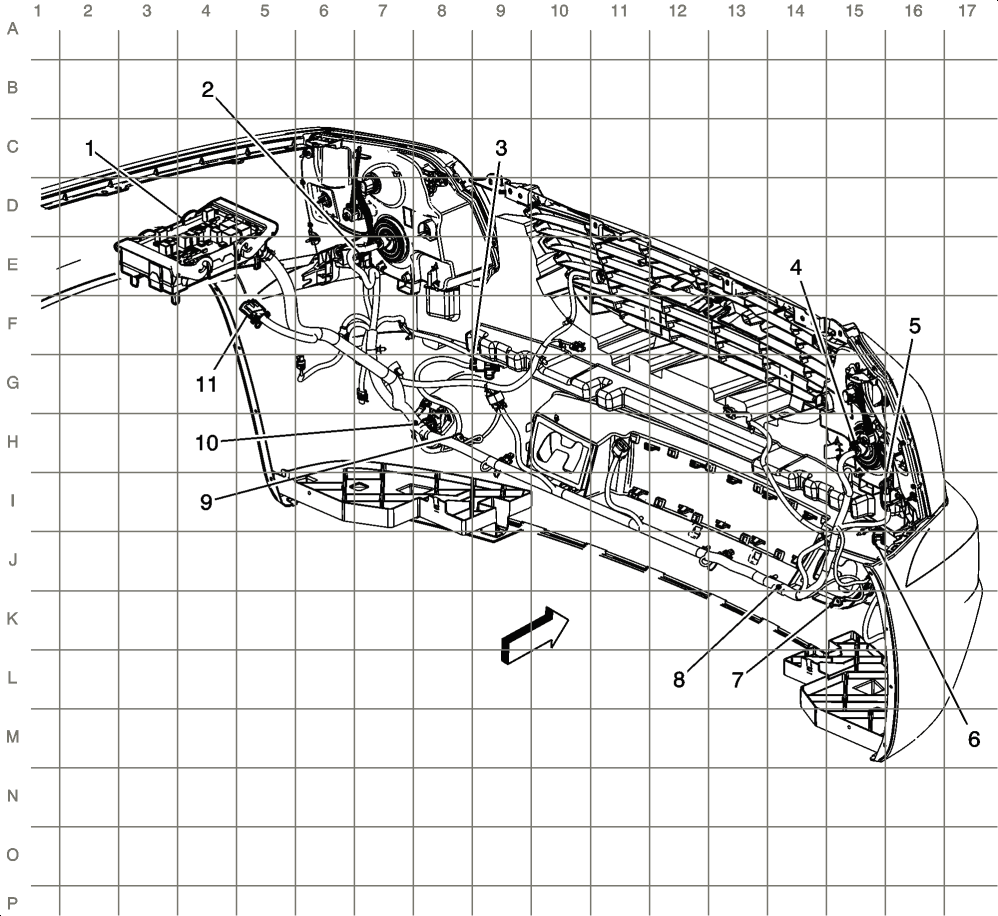

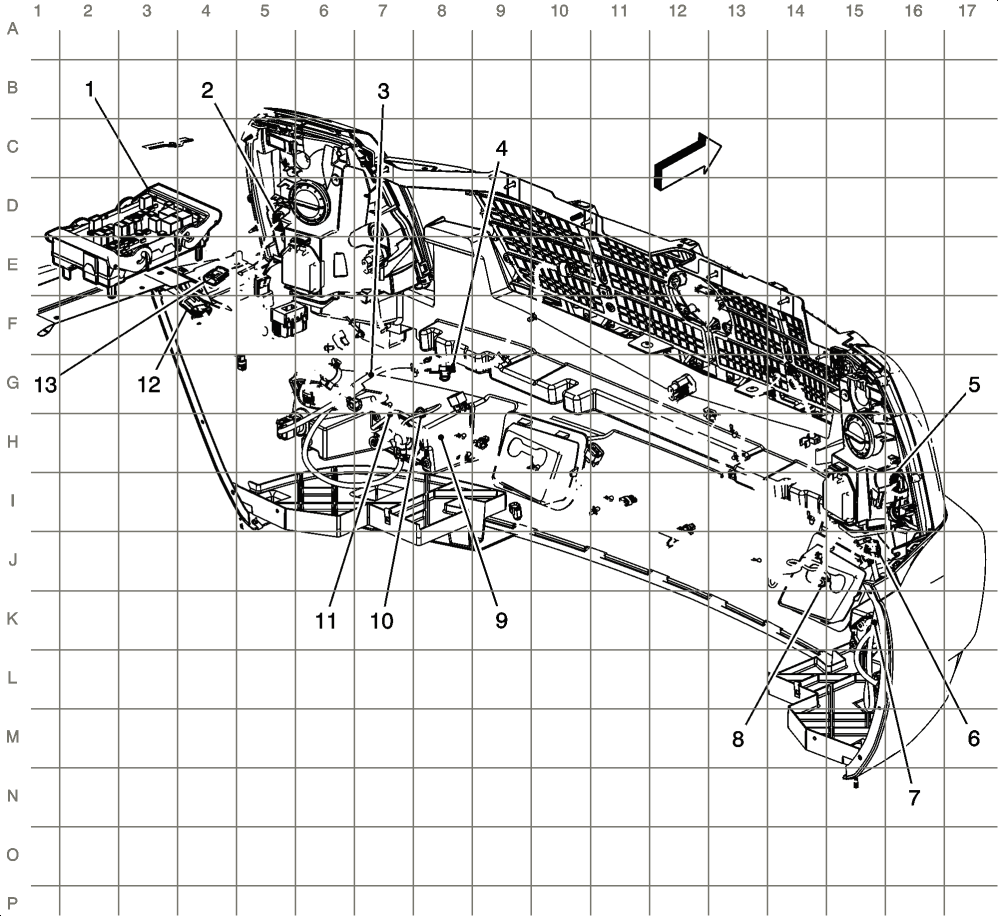

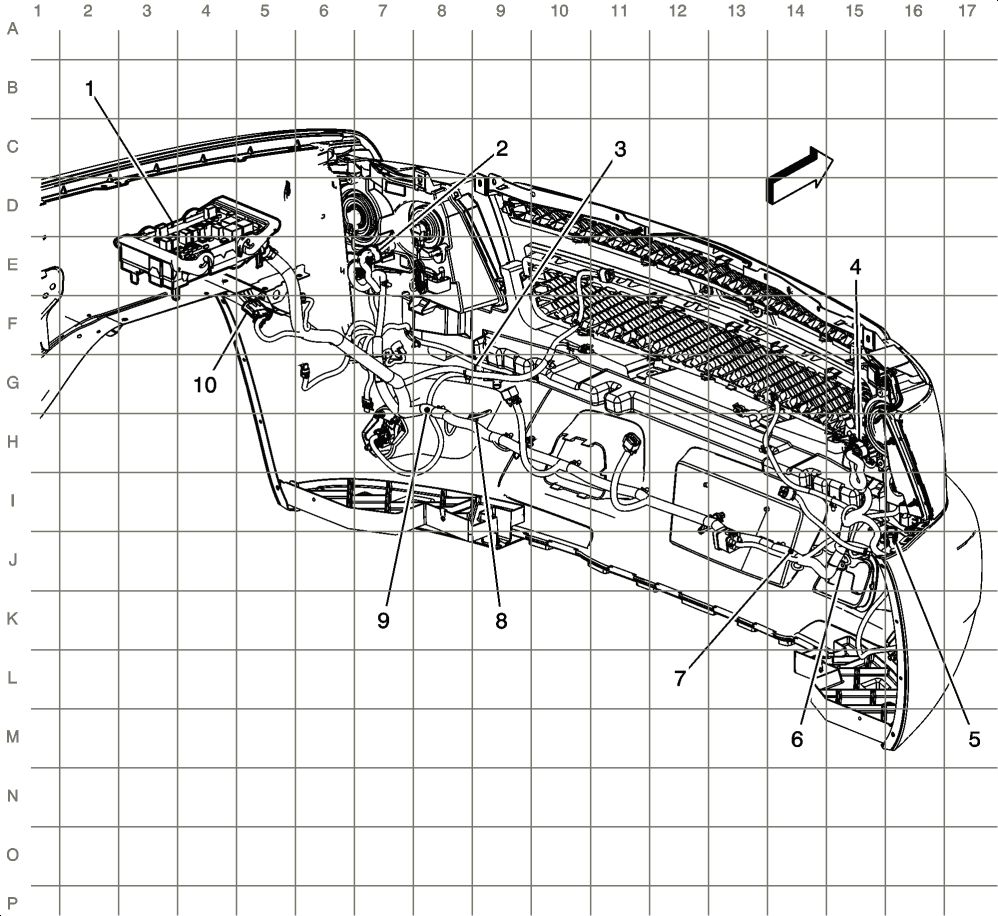

Fig 1: Forward Lighting Views (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	X100 (X88 or Z75)
3	J160
4	X101
5	X106
6	X104
7	J101
8	G100
9	J162
10	G101
11	J161
12	X103
13	X105

Fig 2: Forward Lighting Views (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	X100
3	X102 (T96)
4	X106
5	X105 (T96)
6	G101
7	J101
8	G100
9	J100
10	X103

Fig 3: Forward Lighting Views (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	X100
3	X101 (T96)
4	X104 (T96)
5	X106
6	J103
7	G101
8	J101
9	G100
10	J100
11	X103

Fig 4: Forward Lighting Views (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	X107 (VYU)
3	X101
4	X102 (T96)
5	X104
6	X108 (VYU)
7	X105 (T96)
8	G101
9	J101
10	G100
11	J100
12	X103

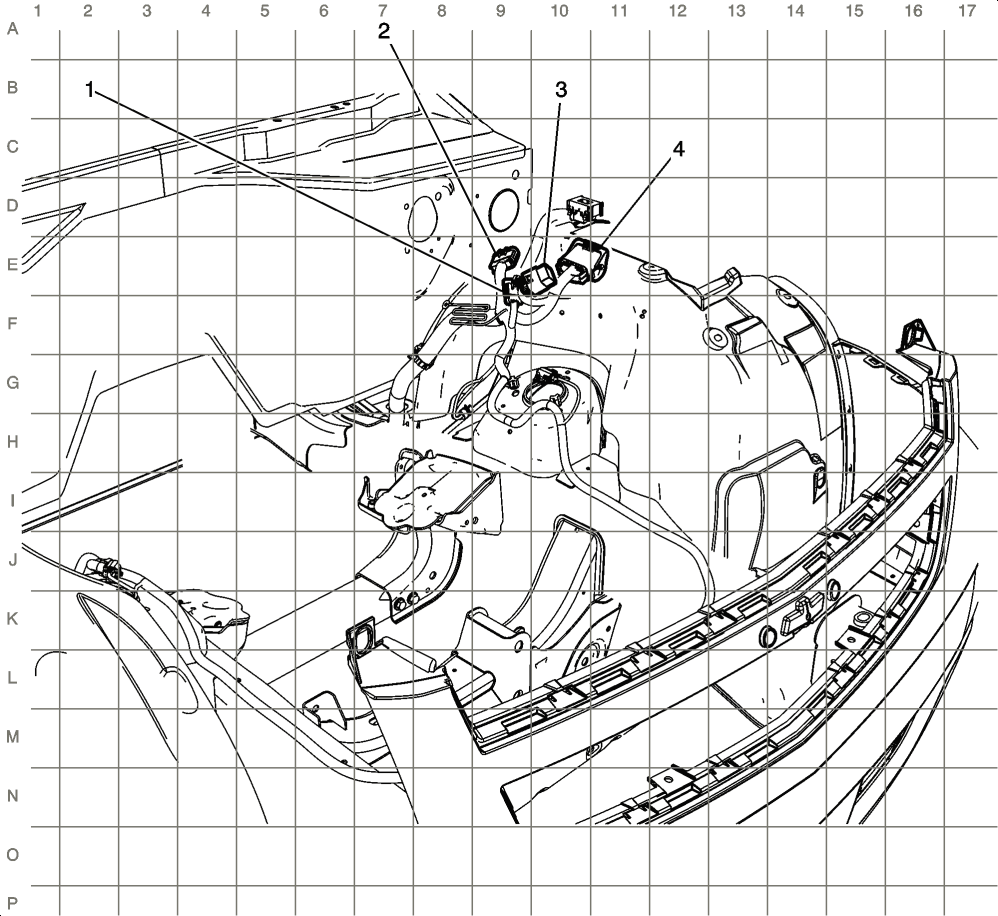

Fig 5: Chassis-Front Engine Compartment (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X117 (BRS)
2	X121
3	Automatic Level Control (ALC) Relay (Z55)
4	X115

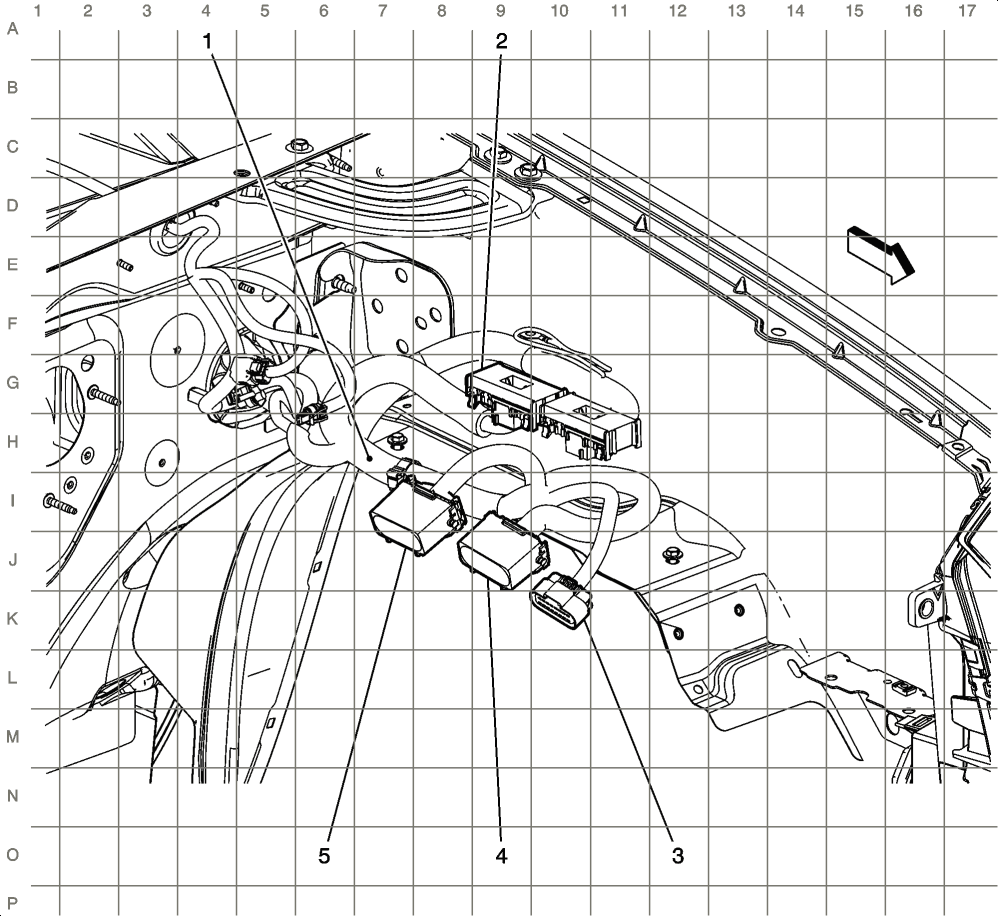

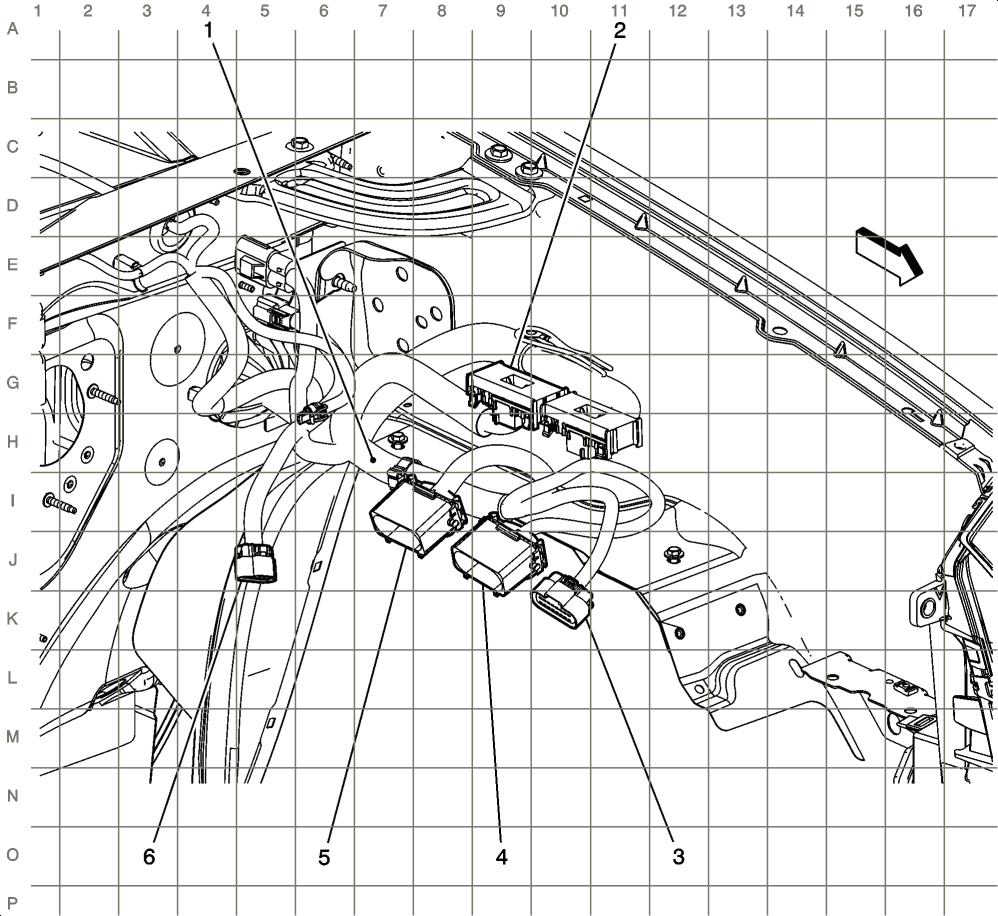

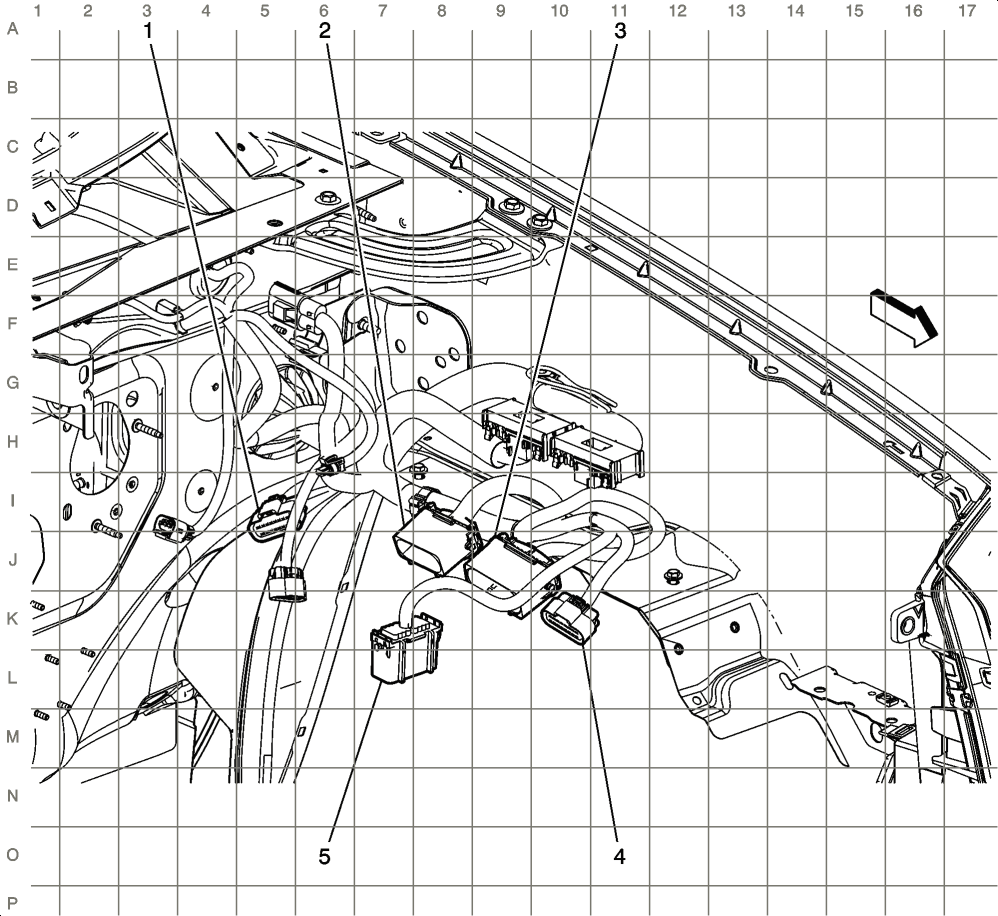

Fig 6: I/P Harness - Engine Compartment (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X129
2	X115
3	X109
4	X103
5	X150

Fig 7: I/P Harness - Engine Compartment (X88/Z88)(YE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J113
2	Fuse Block-Underhood
3	X103
4	X109
5	X115

Fig 8: I/P Harness - Engine Compartment (Z75/Y91)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J113
2	Fuse Block-Underhood
3	X103
4	X109
5	X115
6	X117 (BRS)

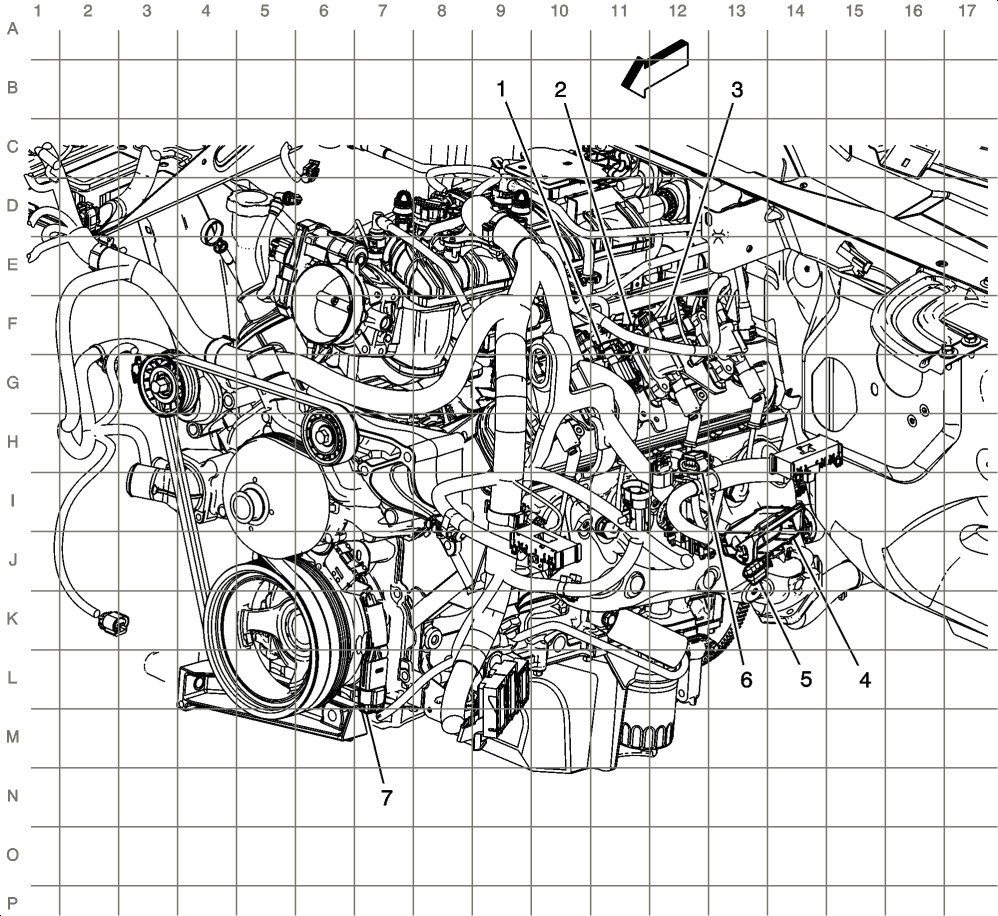

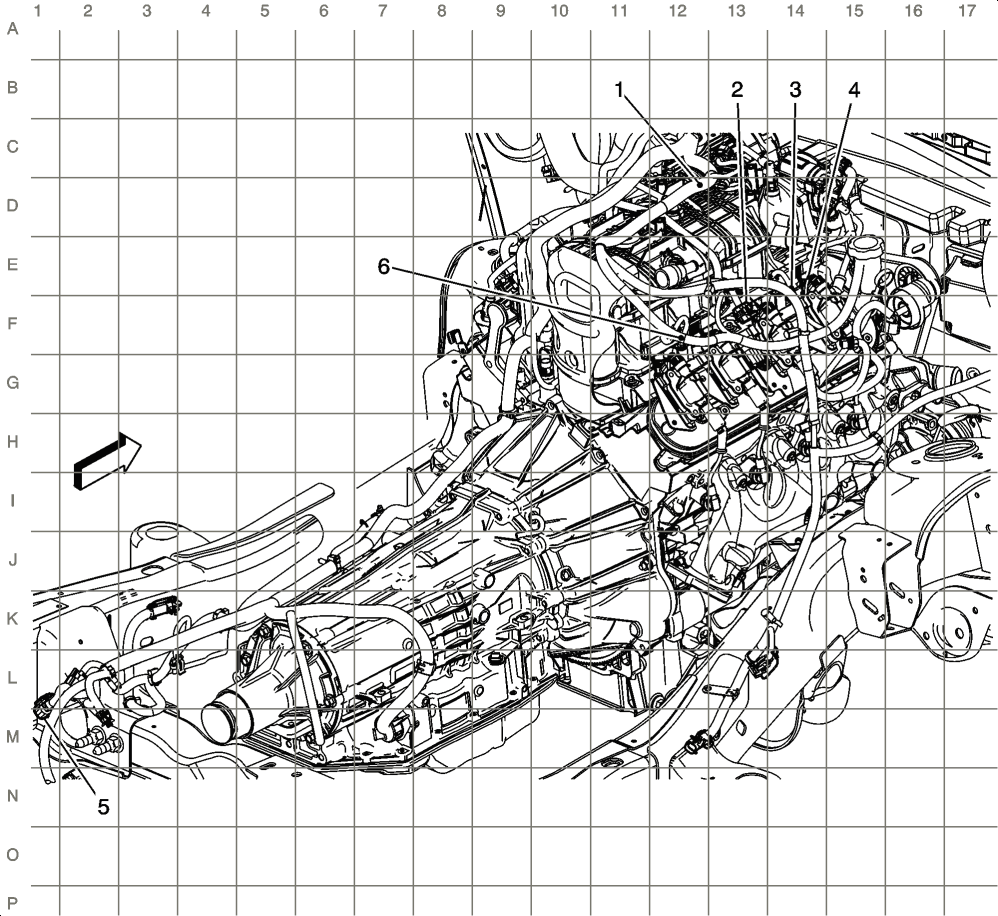

Fig 9: Engine Harness - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X111
2	X109
3	X110 (NQH)
4	J104
5	J105
6	X112

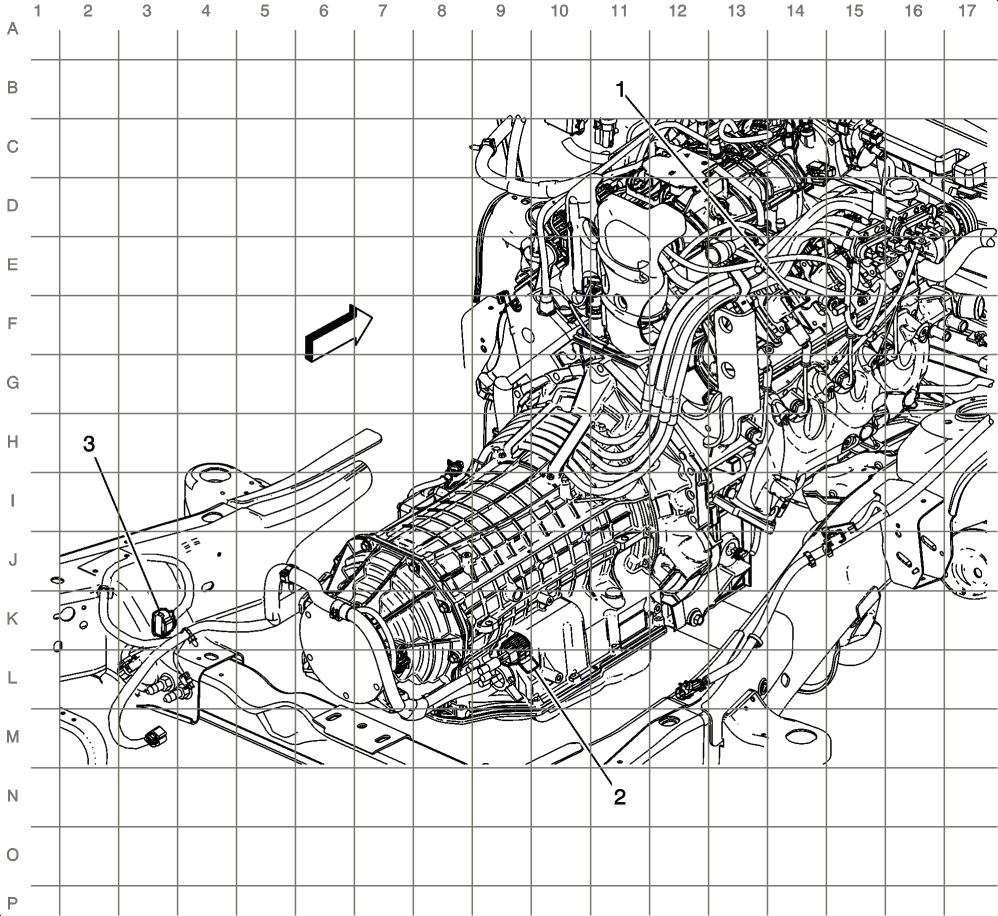

Fig 10: Engine Harness - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J106
2	X113
3	X300

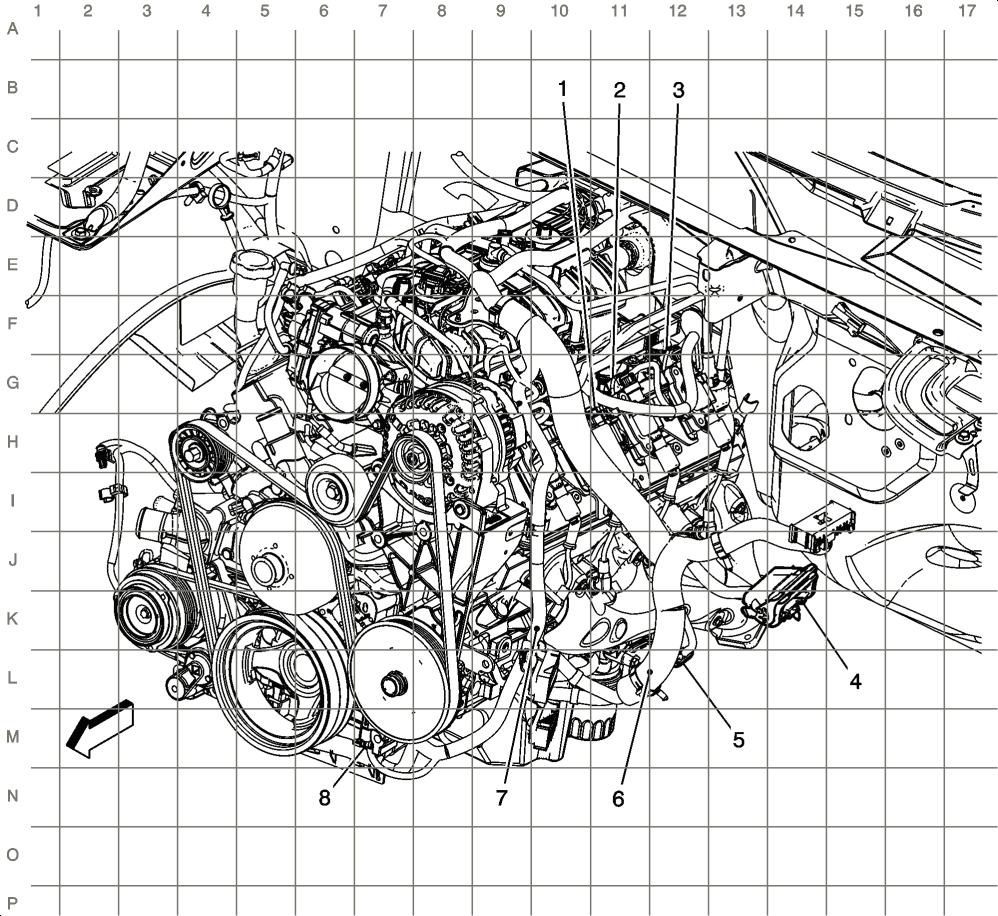

Fig 11: Engine Harness - Front (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X111
2	X109
3	X110 (NQH)
4	X120
5	X112

Fig 12: Engine Harness - Rear (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X113
2	X176
3	X300

Fig 13: I/P Harness (except HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	JX200
2	X201
3	X205
4	X209 (UVC)
5	X207
6	X211 (D07)
7	X202
8	X200

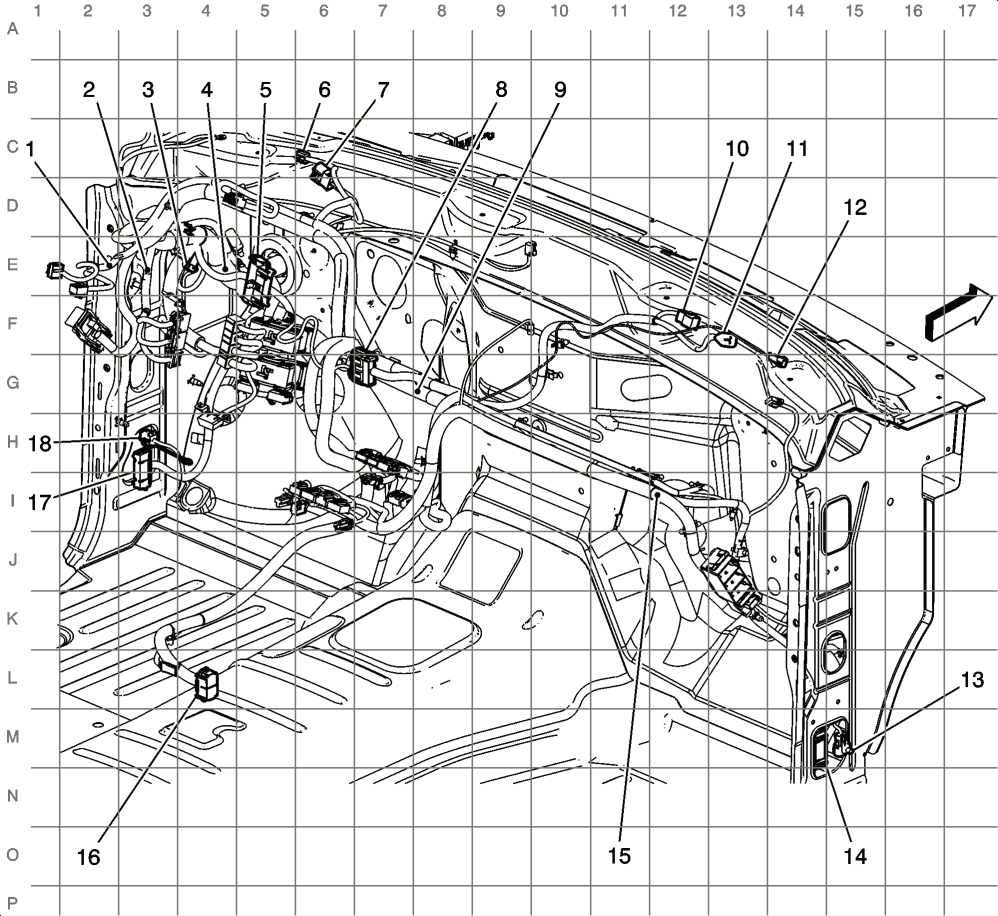

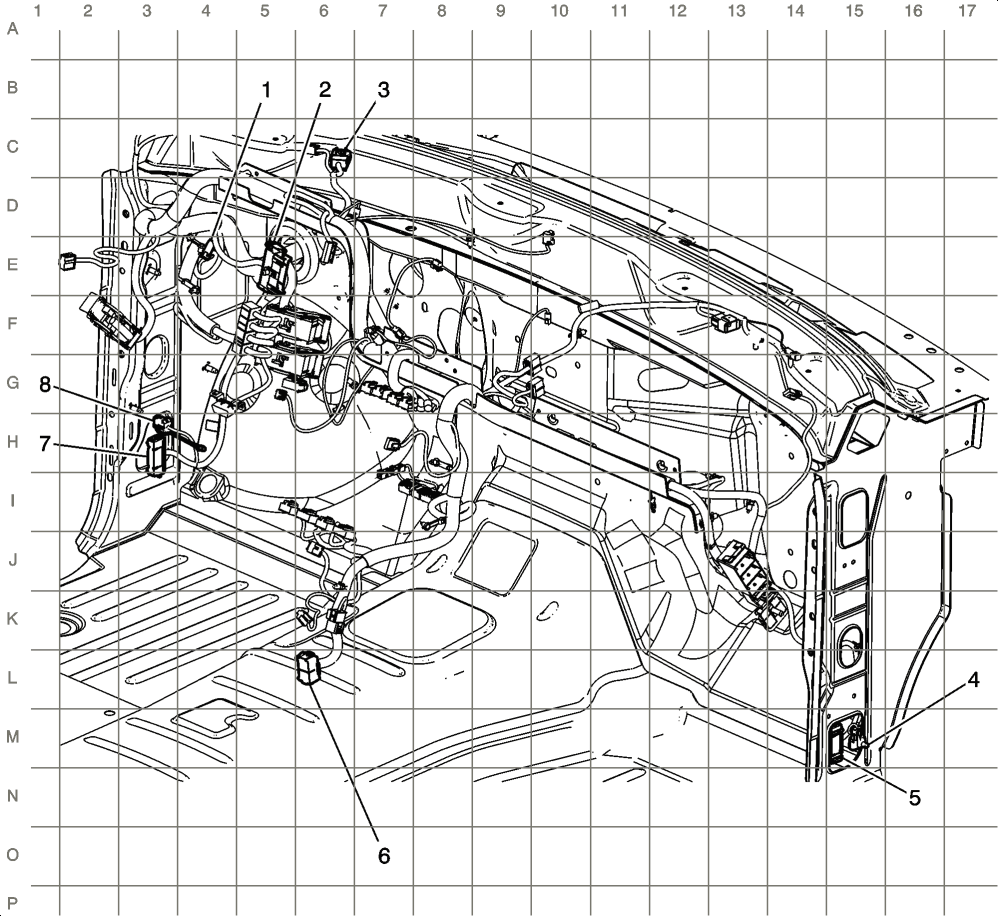

Fig 14: I/P Harness - Passenger Compartment (YE9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J201
2	J207 (HP2 or NQH)
3	JX200
4	J200
5	X201
6	X203 (UE1)
7	X205
8	X212 (except Y91)
9	J203
10	X206
11	X213 (UE1)
12	X208 (U84)
13	X209 (UVC)
14	X207
15	J205
16	X211
17	X202
18	X200

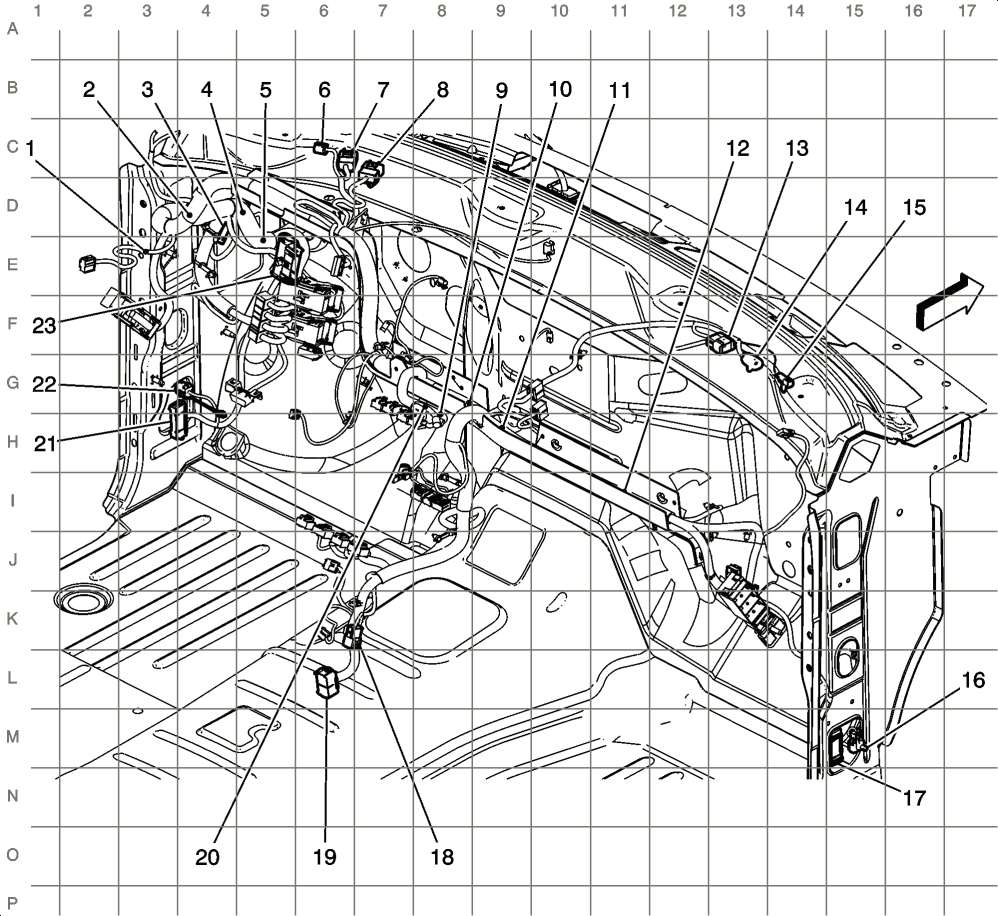

Fig 15: I/P Harness - Passenger Compartment (Z75 or Y91)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J201
2	J219 (KA9)
3	JX200
4	J208
5	J200
6	X203
7	X204 (U42)
8	X205
9	J203
10	J204
11	J205
12	J206
13	X206 (U42 without DNU)
14	X213 (UE1)
15	X208 (U84)
16	X209
17	X207
18	X210 (UQS)
19	X211 (D07)
20	J202 (UQS with DNU)
21	X202
22	X200
23	X201

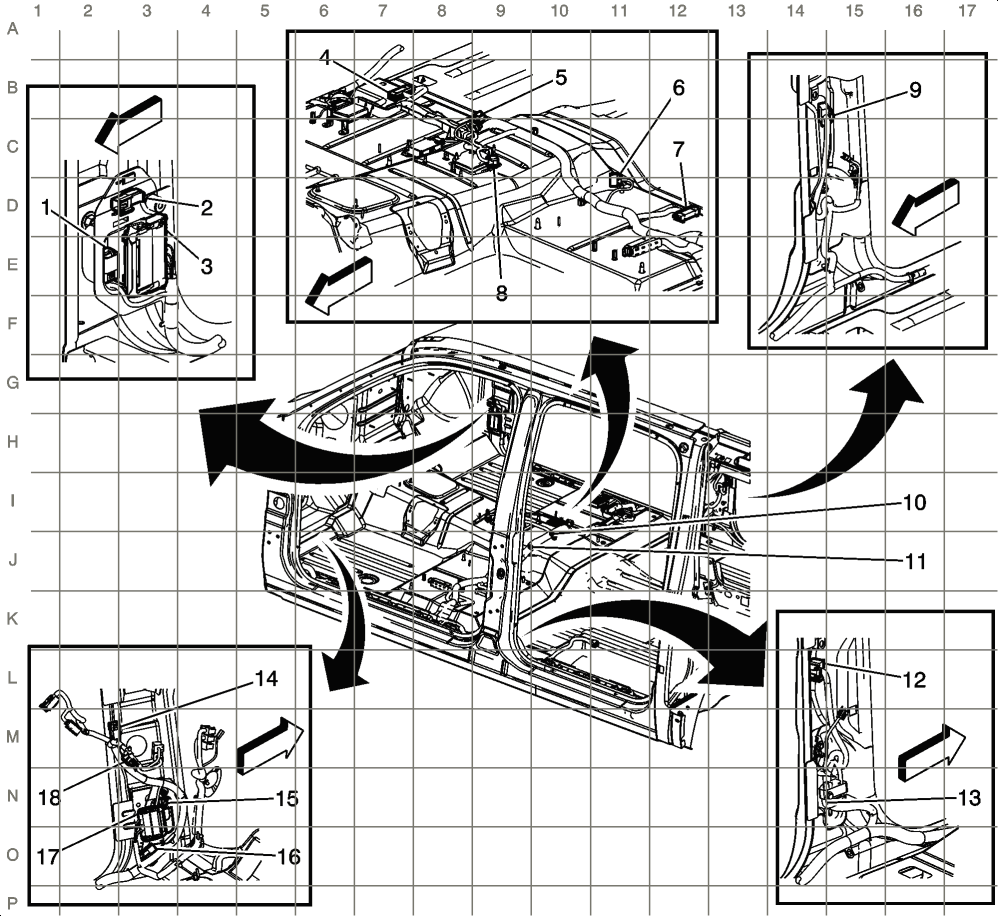

Fig 16: Body Harness - Front Compartment (Long Wheel Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X209 (UVC)
2	X215 (HP2)
3	X207
4	X305
5	X320 (AZ3 or A95)
6	X323
7	X303
8	X309 (UQS)
9	X800
10	X700
11	X275
12	X200
13	X500
14	X202
15	X229

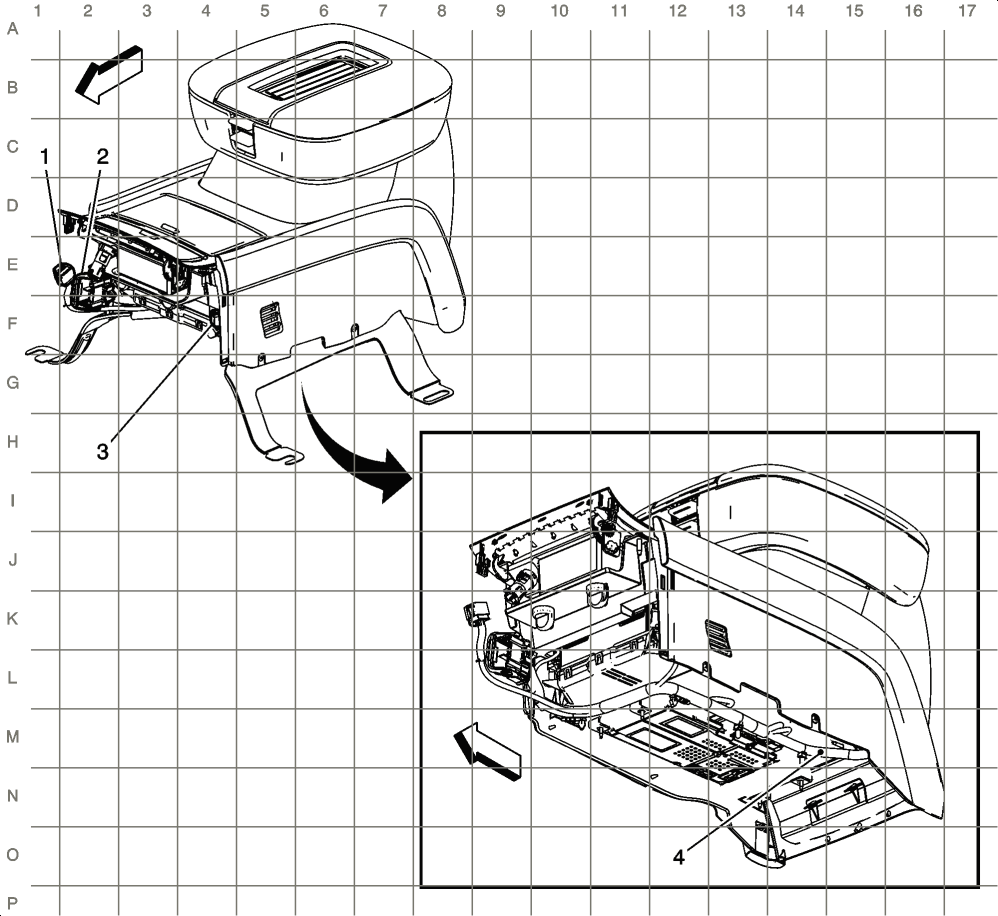

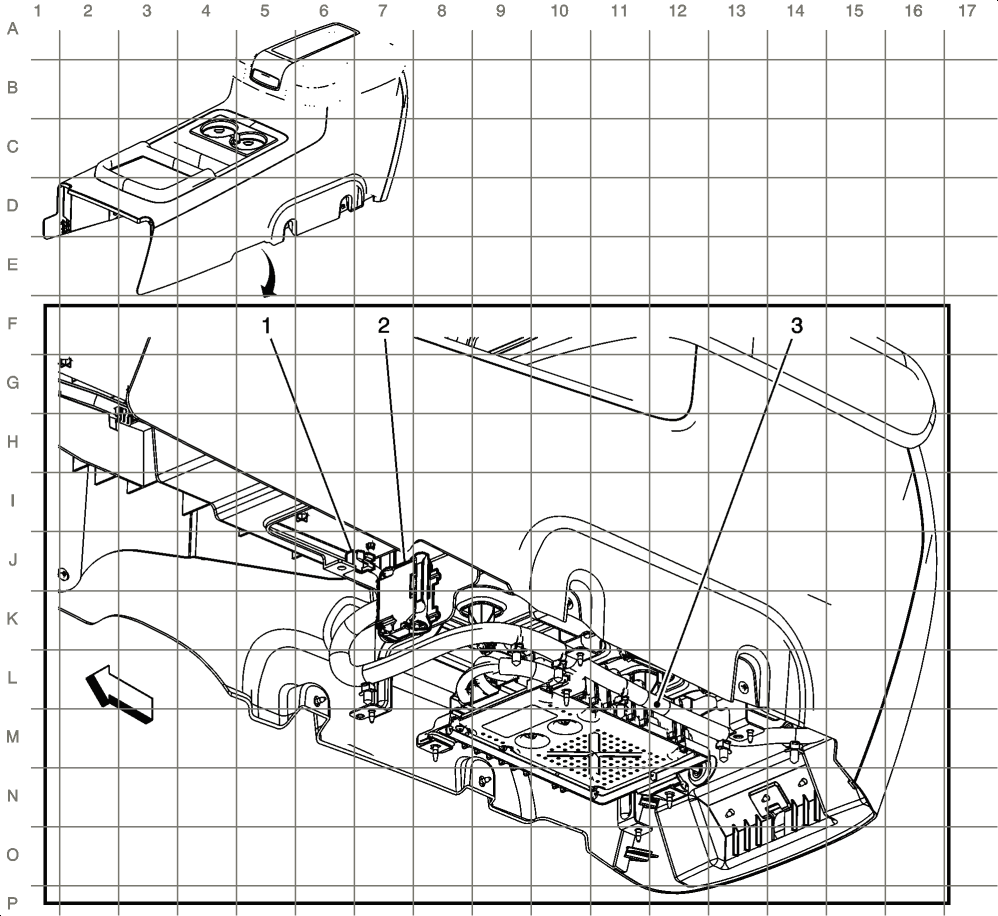

Fig 17: Floor Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X309 (UQS)
2	X211 (D07)
3	J330 (D07)

Fig 18: Floor Console (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X210 (UQS)
2	X211 (D07)
3	X309
4	J330 (D07)

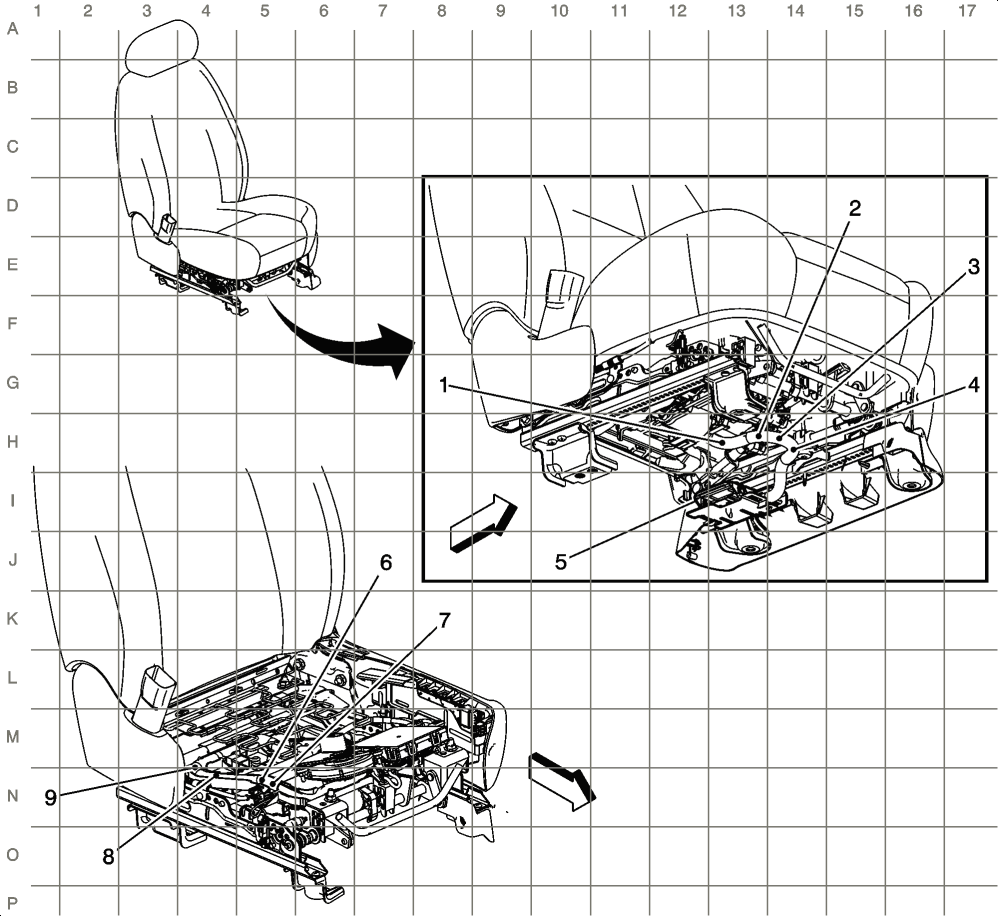

Fig 19: Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J305 (AN3)
2	J307(KB6)
3	J308 (KB6)
4	J306 (AN3)
5	X303
6	J311 (AN3)
7	J312 (AN3)
8	J305 (AG2 without AN3)
9	J310 (AN3)

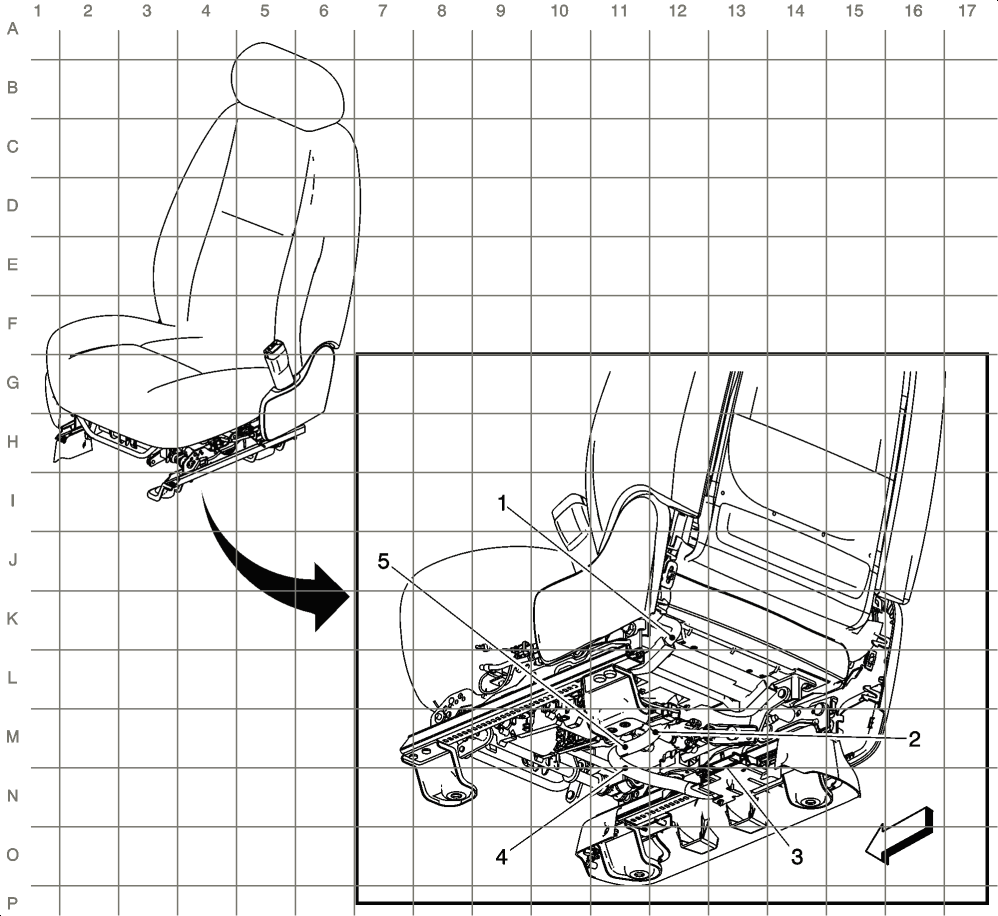

Fig 20: Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J316 (AN3 without KB6)
2	J315 (AN3)
3	X305
4	J313 (AG2 or AN3)
5	J314 (AN3)

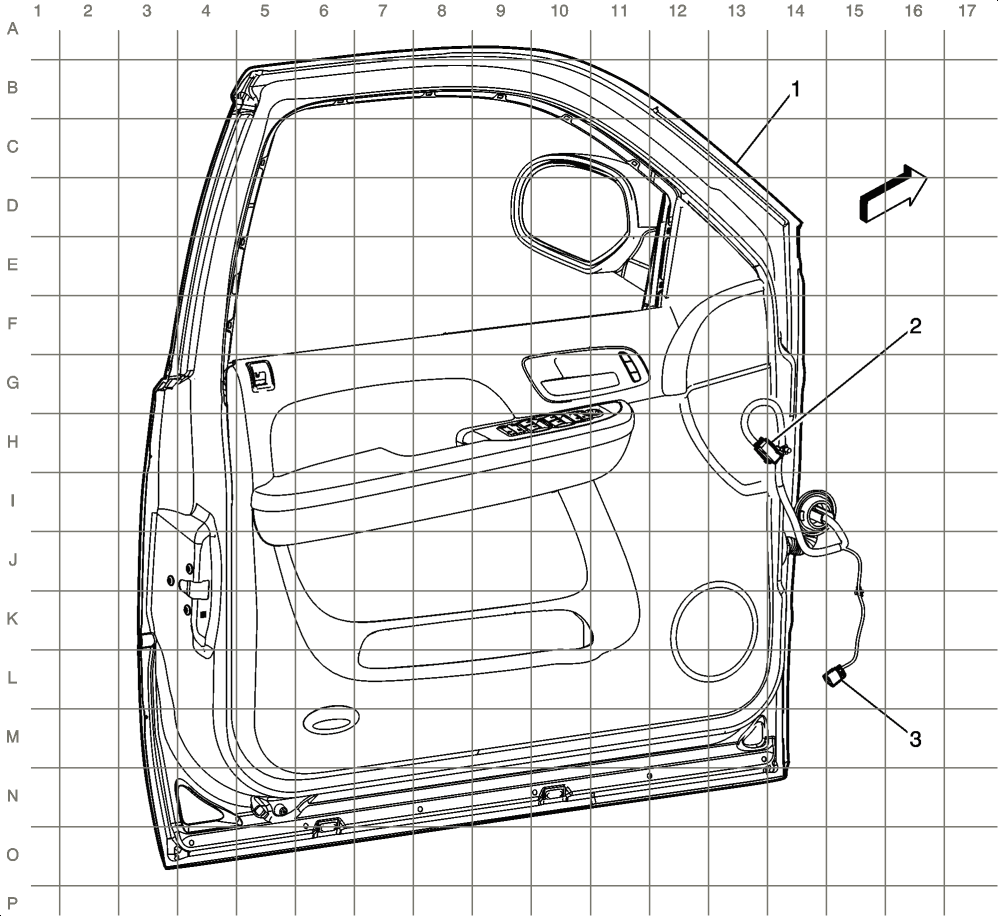

Fig 21: Driver Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Fuse Block - I/P X4
3	X500 (ASF)

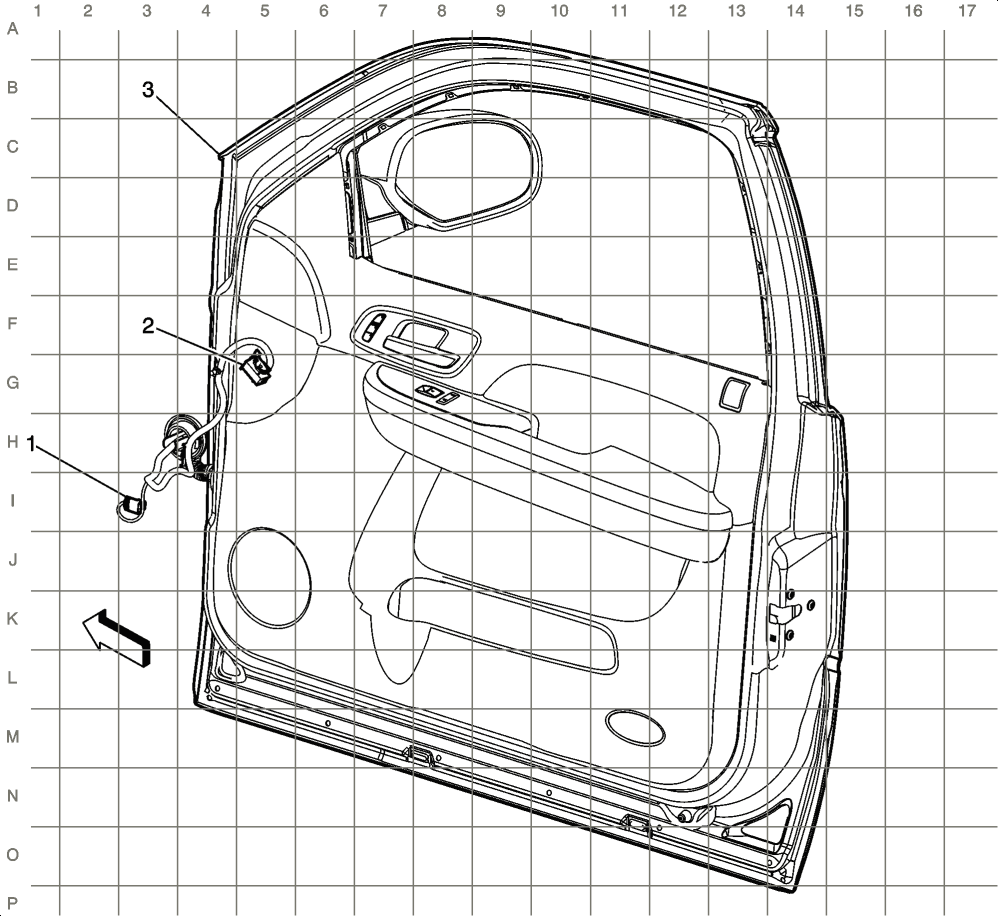

Fig 22: Passenger Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X600 (ASF)
2	Junction Block - Right I/P X3
3	Door Frame

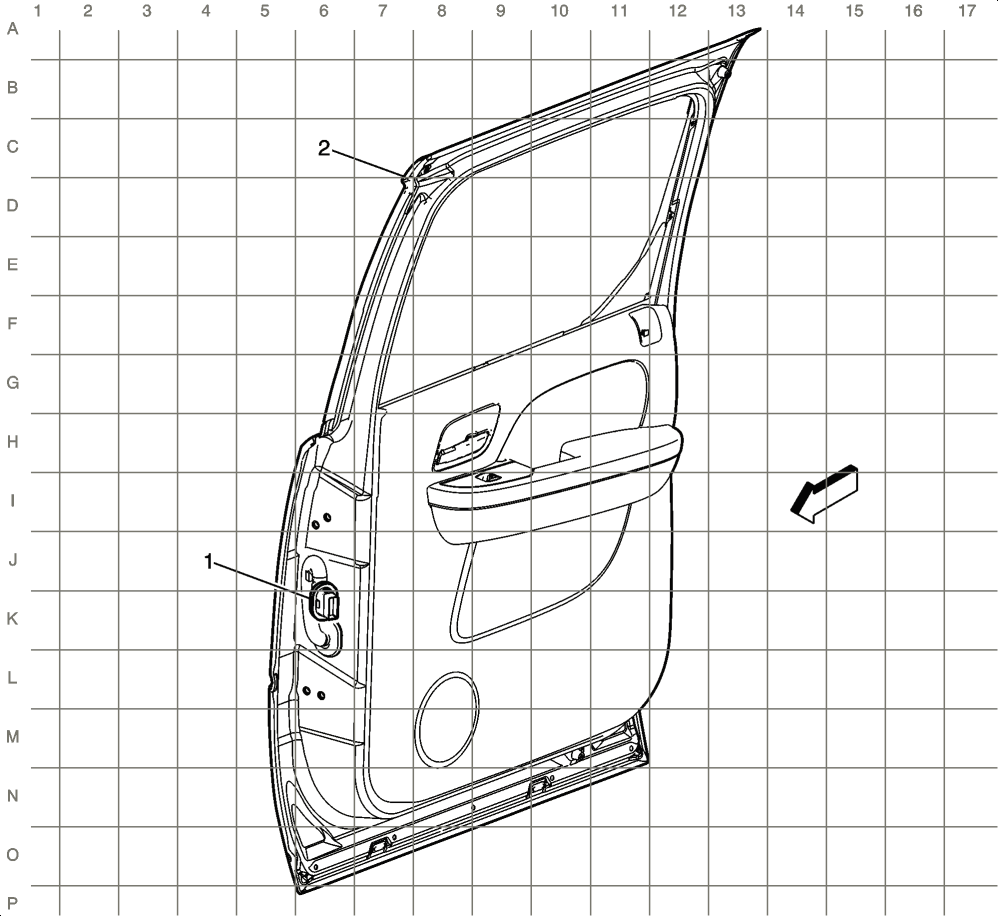

Fig 23: Left Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	X700

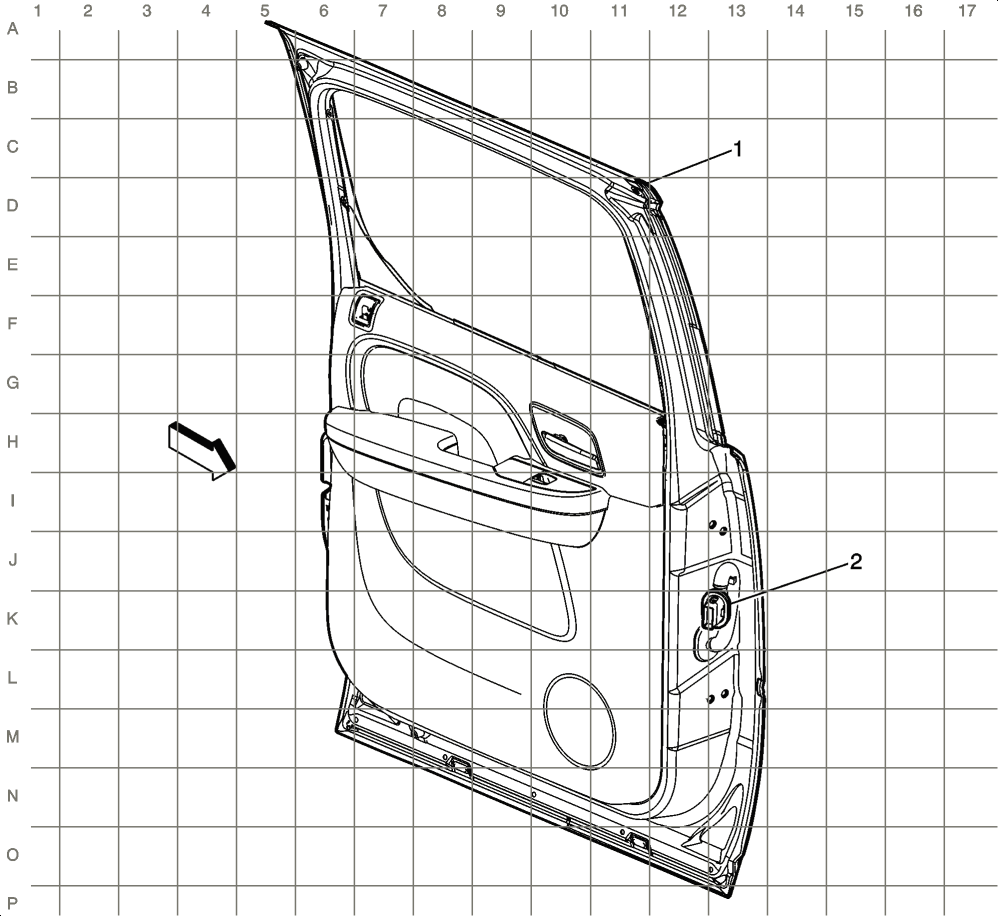

Fig 24: Right Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X800
2	Door Frame

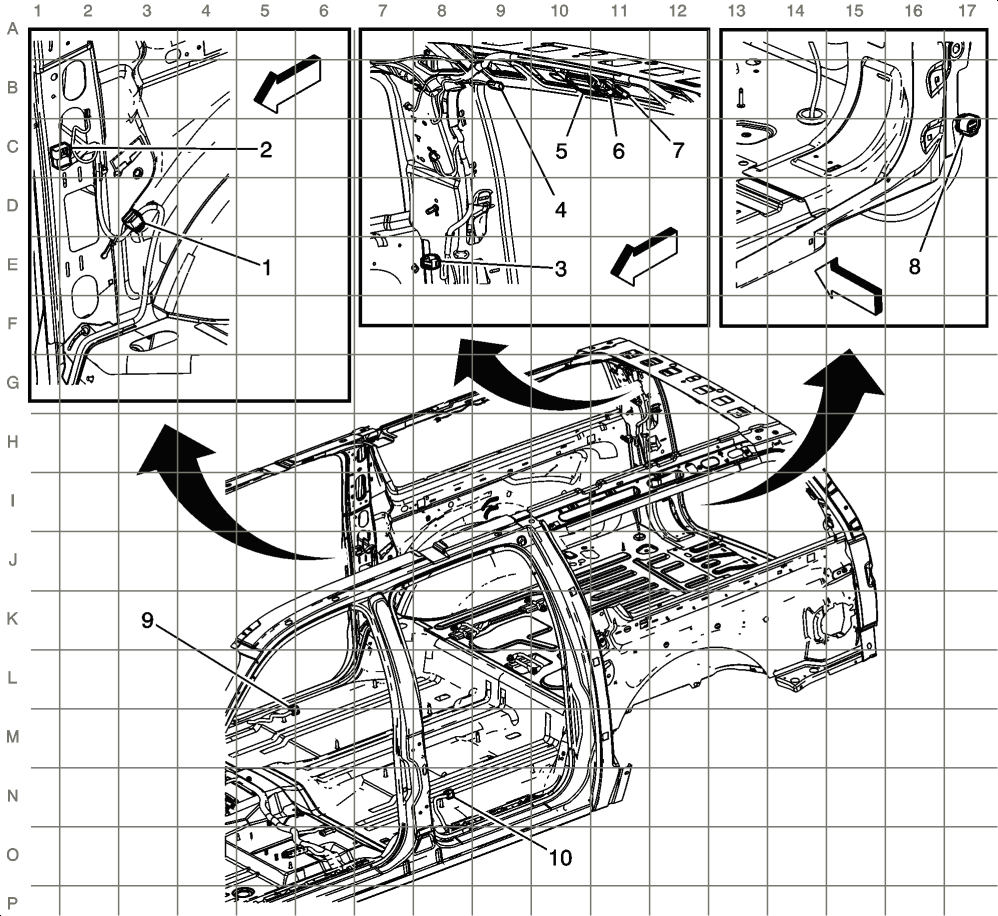

Fig 25: Body Harness - Rear Compartment (Long Wheel Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X421 (UVC without UVB)
2	X403
3	X407 (C69)
4	X406
5	X405
6	X413 (UVC)
7	X404
8	X408 (UD7)
9	X307 (ARS or KA6)
10	X308 (ARS or KA6)

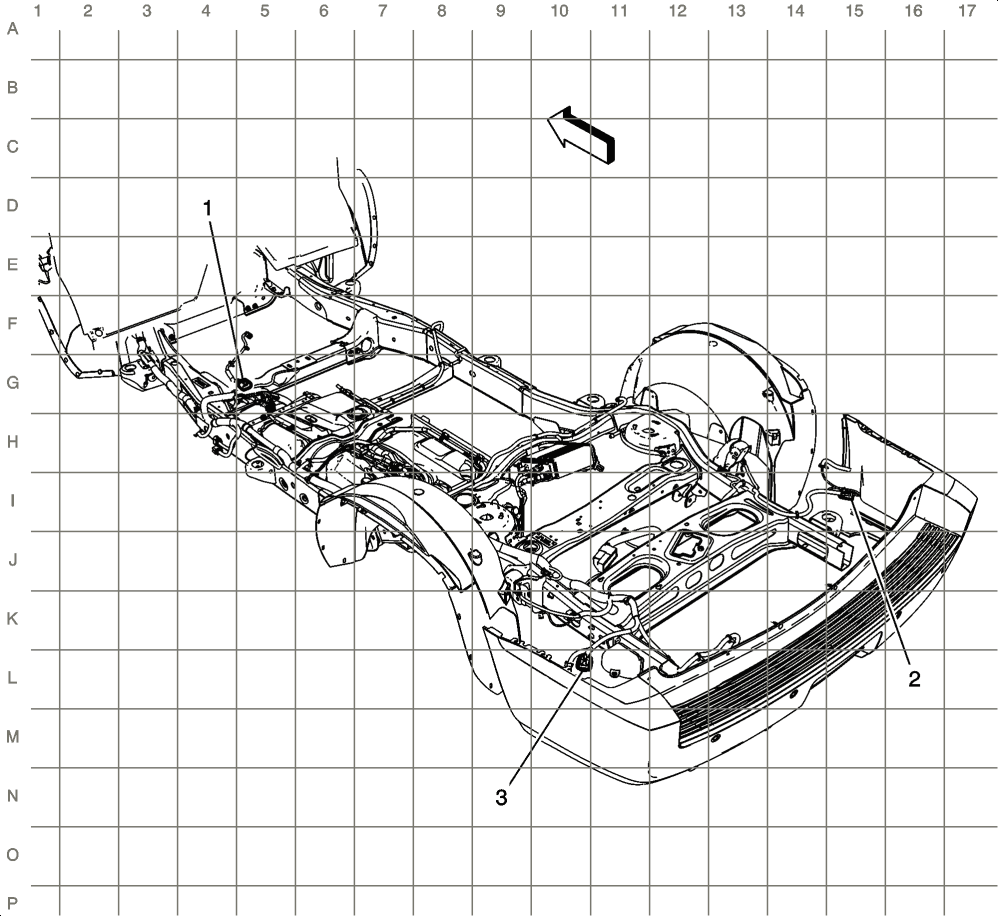

Fig 26: Chassis (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X300
2	X412
3	X411

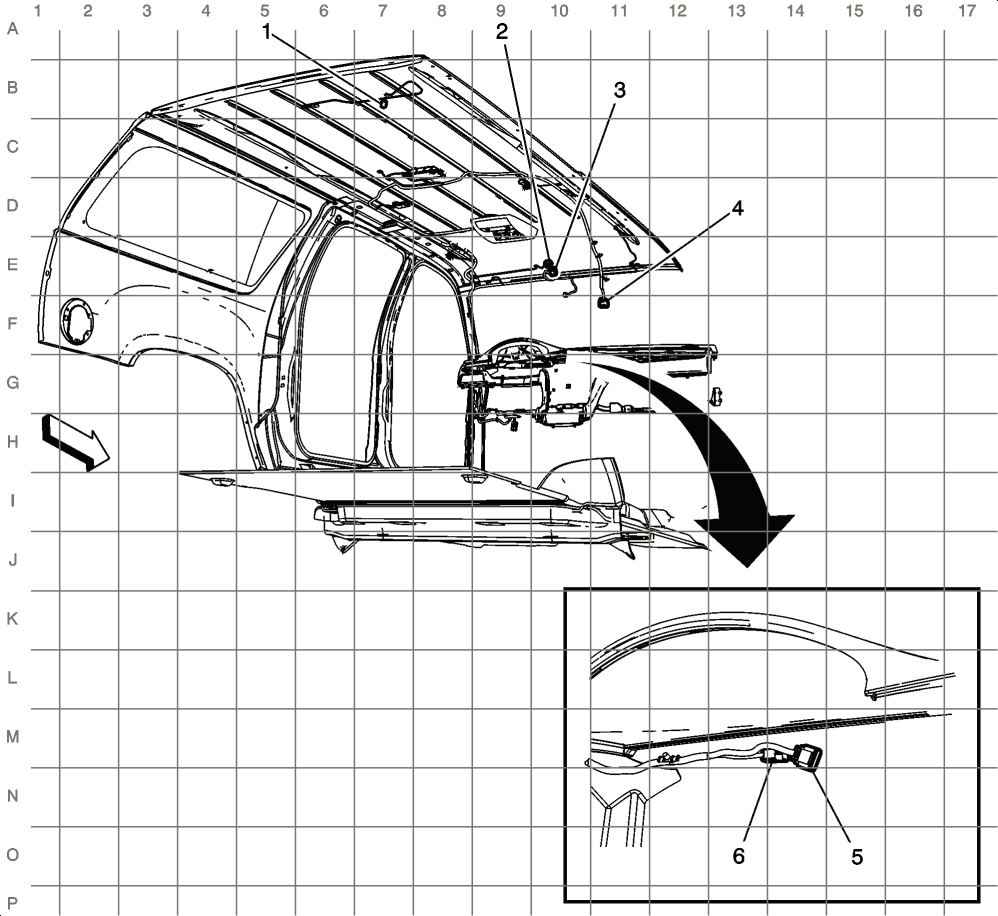

Fig 27: Headliner Harness (Long Wheel Base with E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X406
2	X206
3	X304
4	X403
5	X204 (U42)
6	X203 (UE1)

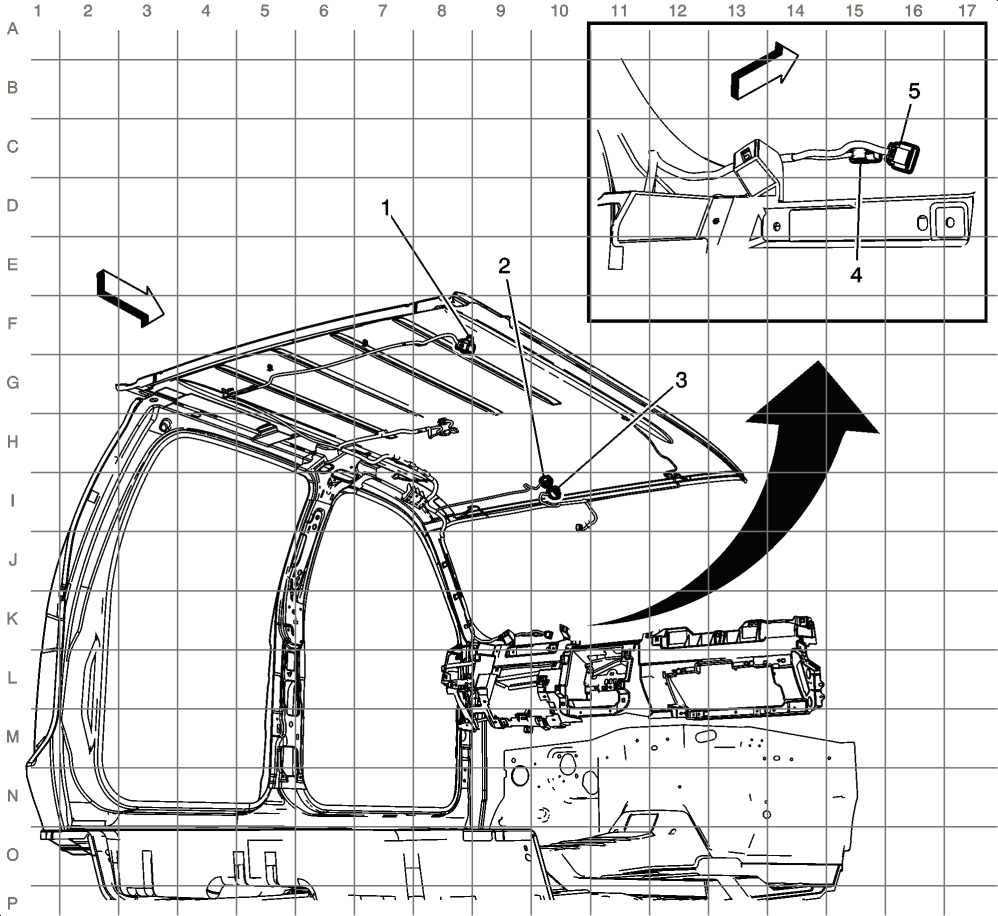

Fig 28: Headliner Harness (Long Wheel Base without E52 or TB7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X321
2	X206 (DNU)
3	X304
4	X203 (UE1)
5	X204 (U42)

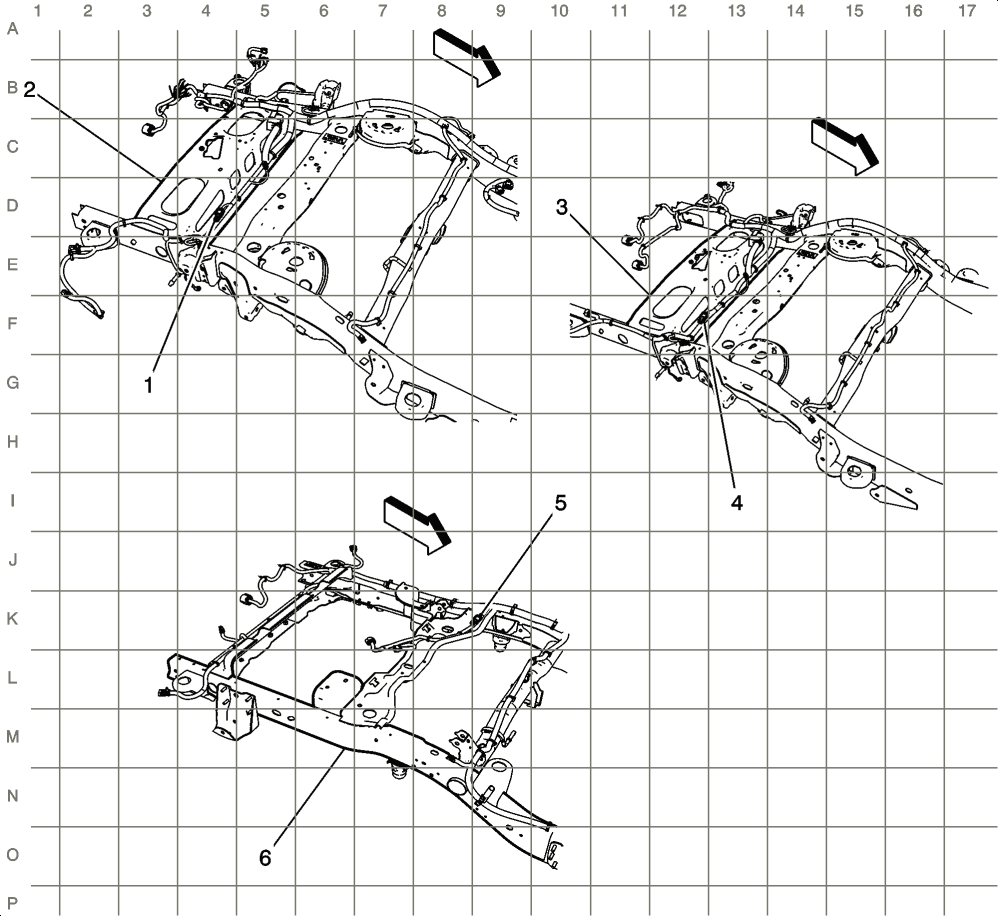

Fig 29: Rear Frame (Except HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Resistor 1
2	Rear Frame - Short Wheelbase
3	Rear Frame - Long Wheelbase
4	Data Link Resistor 1
5	Data Link Resistor 1
6	Rear Frame - Long Wheelbase HD

Fig 30: Liftgate Harness (E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X405
2	J900
3	Rear Window Defogger X2
4	X900
5	X901
6	J904
7	J903
8	J902
9	Rear Window Defogger X1
10	J901

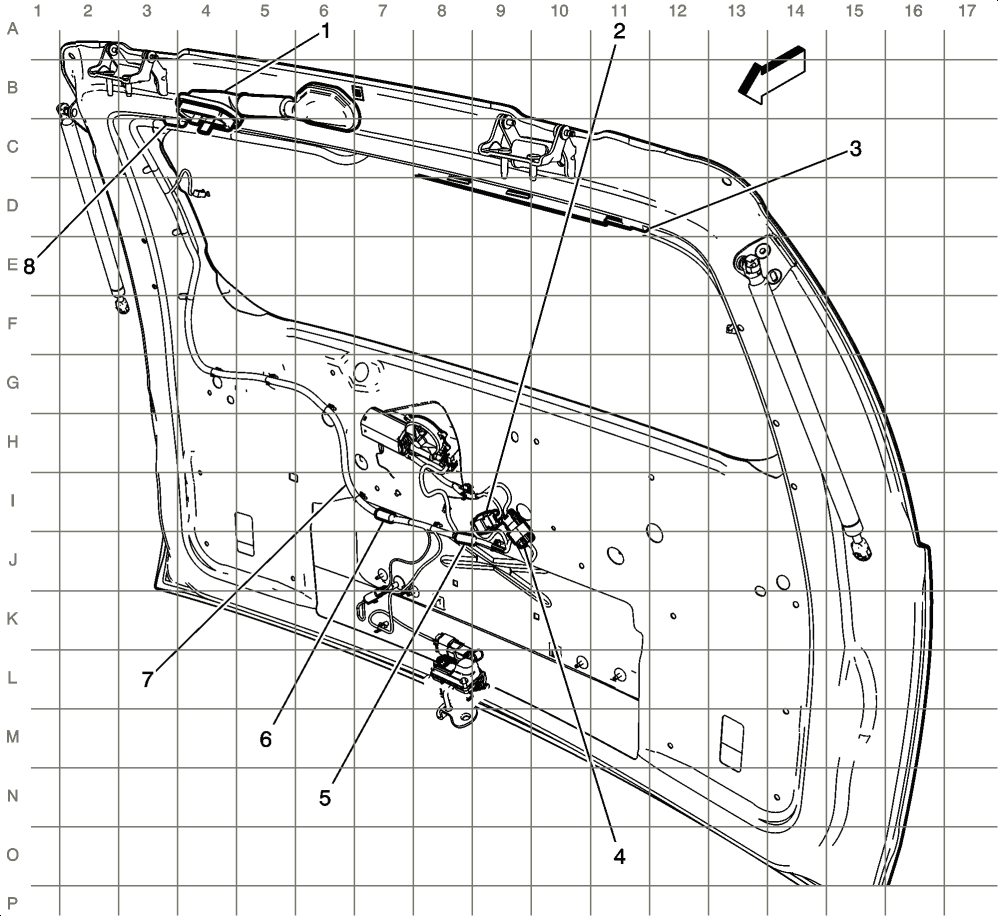

Fig 31: Liftgate (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X405
2	X901
3	J901
4	X900 (UVC)
5	J909
6	J903
7	J902
8	J900
