Door Control Module Schematics

Fig 1: Power, Ground, and Serial Data
GM2075253Courtesy of GENERAL MOTORS CORP.

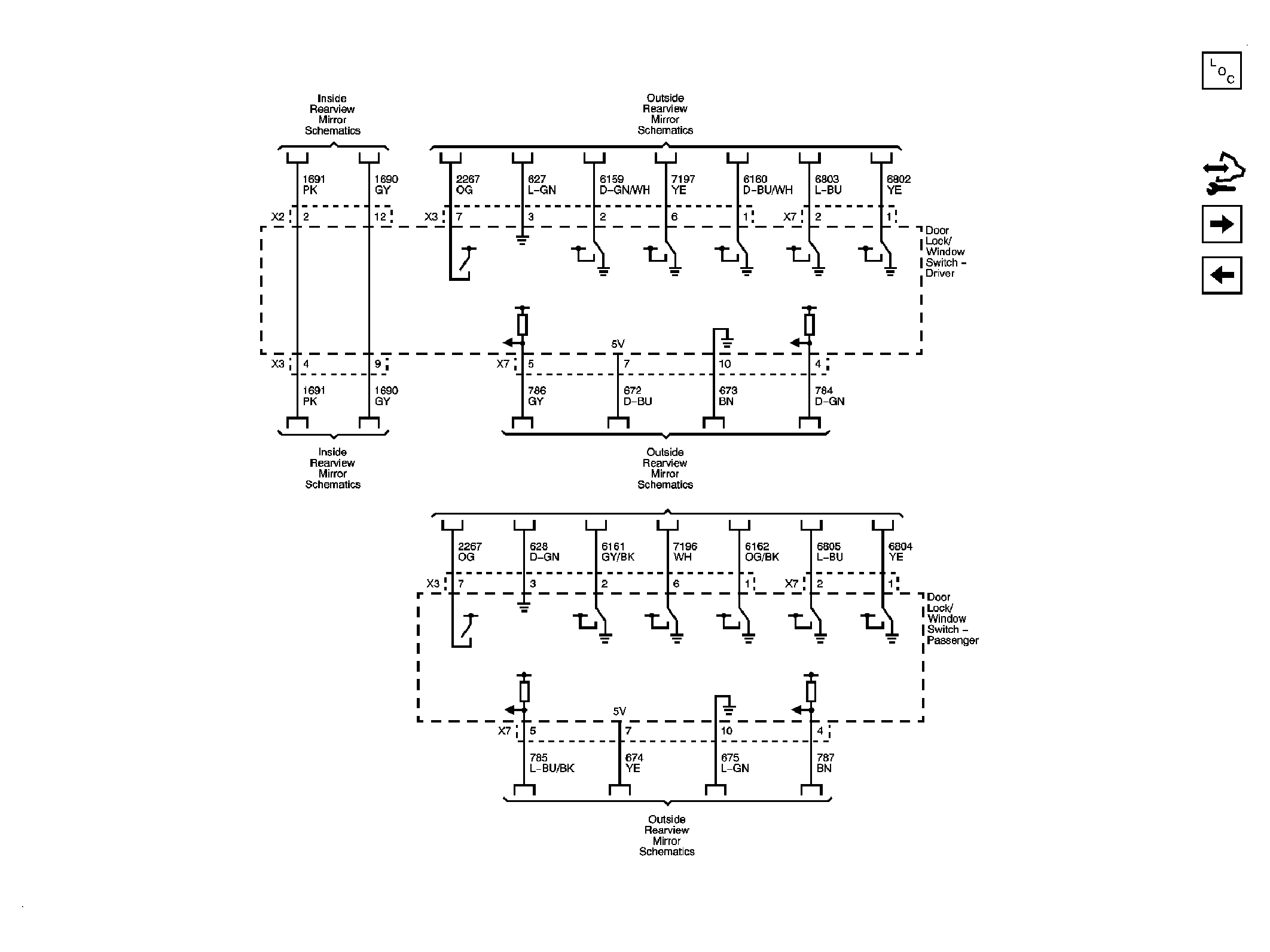

Fig 2: Outside Rearview Mirror References
GM2075255Courtesy of GENERAL MOTORS CORP.

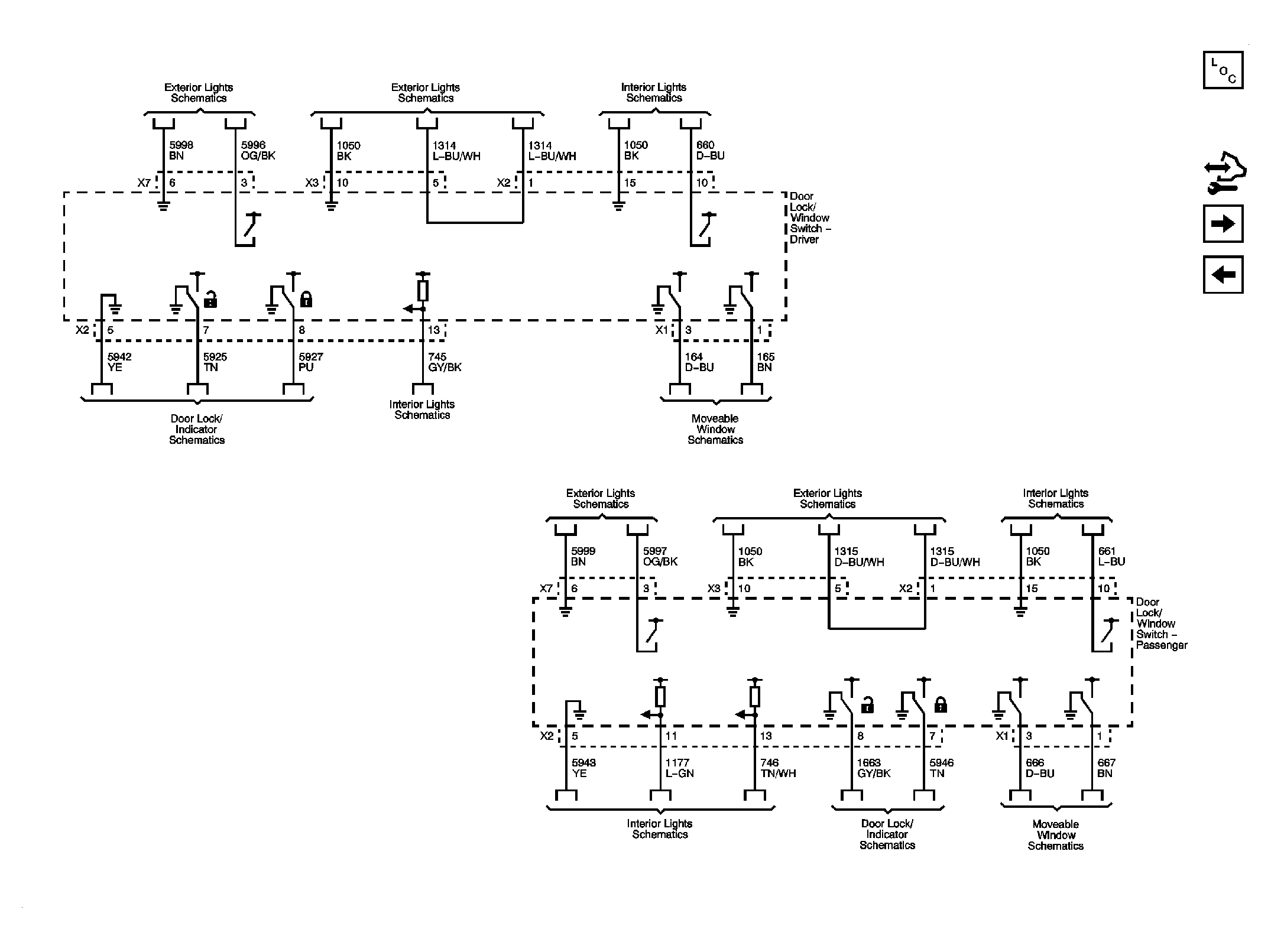

Fig 3: Door Lock, Window, and Lighting System References
GM2075257Courtesy of GENERAL MOTORS CORP.

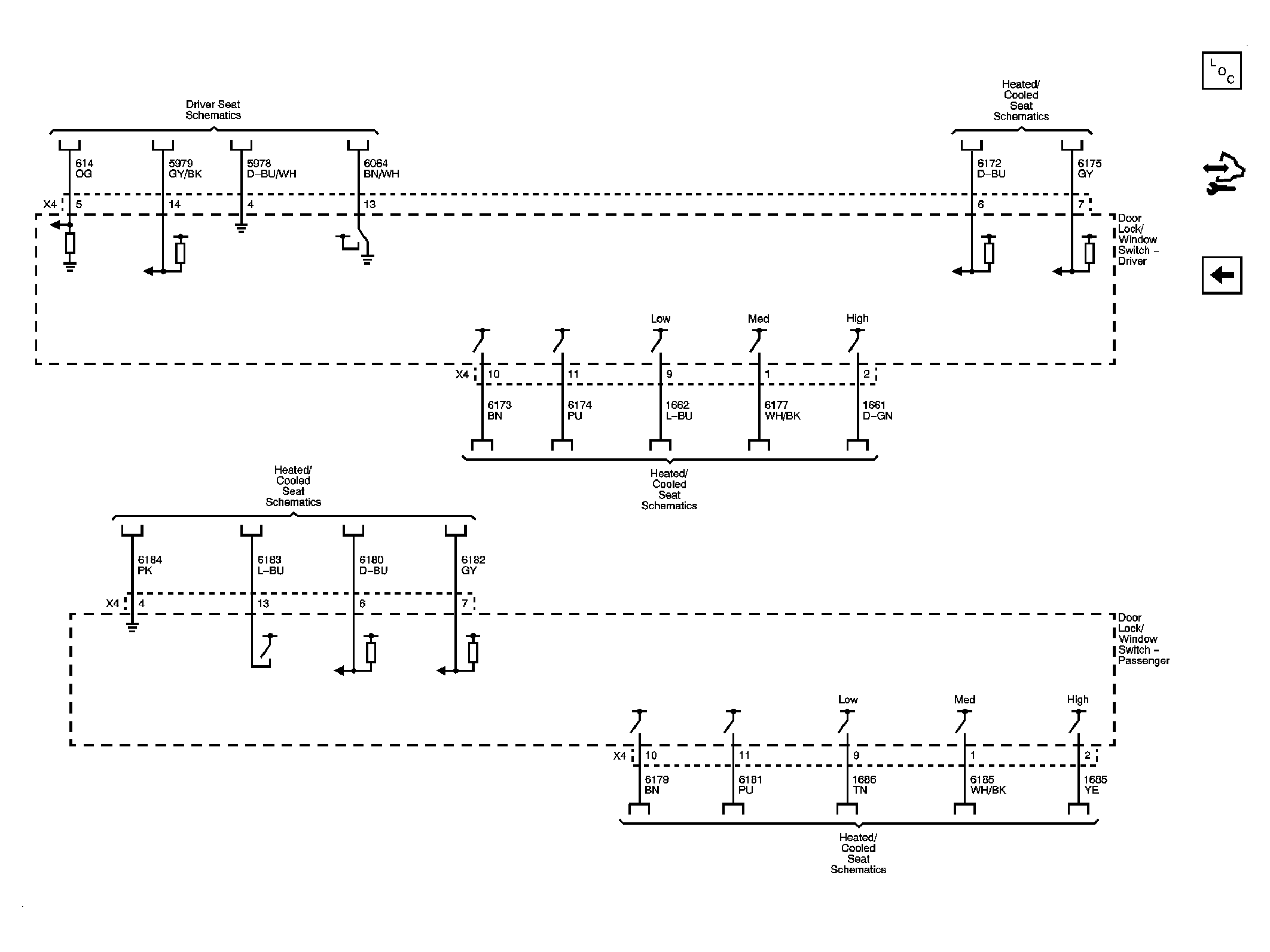

Fig 4: Heated Seat References
GM2075259Courtesy of GENERAL MOTORS CORP.
