Air Cleaner Element Replacement (LLT)

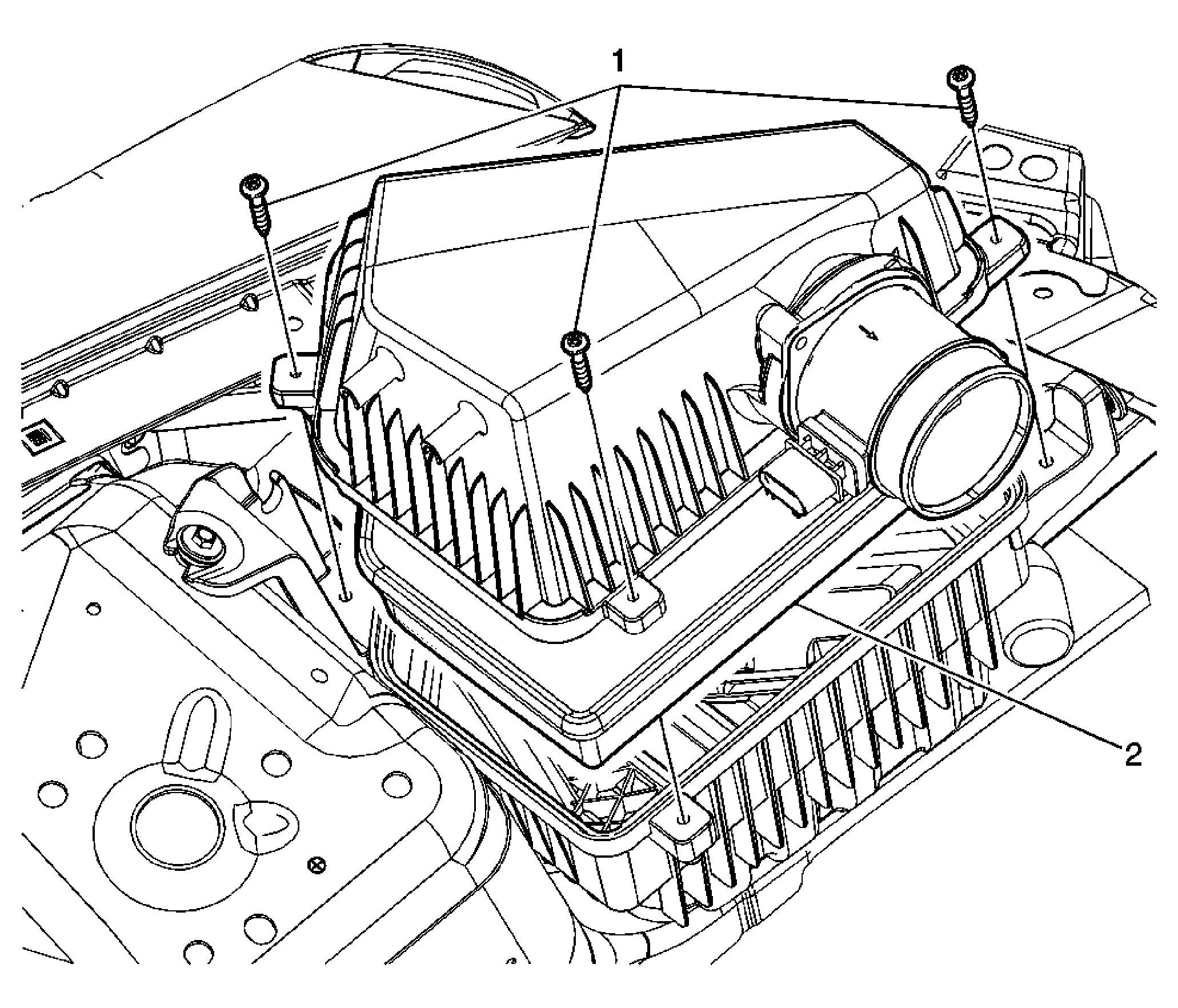

Fig 1: Identifying Air Cleaner Element
GM1981521Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Turn OFF the ignition.
  2. Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement (LLT)  or Air Cleaner Outlet Duct Replacement (LY7) .
  3. Disconnect the MAF/IAT sensor harness connector.
1 Screws (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  4 N.m (35 lb in)
2 Air Cleaner Element

Procedure

  1. Disconnect the sensor wiring harness.
  2. Lift the air cleaner cover in order to remove the air cleaner element.
