Moveable Window Schematics

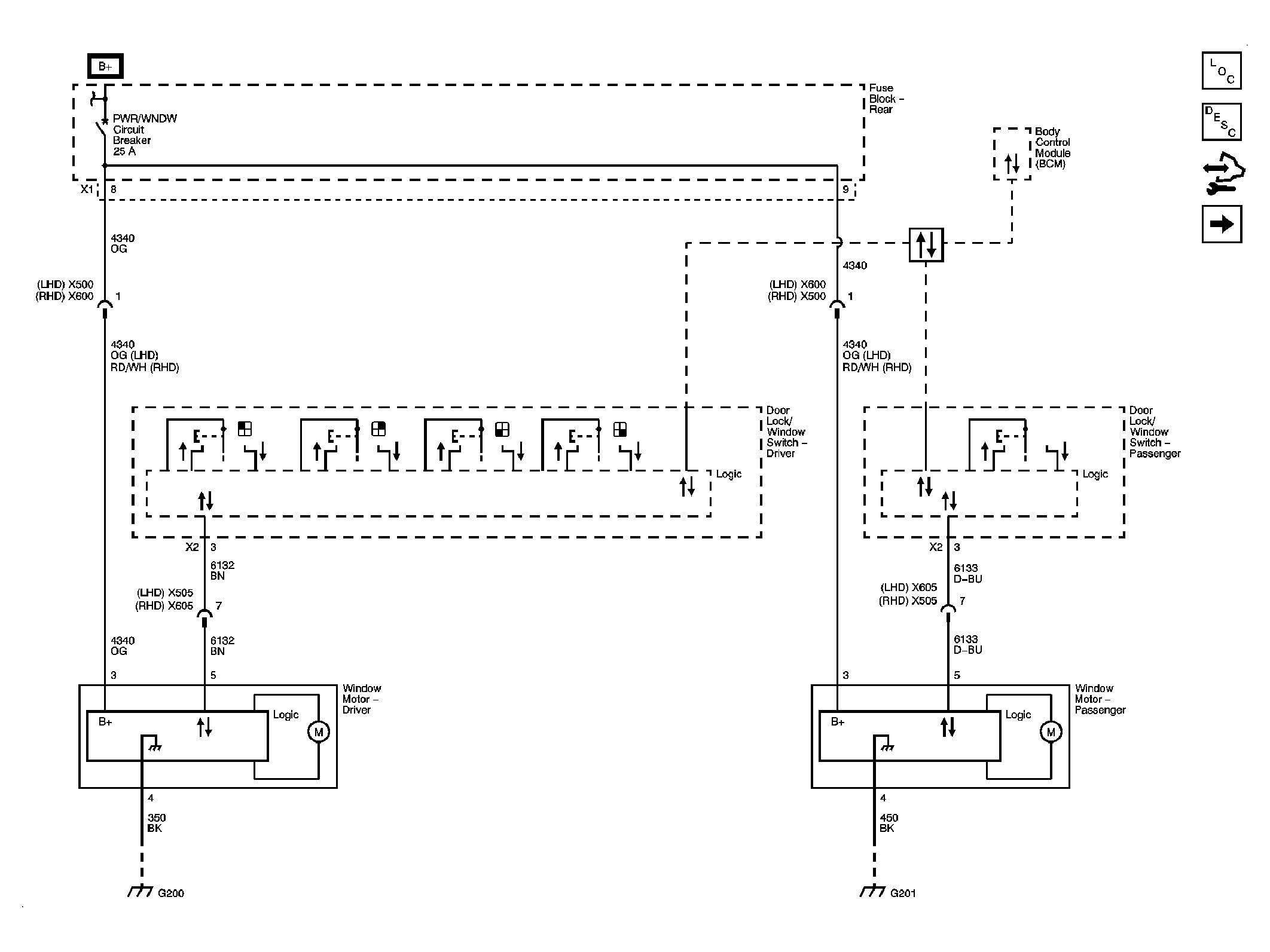

Fig 1: Moveable Window (Front)

GM2077246

Courtesy of GENERAL MOTORS CORP.

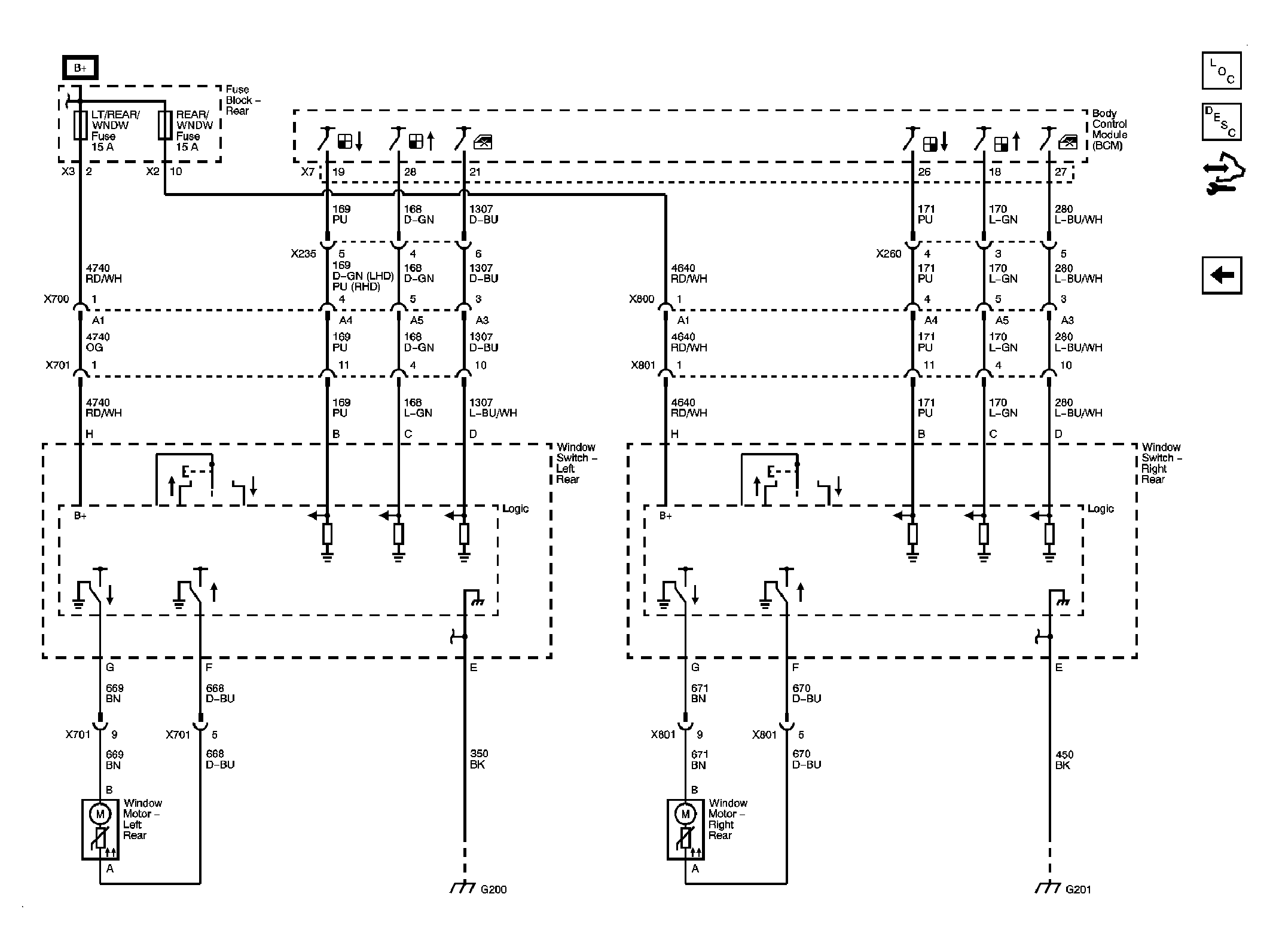

Fig 2: Moveable Window (Rear)

GM2077247

Courtesy of GENERAL MOTORS CORP.
