Power Steering Schematics

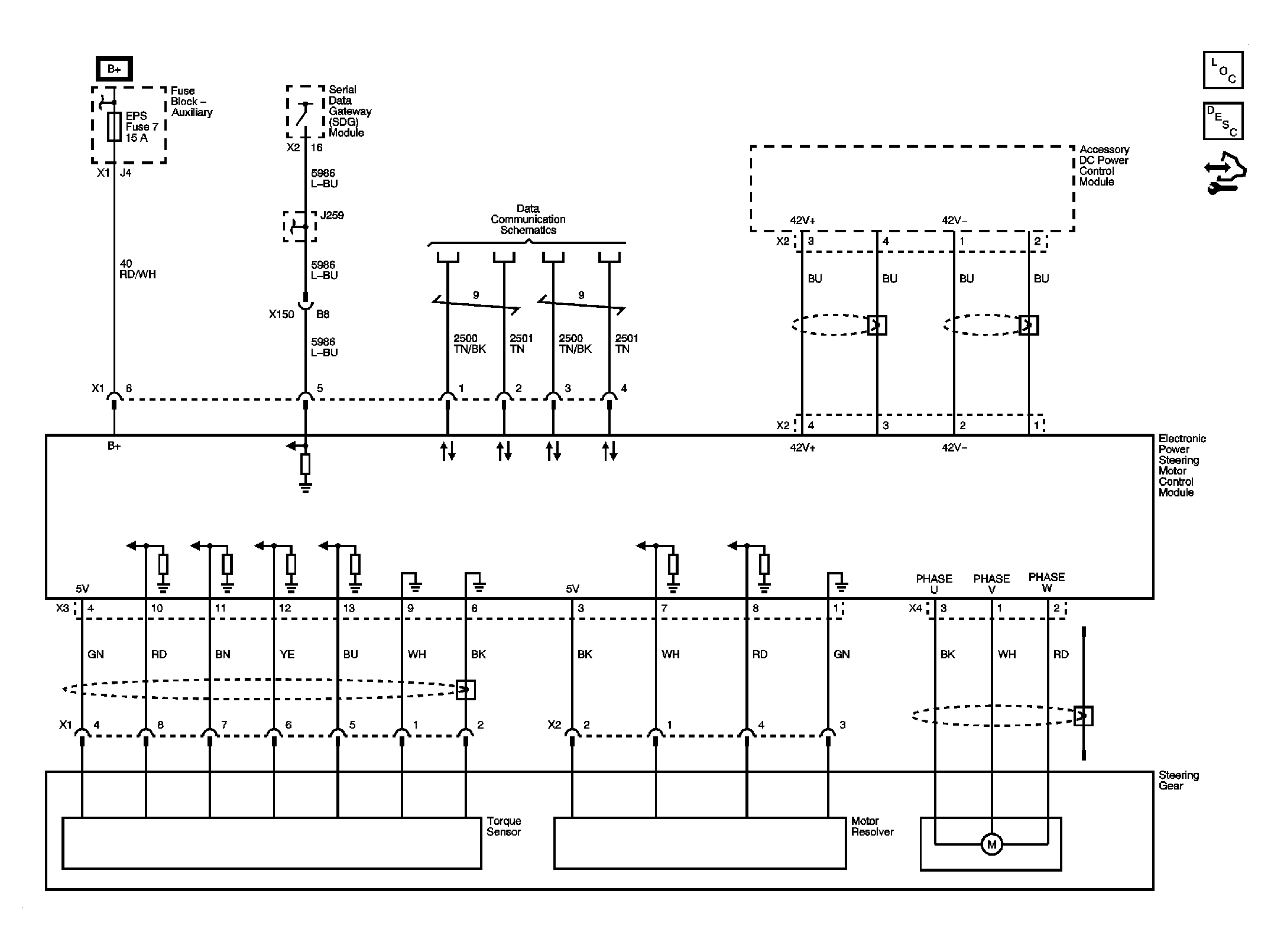

Fig 1: Hybrid Power Steering System Schematic

GM1993520

Courtesy of GENERAL MOTORS CORP.
