Installation Procedure

  1. Install the retractor assembly to the vehicle.

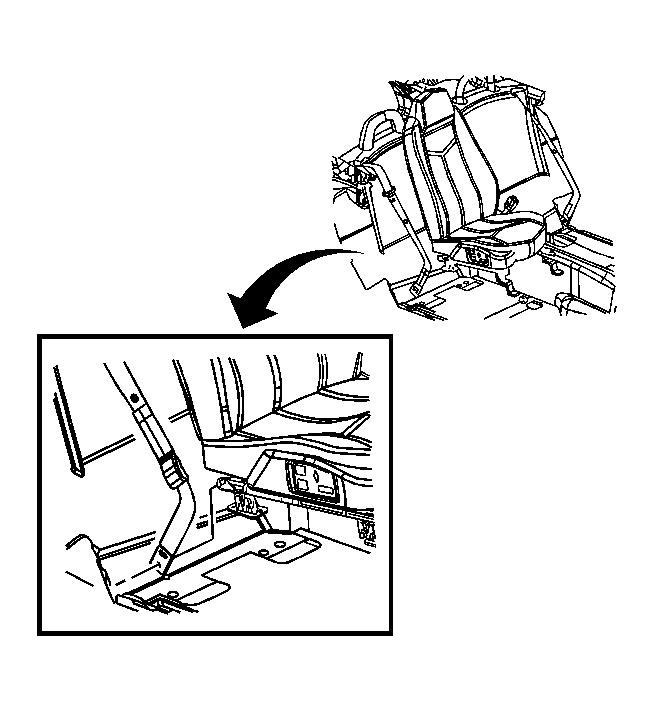

    2. Fig 1: Identifying Bolt For Retractor & Assembly
    GM1238443Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the retractor and attaching bolt.

    Tighten:  Tighten the bolt to 41 N.m (30 lb ft).

  3. Install the rear window trim panel. Refer to Rear Window Panel Trim Replacement .
  4. Install the driver seat assembly. Refer to Seat Replacement .
