Headlight Leveling Schematics

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

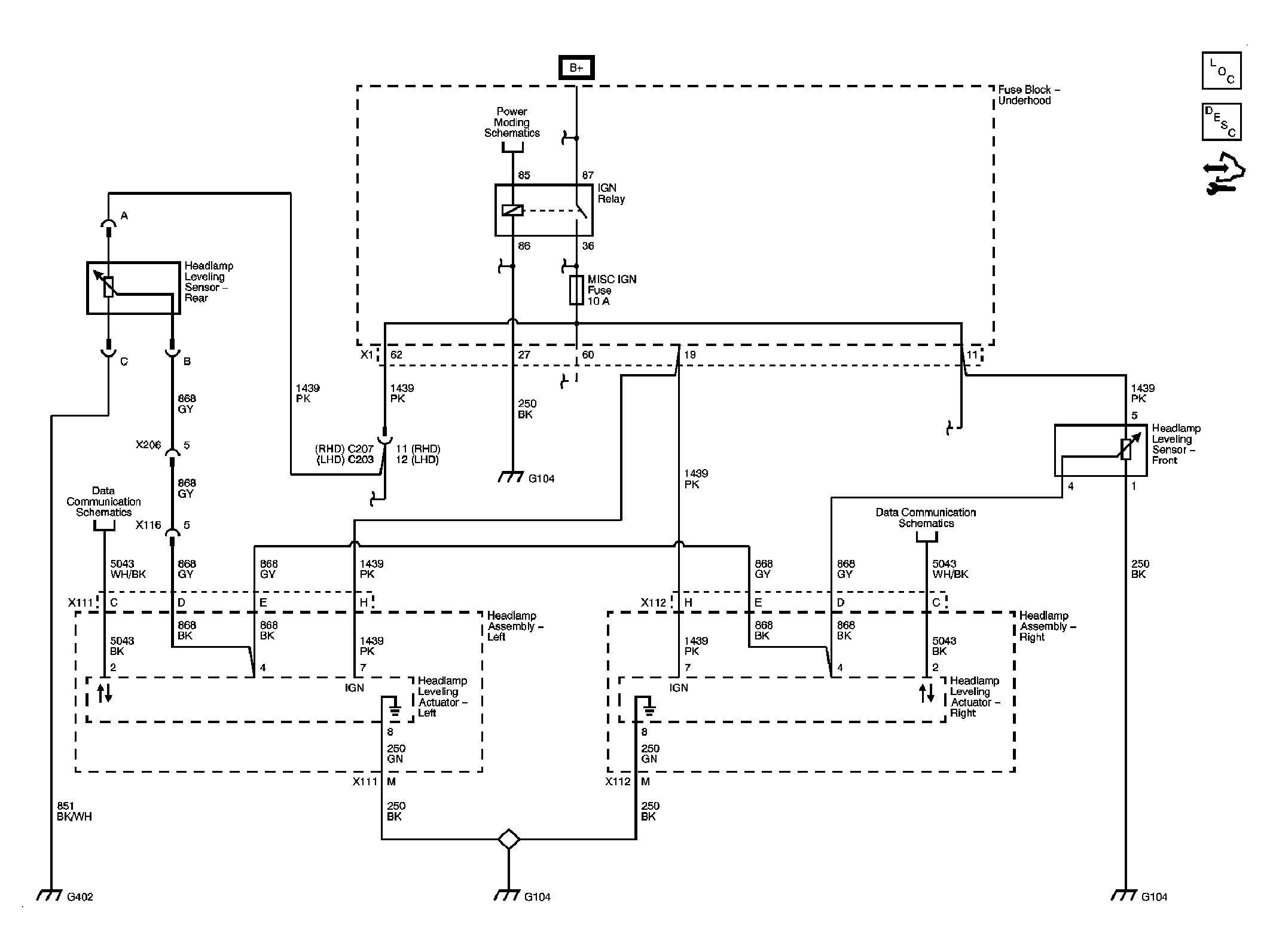

Fig 1: Headlamp Leveling Schematic
GM1873179Courtesy of GENERAL MOTORS CORP.
