Engine Controls Schematics

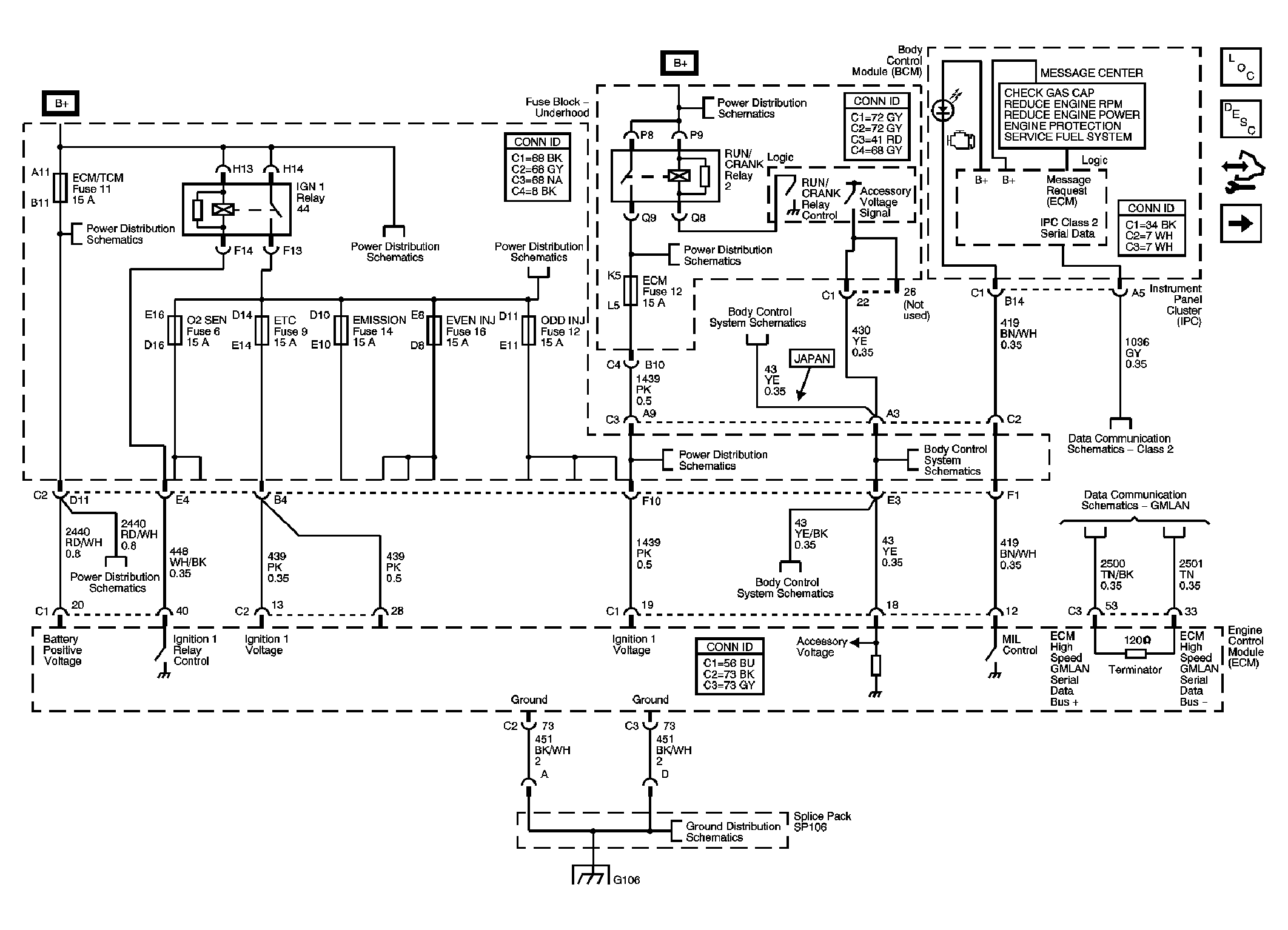

Fig 1: ECM Power, Ground, MIL & Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

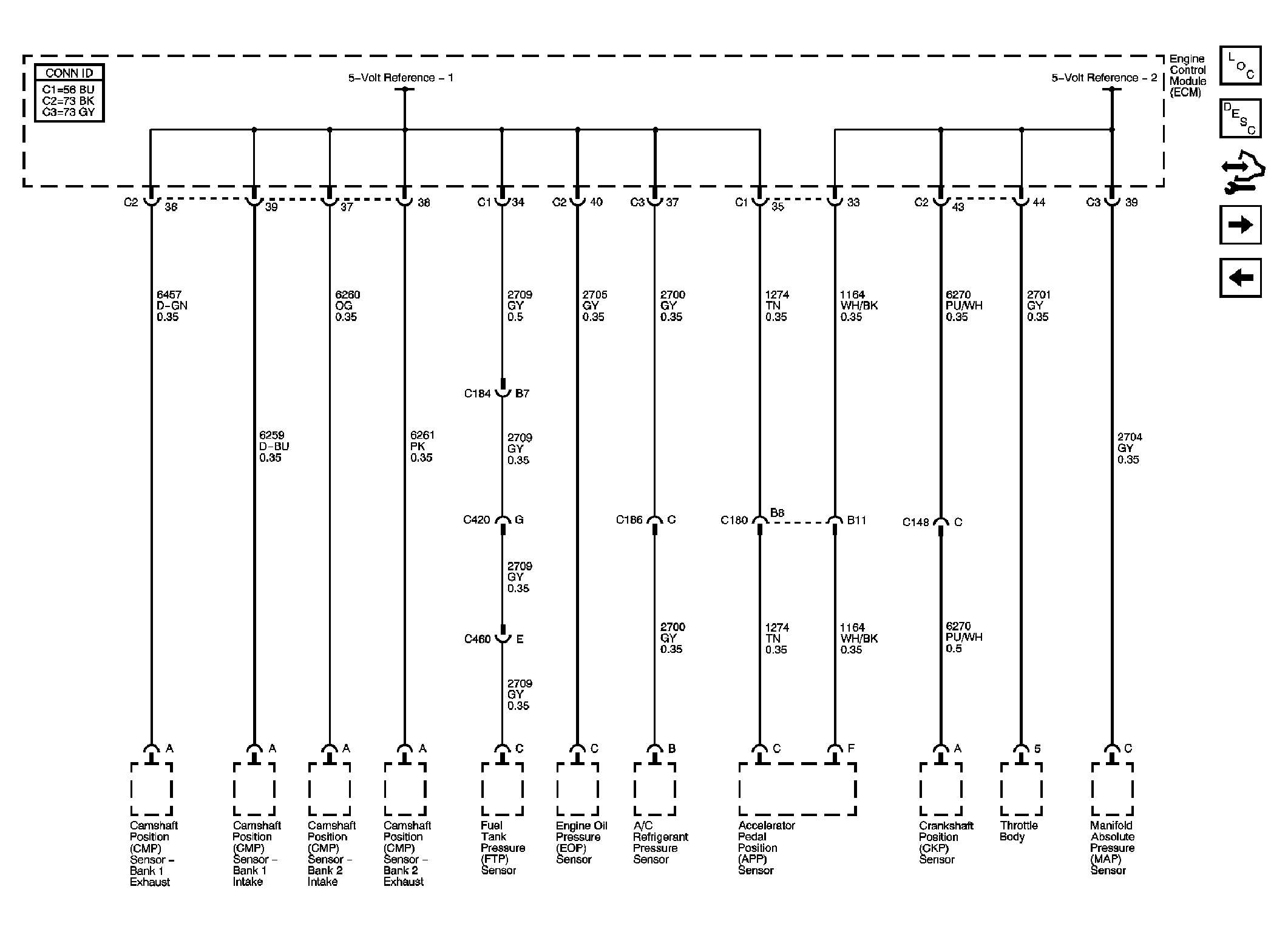

Fig 2: 12-Volt and 5-Volt Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

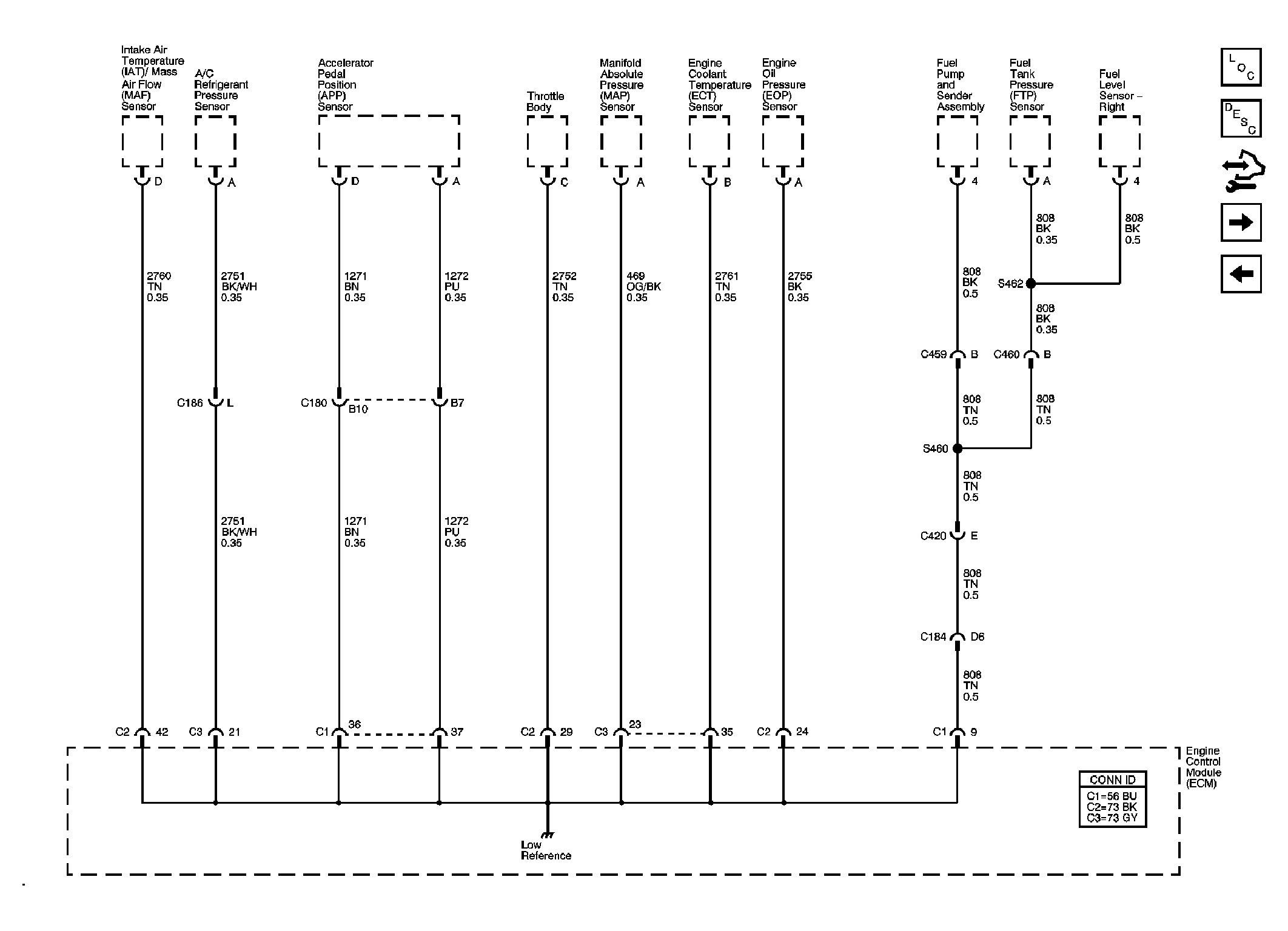

Fig 3: Low Reference Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

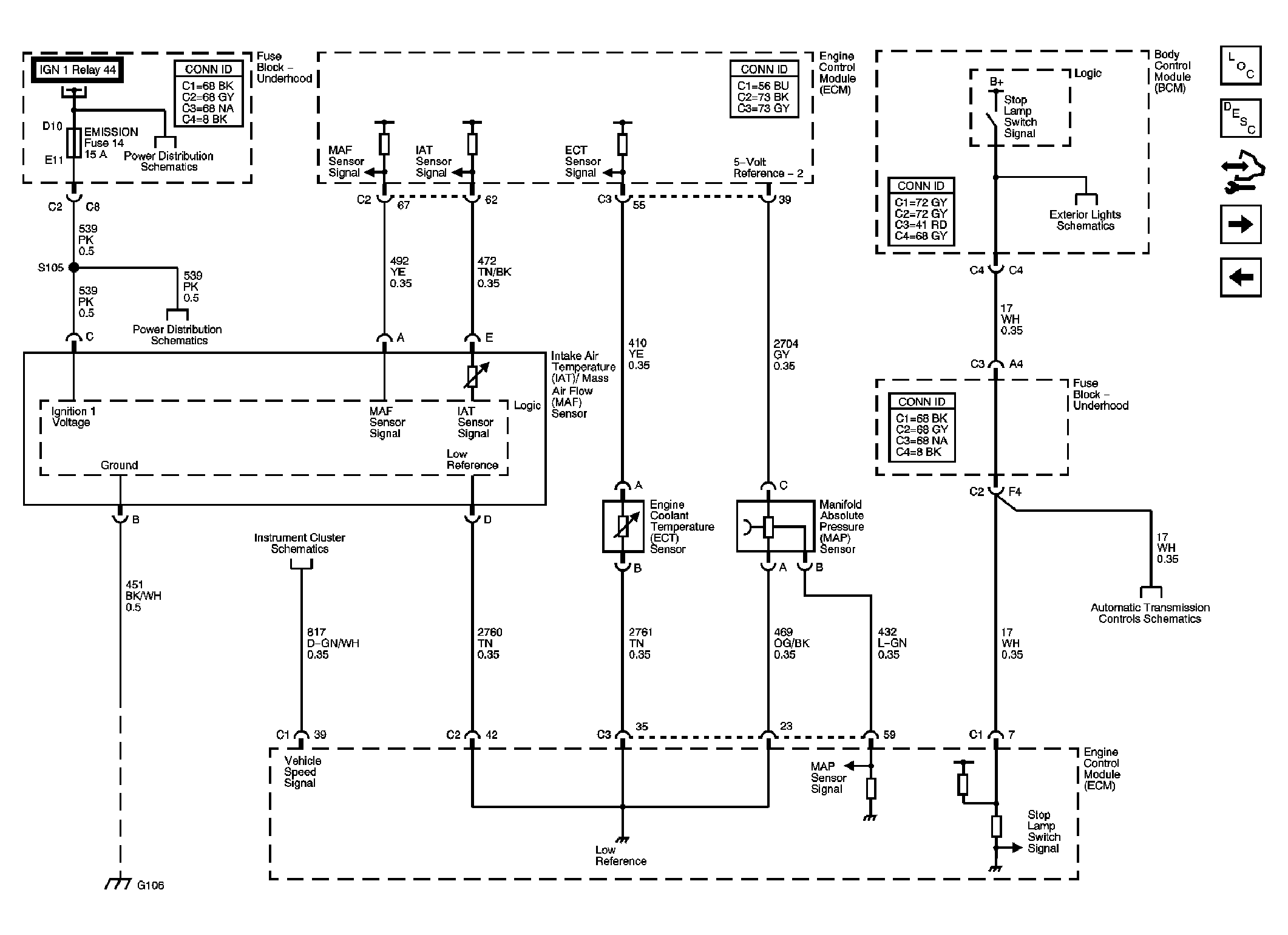

Fig 4: IAT/MAF, ECT, MAP Sensors & Stop Lamp Switch Signal Schematic

Courtesy of GENERAL MOTORS CORP.

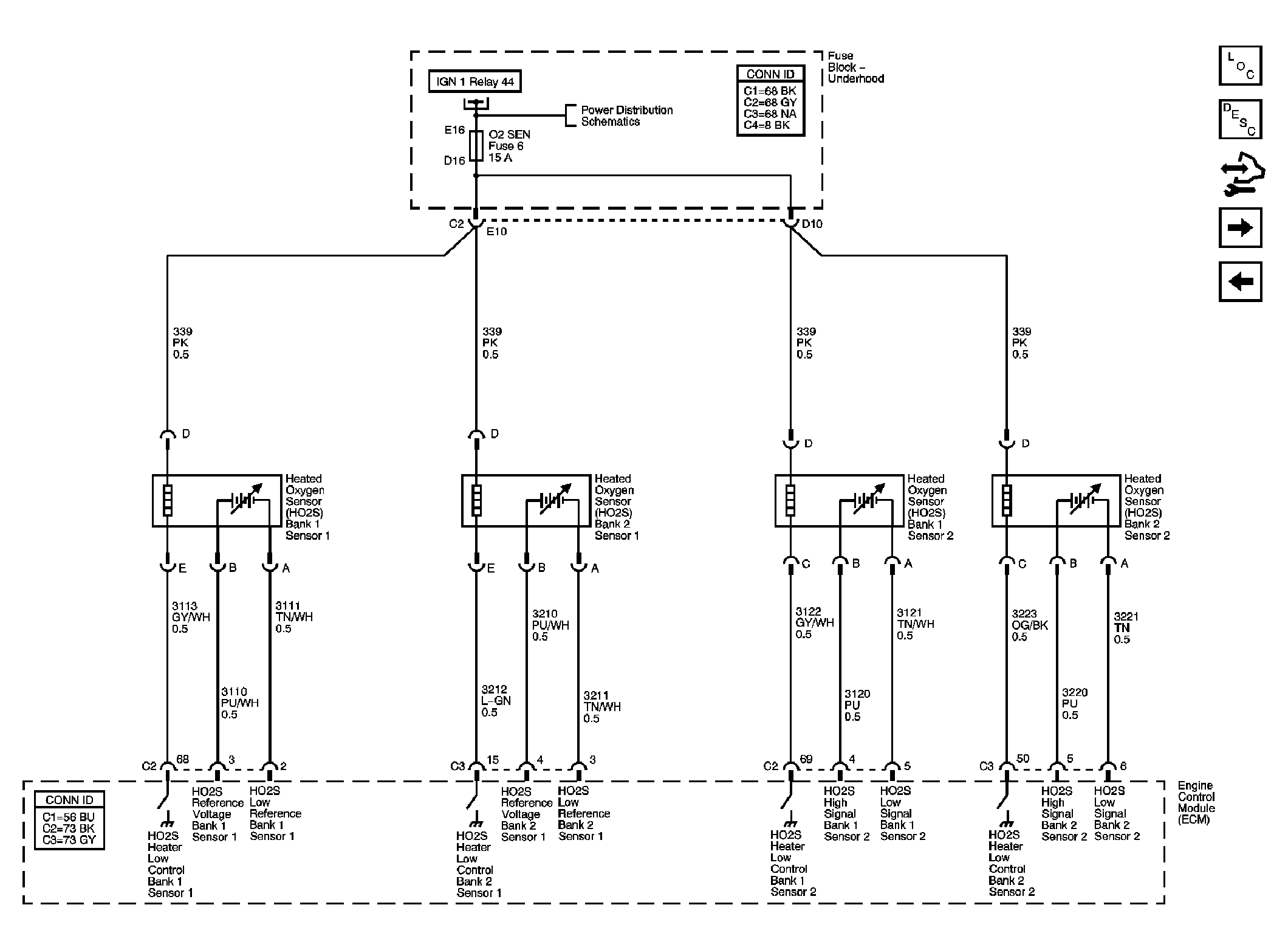

Fig 5: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

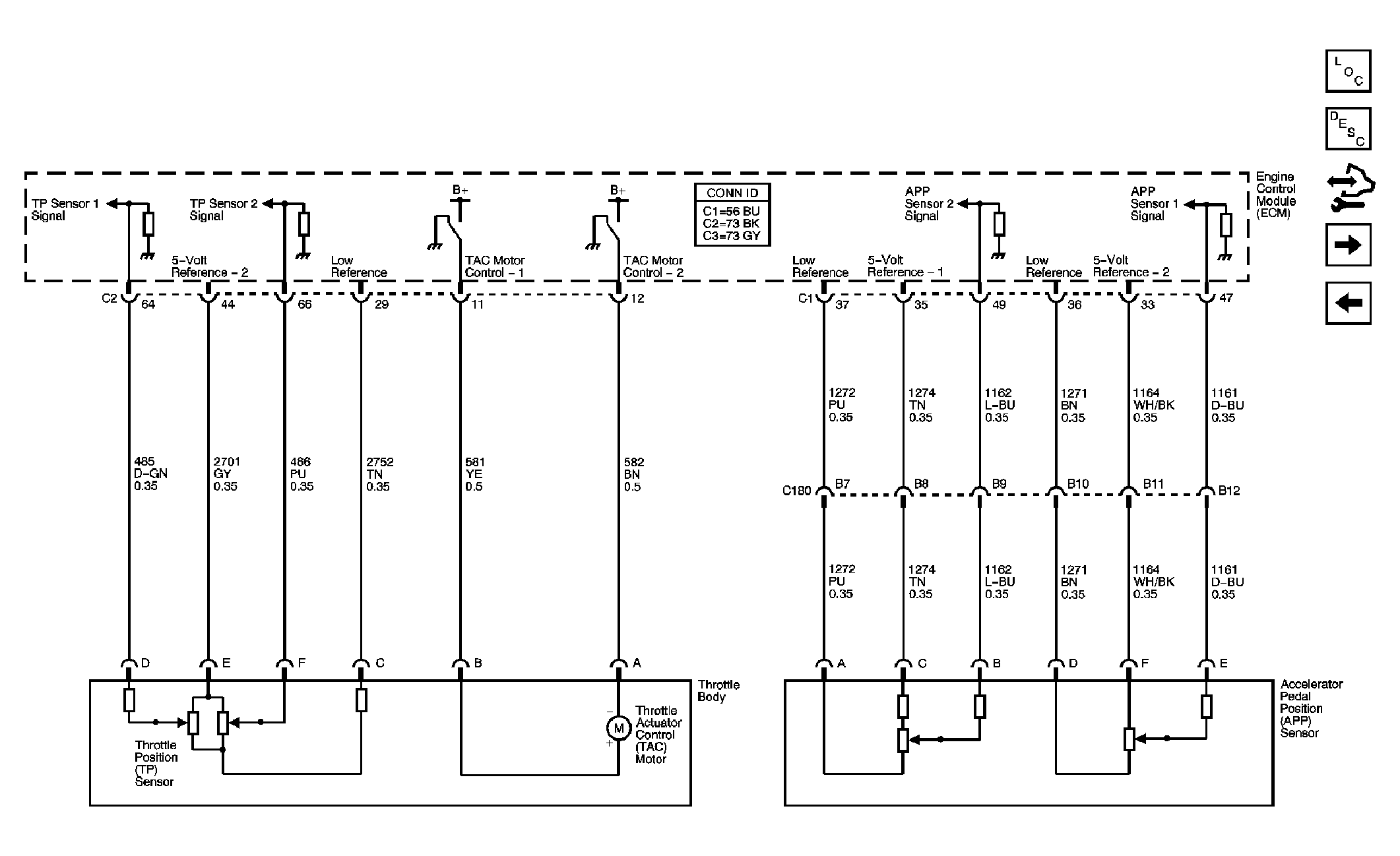

Fig 6: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

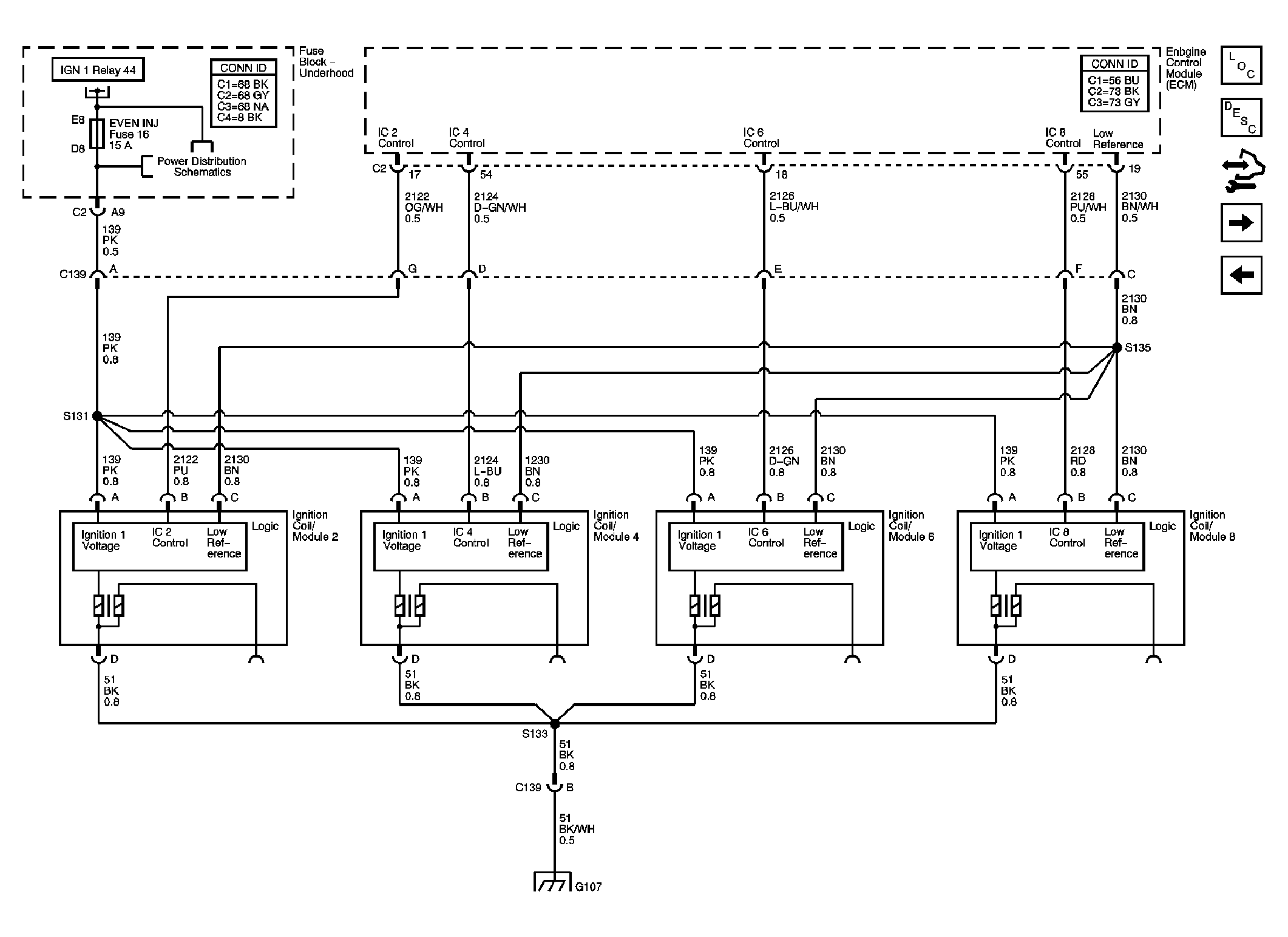

Fig 7: Ignition Coils Bank 1 Schematic

Courtesy of GENERAL MOTORS CORP.

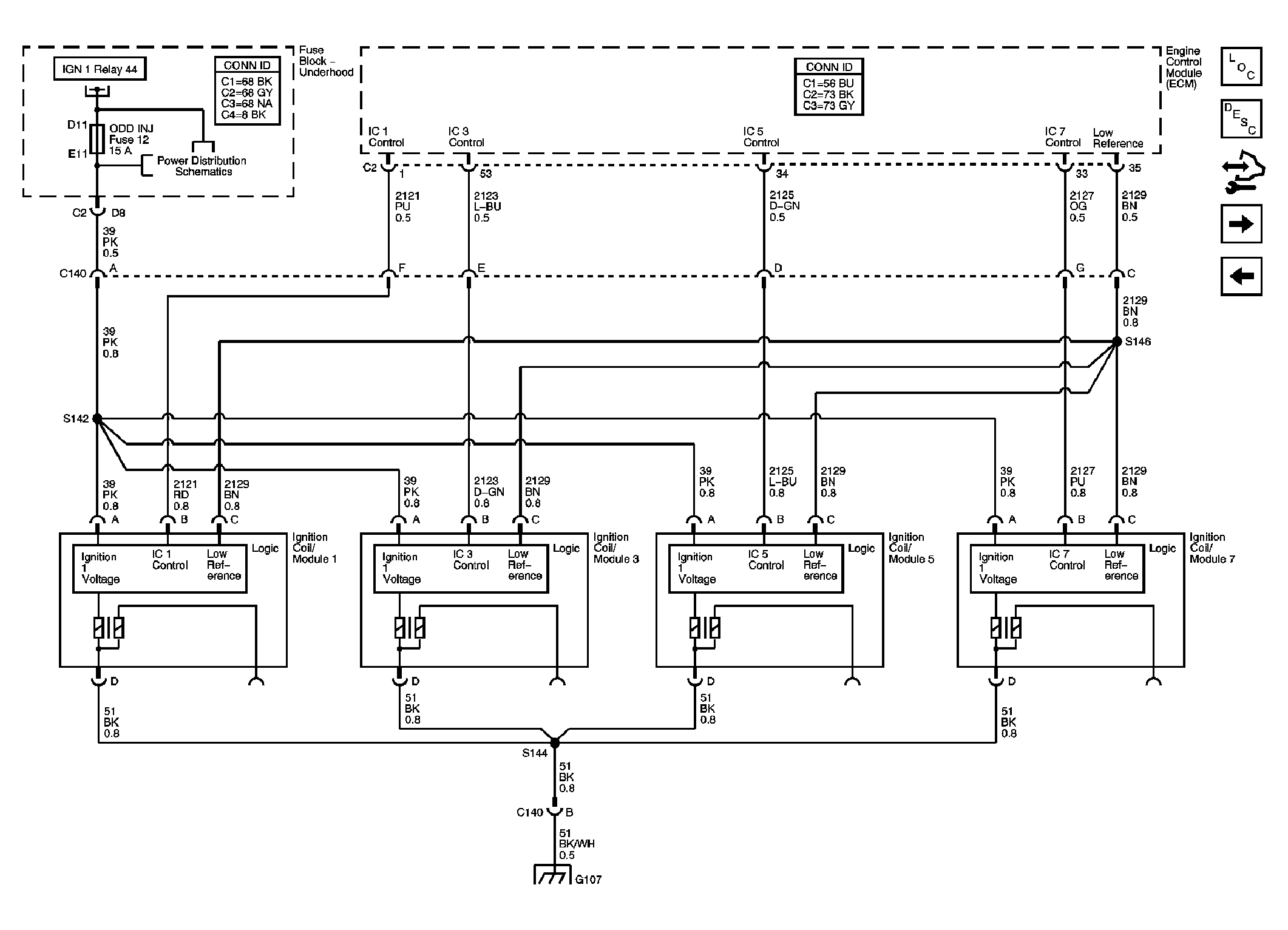

Fig 8: Ignition Coils Bank 2 Schematic

Courtesy of GENERAL MOTORS CORP.

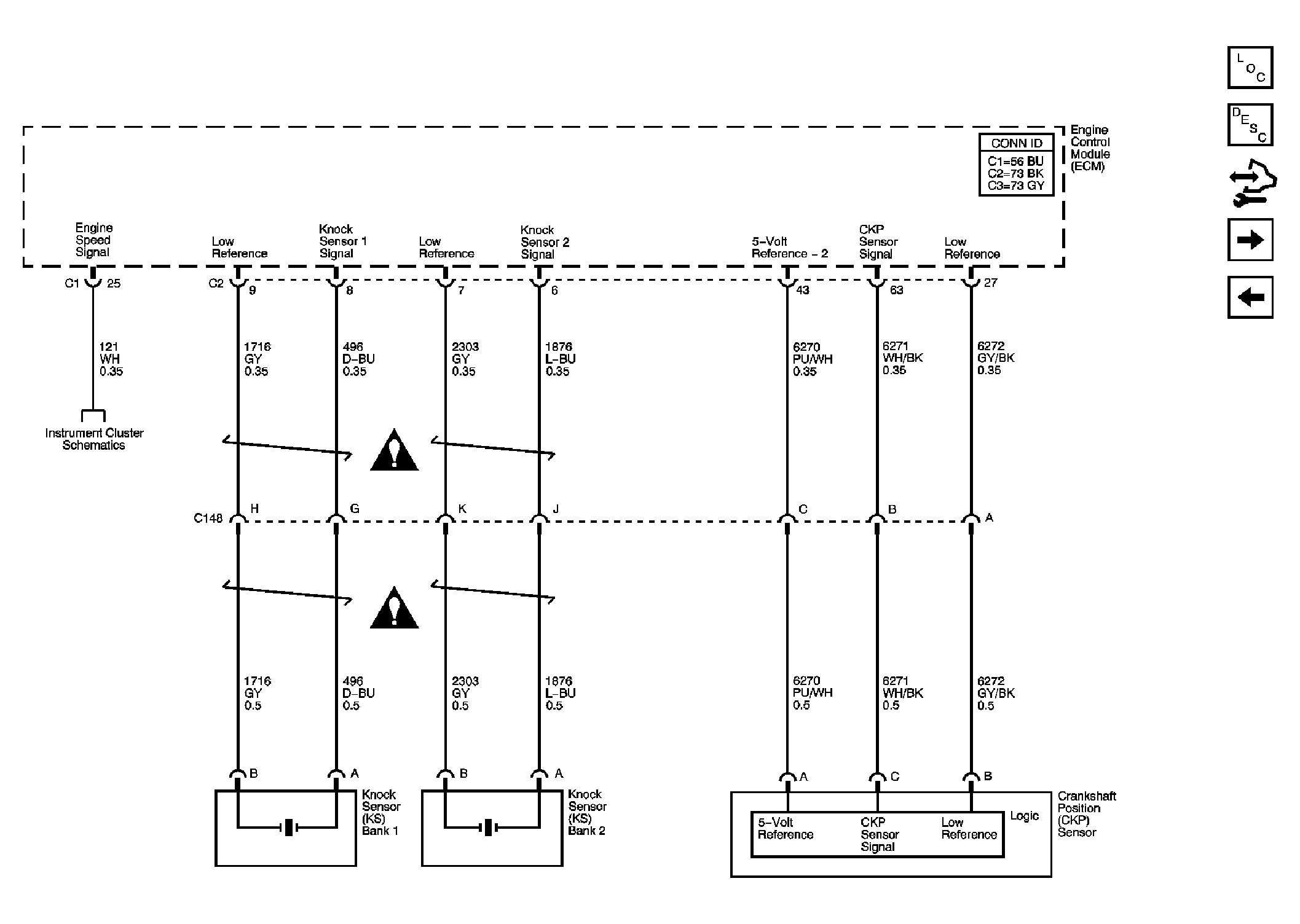

Fig 9: CKP and KS Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

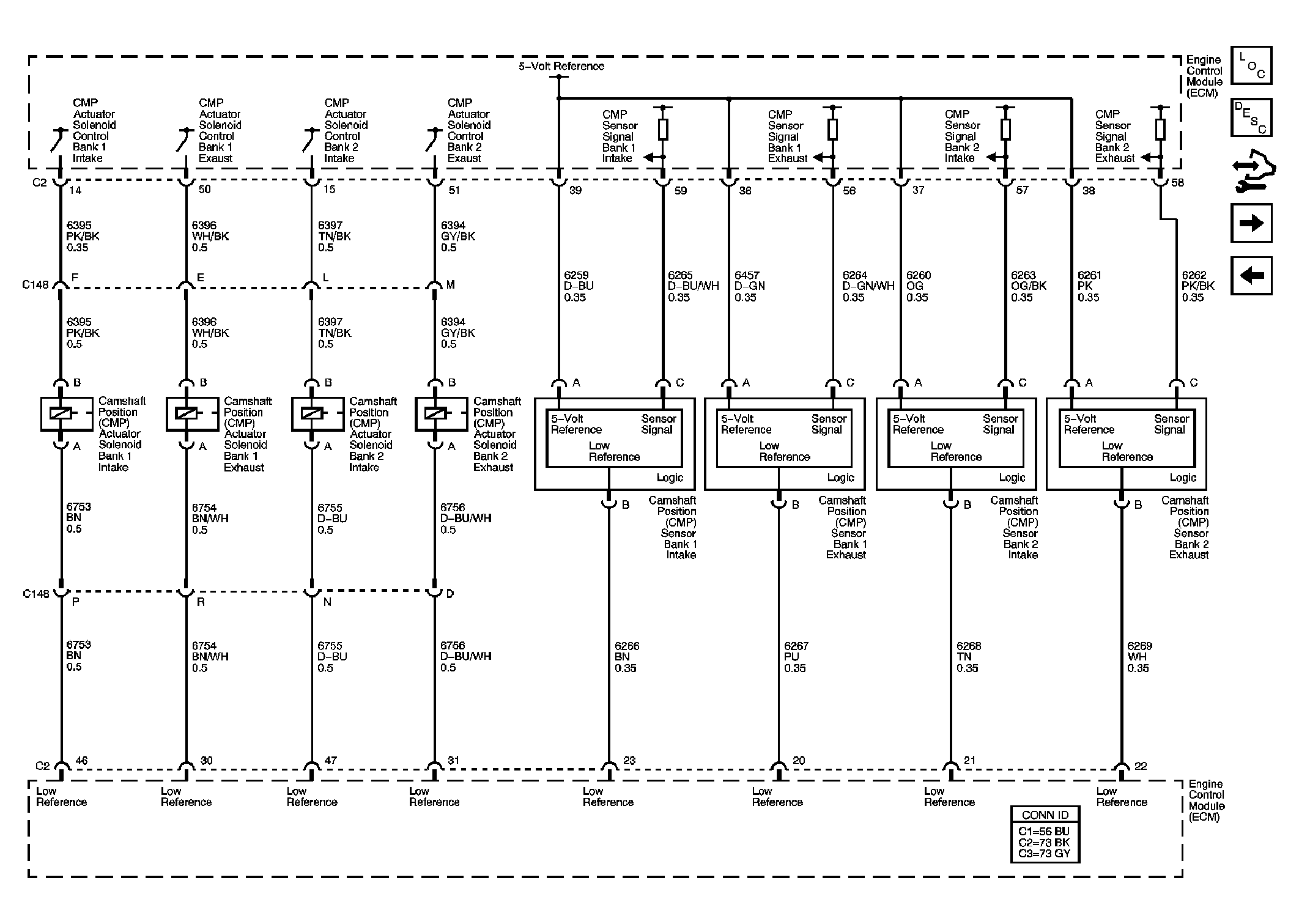

Fig 10: CMP Sensors & Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

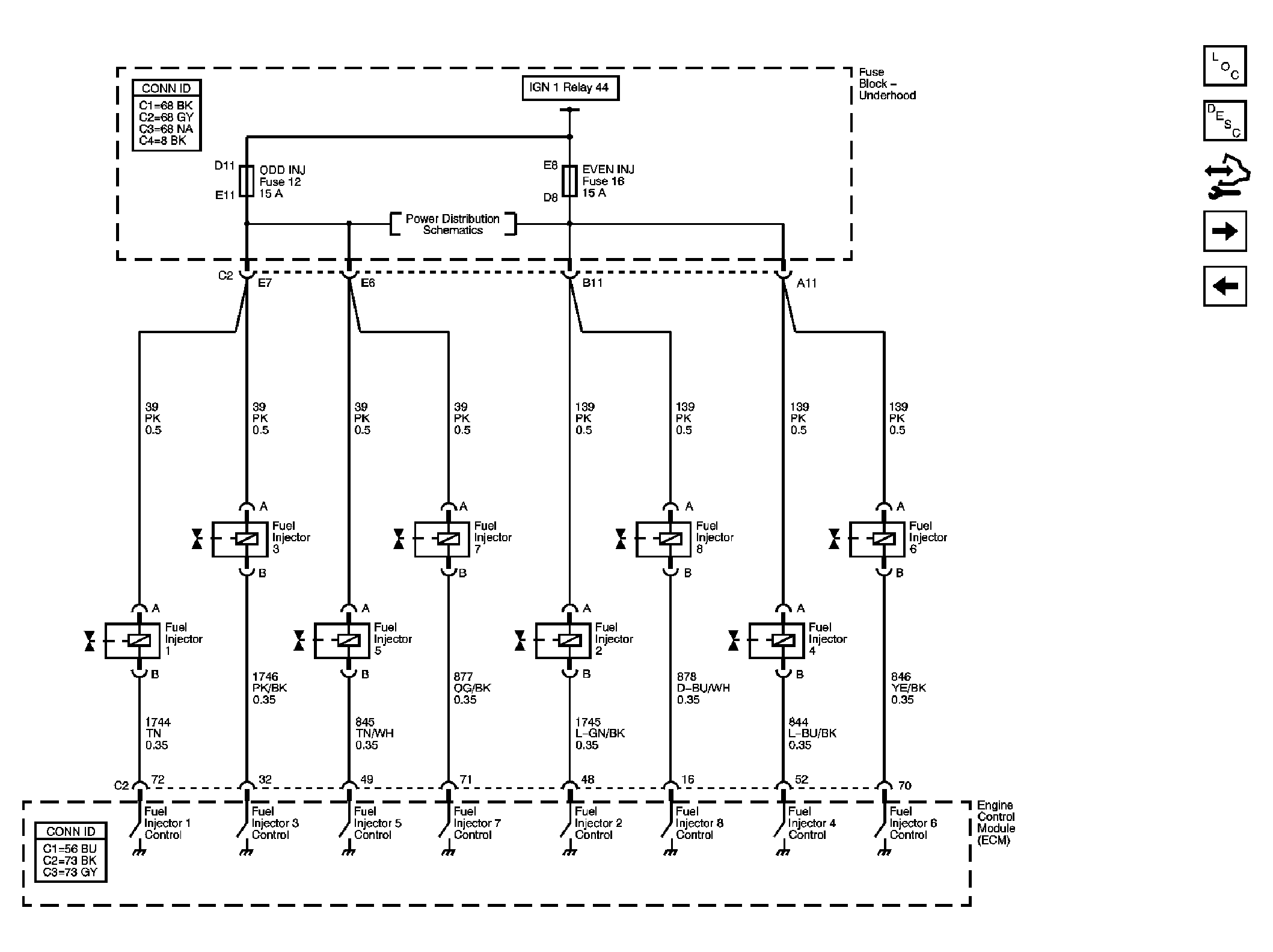

Fig 11: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

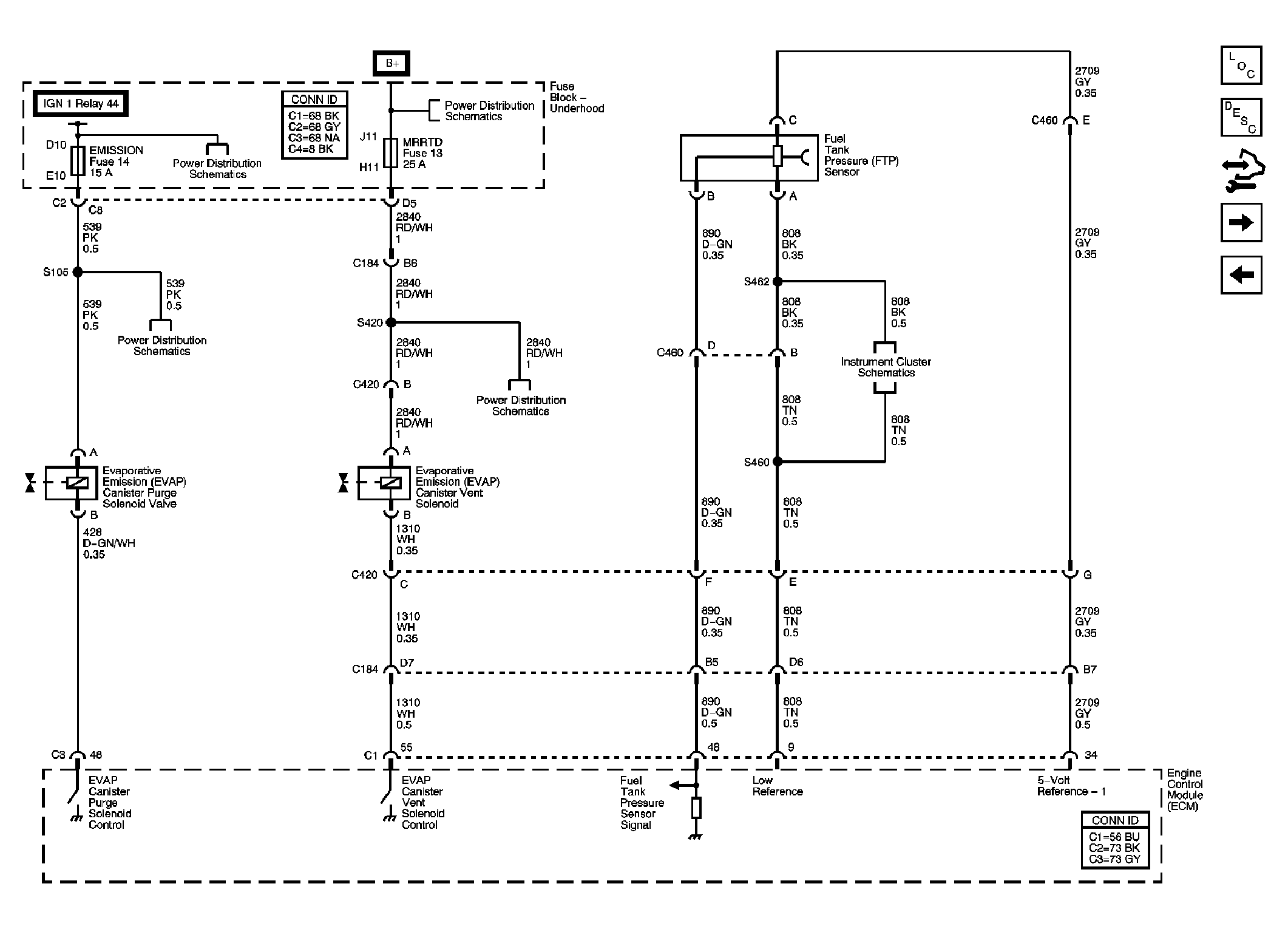

Fig 12: EVAP and FTP Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

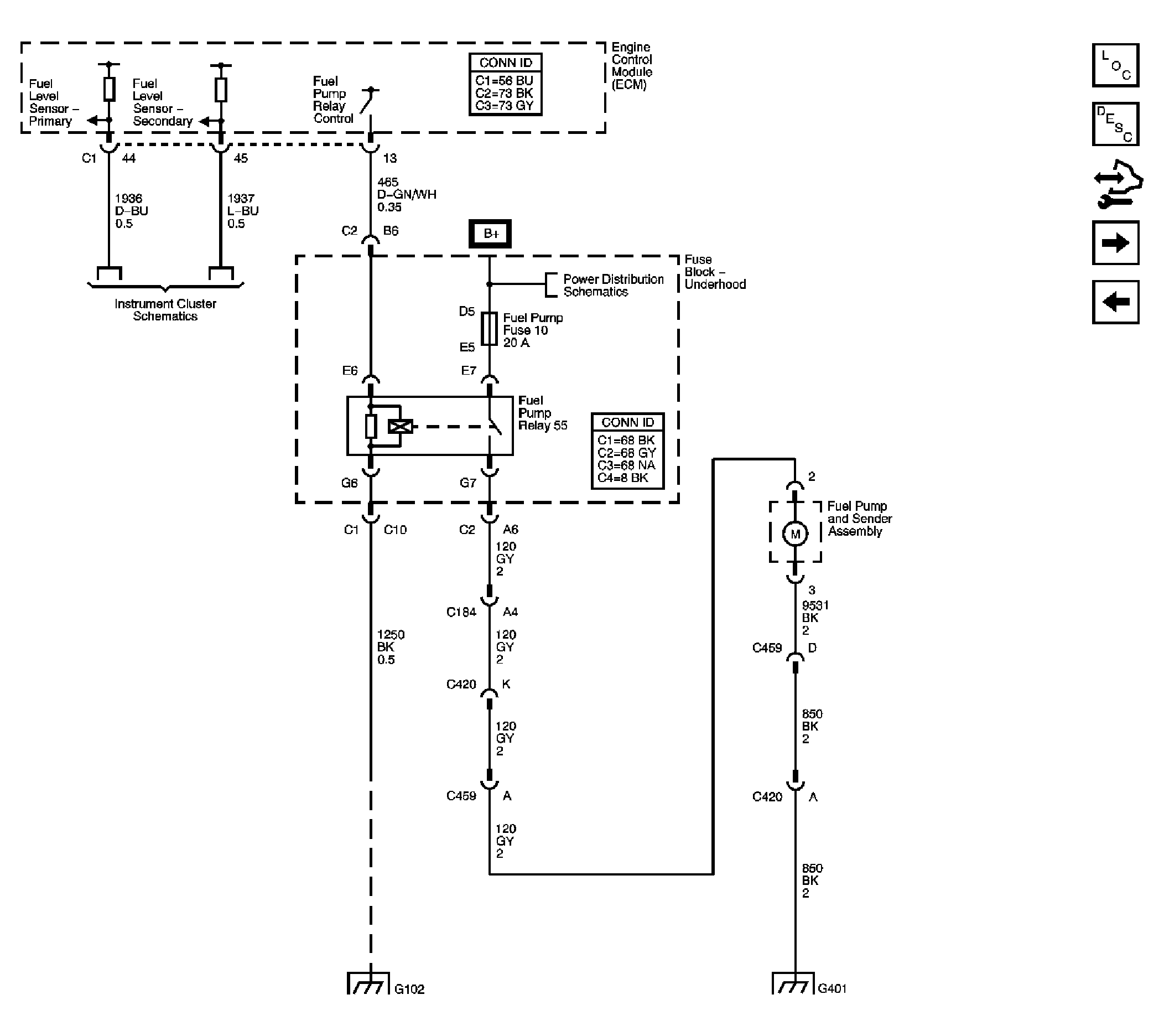

Fig 13: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

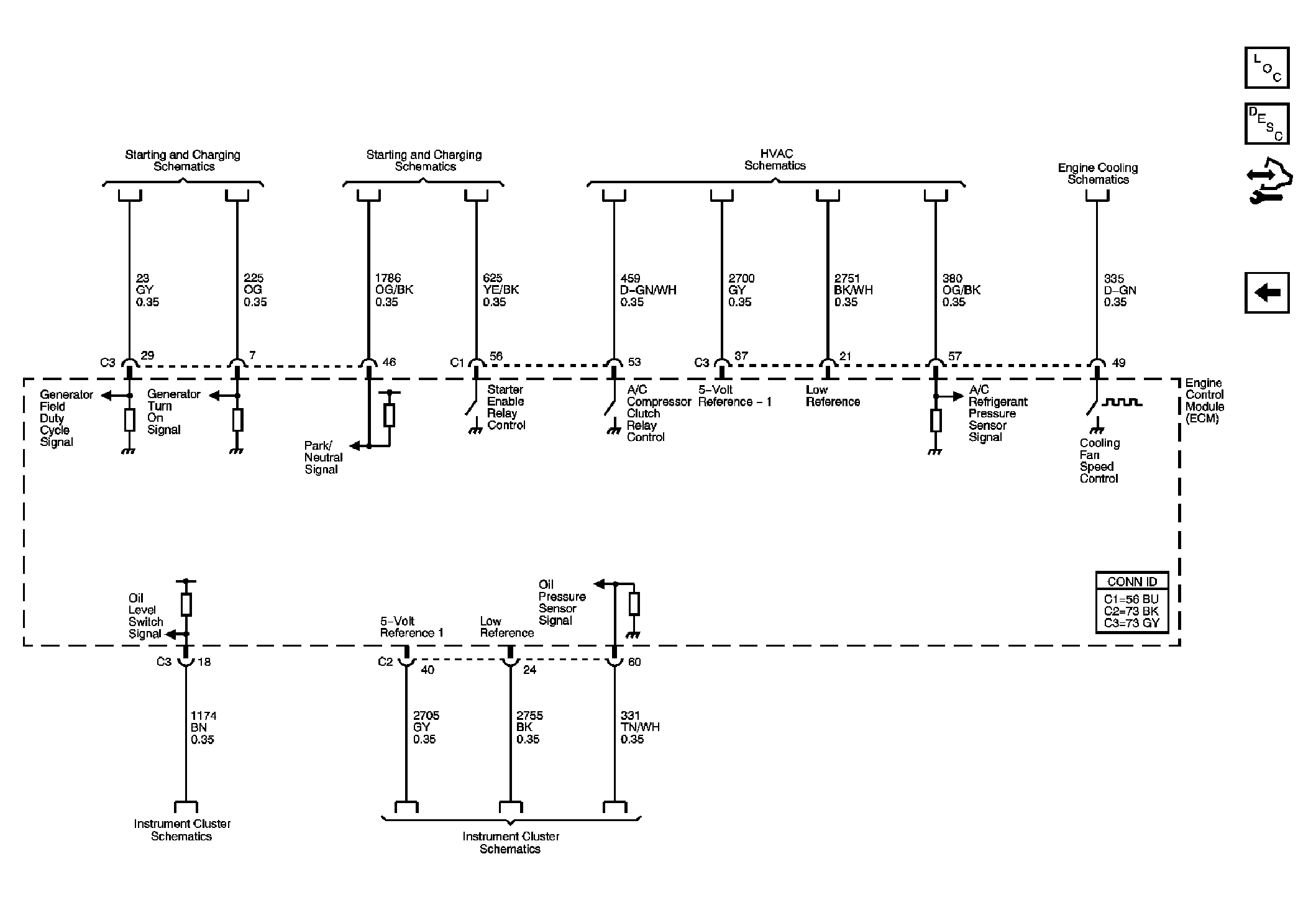

Fig 14: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
