Exhaust System Schematics

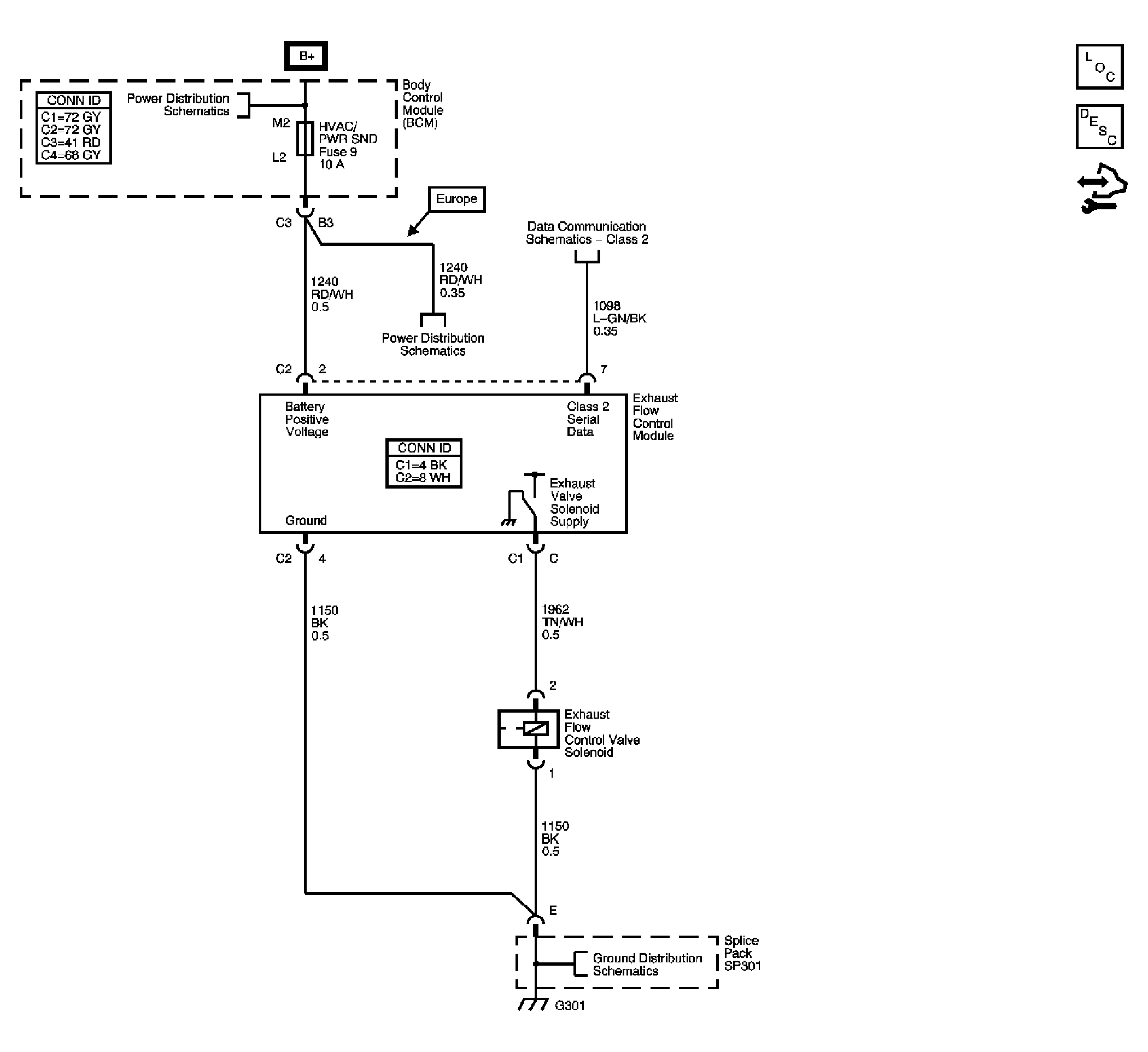

Fig 1: Exhaust System Schematic

GM1754584

Courtesy of GENERAL MOTORS CORP.
