Antilock Brake System Schematics

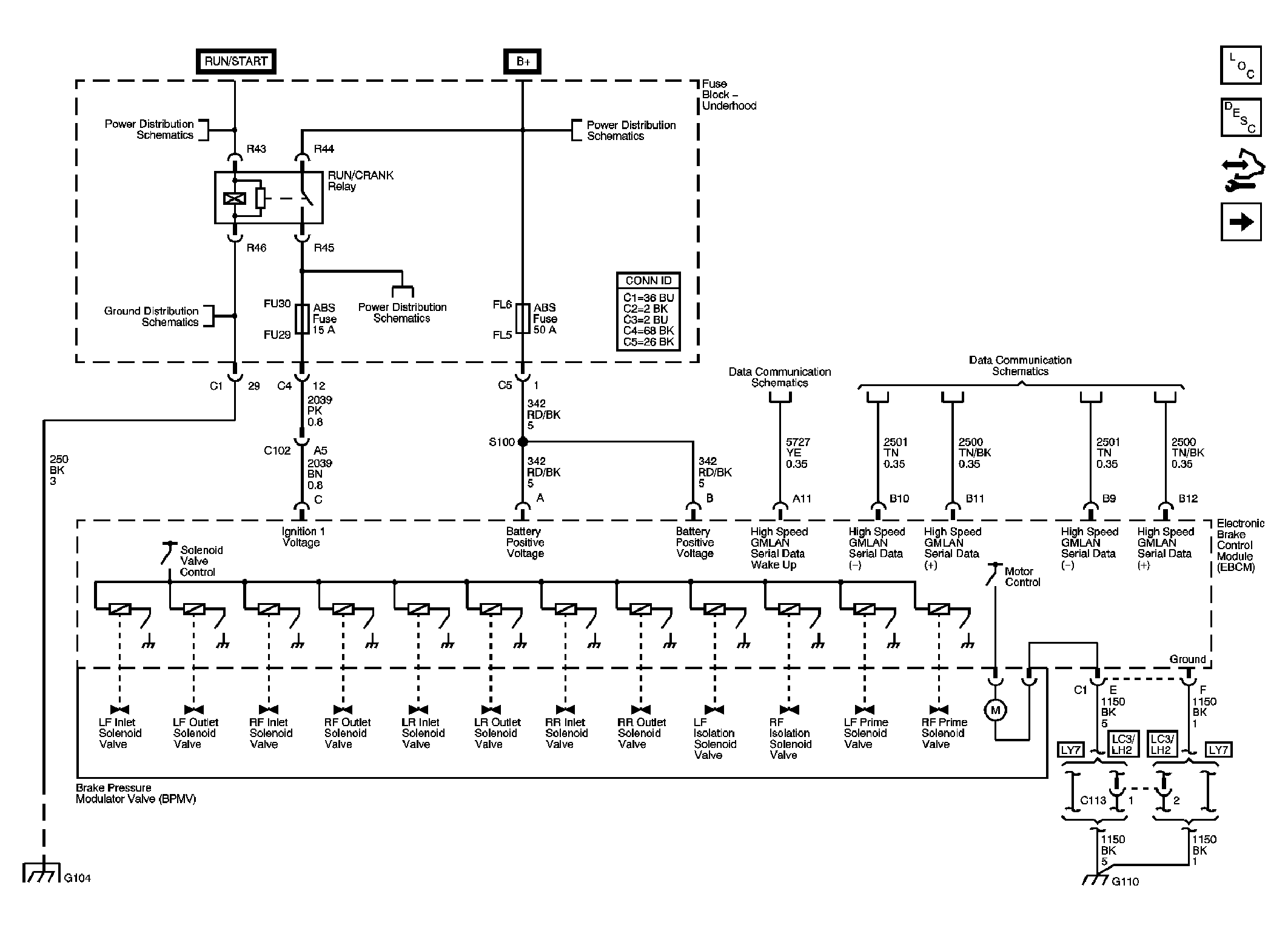

Fig 1: EBCM Module Power, Ground and DLC Schematic
GM1820291Courtesy of GENERAL MOTORS CORP.

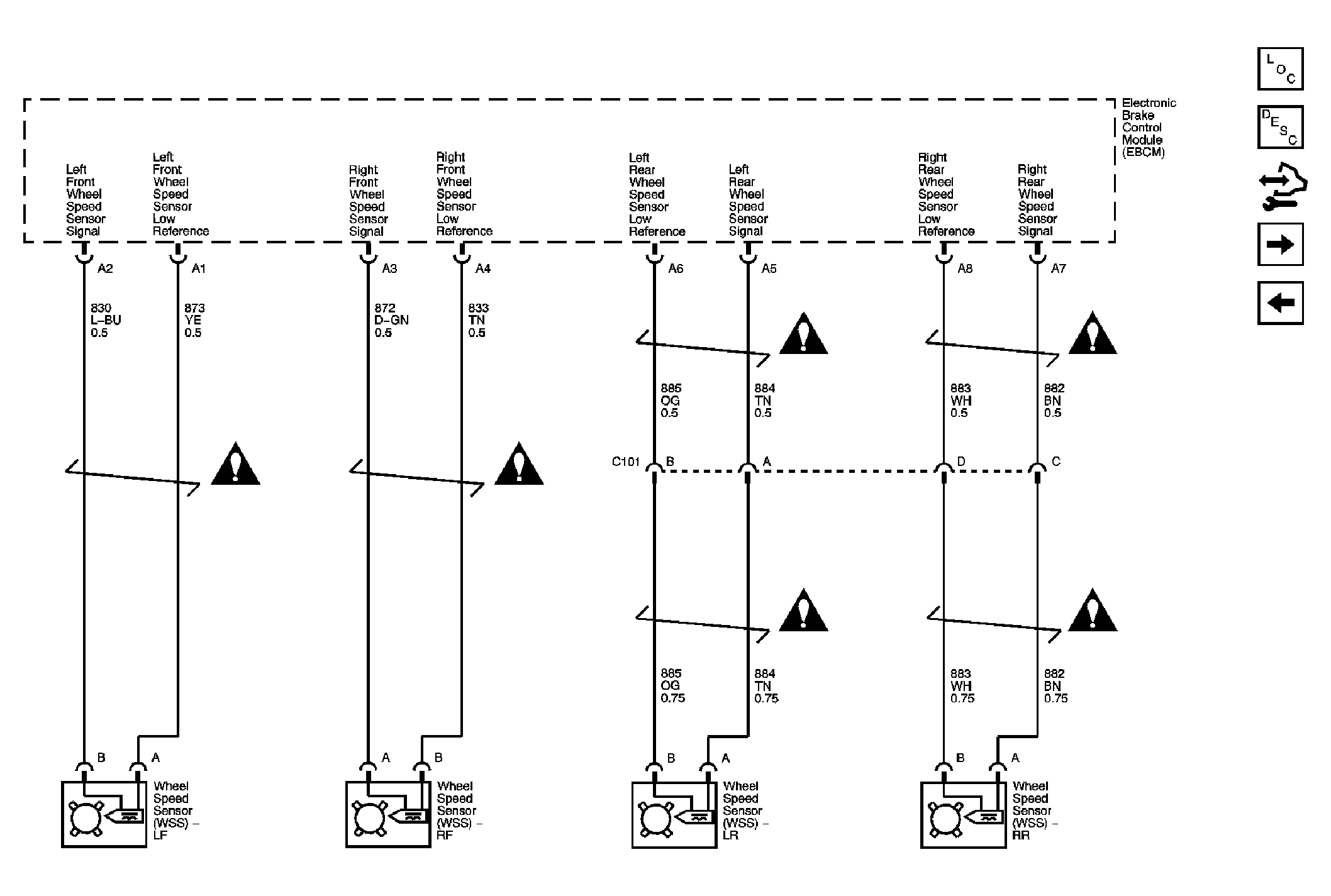

Fig 2: Wheel Speed Sensors Schematic
GM1820293Courtesy of GENERAL MOTORS CORP.

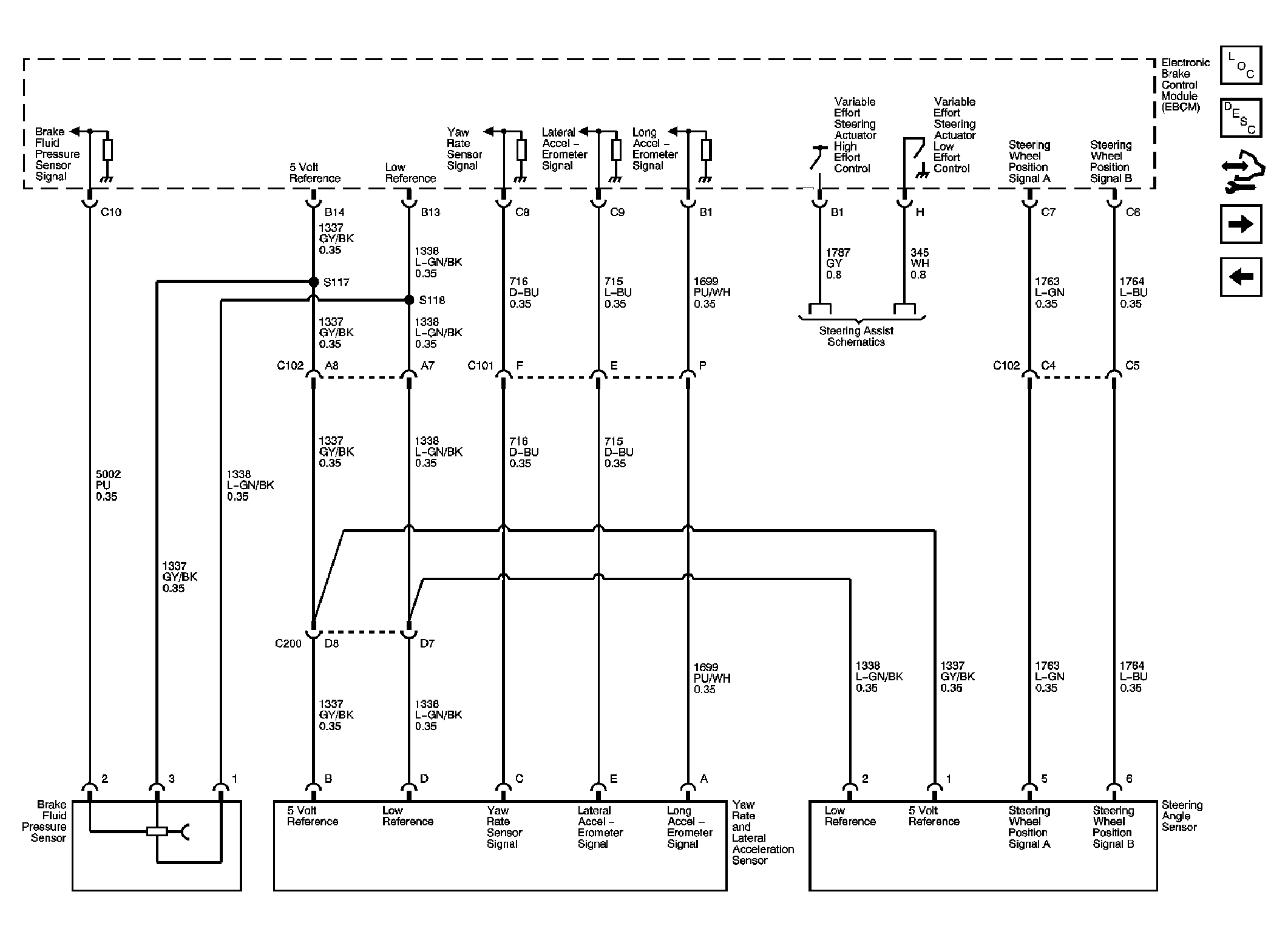

Fig 3: Stability Control System Schematic
GM1820295Courtesy of GENERAL MOTORS CORP.

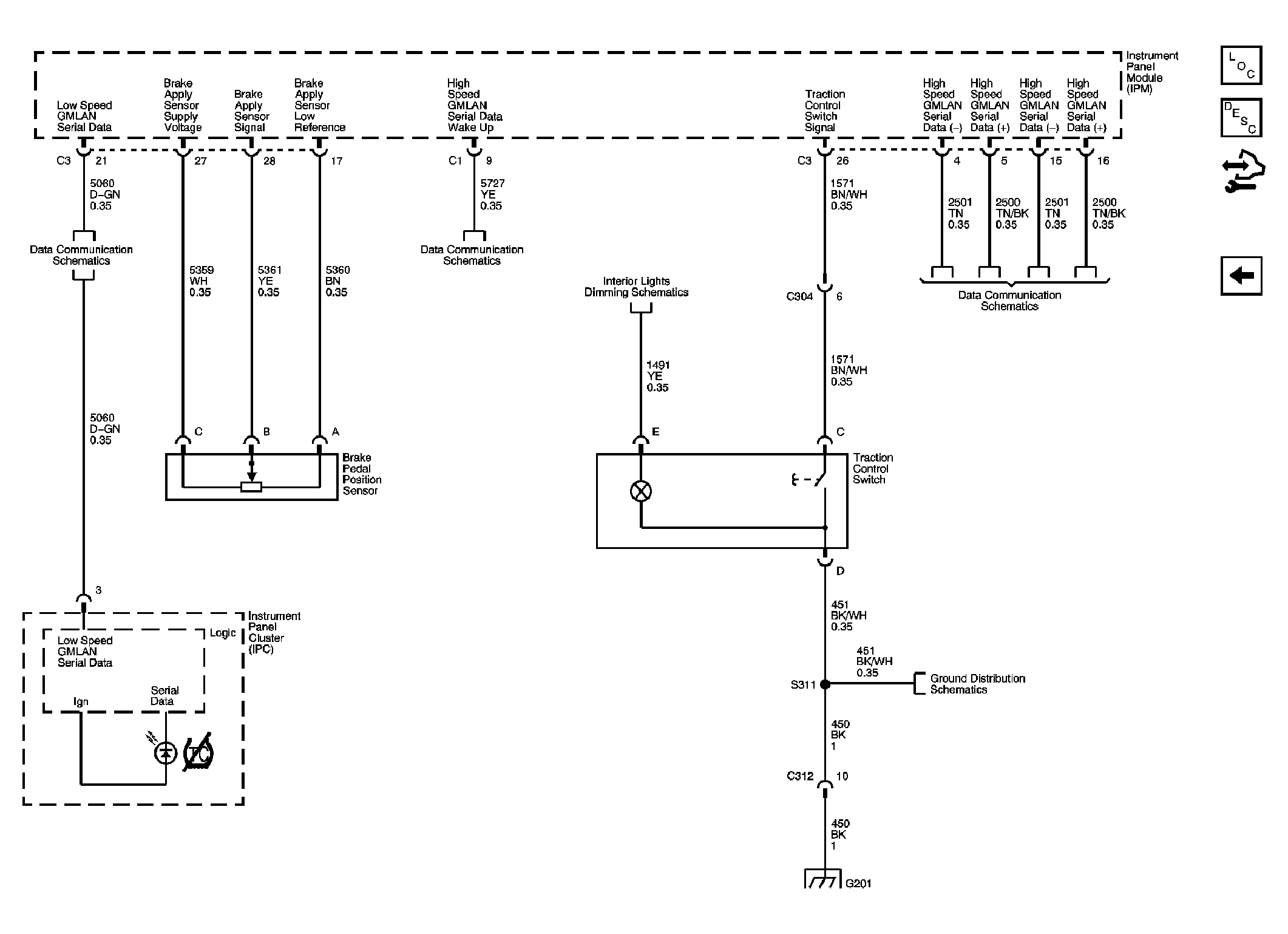

Fig 4: Indicator and Traction Control Schematic
GM1820298Courtesy of GENERAL MOTORS CORP.
