Power Distribution Schematics

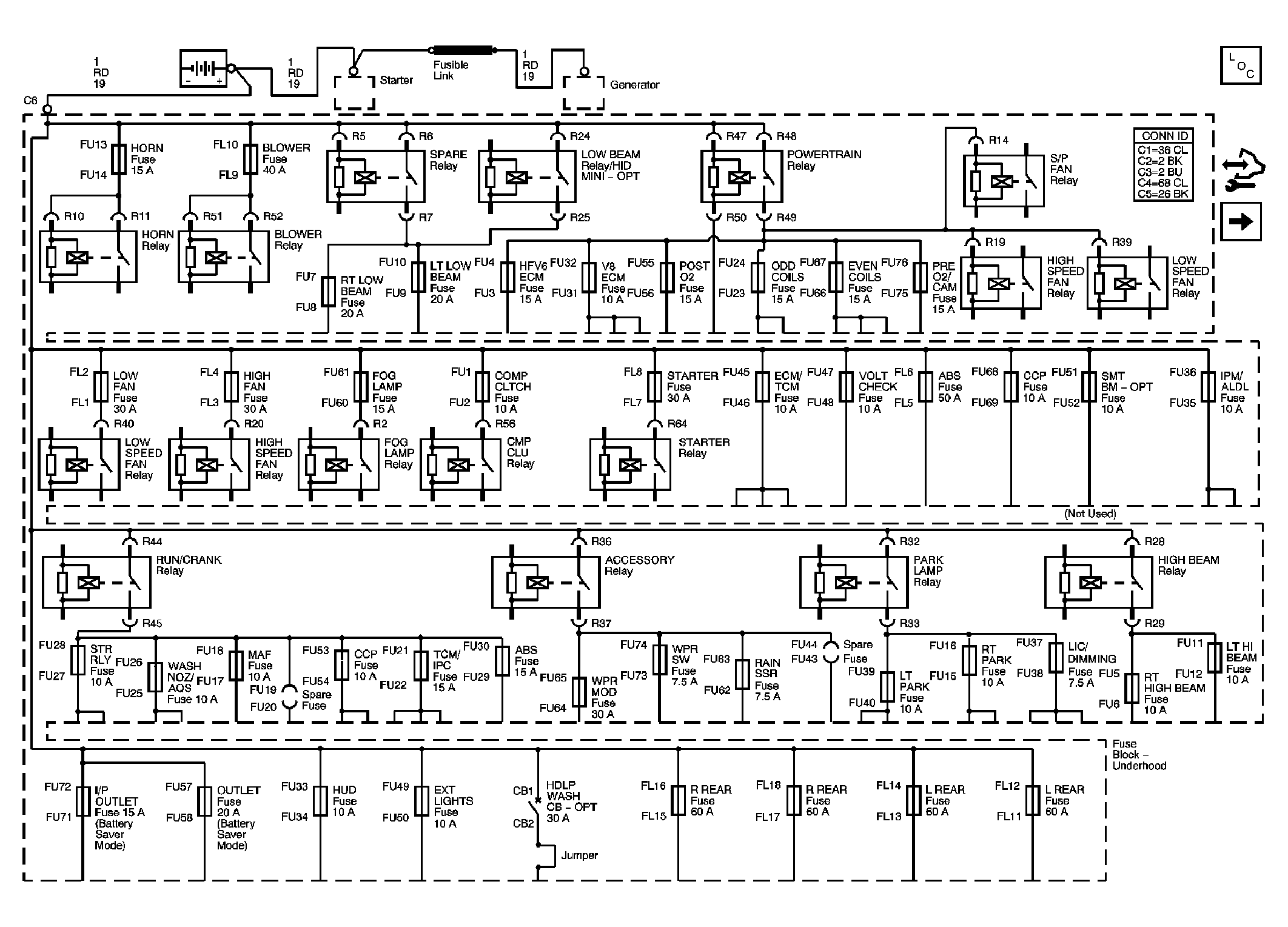

Fig 1: Fuse Block - Underhood Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

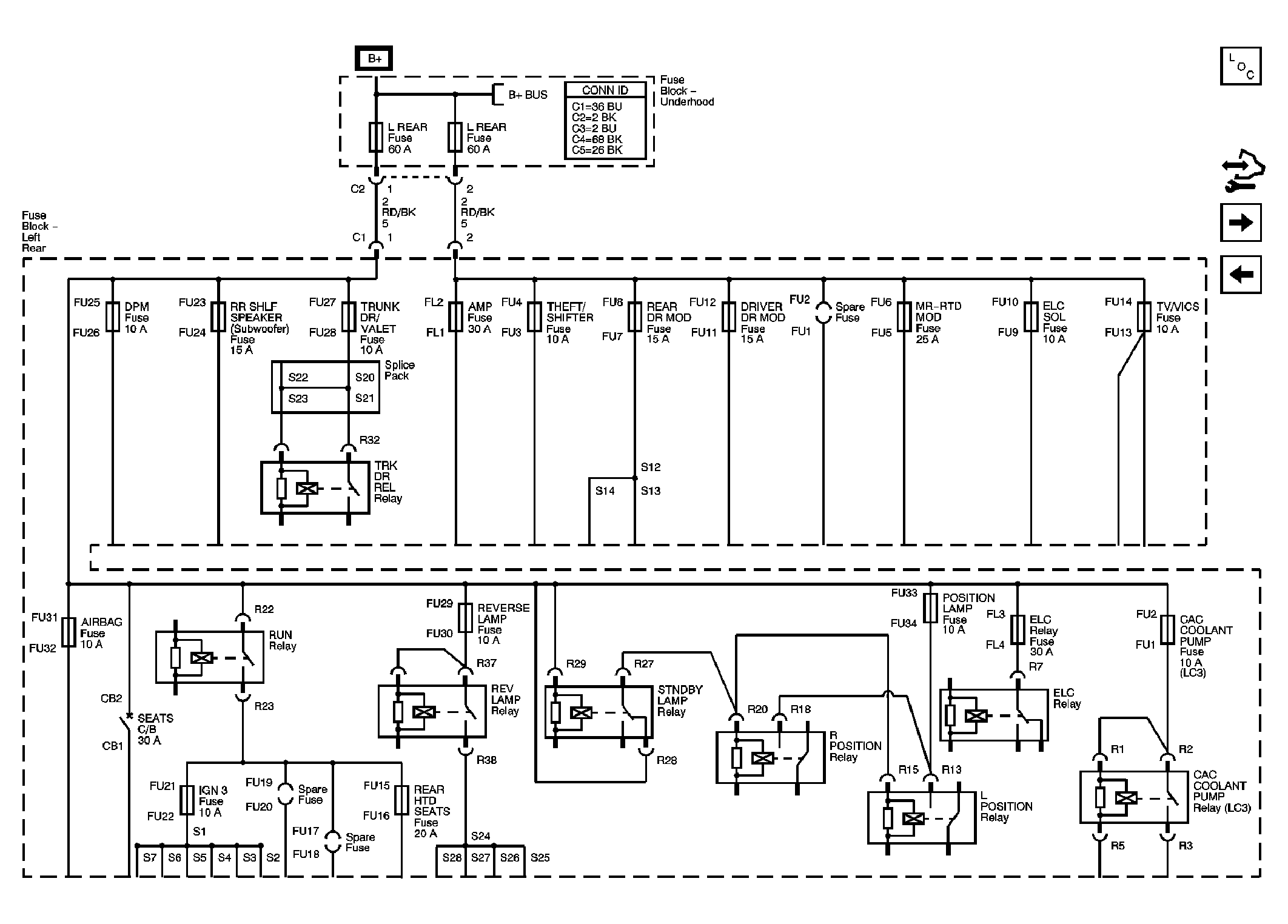

Fig 2: Fuse Block - Left Rear Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

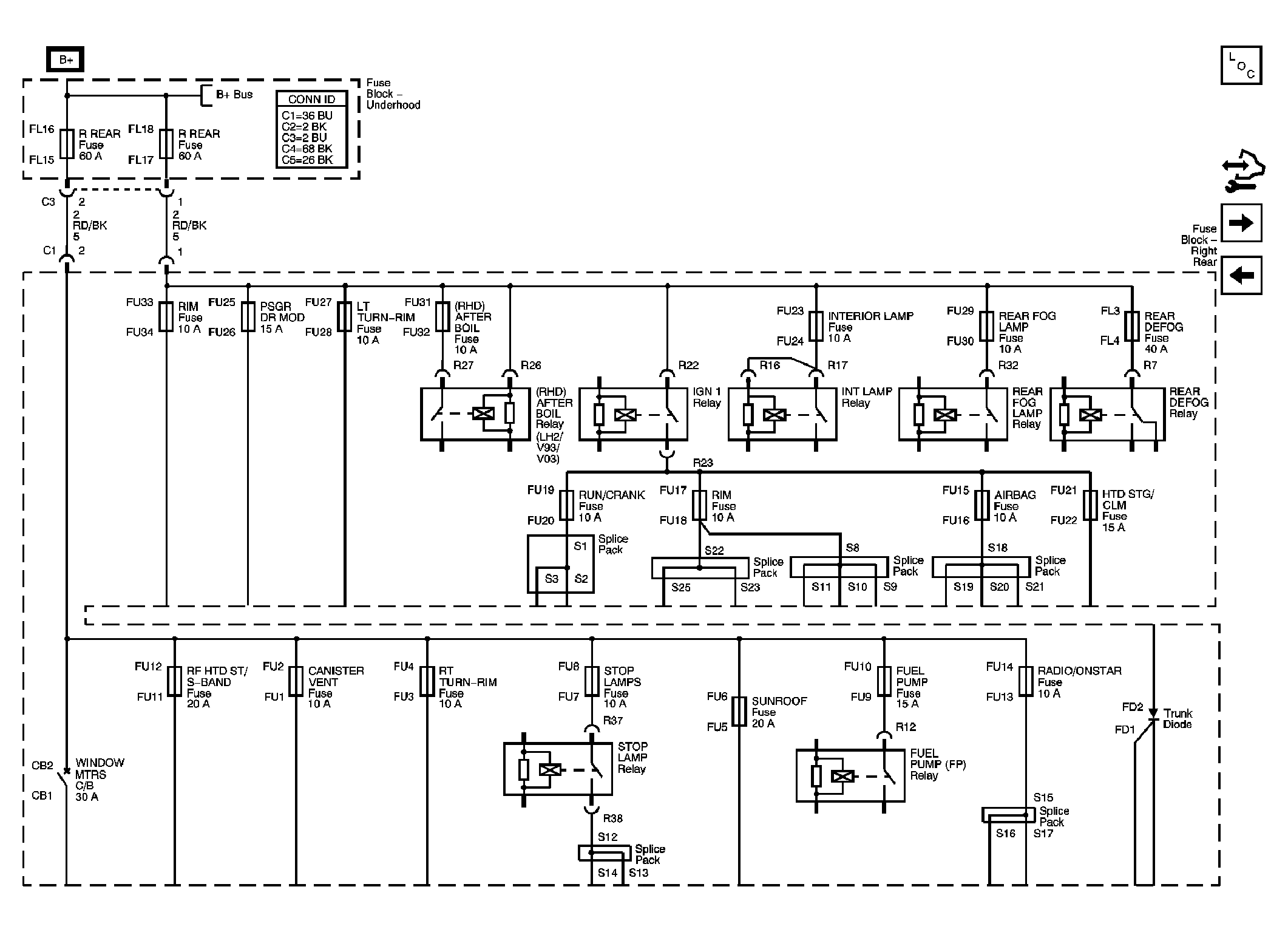

Fig 3: Fuse Block - Right Rear Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

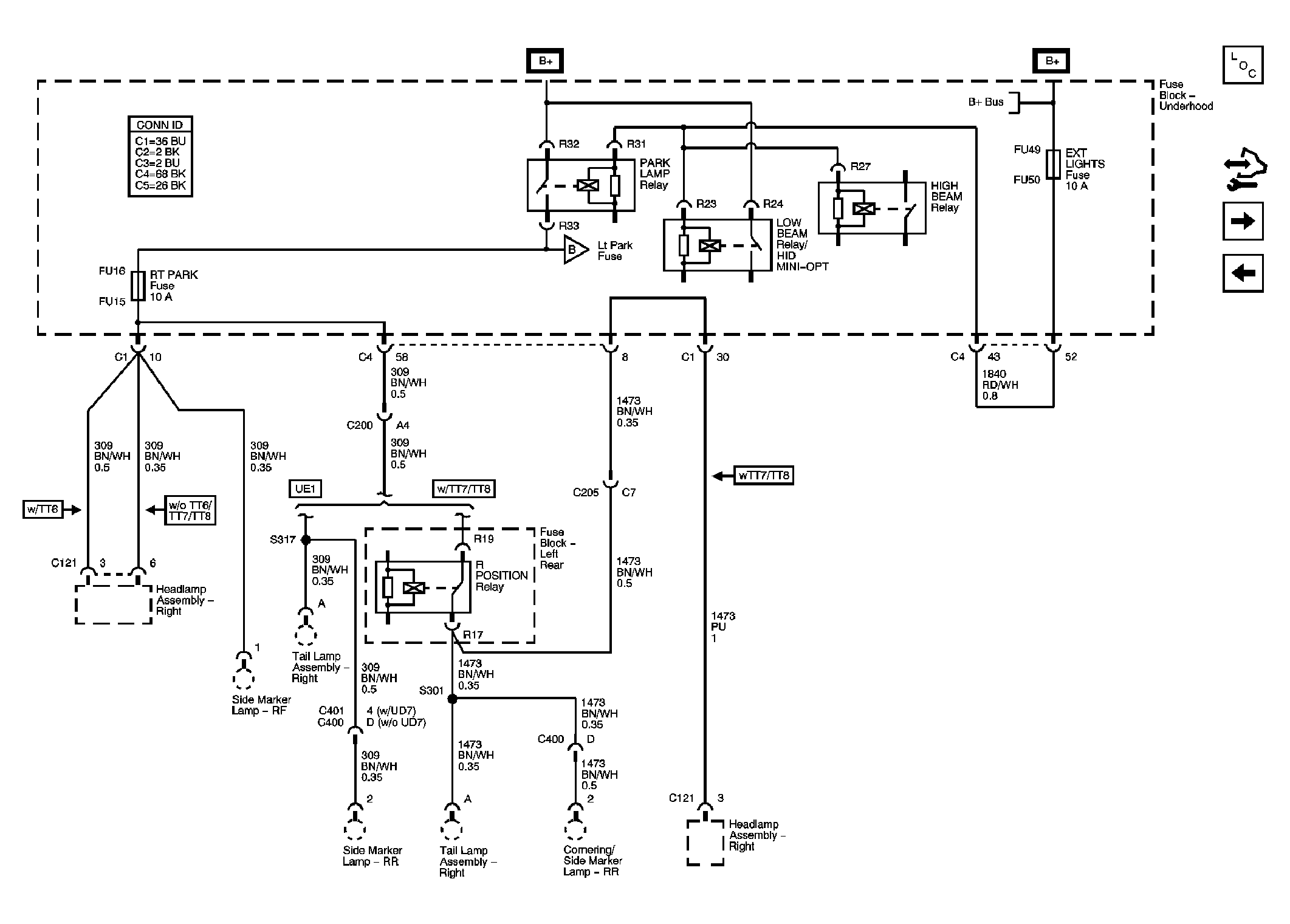

Fig 4: Fuse Block - Underhood Relay/Fuses: Park Lamp Relay, Rt Park Fuse, Tilt/Lk/Lmp/Clm Relay Coils Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

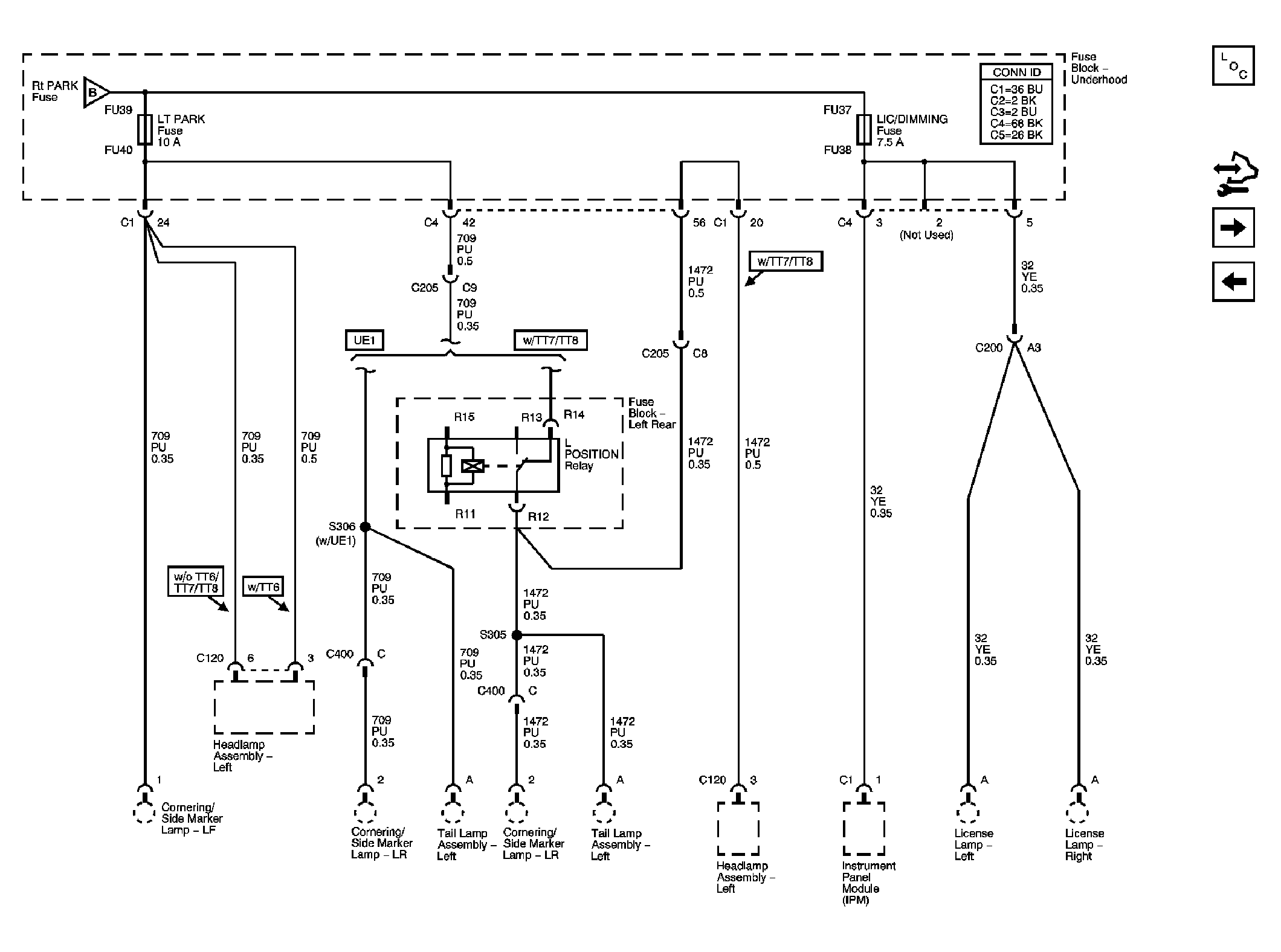

Fig 5: Fuse Block - Underhood Fuses: Lt Park Fuse, License/Dimming Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

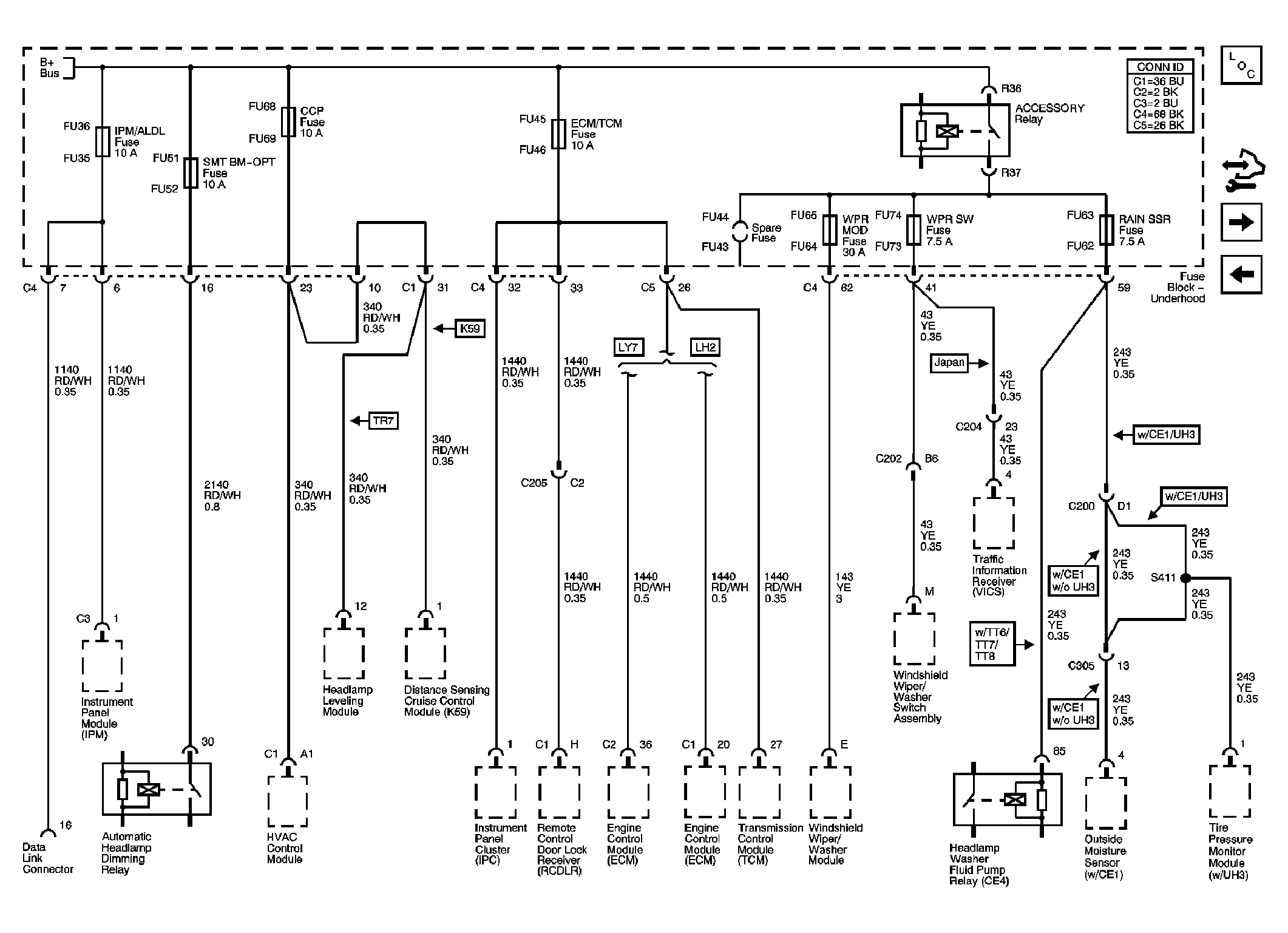

Fig 6: Fuse Block - Underhood Fuses/Relay: Ipm/Aldl, Smart Beam, Ccp, Ecm/Tcm, Wpr Mod, Wpr Sw/Vics And Rain Sensor/Hdlp Wash Fuses, Accessory Relay Schematic

Courtesy of GENERAL MOTORS CORP.

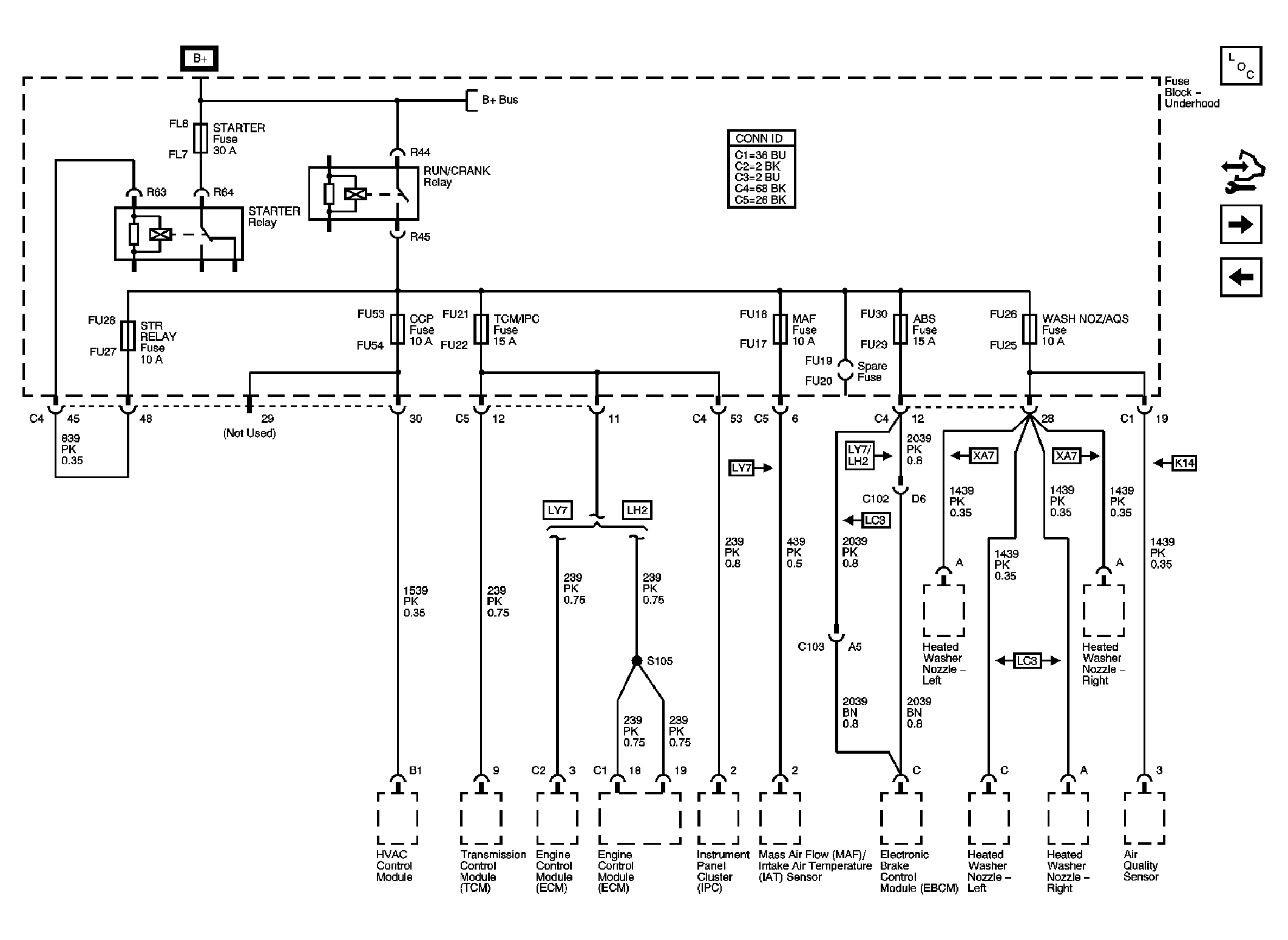

Fig 7: Fuse Block - Underhood: Starter, Ign 1 Relays, Starter, Starter Relay, Ccp, Tcm/Ipm/Ecm, Maf, Abs And Washer Nozzle/Acc Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

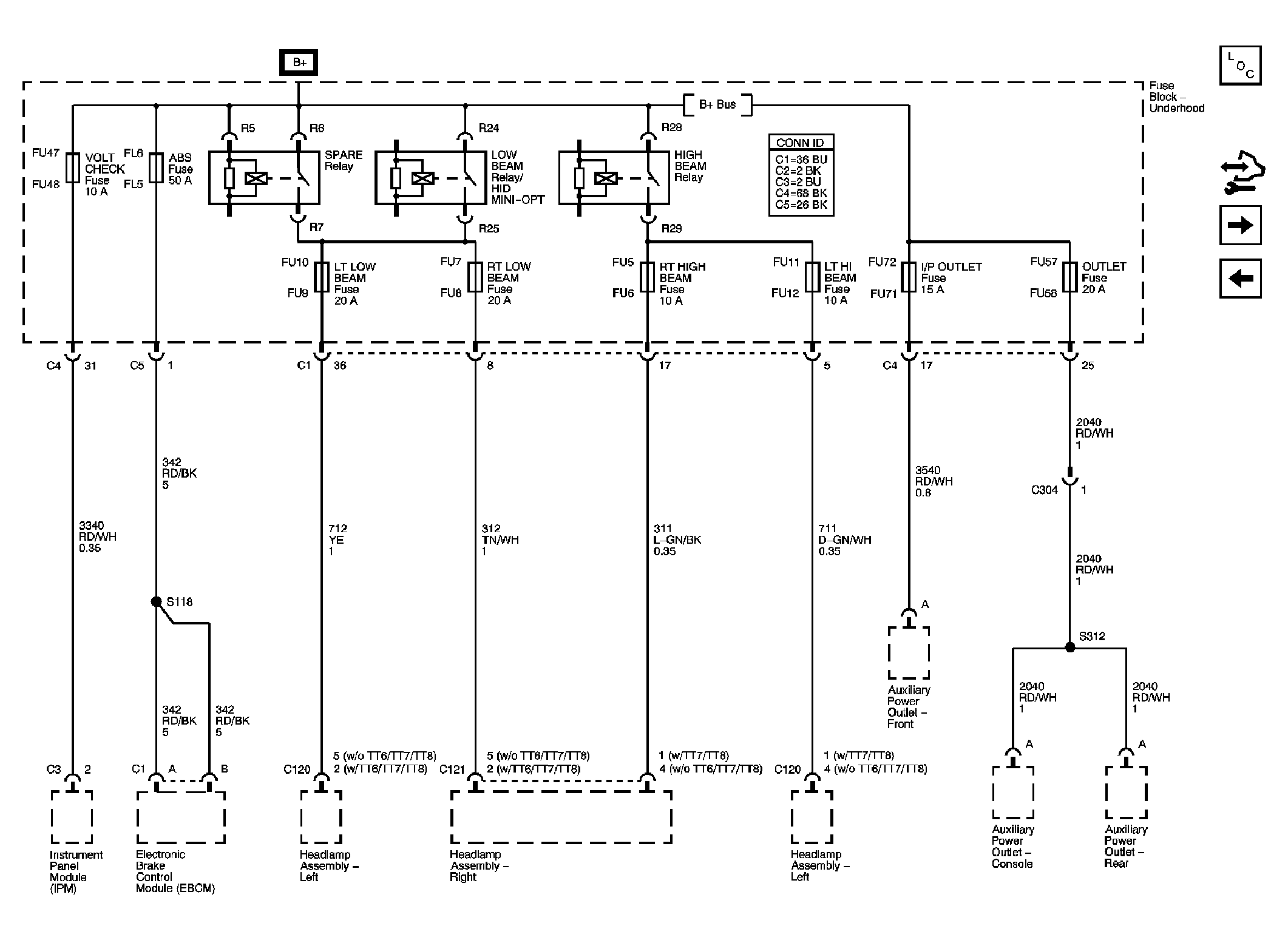

Fig 8: Fuse Block - Underhood: LO BM, Hi Beam, Power Outlet And Spare Relays, Volt Check, Ebcm, Lt Lo Beam, Rt Lo Bm, Rt Hi Bm, Lt Hi Bm, I/P Outlet And Outlet Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

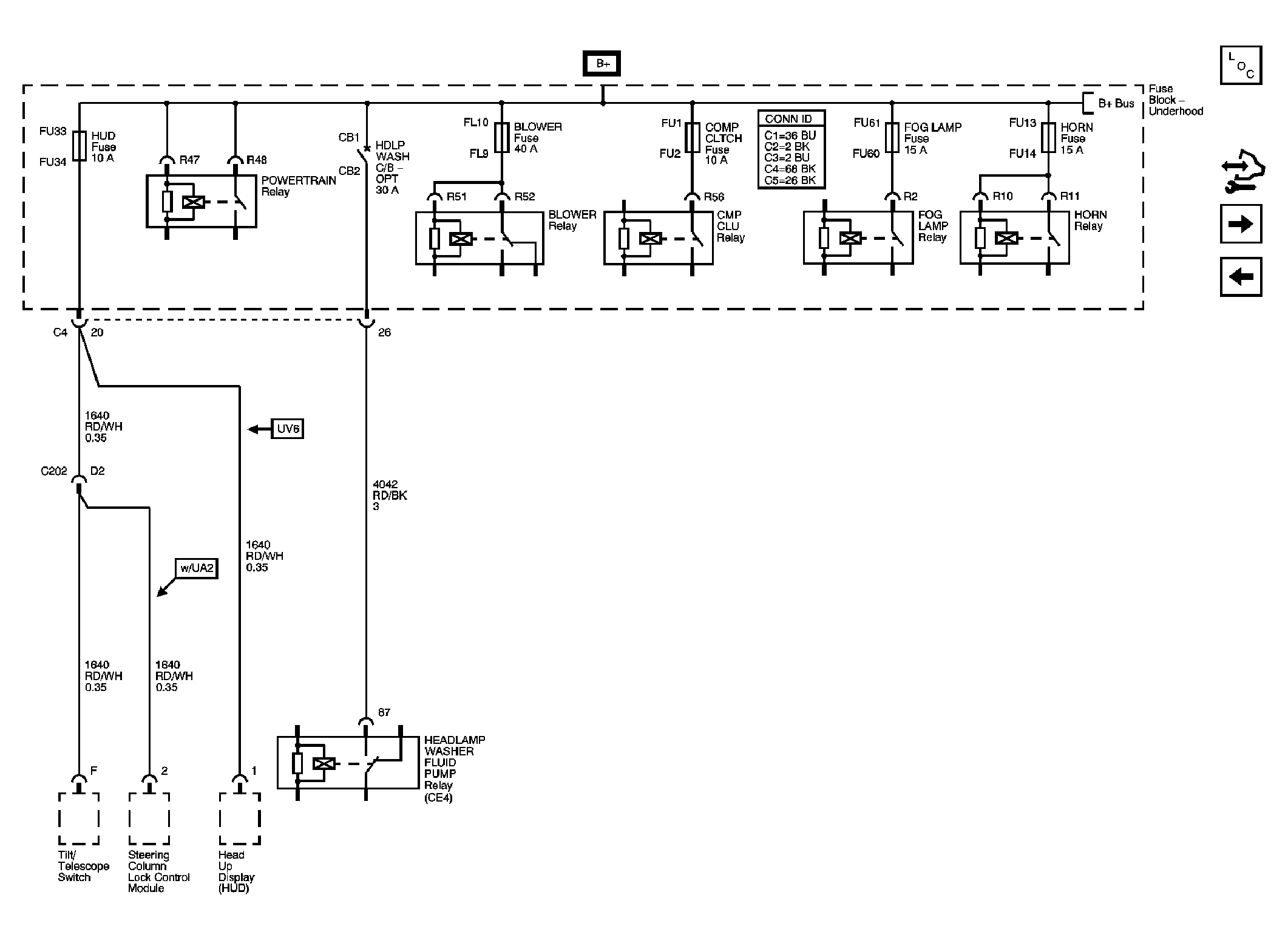

Fig 9: Fuse Block - Underhood: HUD, Front Blower, Comp Cltch, Fog Lamp, Horn Fuses, Hdlp Washer Circuit Breaker, Main Relay Schematic

Courtesy of GENERAL MOTORS CORP.

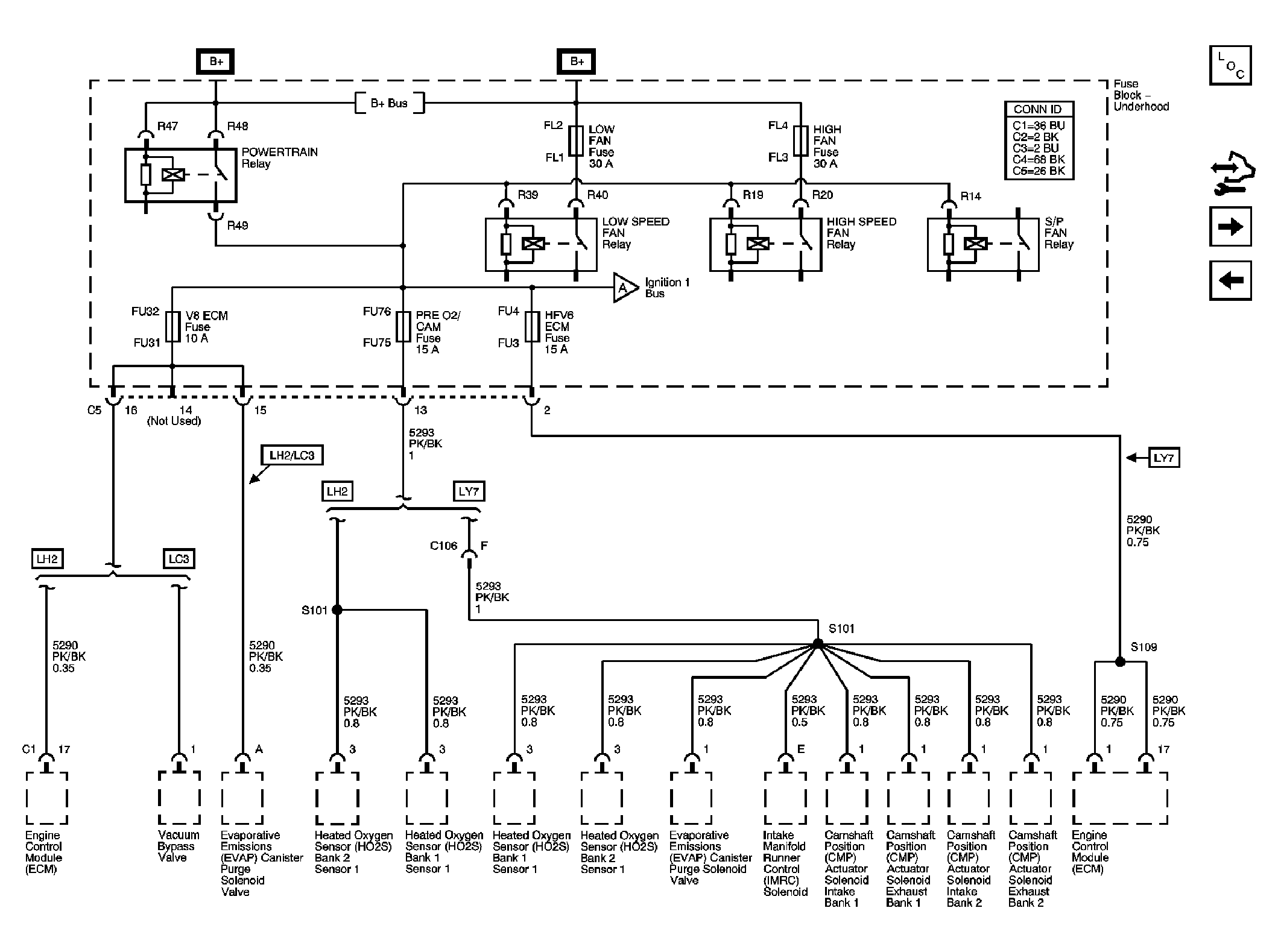

Fig 10: Fuse Block - Underhood: Main, Low Speed, HI Speed and S/P Fan Relays; V8 ECM, PRE O2/CAM, HFV6 ECM, Low Speed Fan and HI Speed Fan Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

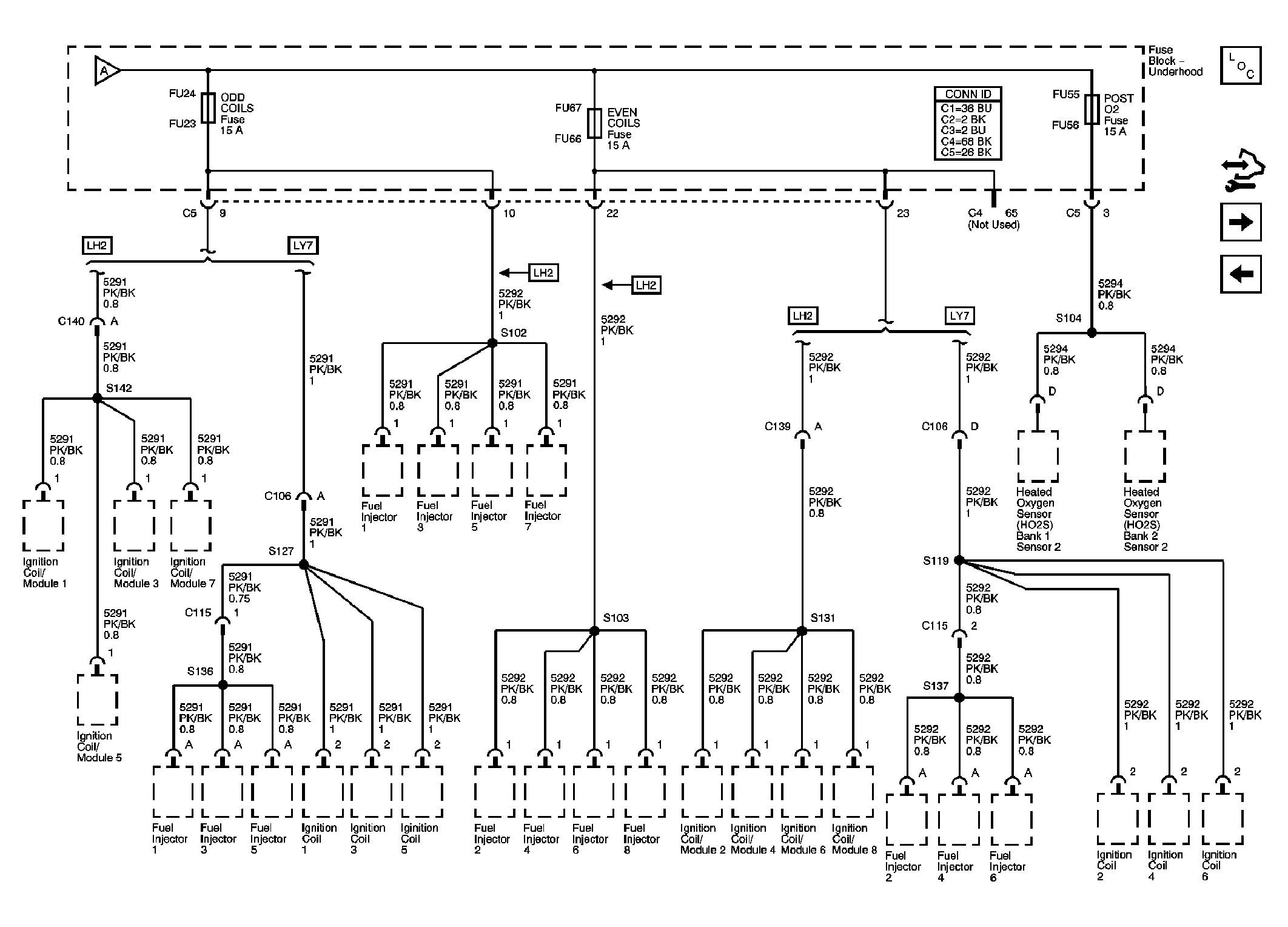

Fig 11: Fuse Block - Underhood: Odd Inj/Coils, Even Inj/Coils And Post O2 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

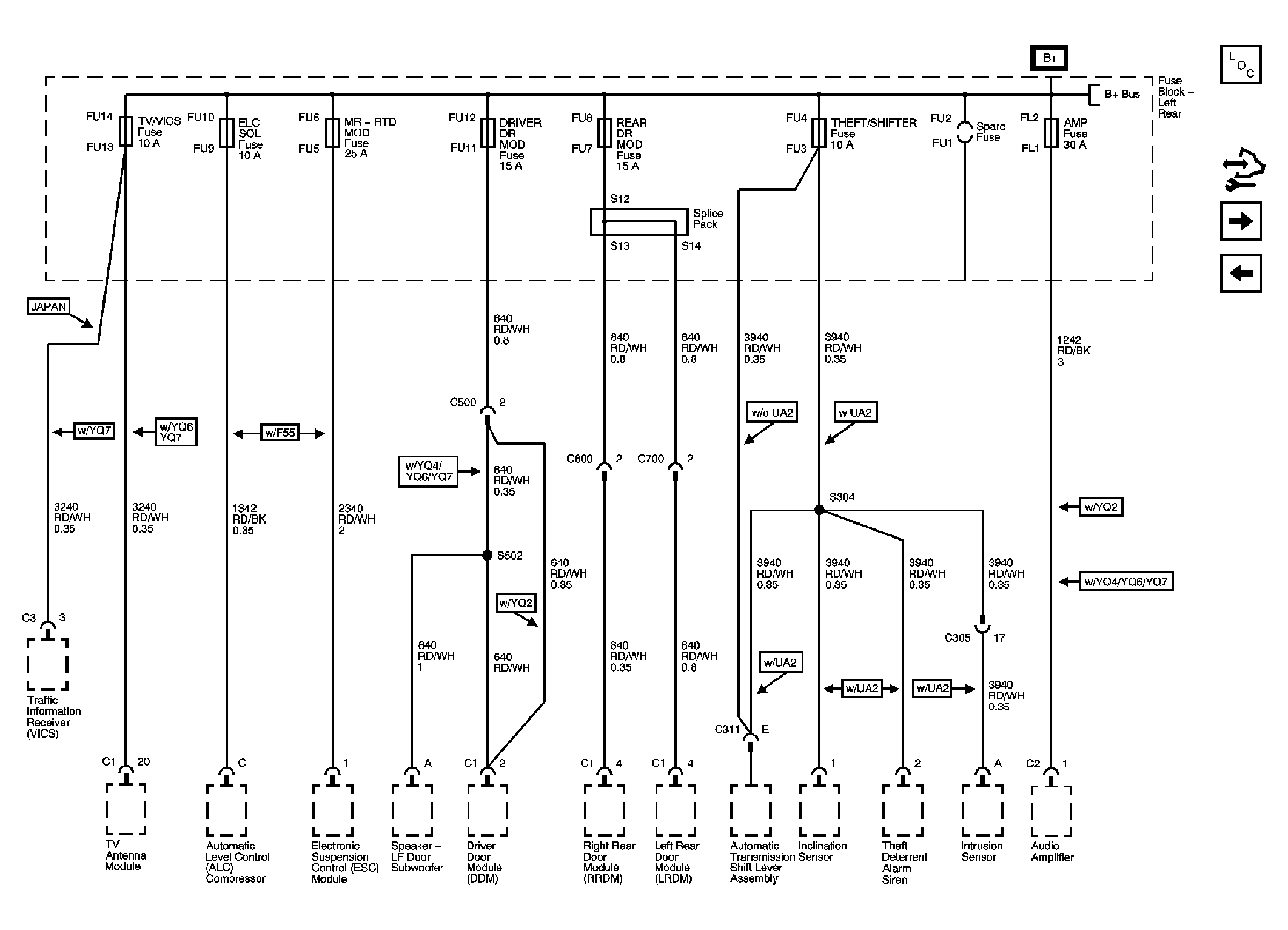

Fig 12: Fuse Block - Left Rear: TV/VICS, ELC SOL, ESC Module, DVR DR Module, Rear Door Module, Theft/Shifter And Amp Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 13: Fuse Block - Left Rear: Seats Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

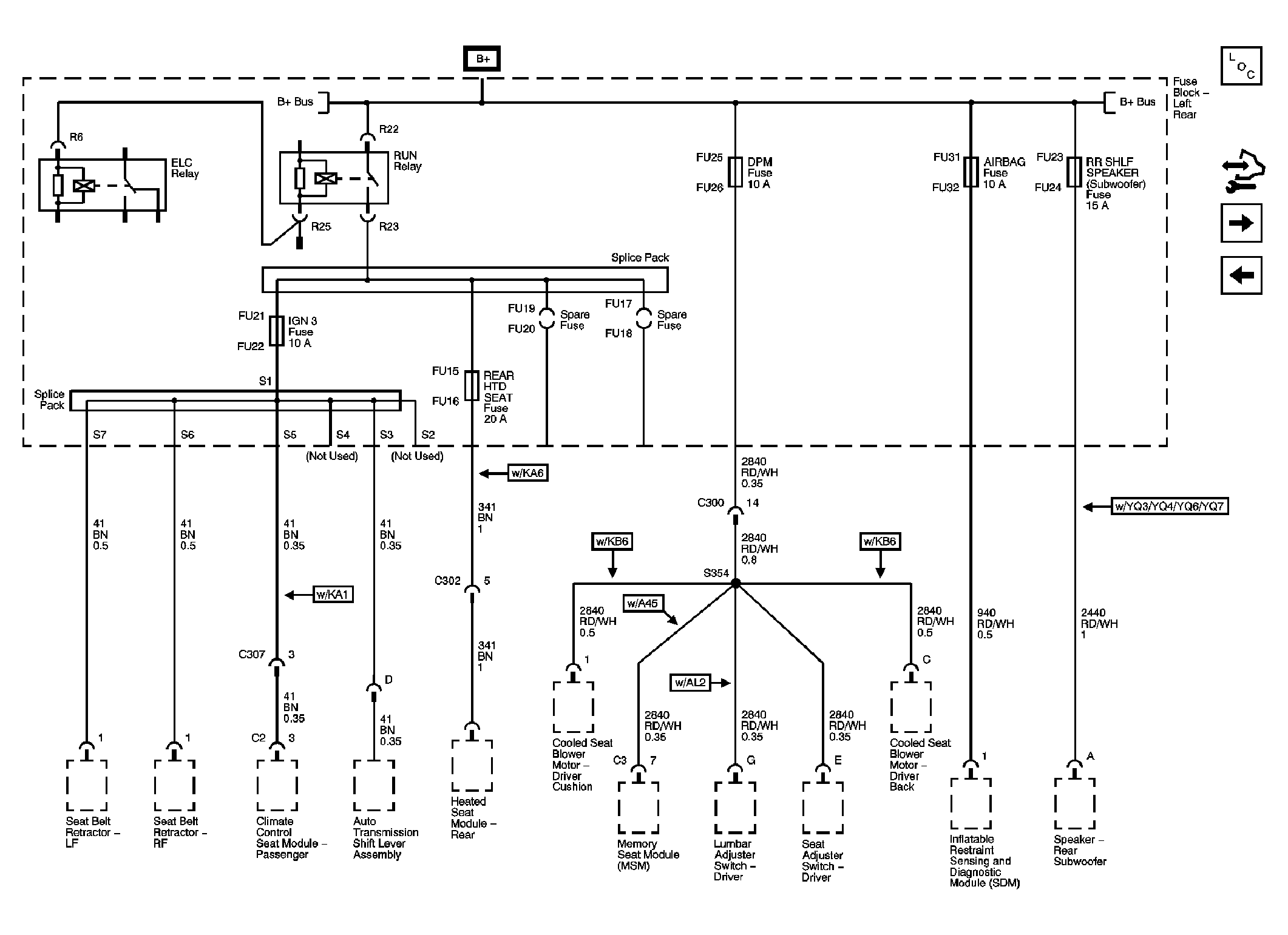

Fig 14: Fuse Block - Left Rear: IGN 3 Relay, IGN 3, Rear Heated Seat, Memory, Airbag And Rear Shelf Speaker Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

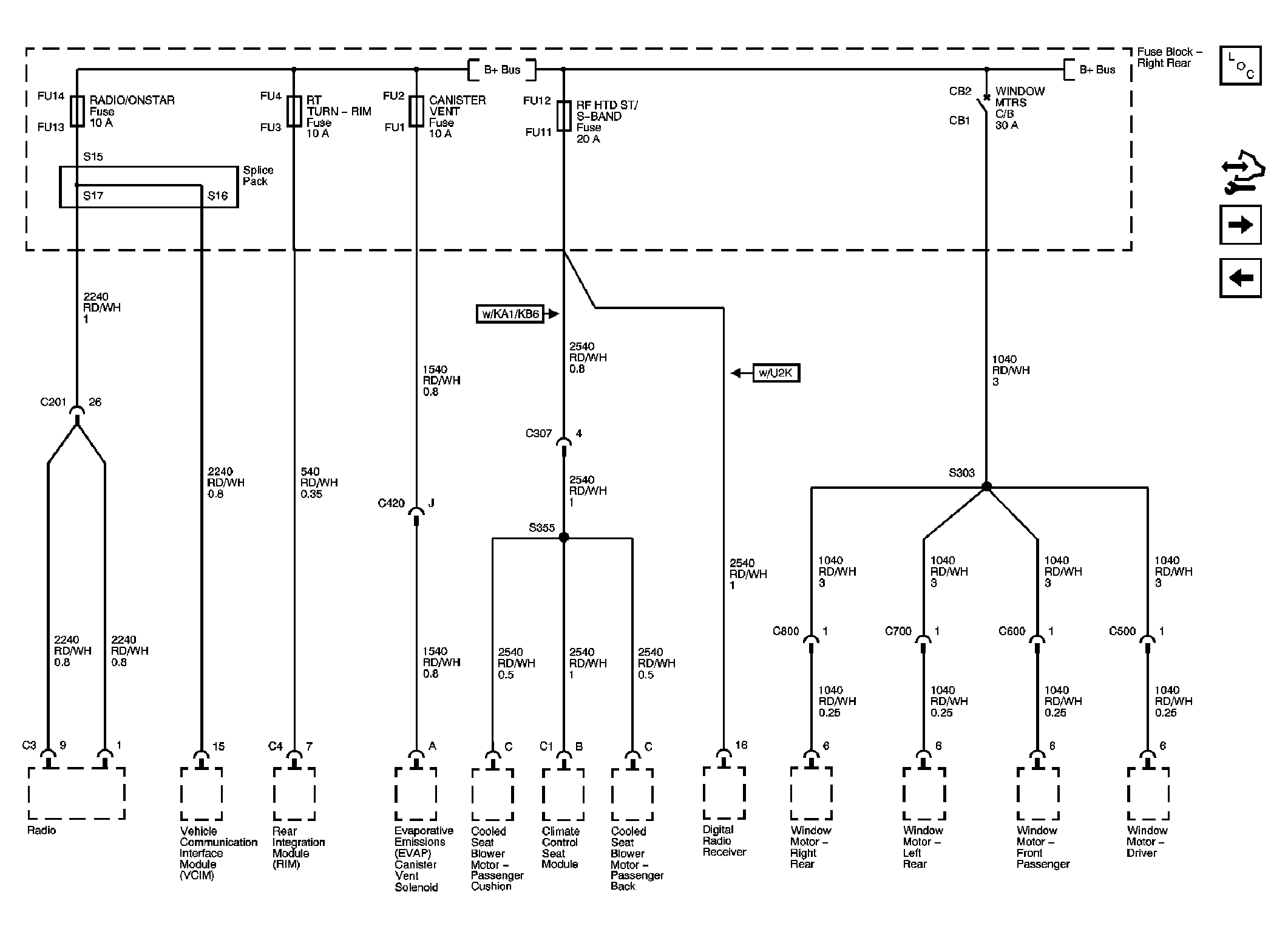

Fig 15: Fuse Block - Right Rear: Radio/Onstar, Rt Turn Signal, Canister Vent And Rf Heated/Vented Seat Fuses, Window Motors Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

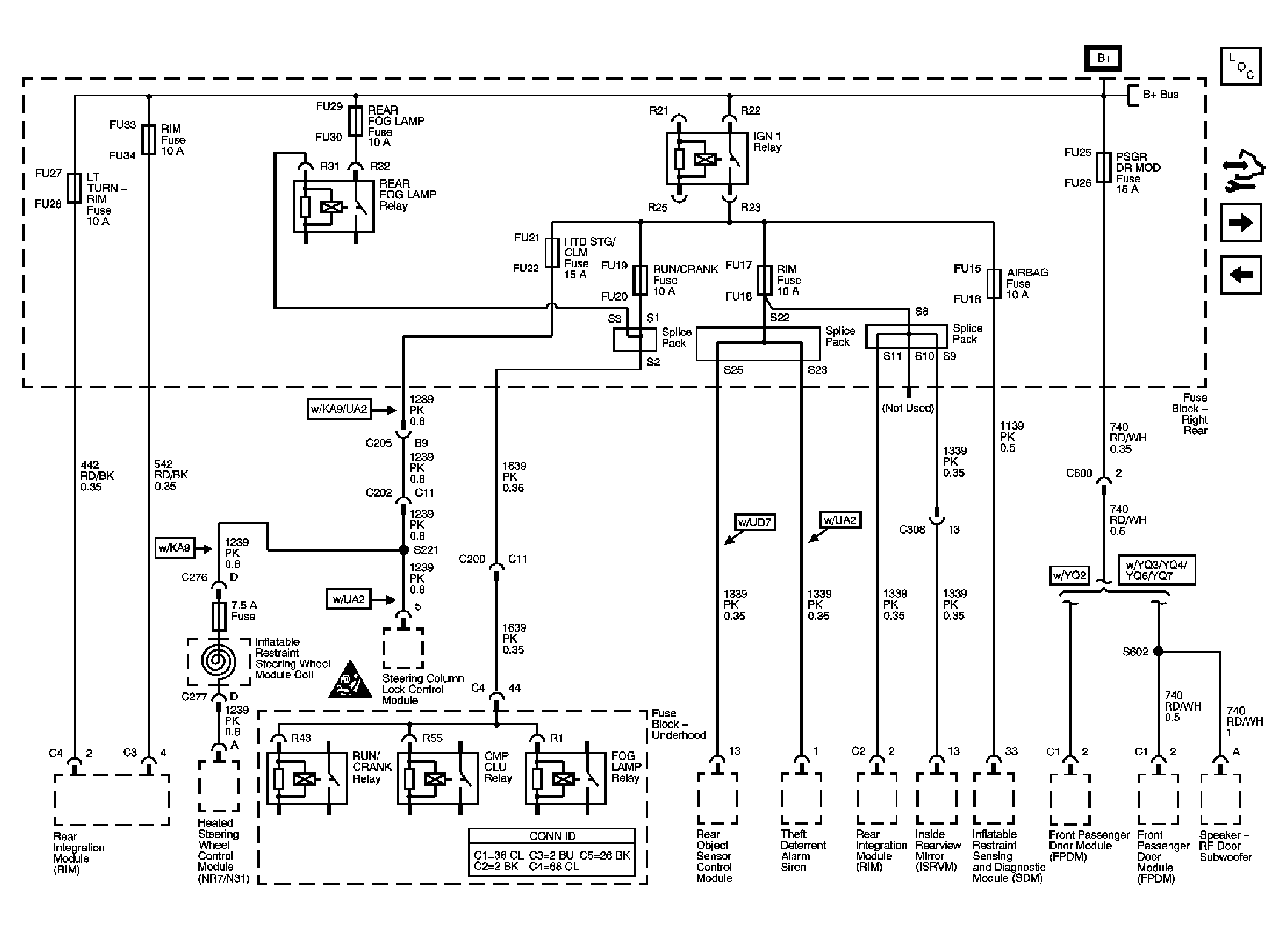

Fig 16: Fuse Block - Right Rear: LT Turn Signal, RIM(1), Rear Fog Lamp, Ft Pass. Door Module, Htd Stg Clm, Ign 1, Rim(2) And Airbag Fuses, Rear Fog Lamp And Ign 1 Relays Schematic

Courtesy of GENERAL MOTORS CORP.

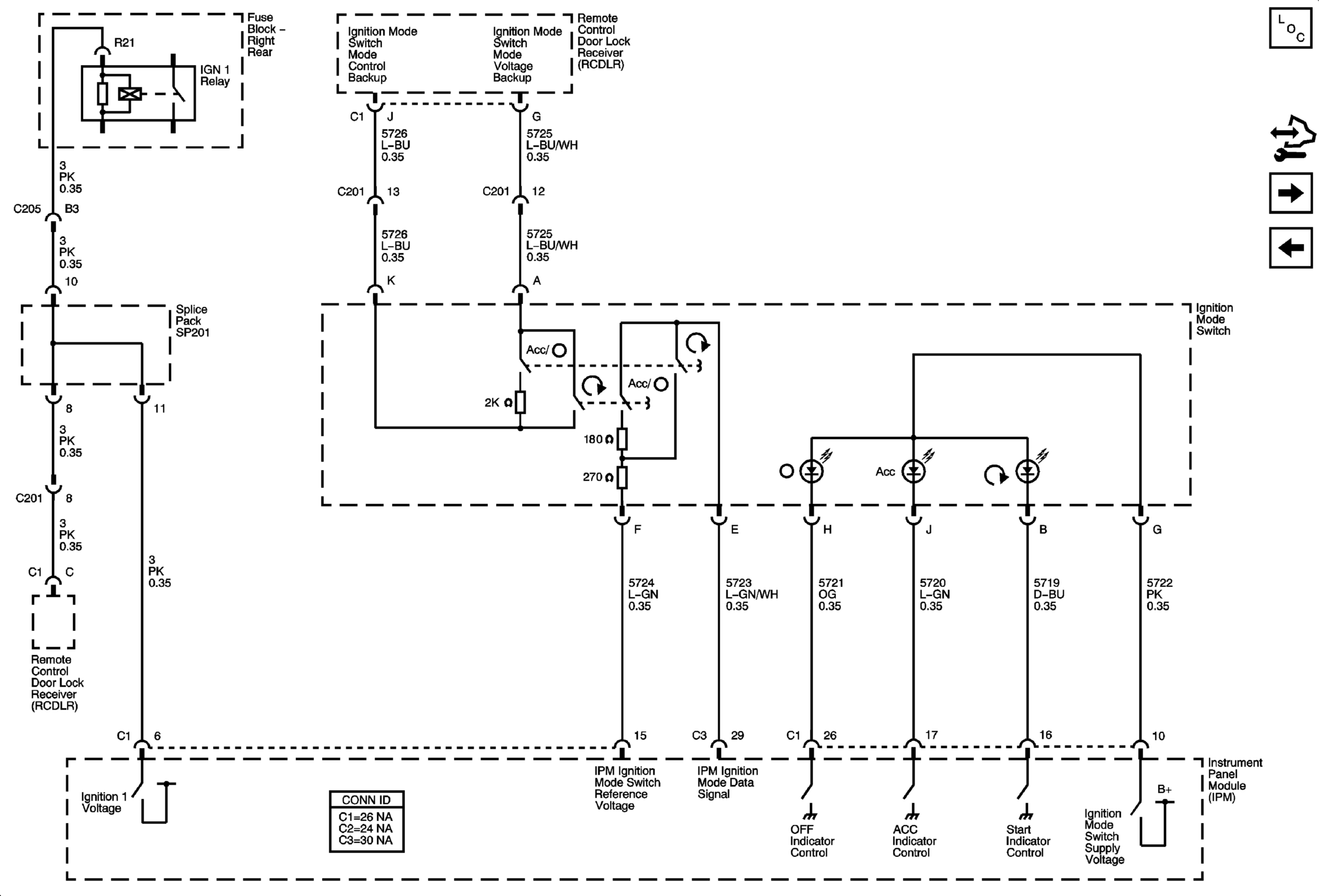

Fig 17: Ignition Mode Switch Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 18: Power Modes Schematic

Courtesy of GENERAL MOTORS CORP.
