Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Front Floor Console Electrical Connectors
    GM1442969Courtesy of GENERAL MOTORS CORP.
  1. Connect the console electrical connectors.
  2. Position the center console to the mounting brackets.

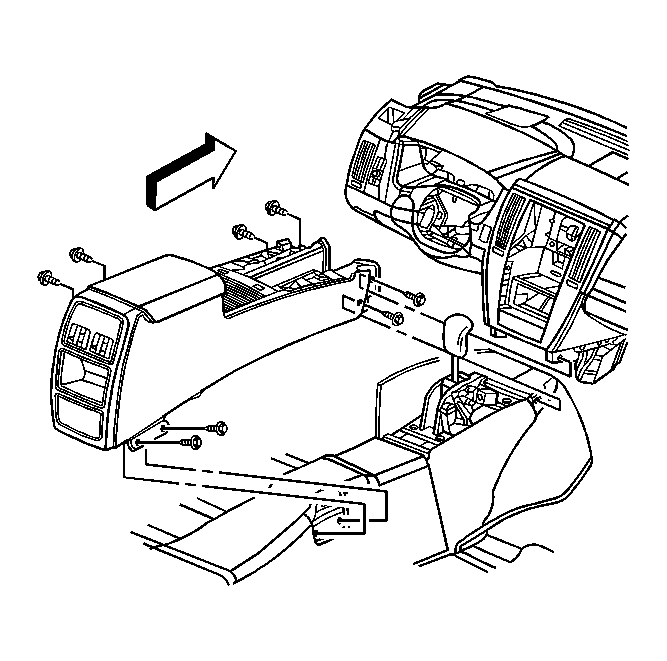

    3. Fig 2: Front Floor Console & Retaining Bolts
    GM1442967Courtesy of GENERAL MOTORS CORP.
  3. Move the driver and passenger front seat in order to install the retaining bolts.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the retaining bolts and tighten to 9 N.m (80 lb in).
  5. Ensure the carpet is positioned properly in the vehicle.
  6. Install the upper console trim. Refer to Front Floor Upper Console Trim Plate Replacement .
  7. Install the shiftier bezel. Refer to Console Shift Lever Bezel Replacement .
