Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

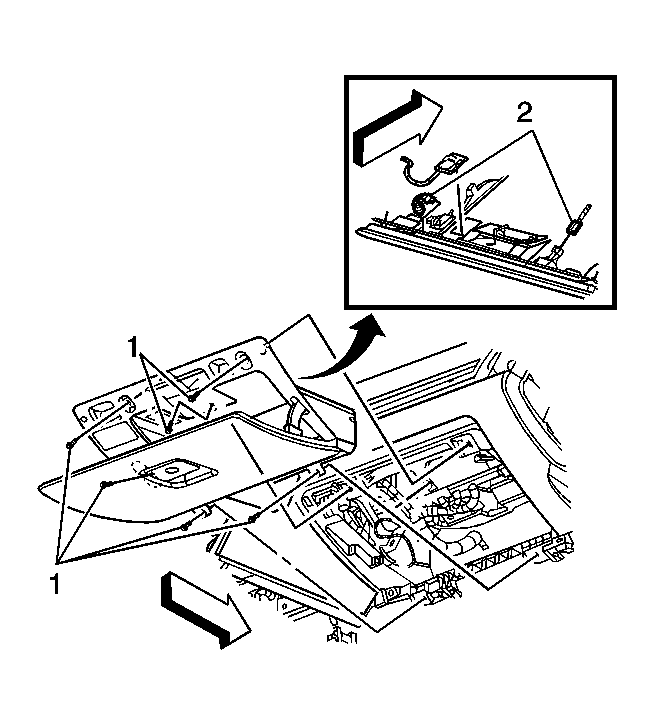

    Fig 1: Instrument Panel Compartment, Screws & Electrical Connectors
    GM1386018Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors (2).
  2. Install the 6 screws (1) securing the instrument panel compartment.
  3. Install the instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
