Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

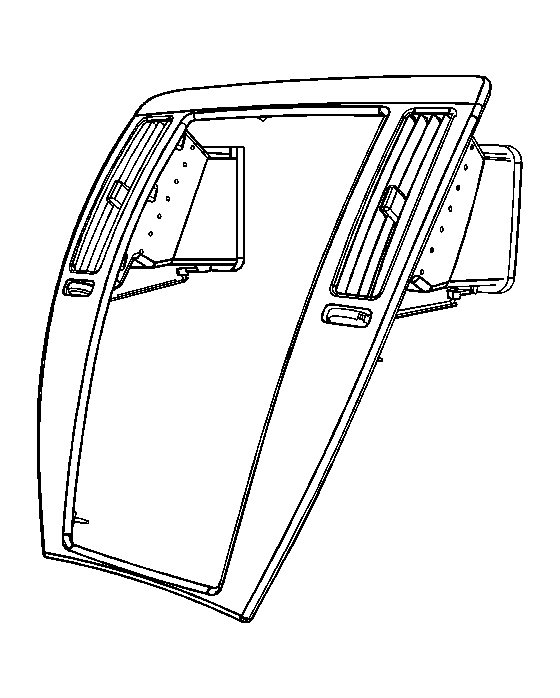

    Fig 1: Instrument Panel Center Trim Panel
    GM1429678Courtesy of GENERAL MOTORS CORP.
  1. Locate the center trim onto the instrument panel.
  2. Starting at the bottom and working your way to the top, push on the center trim in order to secure the retaining clips.
