Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

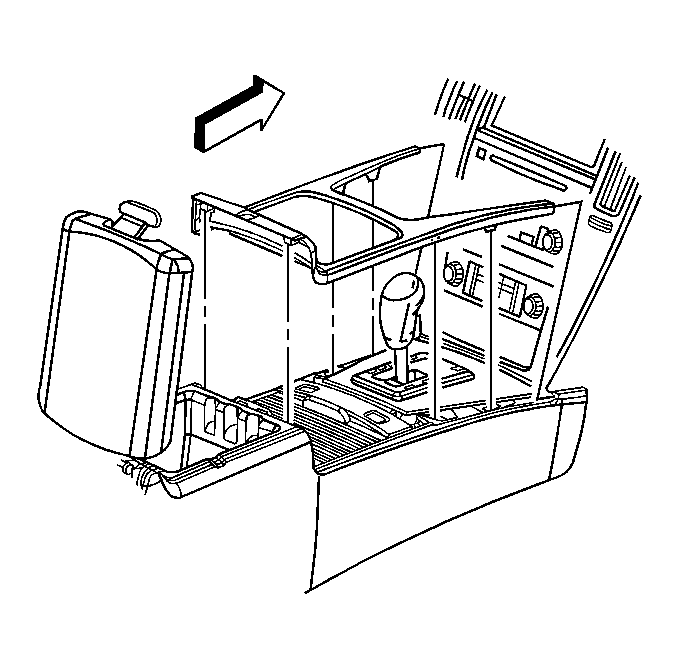

    Fig 1: Console Upper Trim Plate
    GM1442979Courtesy of GENERAL MOTORS CORP.
  1. Locate the front of the trim to the front of the console.
  2. Push the retaining clips in order to secure the trim to the console.
