Front Floor Console Armrest Storage Tray Replacement

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

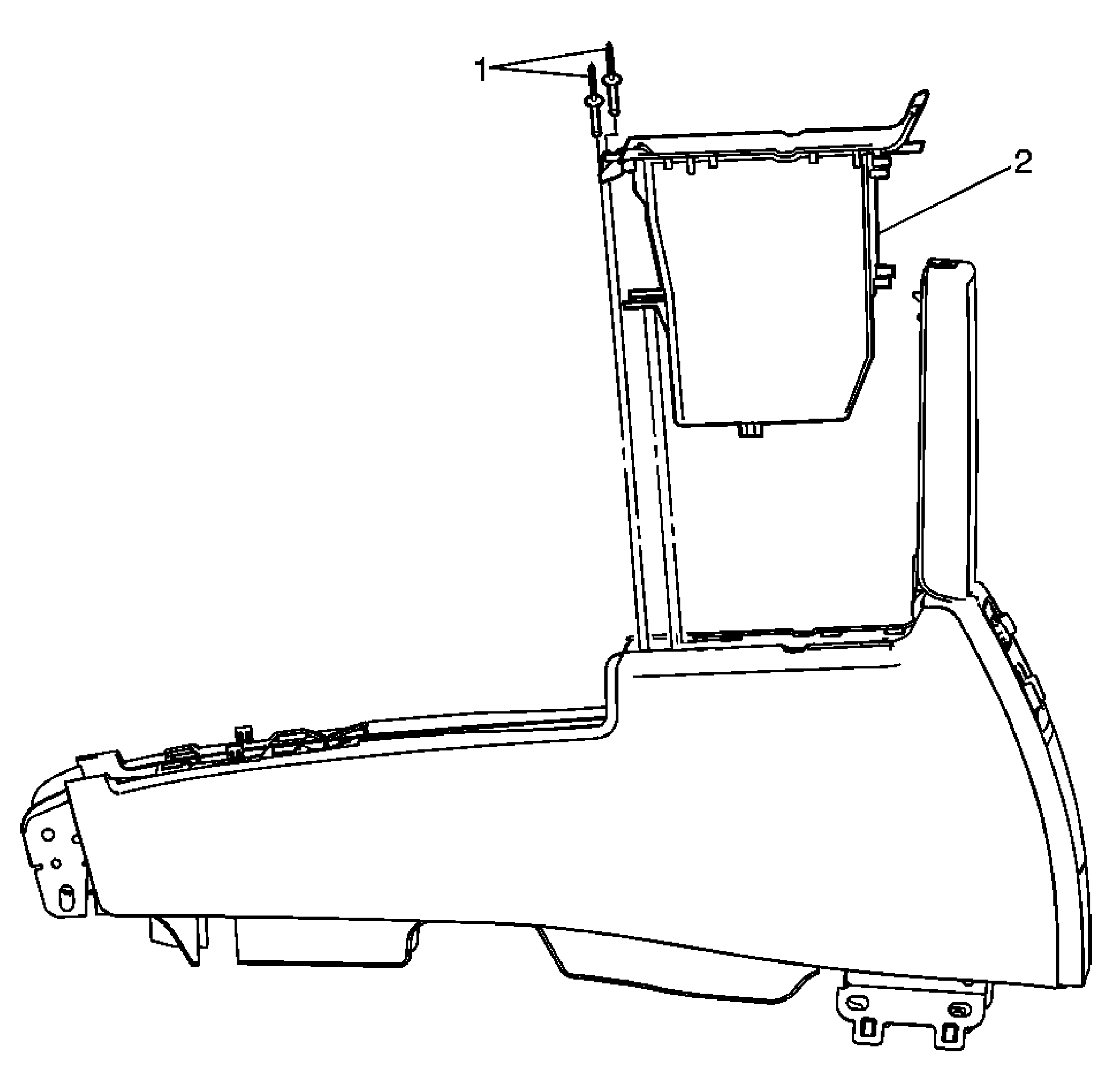

Fig 1: Front Floor Console Armrest Storage Tray

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement Remove the front floor console cup holder. Refer to Front Floor Console Cup Holder Replacement .
1	Front Floor Console Armrest Storage Tray Rivet (Qty: 2) WARNING: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
2	Front Floor Console Armrest Storage Tray Assembly Procedure Disconnect the electrical connections. When replacing the front floor console armrest storage tray assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedure

Remove the front floor console. Refer to Front Floor Console Replacement
Remove the front floor console cup holder. Refer to Front Floor Console Cup Holder Replacement .

Front Floor Console Armrest Storage Tray Rivet (Qty: 2)

WARNING: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.

Front Floor Console Armrest Storage Tray Assembly

Procedure

Disconnect the electrical connections.
When replacing the front floor console armrest storage tray assembly, transfer all necessary components.
