Removal Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console end panel. Refer to Center Console End Panel Replacement .

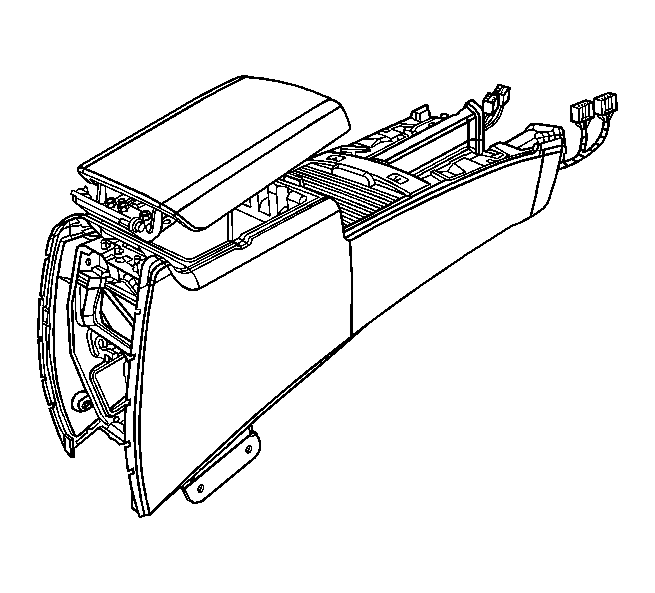

    2. Fig 1: Front Floor Console Armrest
    GM1448083Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 outer bolts and loosen the 2 inner bolts securing the armrest assembly to the console.
  3. Slide the armrest out in order to remove it.
