Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

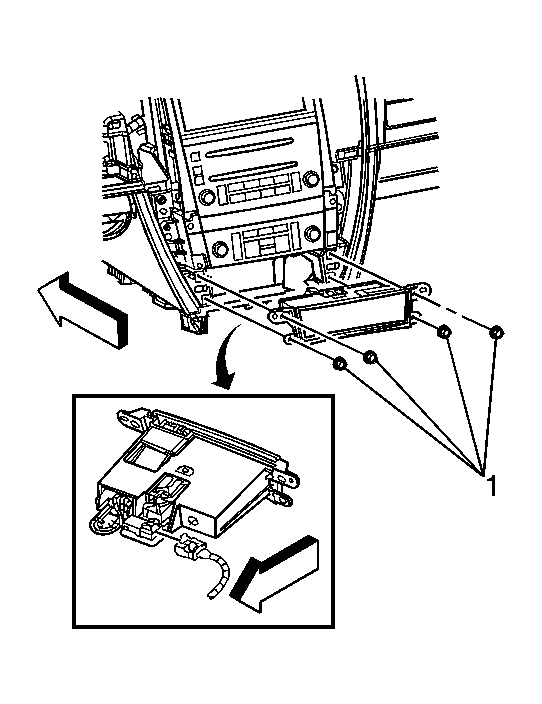

    Fig 1: Ashtray, Screws & Electrical Connectors
    GM1386027Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the 4 screws (1) securing the ashtray and tighten to 9 N.m (80 lb in).
  3. Install the center instrument panel trim. Refer to Instrument Panel Center Trim Panel Replacement .
