Engine Controls Schematics

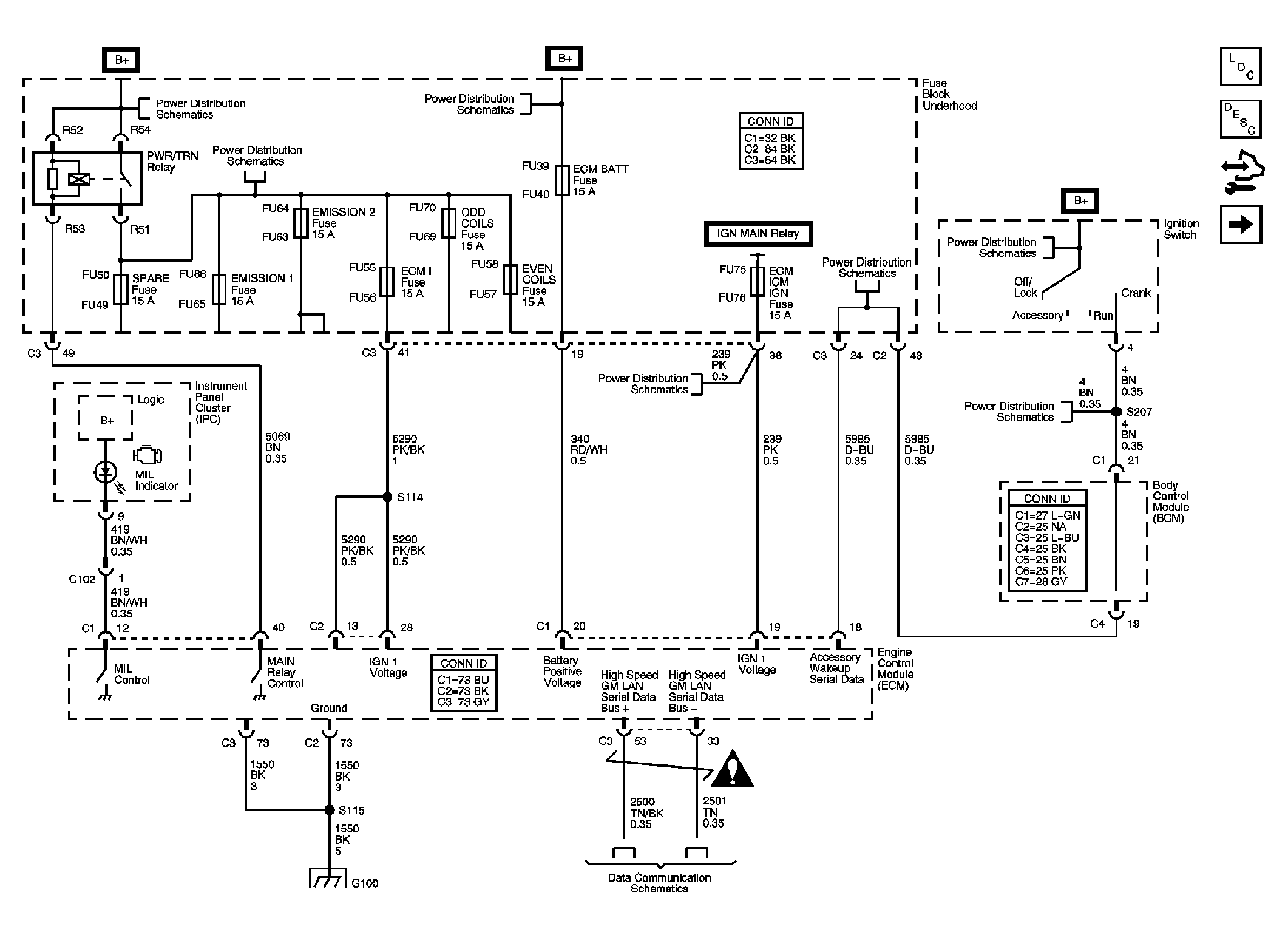

Fig 1: Power, Ground, Serial Data & MIL

Courtesy of GENERAL MOTORS CORP.

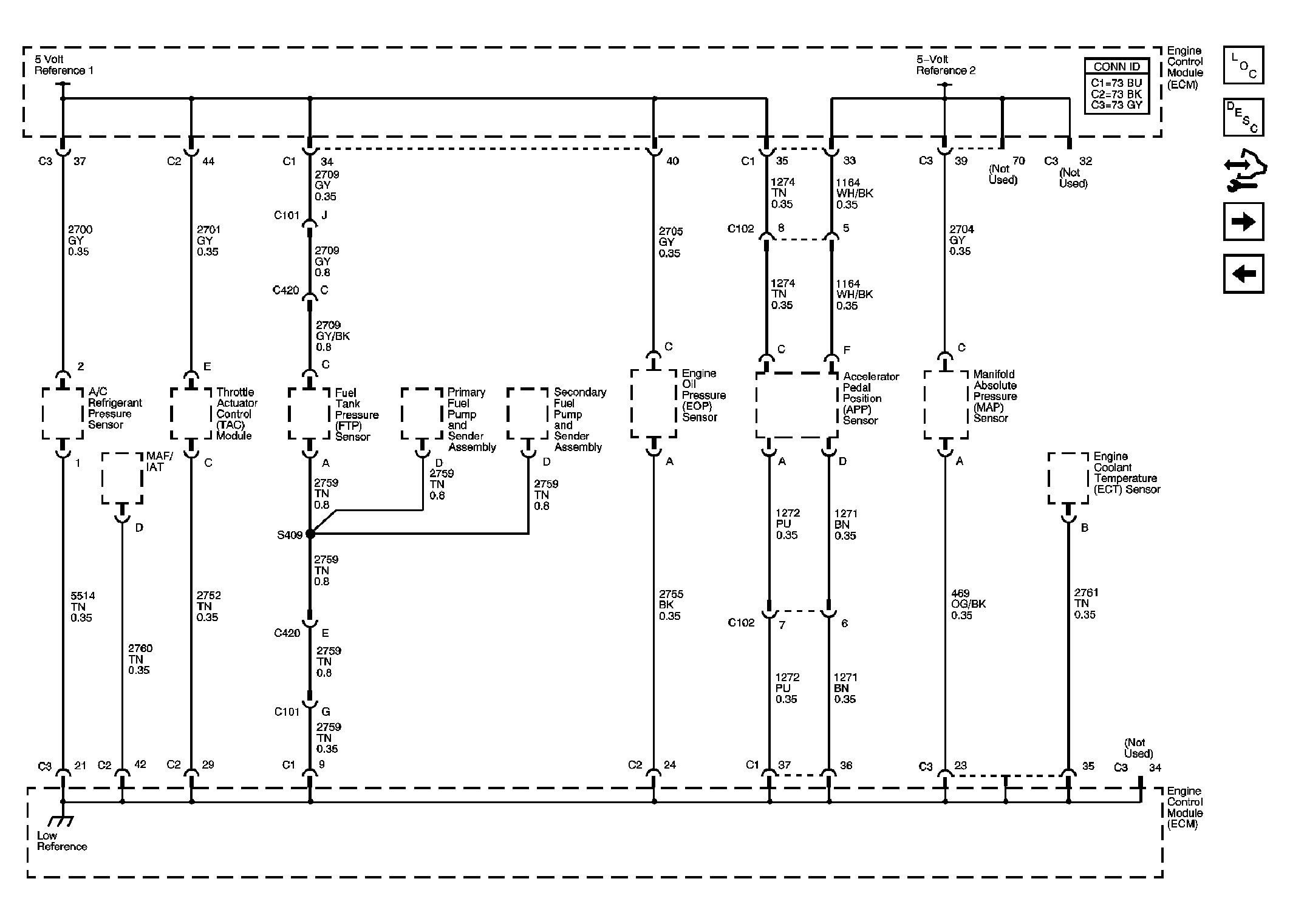

Fig 2: Engine Data Sensors - 5-Volt & Low References

Courtesy of GENERAL MOTORS CORP.

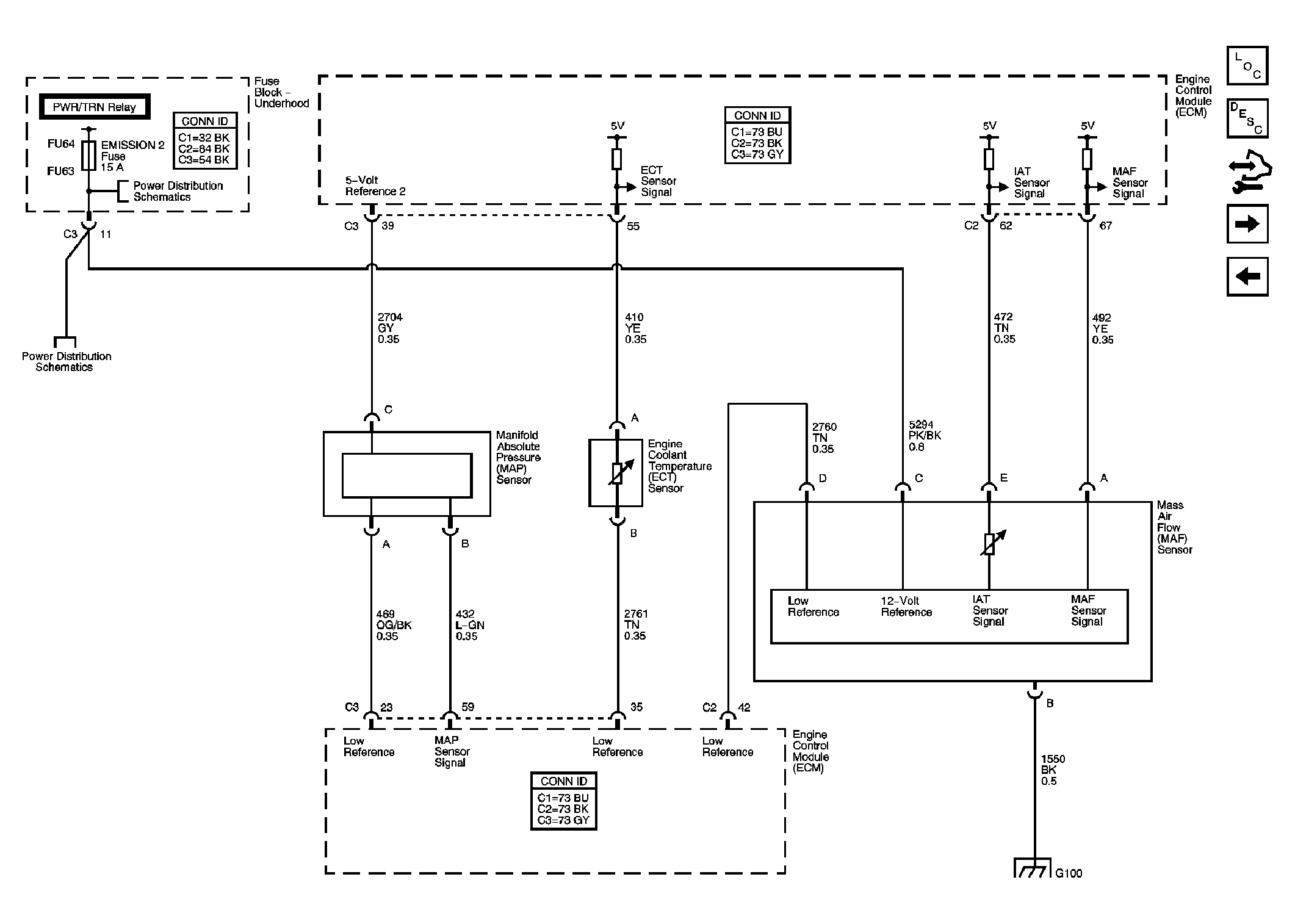

Fig 3: Engine Data Sensors - MAF, MAP & ECT Sensor

Courtesy of GENERAL MOTORS CORP.

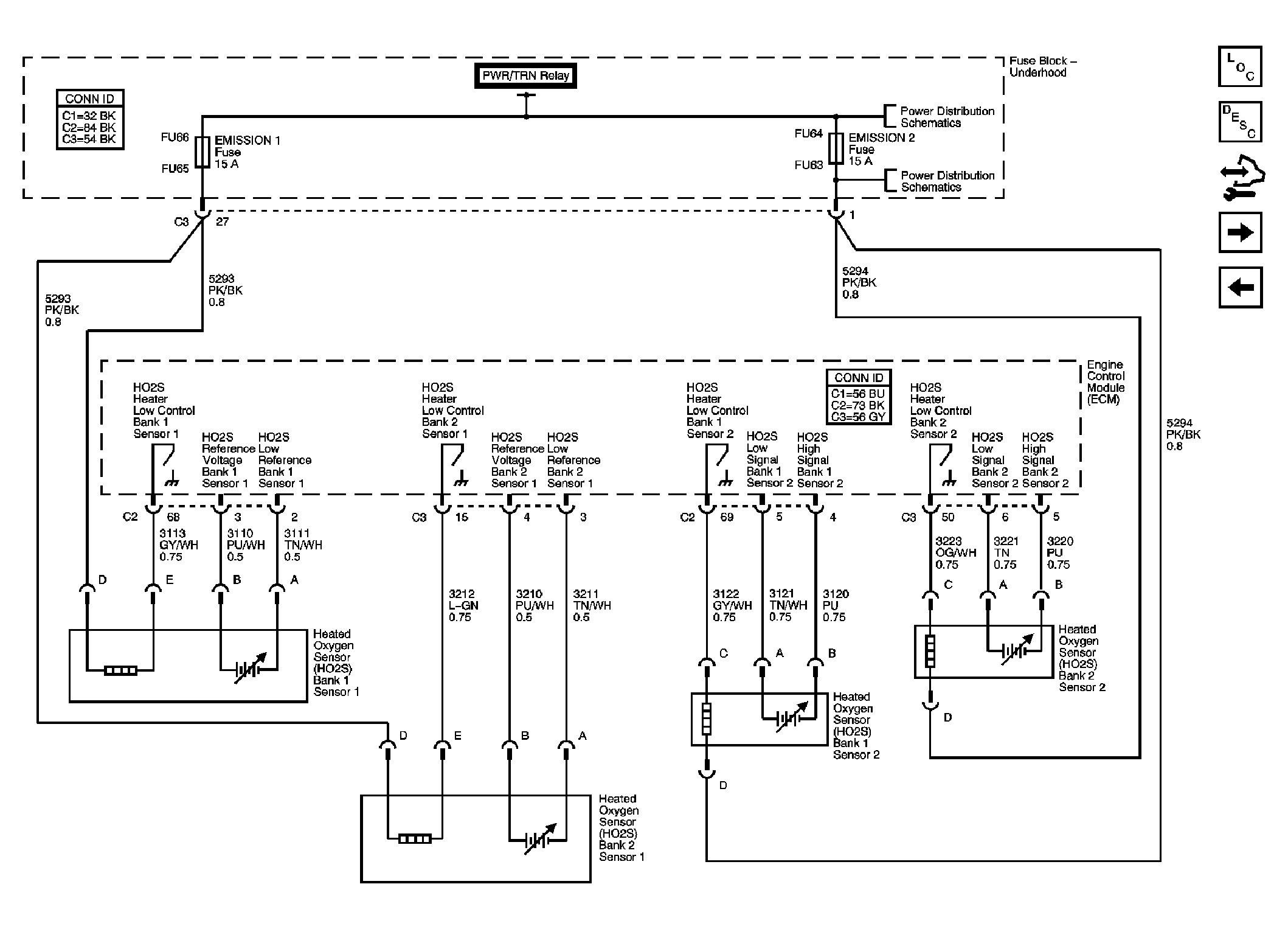

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

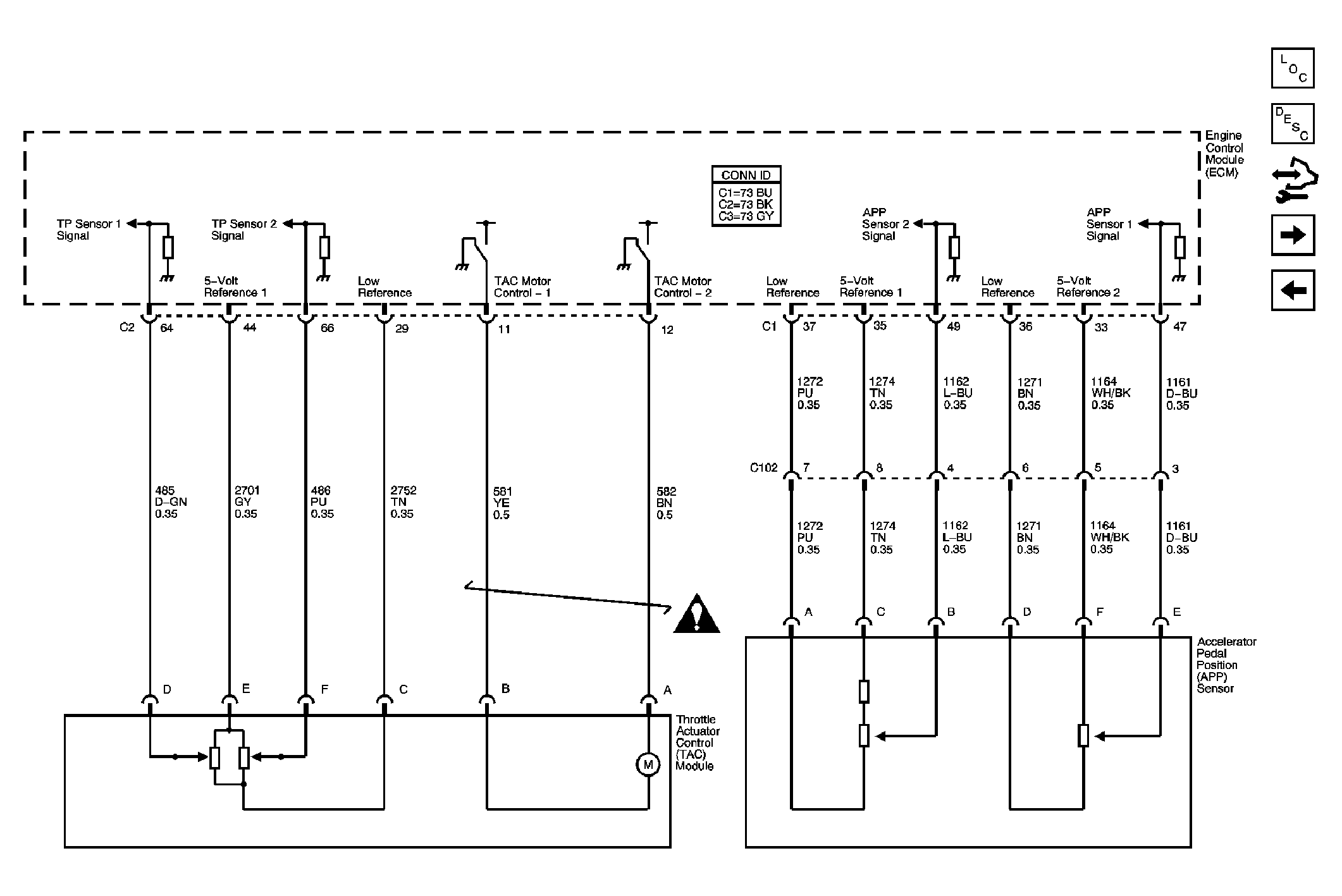

Fig 5: Engine Data Sensors - Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

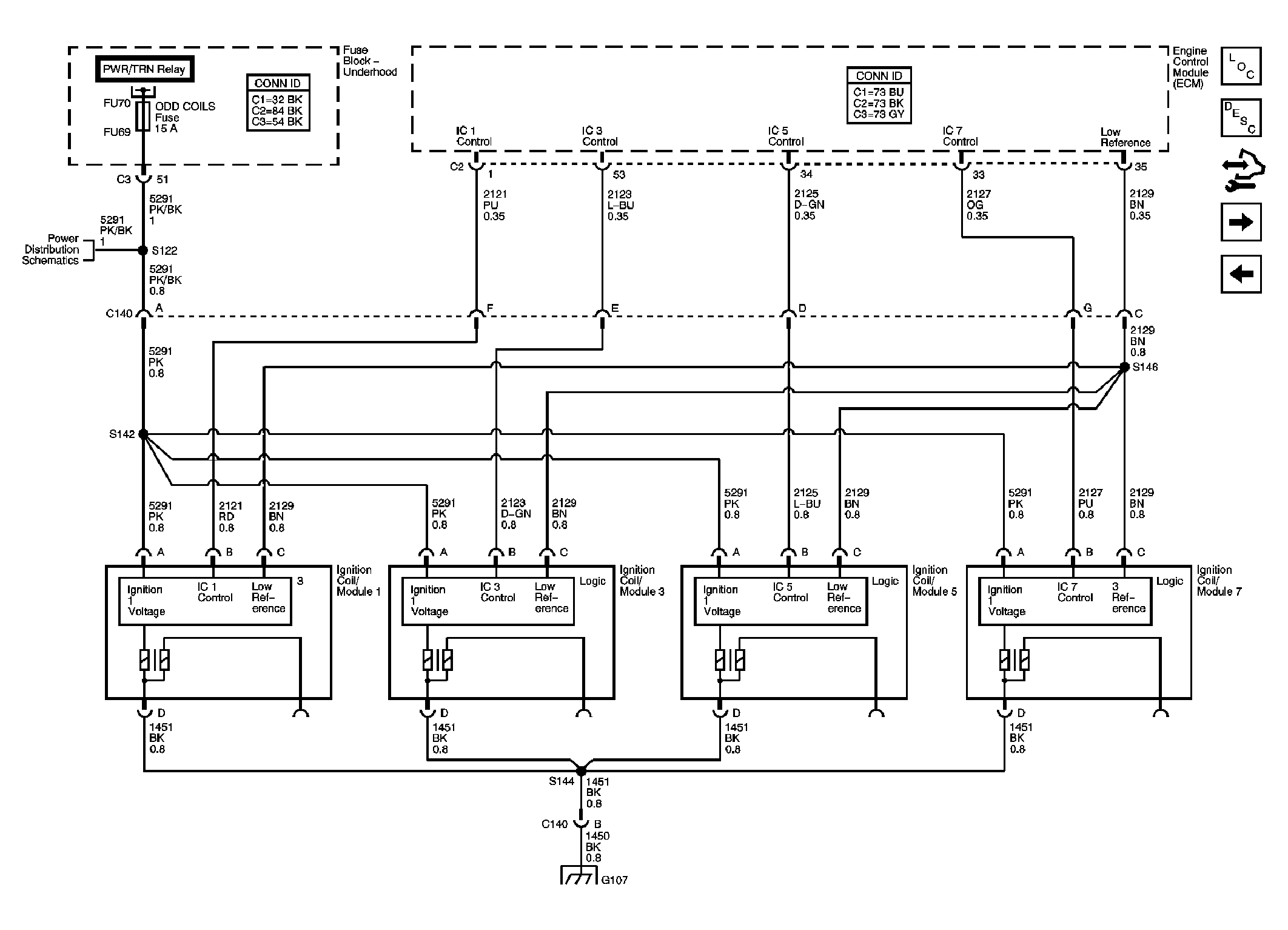

Fig 6: Ignition Controls - Bank 1 Ignition Coils

Courtesy of GENERAL MOTORS CORP.

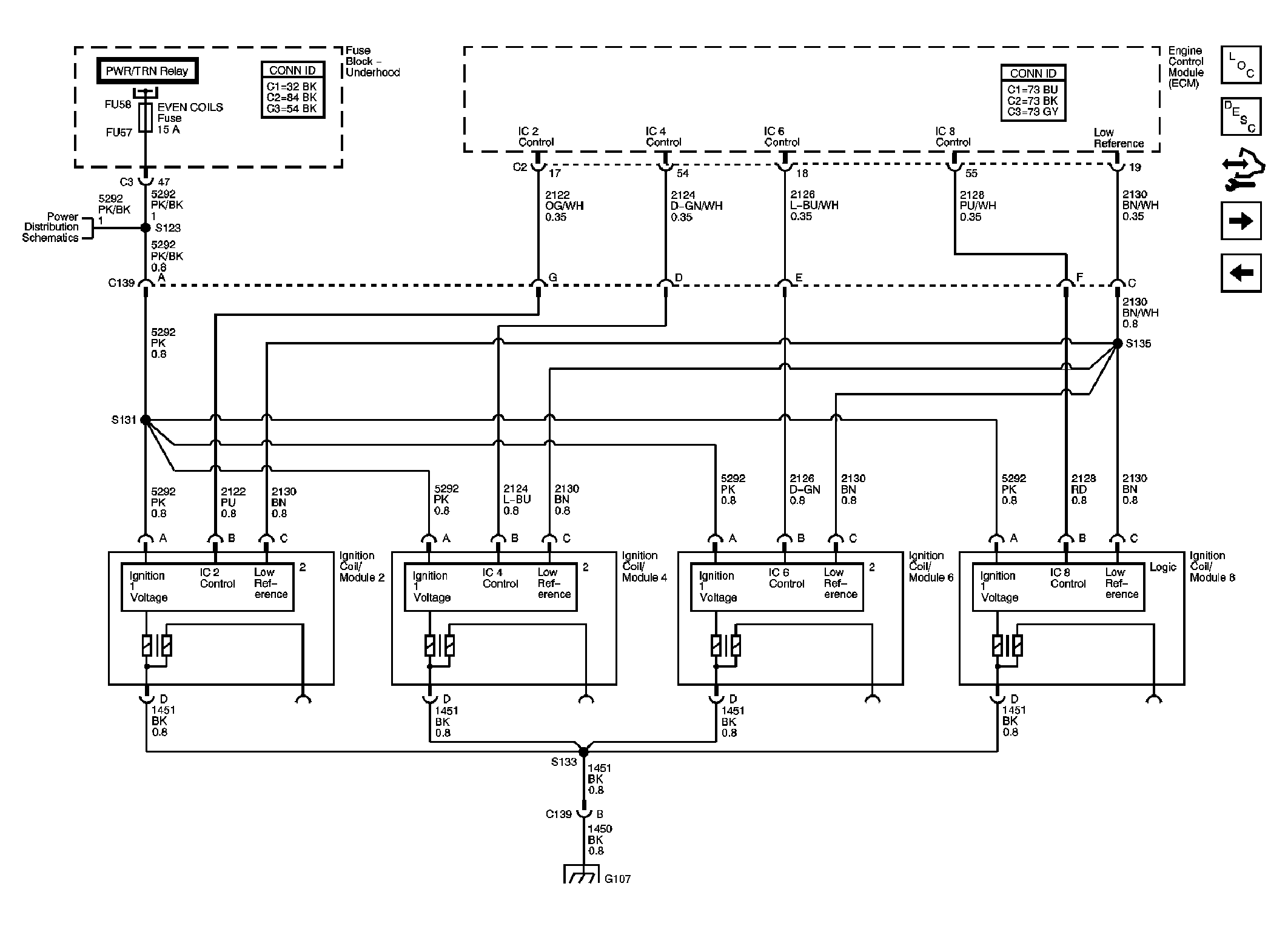

Fig 7: Ignition Controls - Bank 2 Ignition Coils

Courtesy of GENERAL MOTORS CORP.

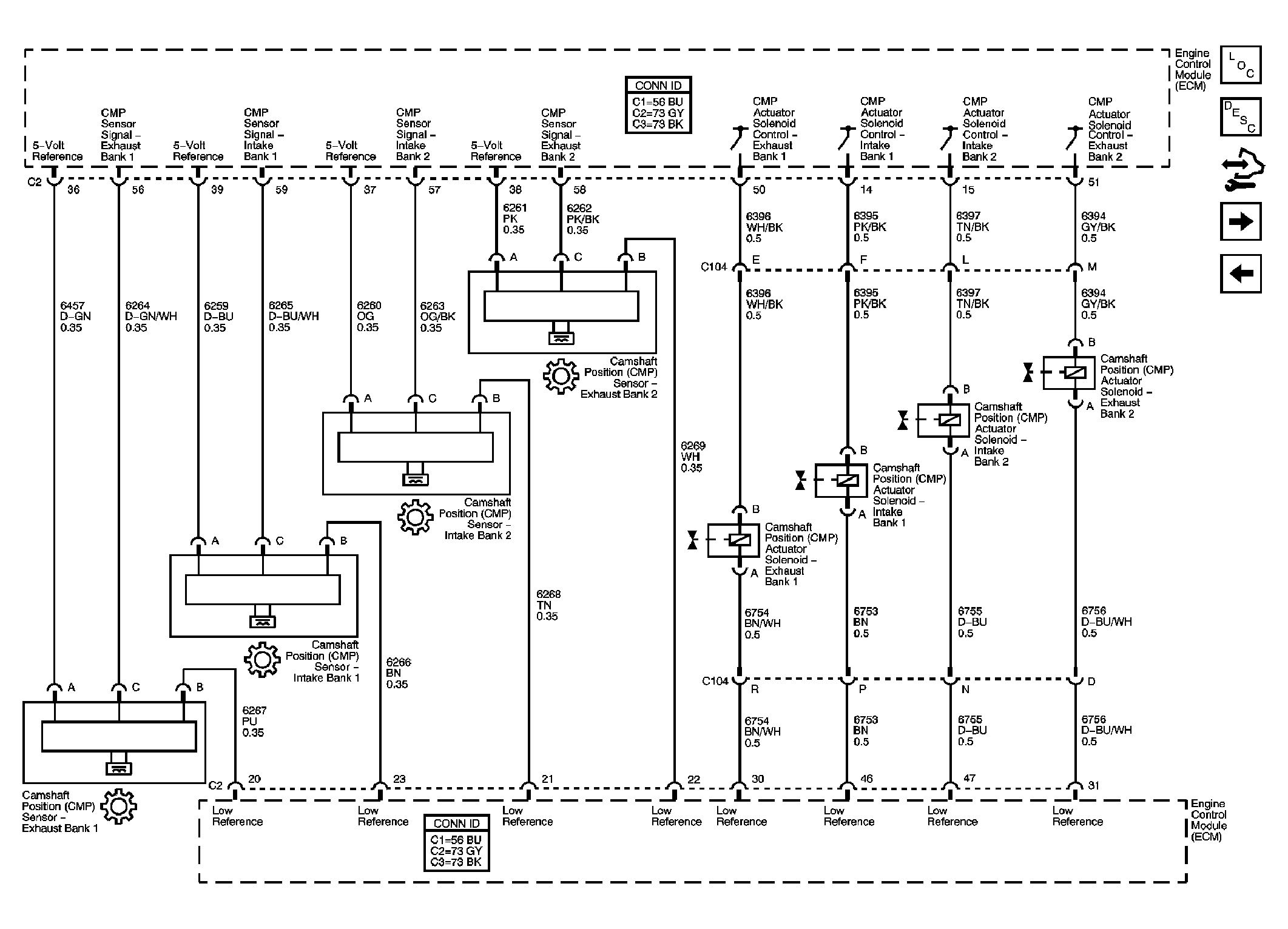

Fig 8: Ignition Controls - CMP Sensors & Solenoids

Courtesy of GENERAL MOTORS CORP.

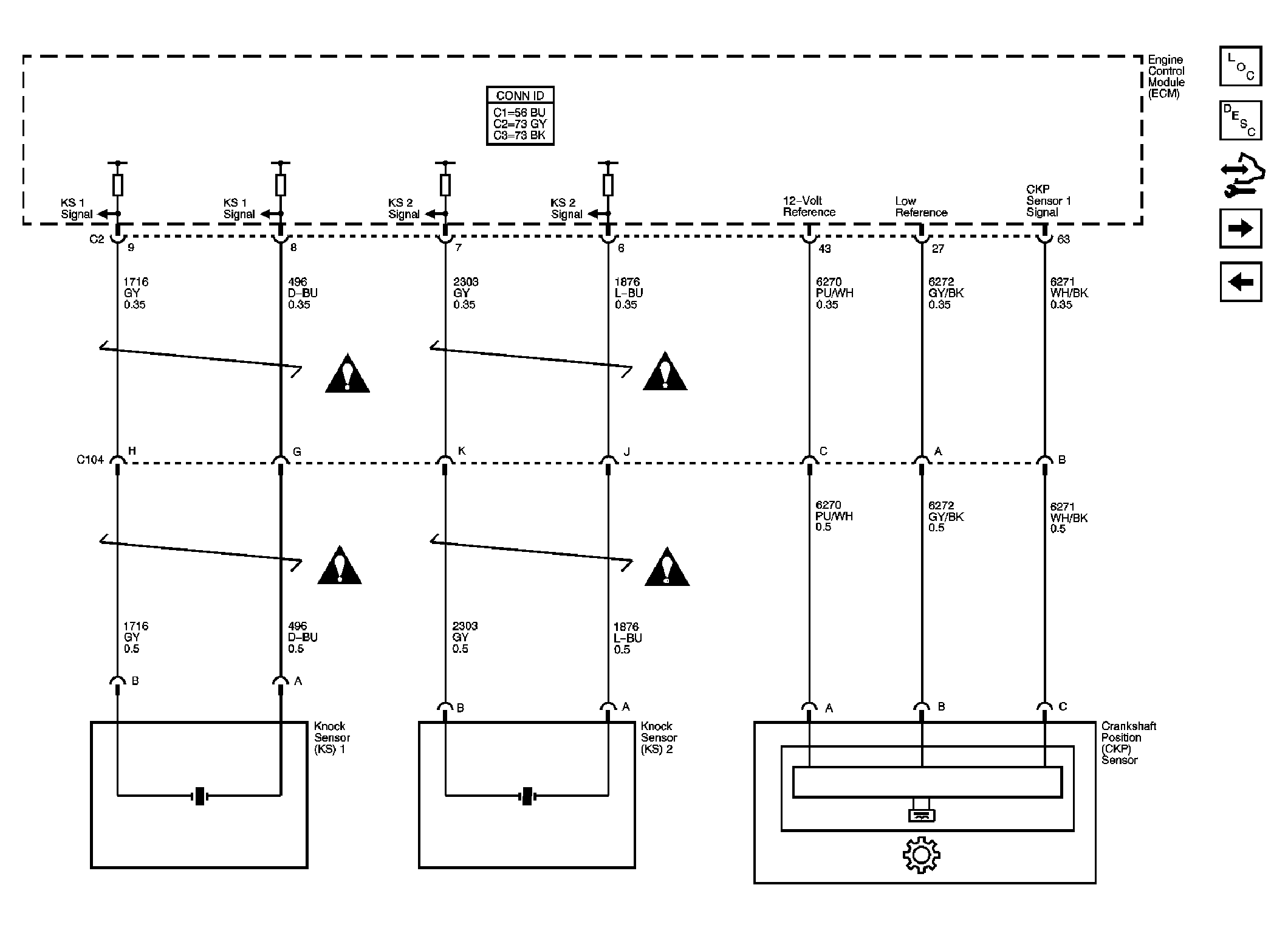

Fig 9: Ignition Controls - CKP & Knock Sensors

Courtesy of GENERAL MOTORS CORP.

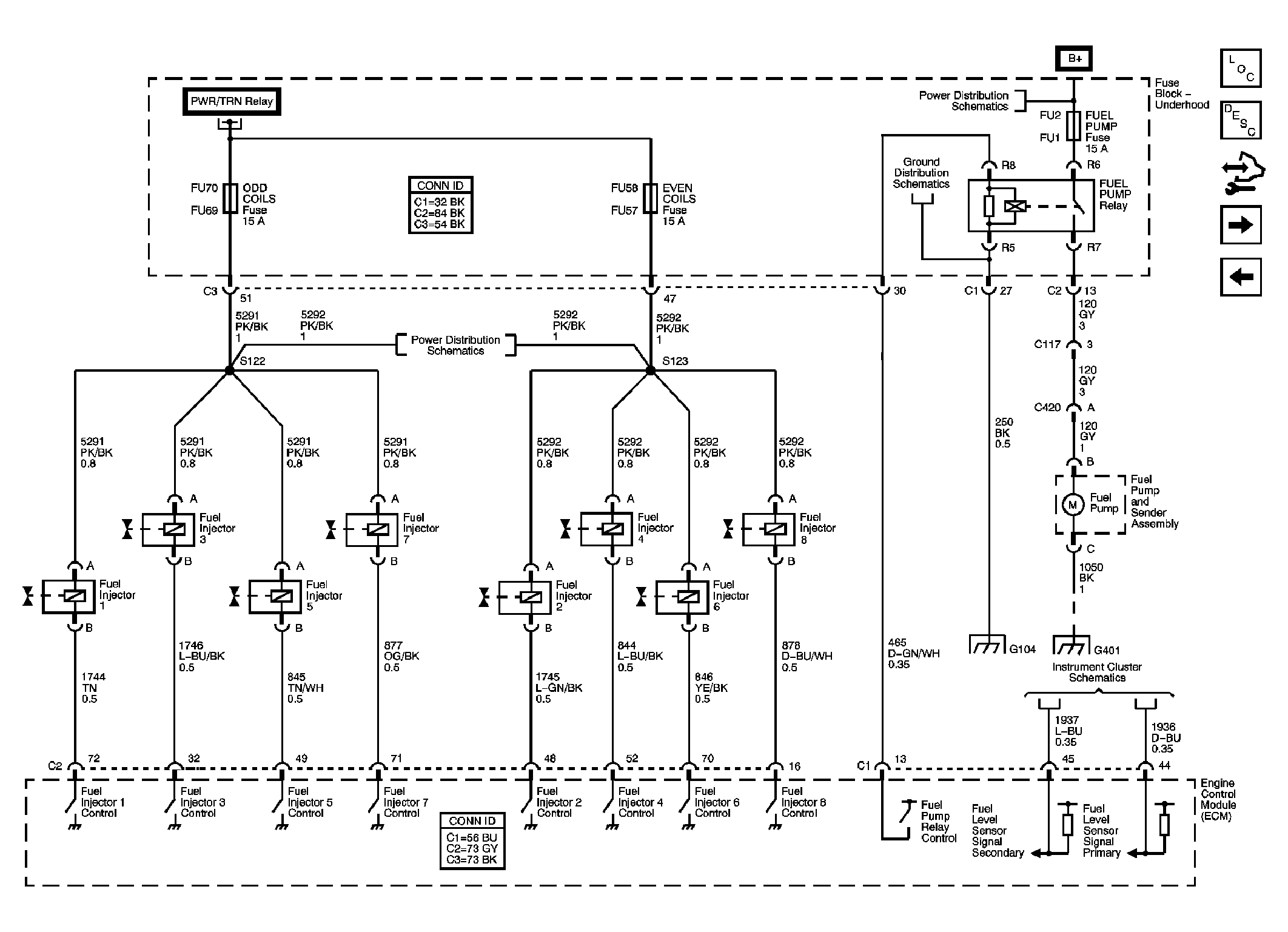

Fig 10: Fuel Controls - Fuel Pump & Injectors

Courtesy of GENERAL MOTORS CORP.

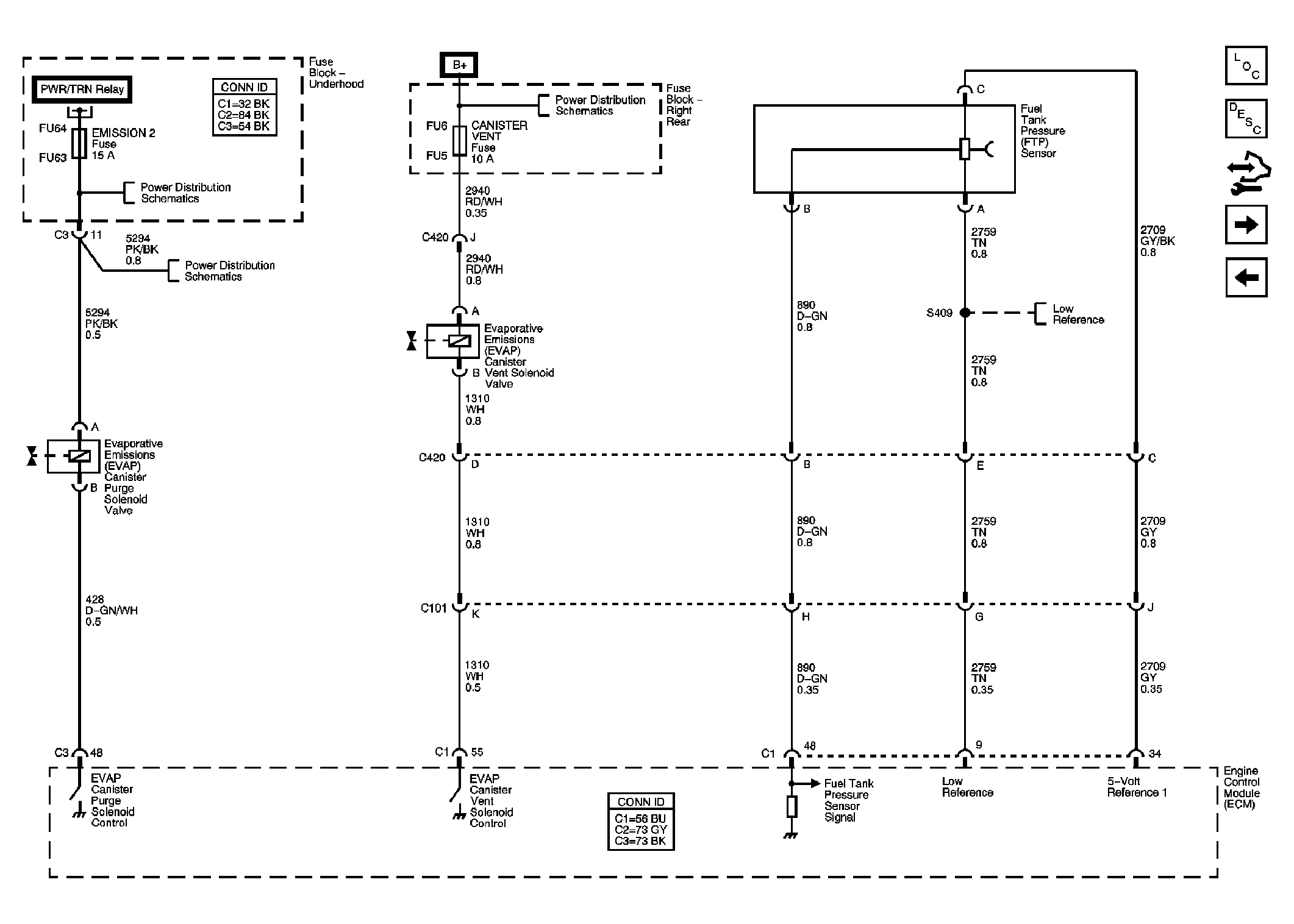

Fig 11: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

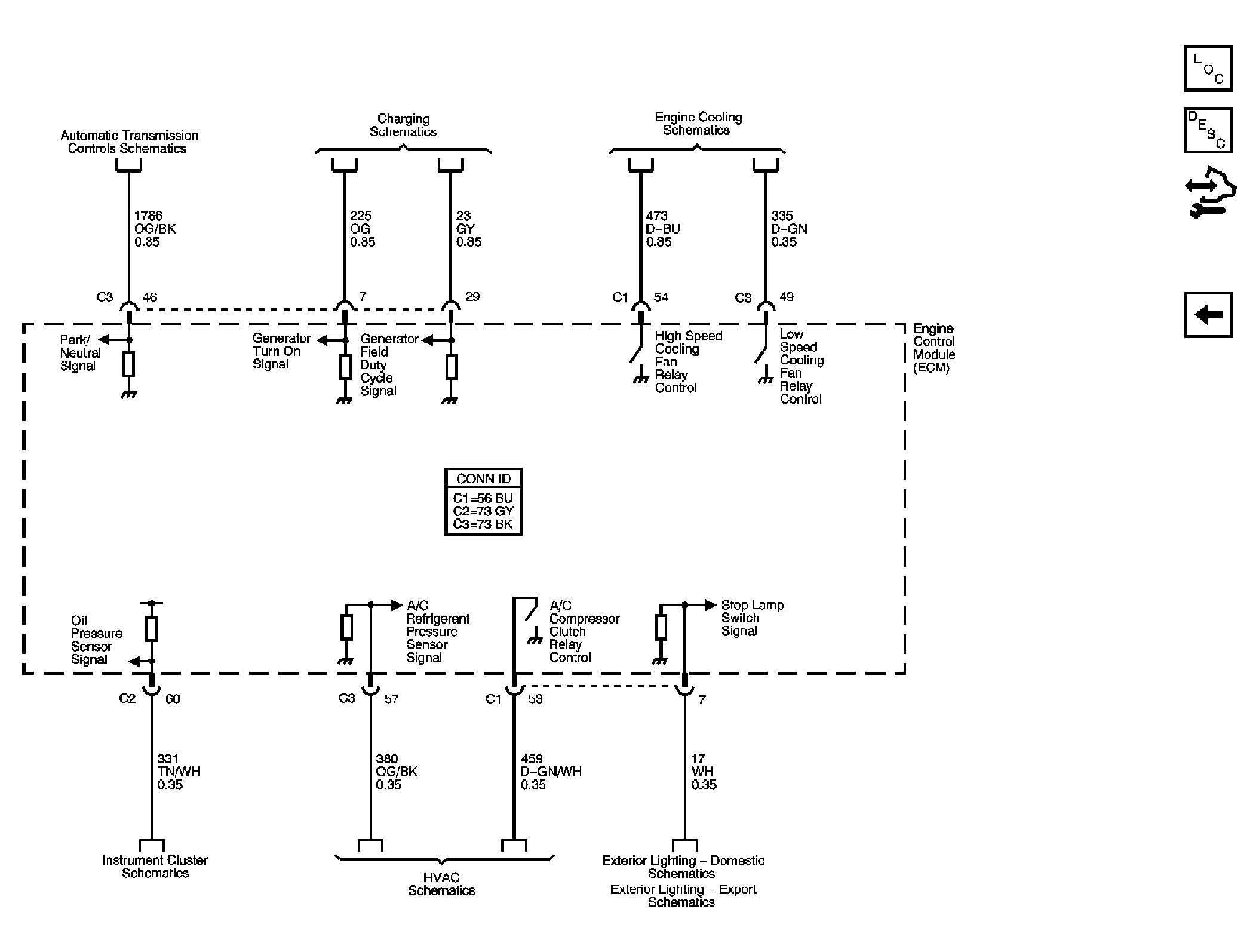

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
