Power Moding Schematics

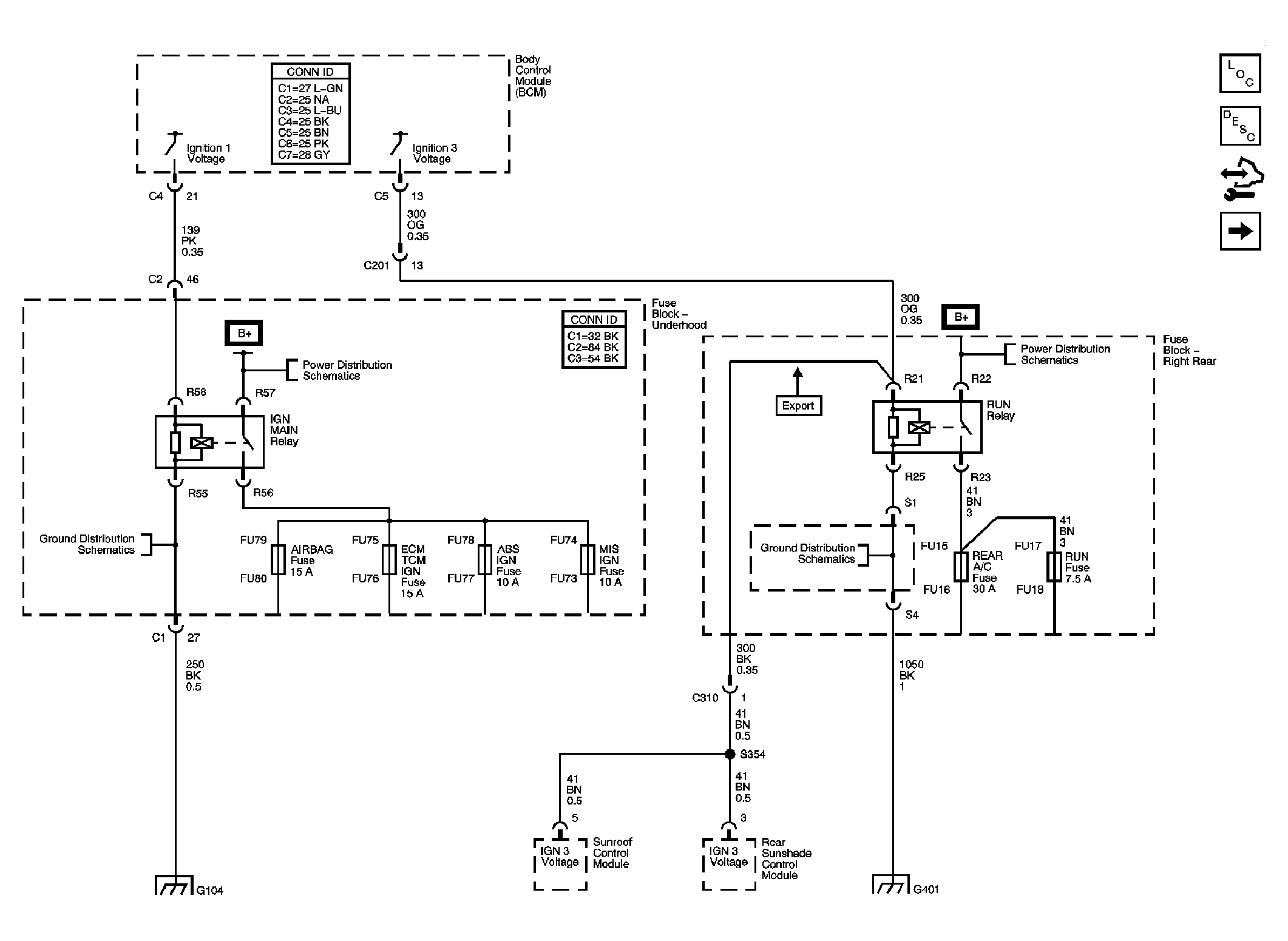

Fig 1: Ignition Power Modes - RUN Schematic

GM1826338

Courtesy of GENERAL MOTORS CORP.

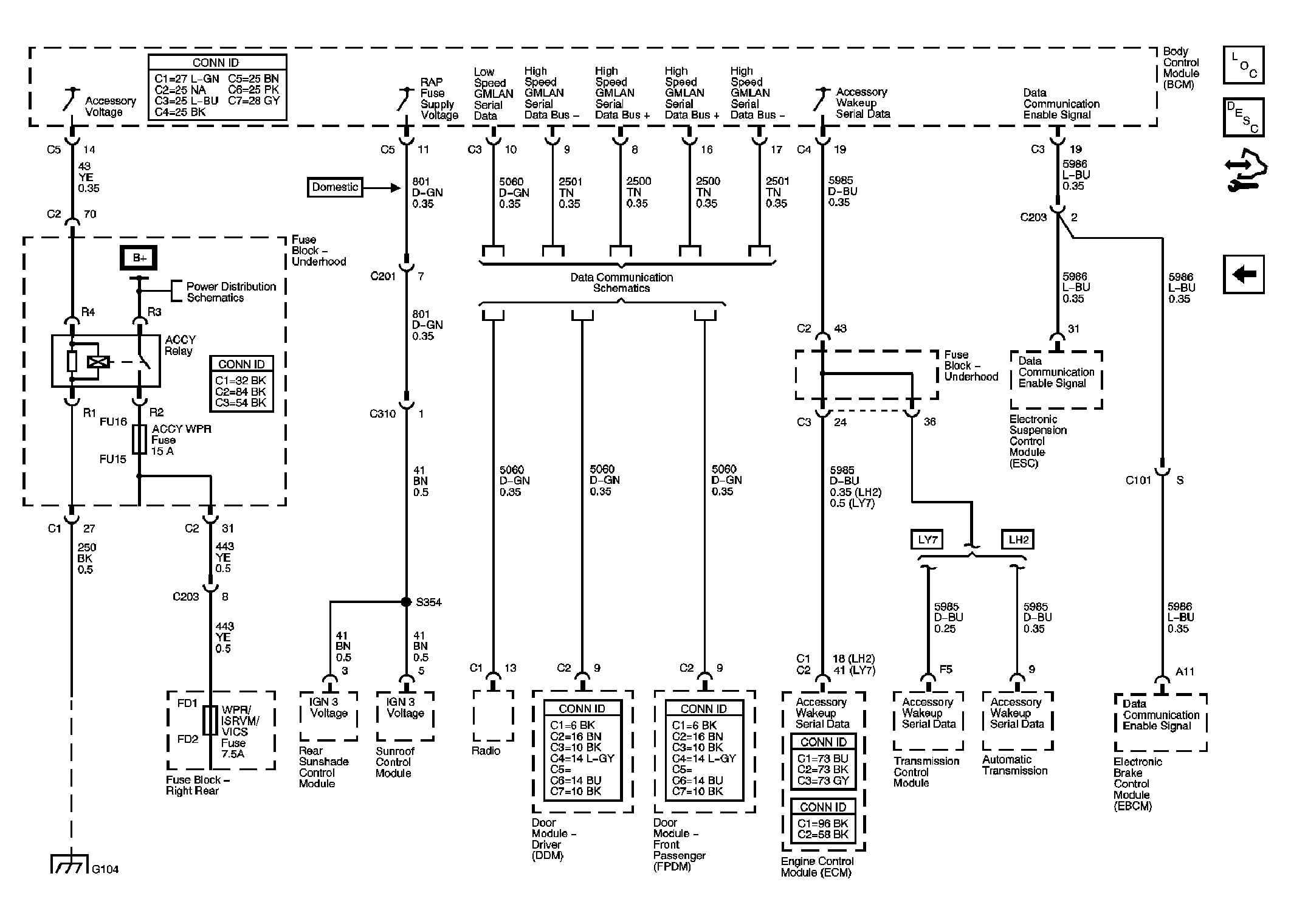

Fig 2: Power Modes - ACCY and RAP Schematic

GM1826341

Courtesy of GENERAL MOTORS CORP.
