Remote Control Door Lock Receiver Antenna Replacement (Except Avalanche/Escalade EXT)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

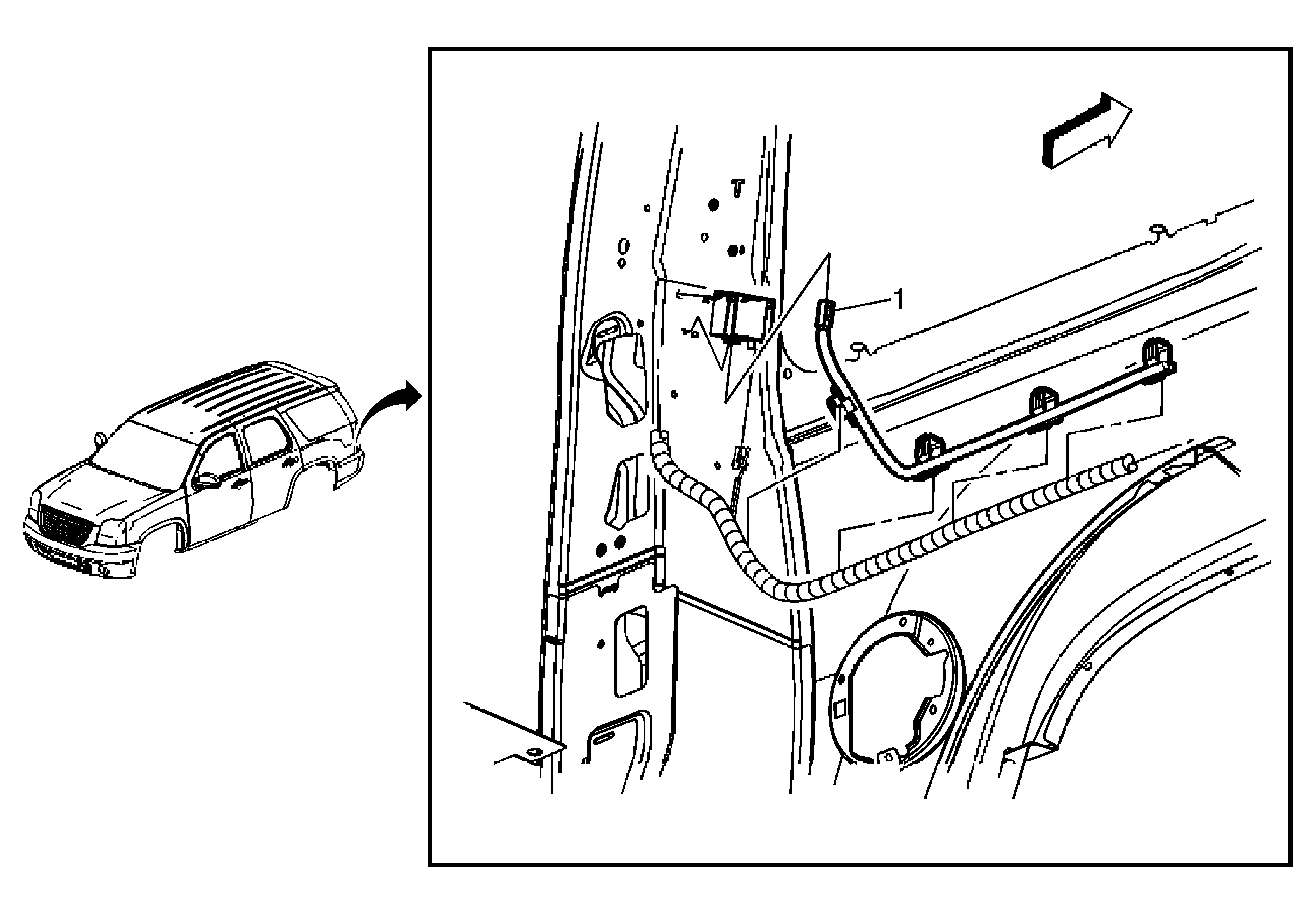

Fig 1: Remote Control Door Lock Receiver Antenna (Except Avalanche/Escalade EXT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the back rear corner upper garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the remote control door lock receiver. Note the routing of the antenna.

Callout

Component Name

Preliminary Procedure
Remove the back rear corner upper garnish molding. Refer to Body Rear Corner Garnish Molding Replacement - Left Side (With E61) , Body Rear Corner Garnish Molding Replacement - Left Side (Without E61) .

Remote Control Door Lock Receiver Antenna

Procedure

Disconnect the antenna from the remote control door lock receiver.
Note the routing of the antenna.
