Seat Lumbar Sub System Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

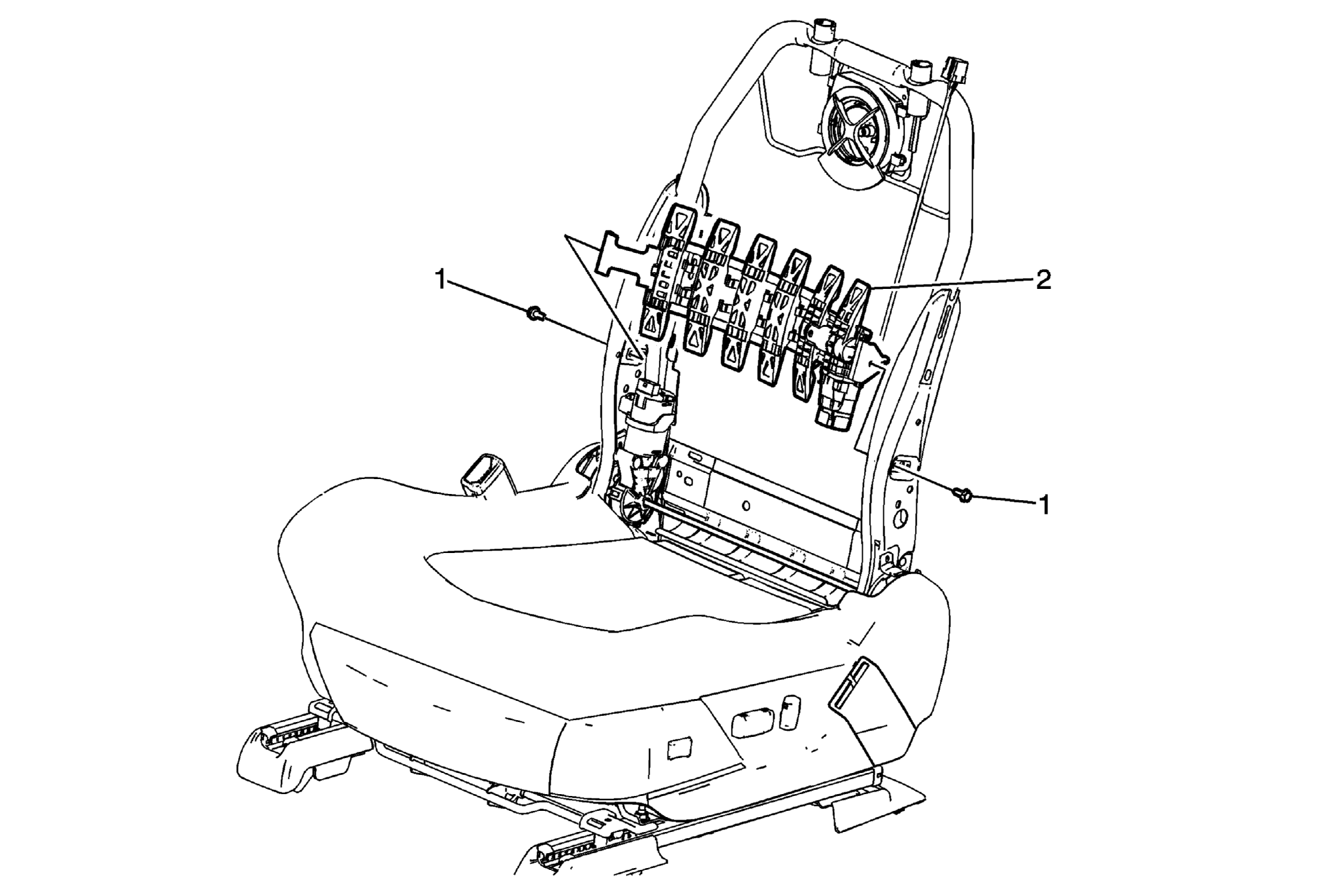

Fig 1: Seat Lumbar Sub System Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement . Remove the inflatable restraint side impact module. Refer to Inflatable Restraint Side Impact Module Replacement - Front .
1	Front Seat Lumbar Subsystem Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Front Seat Lumbar Subsystem Procedure Disconnect the electrical connector. Note the routing of the electrical harness for installation.

Callout

Component Name

Preliminary Procedure

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
Remove the inflatable restraint side impact module. Refer to Inflatable Restraint Side Impact Module Replacement - Front .

Front Seat Lumbar Subsystem Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Front Seat Lumbar Subsystem

Procedure

Disconnect the electrical connector.
Note the routing of the electrical harness for installation.
