Power Moding Schematics

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

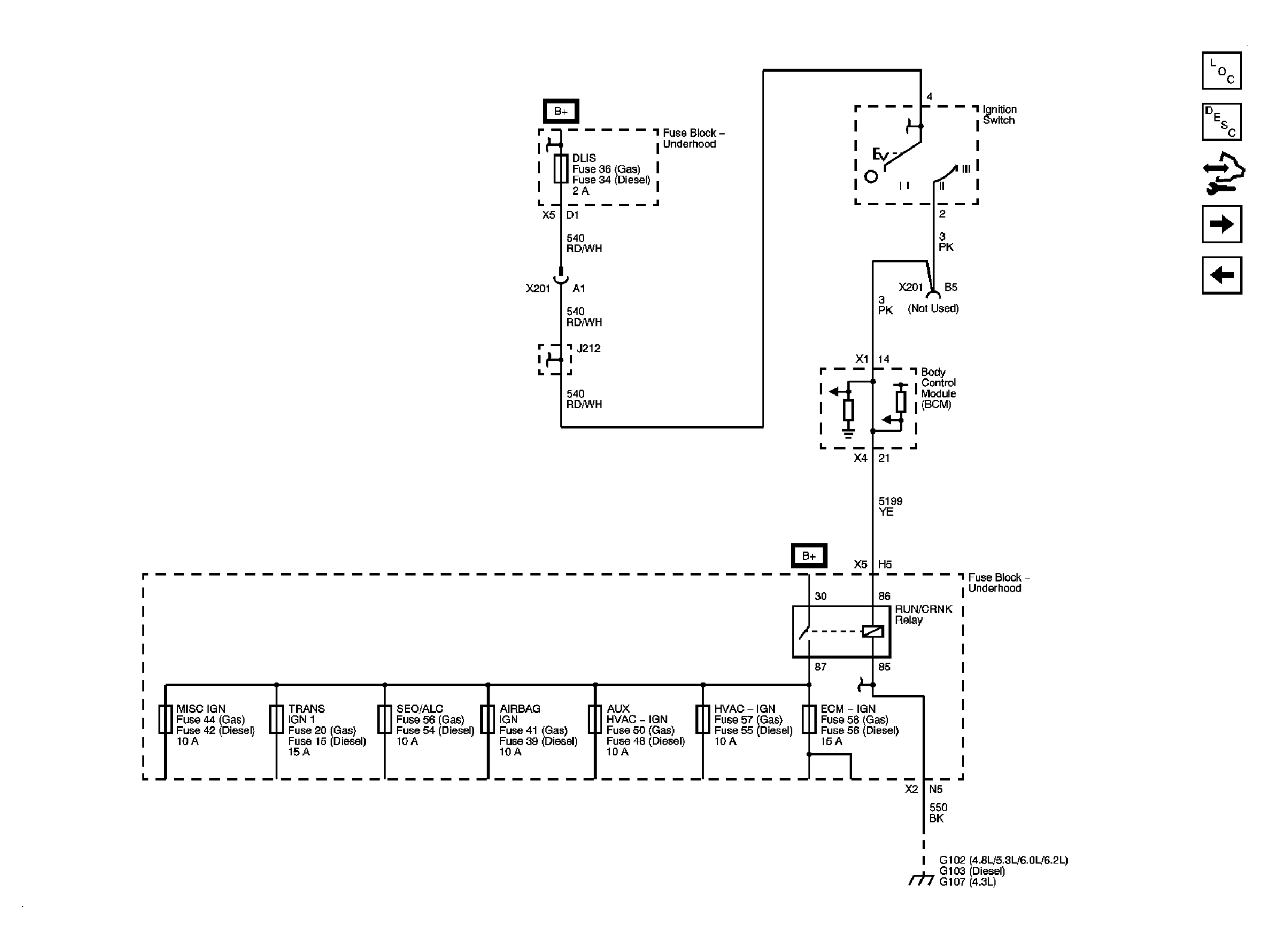

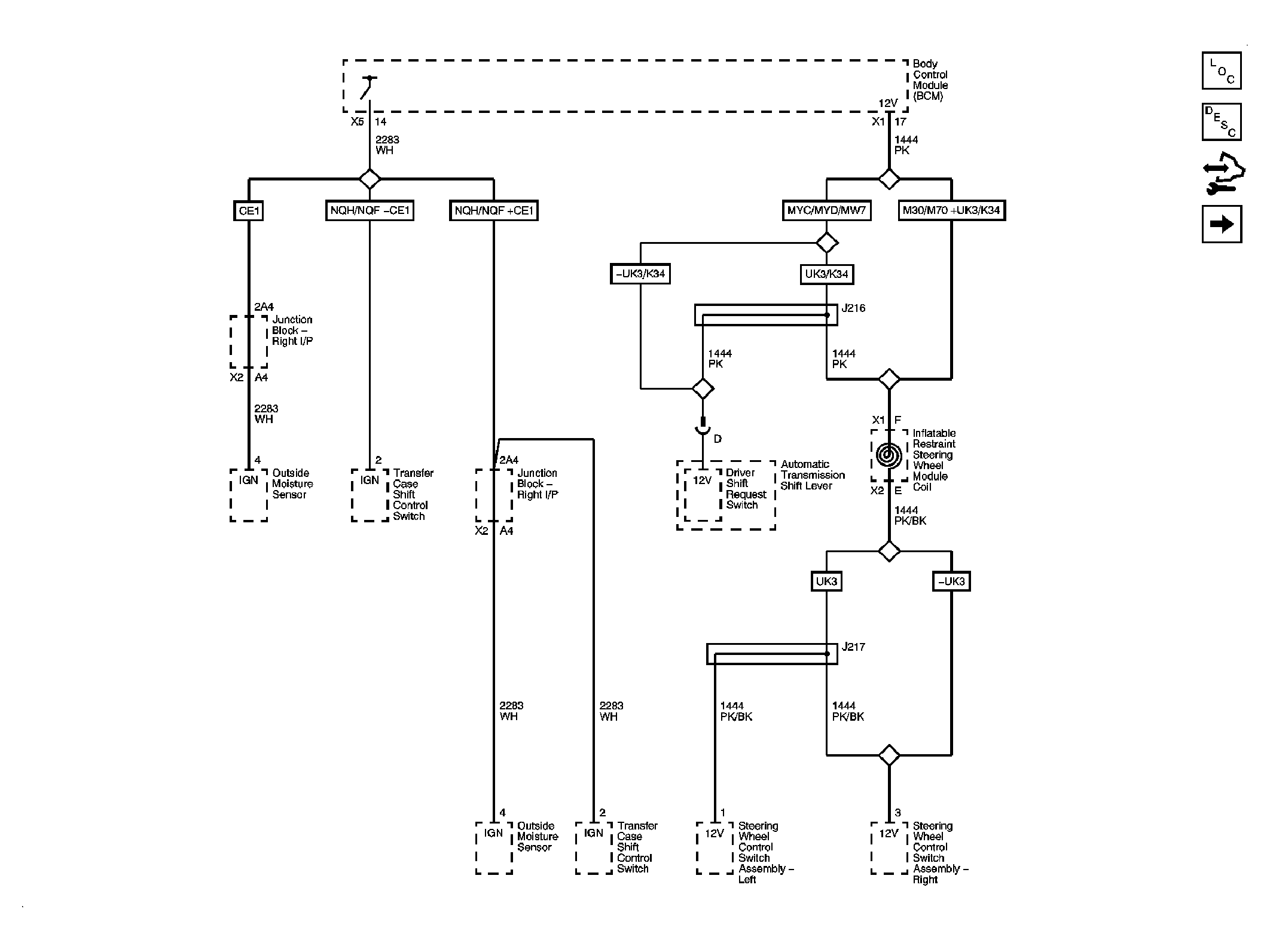

Fig 1: Ignition I Voltage and 12-Volt Reference

Courtesy of GENERAL MOTORS CORP.

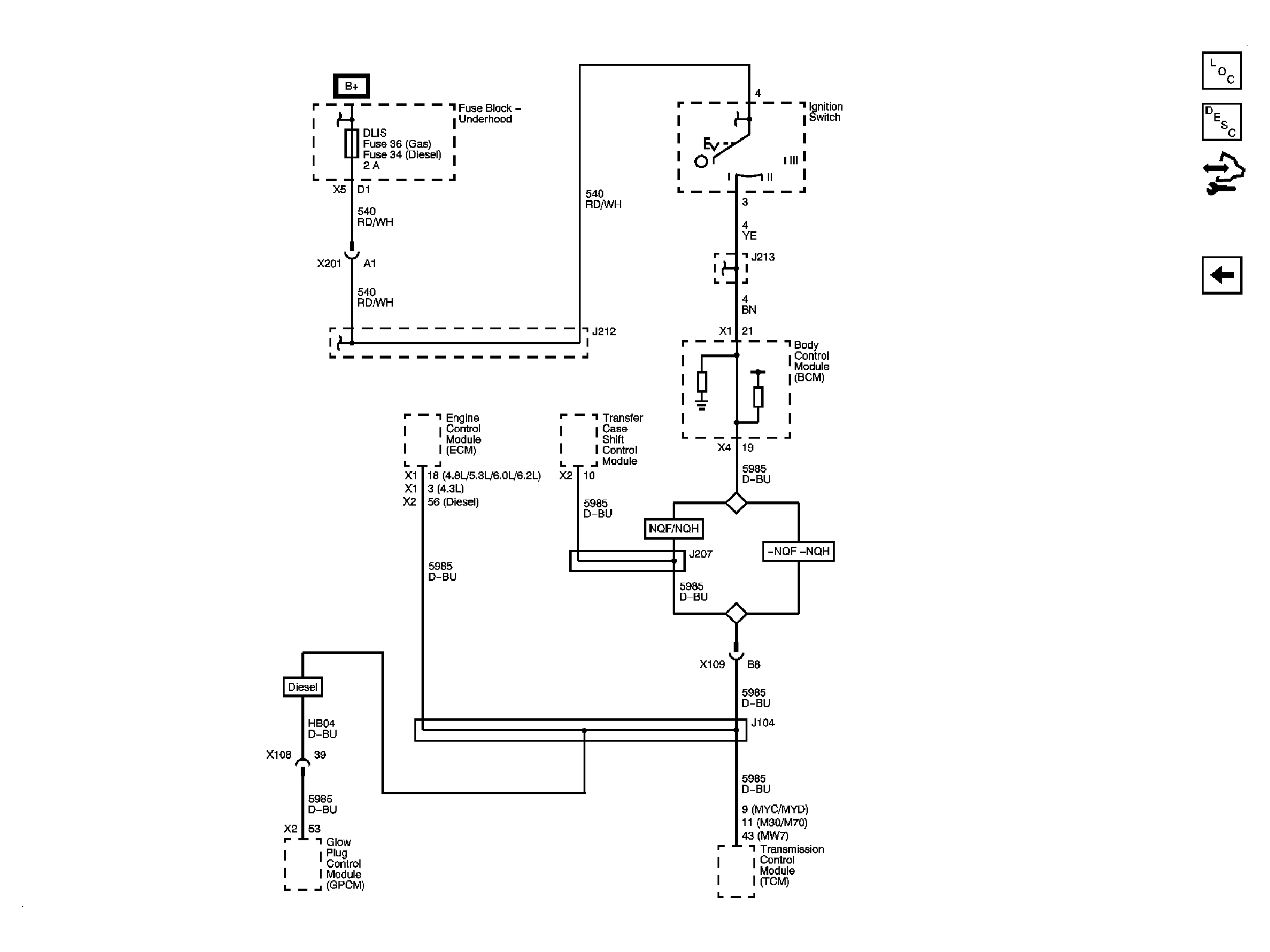

Fig 2: Ignition II/III Voltage

Courtesy of GENERAL MOTORS CORP.

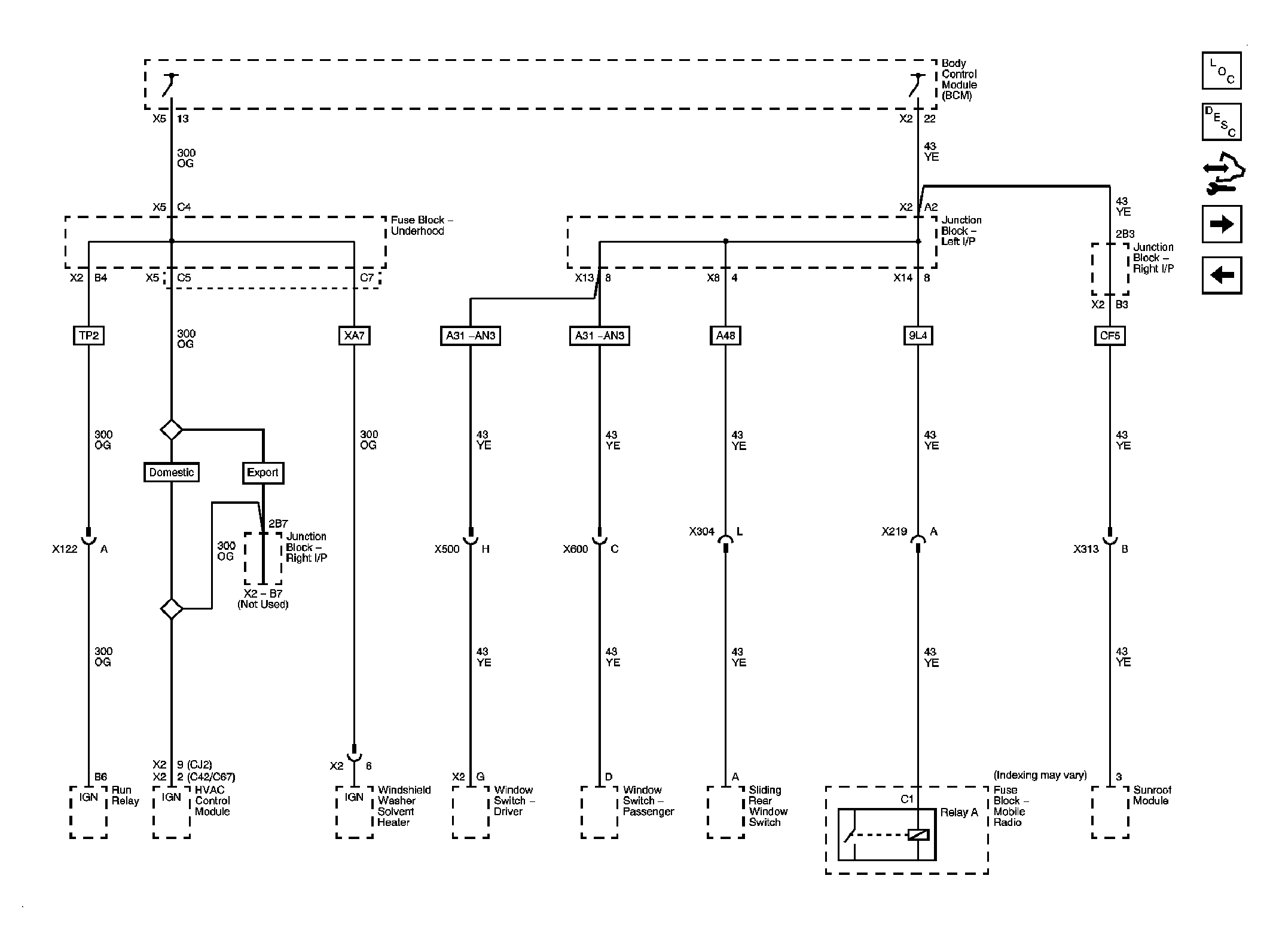

Fig 3: Ignition III Voltage and Accessory Voltage

Courtesy of GENERAL MOTORS CORP.

Fig 4: Serial Data Communication Enable

Courtesy of GENERAL MOTORS CORP.

Fig 5: Accessory Wakeup Serial Data

Courtesy of GENERAL MOTORS CORP.
